bitumen production line SBS membrane building material production line
- Category: >>>
- Supplier: Changzhou Benefit Waterproof Equipment Co. Ltd.
Share on (62103679833):
Product Overview
Description

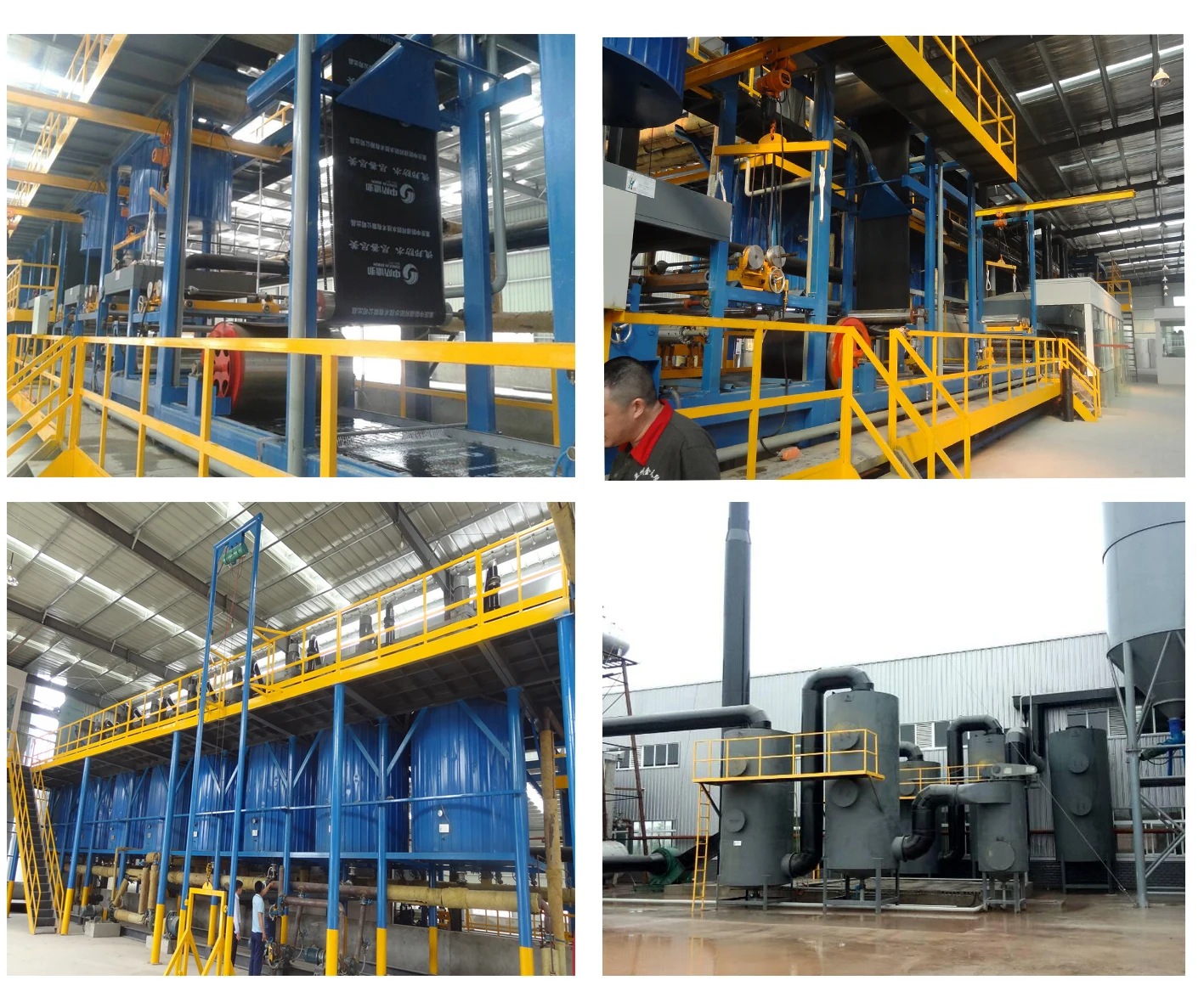

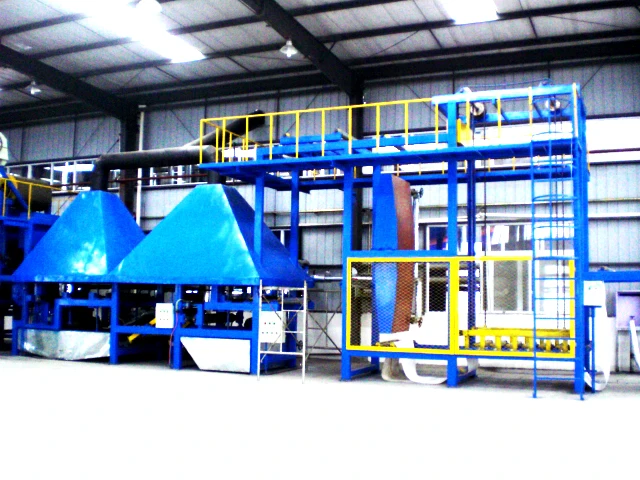

Bitumen production line/SBS membrane plant/ building material production line

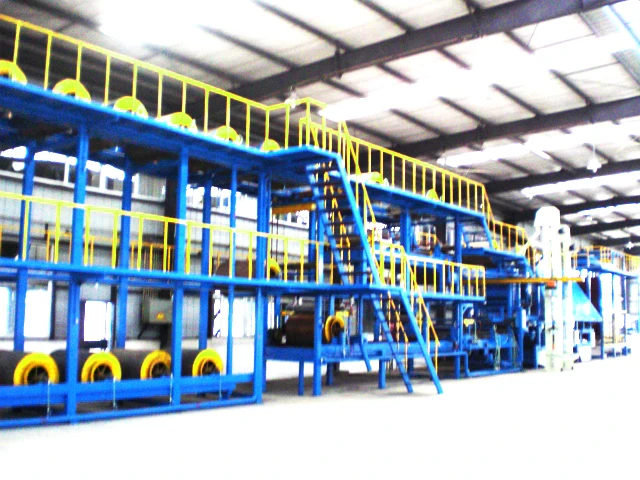

Production line parts
1. Reinforcement unfolding device
2. Reinforcement connecting device
3.Reinforcement storage device
4. Reinforcement drying device
5. Auto rectifying device
6.Three roller prepreg device
7. Asphalt coating device
8. Sand-scattering device
9. Film device
10. Filming and thickness-measuring device
11. Sand-pressing with suspending device
12. Cooling and embossing device
13. Finished products storage device
14. Traction-spring device
15. Auto winder device

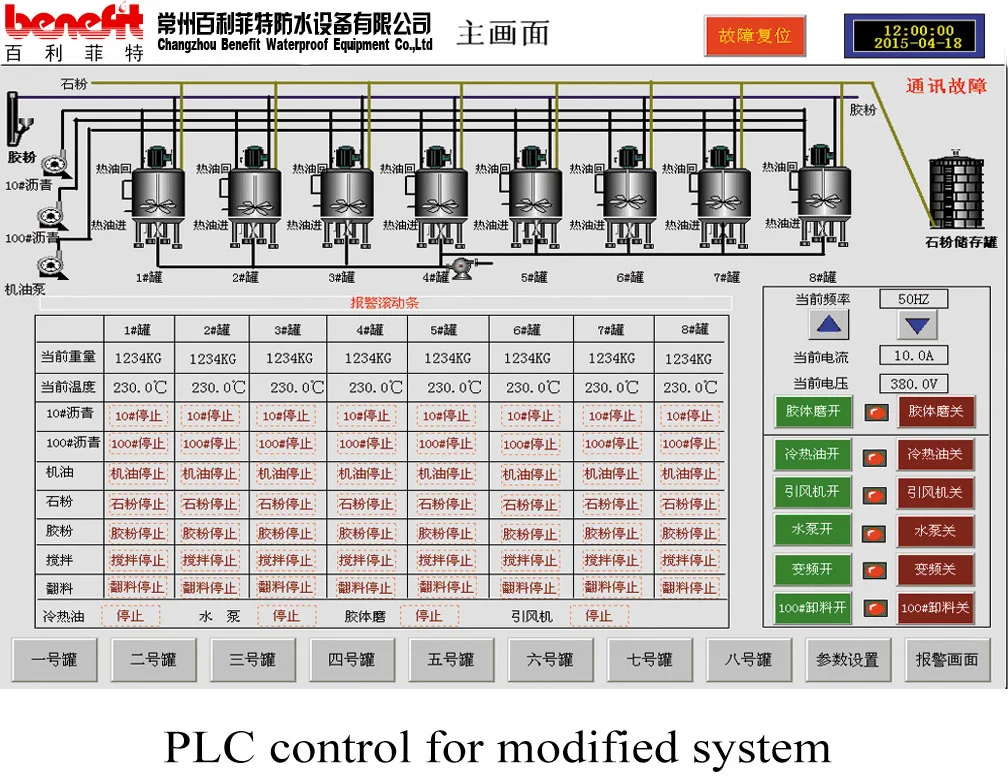

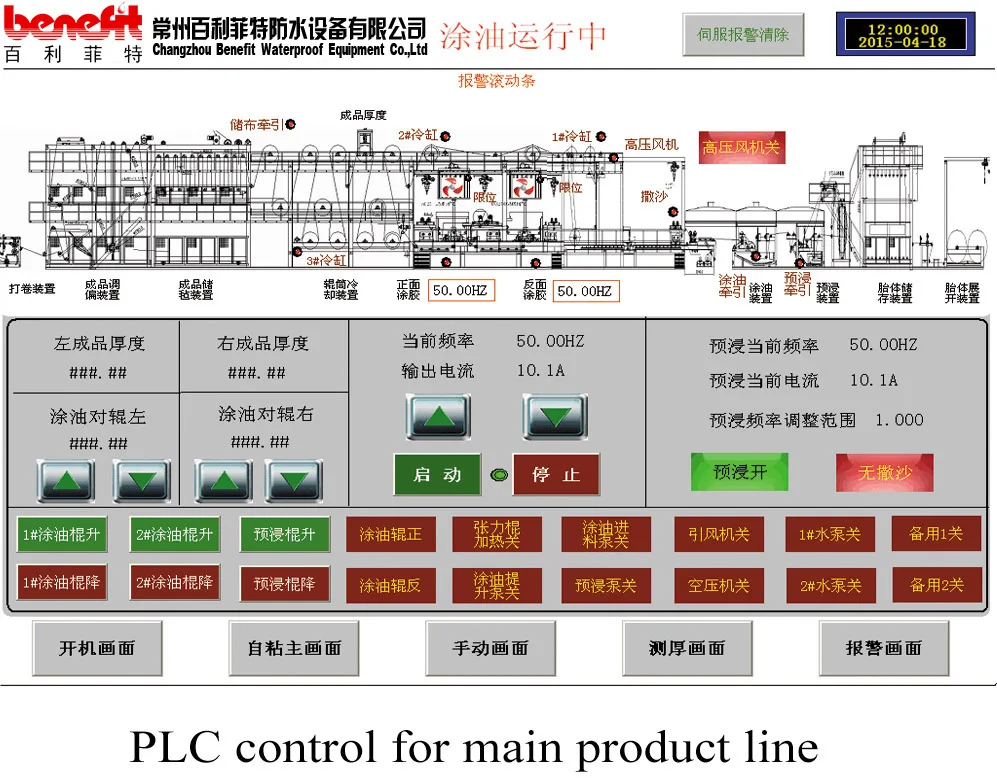

16. Electrical operating control device
17. Mixing-weighing system device
18. horizontal storage tanks
19. Powder-conveying system

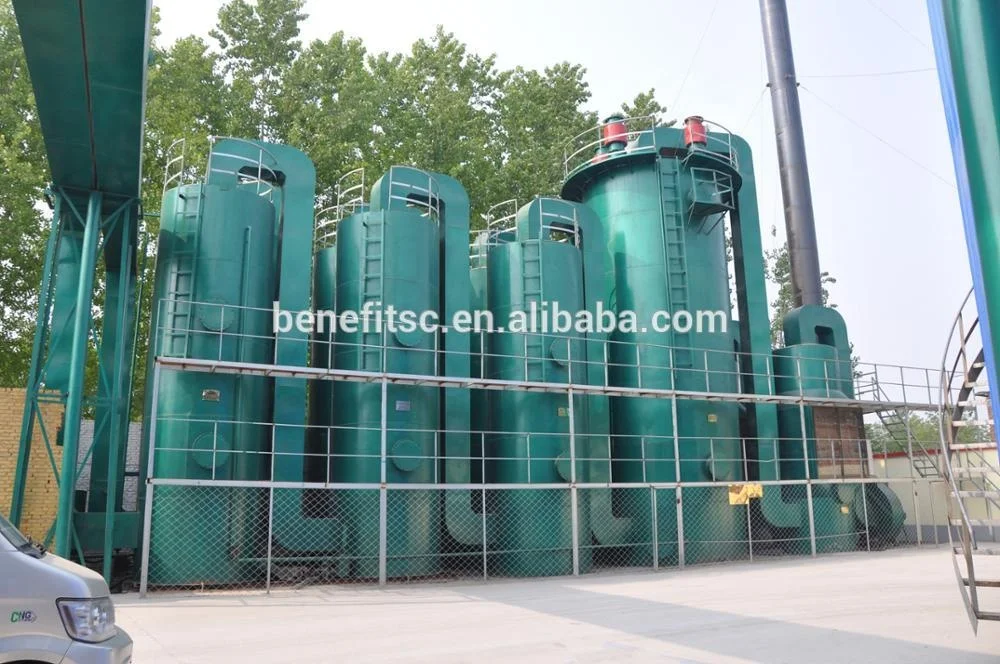

20. Smoke purification device
21. Heating with boiler system
Technical Parameters
| Capacity | Annually output 2 million of various types of modified bitumen waterproof membrane , one shift per day,8 hours per shift, 250days per year , calculated on basis of 3mm of products | ||||
Reinforcement (Base material) | Polyester felt:160-300g/m2,Fiberglass felt:150-250g/m2, Composite reinforcement(5*5-8*8) | ||||
| Modified material | SBS/APP | ||||
| Facing material | Sand ,schist,PE/Aluminium film | ||||
| Thickness | 3-5mm | ||||
| Linear velocity | 5-25m/min(adjustable) | ||||
| Diesel consumption | 61kg/h,Thermal efficiency≥76%,oil burning boiler which is of 500000kcal to heat conduction oil | ||||
| Compressed air | 0.7kpa,0.6m³/min | ||||
The power of air compressor motor | 5.5kw | ||||
| Total installed capacity | 200kw | ||||
| Water consumption | 0.5T/Day | ||||
100m³ bitumen storage tank | 1set | ||||
1.5m³ discharging oil poor | 1 set | ||||
Description:
SBS elastomer modified asphalt waterproof rolling material based on SBS thermo plastic
elastomer modified asphalt dip coating material, with high quality polyester blanket,glass fiber
mat, glass fiber reinforced polyester mat for the tyres, with fine sand,mineral aggregate, PE film,
aluminum mould for wrapping material,such as using special machine mixing, grinding of
elastomer modified asphalt coiled material.

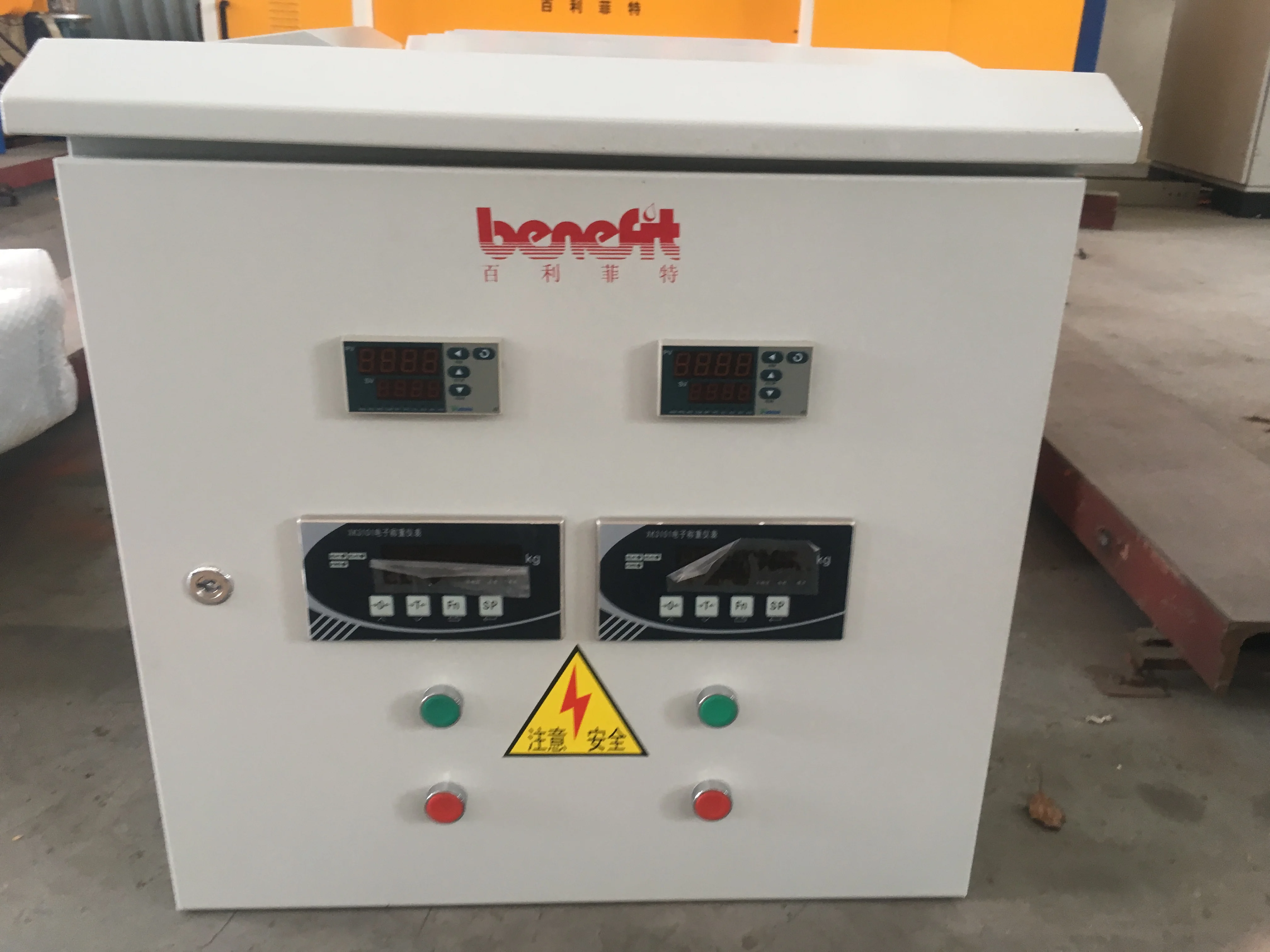

Photo of electric controls

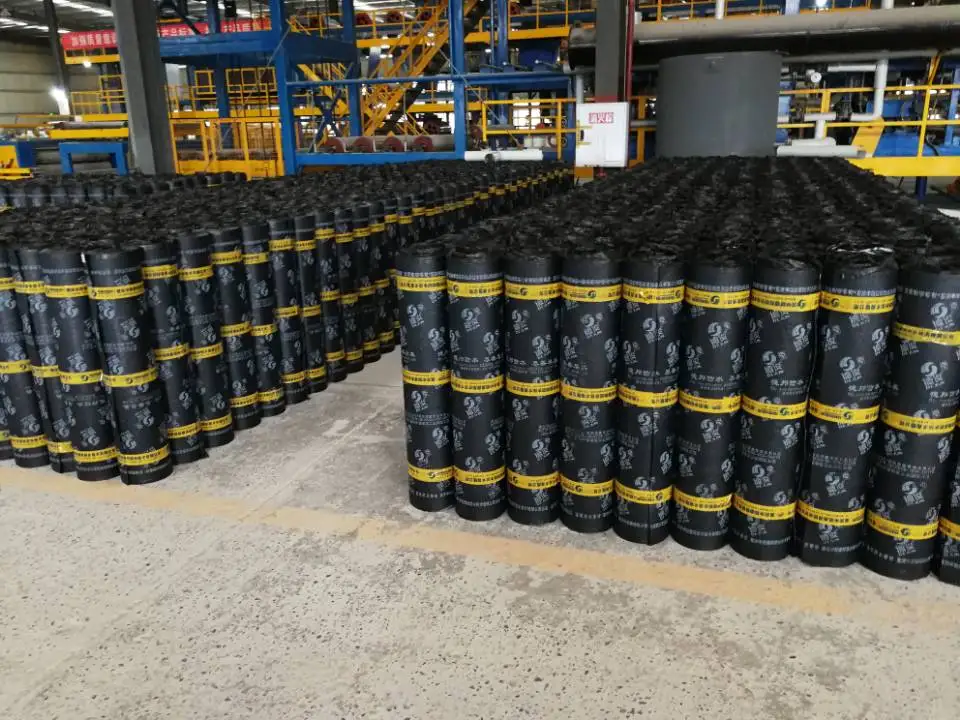

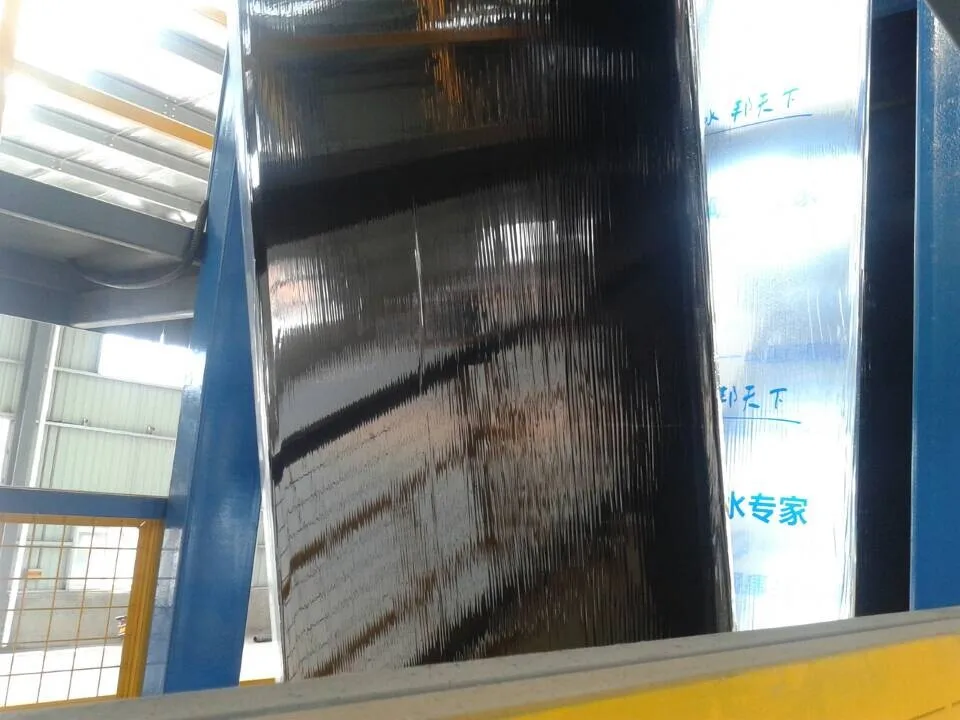

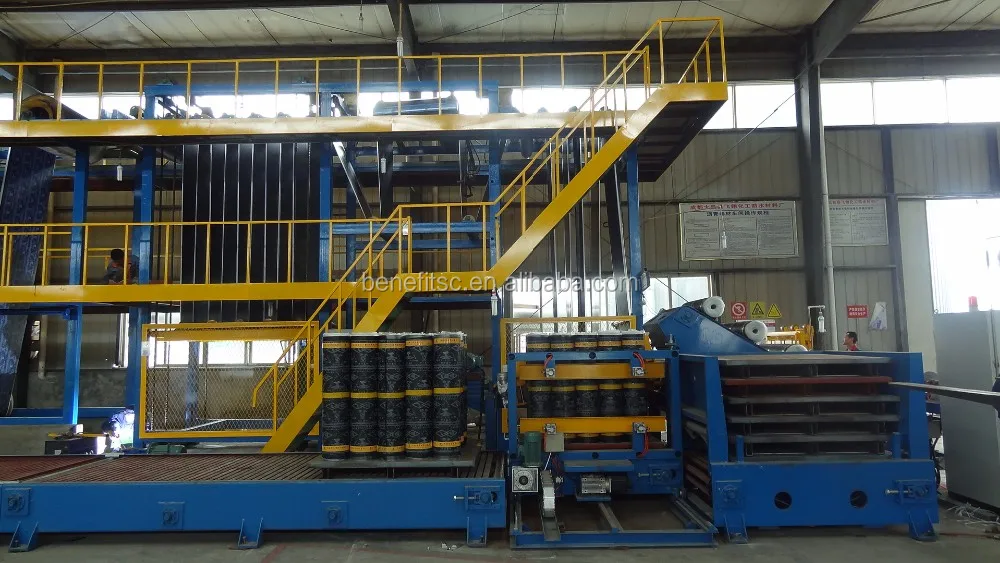

Finished production images
Company information
Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional
manufacturer which is specialized in researching, producing, marketing and service waterproof
equipment. As a private-owned enterprise, Our company is a famous supplier in the line of
waterproof equipment in China, also an important supplier in the international markets. On the
basis of absorbing foreign advanced science and technology, our factory has developed various
kinds of advanced waterproof equipment plants, and has got many national patents. The factory
is strictly in accordance with international quality system to ensure product quality. Our factory
pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of
honesty, customer-oriented and win-win situation. We are looking forward to cooperating with
you.
