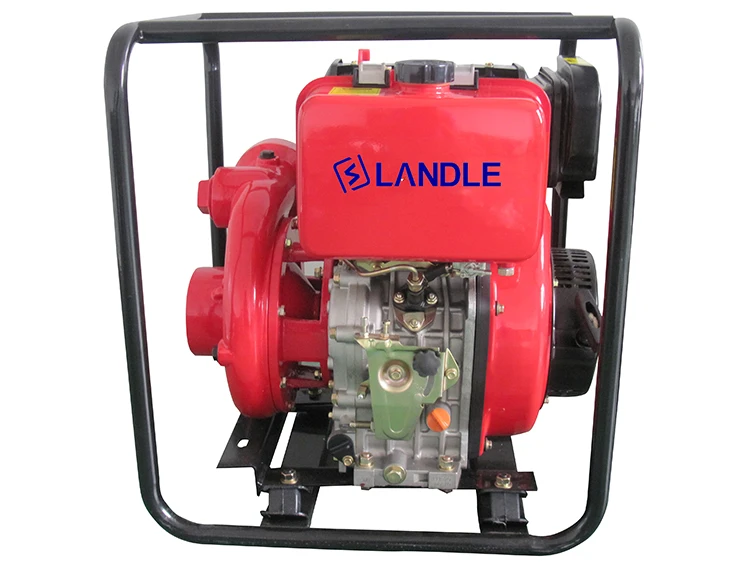

6 inch diesel engine water pump set
- Category: >>>
- Supplier: New Landle Technology Co. Ltd.
Share on (62103687149):
Product Overview
Description
6 inch diesel engine water pump set
| Model | 20D | 30D | 30DC | 40D | |
| Suction, discharge port size | mm(in) | 50 (1.97) | 80 (3.15) | 80 | 100 (3.94) |
| Discharge capacity | m/h | 22 | 30 | 60 | 40 |
| Total head lift | m(ft) | 26 (85.3) | 25 (82.02) | 28 (82.02) | 28 (91.86) |
| Max.suction head | m(ft) | 8 (26.25) | 8 (26.25) | 8 (26.25) | 8 (26.25) |
| Rotation speed | rpm | 3600 | 3600 | 3600 | 3600 |
| Priming time | s/4m | 80 | 120 | 270 | 180 |
Overall dimension (l*w*h) | mm | 505*425*540 | 585*470*575 | 620*490*625 | 670*490*625 |
| Dry weight | kg | 35 (77) | 52 (114.4) | 72 | 69 (151.8) |
| Engine model | 170F | 178F | 186F | 186FA | |
| Rated power | kw(hp) | 2.8 (3.8) | 4.0 (5.44) | 6.7(8.57) | 6.7 (8.57) |
| Rated rotation speed | rpm | 3600 | 3600 | 3600 | 3600 |
| Displacement | ml(cu.in) | 211 (12.88) | 294 (18.06) | 418(25.5) | 406 (24.78) |
| Starting system | Recoil starter/electric starter | Recoil starter/electric starter | Recoil starter/electric starter | Recoil starter/electric starter | |
| Fuel tank capacity | l(gal.) | Small tank 2.5 (0.55) | Small tank 2.5 (0.77) | Small tank 5.5 (1.12) | Small tank 5.5 (1.12) |
| Fuel consumption | g(ml)/kwh | 285 (339.29) | 283 (336.9) | 280 (333.3) | 280 (333.3) |
Feature:
- New design make diesel engine more beautiful
- Fuel-efficient enviromental protection, the comsumption 60% off
- High rate lift over 80m
- Aluminum alloy wheel hub, easy to transport
