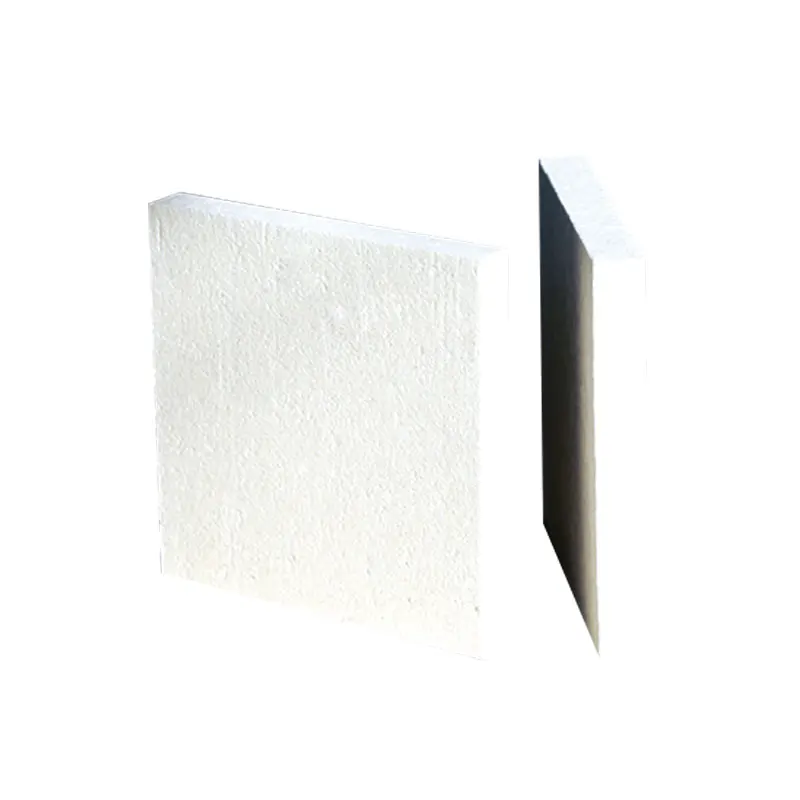

DAYAWOOL ceramic fiber inorganic board is the ceramic fiber board with the thickness of 3~100mm, made from the every grade of ceramic fiber wool removed the shots, and adding proper proportion of organic and inorganic binders. The product doesn't have nay organic binder, will cause smoke,smell and darkness on the boards. is an ideal material for household appliance .
Comparing with the regular ceramic fiber, the thin boards have lower shot content, lower thermal conductivity, more acute size, hardness and strength.The product doesn't have any organic binder, will not cause smoke, smell and darkness. Because of the thickness, the boards doesn't have the shot, and excellent performance on high temperature resistance, can be widely used in the industries of fireproofing, refractory and insulation, especially in the household appliance.
Features
Without any organic bond No smoking non-black surface, no smell when heating Thickness of 3~100mm Low shrinkage, and excellent stability Low thermal conductivity excellent thermal performance High strength, excellent Machining performance Can be used on hot face, direct contact fire Excellent thermal shock resistance
Typical Applications
Insulation material for household appliances
Surface lining to avoid thermal radiation
Insulation material for household appliances such as gas boiler

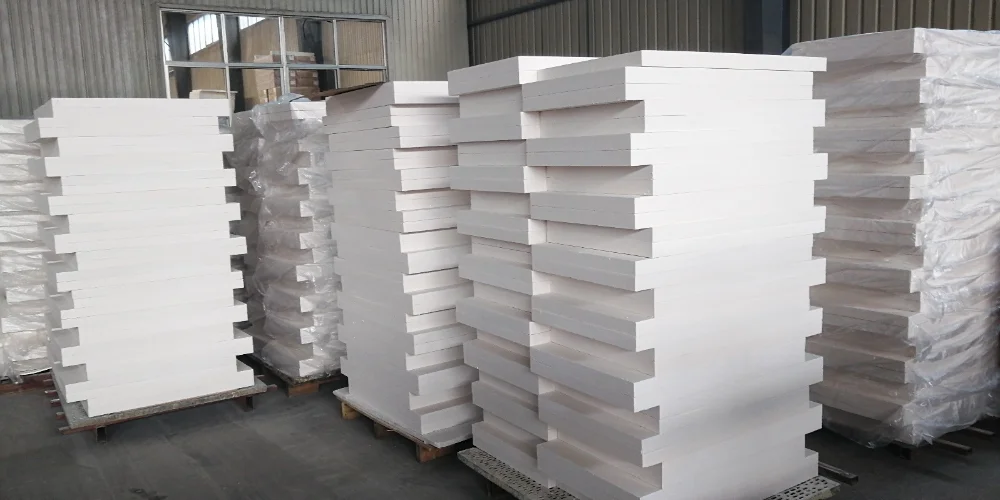

Detailed Images
The data shown are average results of tests under standard procedures and are subject to variation. Results should not be used for specification purposes or creating any contractual obligation.
For more information on the safety application or materials, please refer to the work practices and material safety data sheet.
DAYA CERAMIC FIBER BOARD
1100-BOARD
1260- BOARD
1300- BOARD
1350- BOARD
1430- BOARD
Physical properties
Classification Temperature(℃)
1100
1260
1300
1350
1430
Bulk Density (kg/m³)
300/320/360
Water Content(%)
≤ 1
Cold Crushing Strength(MPa)
0.1-0.3
Organic Material Content(%)
0
Permanent Liner Change (%)
950℃X24h≤ -3
1000℃X24h≤ -3
1100℃X24h≤ -3
1200℃X24h≤ -3
1350℃X24h≤ -3
Chemcial Analysis
(%)
Al₂O₃
≥40
≥43
44-47
51-53
-
Al₂O₃+SiO₂
≥95
≥96
≥98
≥99
-
Al₂O₃+SiO₂++ ZrO₂
-
-
-
-
99
ZrO₂
-
-
-
-
≥15
Fe₂O₃
<0.5
<0.5
≤0.3
≤0.3
-
K₂O+Na₂O+ Fe₂O₃
<0.9
-
-
-
-
Thermal Conductivity
(W/mK)
200℃
0.08
0.07
0.07
0.08
0.08
400℃
0.12
0.11
0.11
0.11
0.11
500℃
0.13
0.13
0.13
0.13
0.13
600℃
0.11
0.10
0.15
0.10
0.10
Other products
Insulating Bricks
Honeycomb-Ceramics
Bio Soluble Board
Ceramic Fiber Textile
Our Company
Packing & Delivery
FAQ
1.You are a manufacture or a trading company ?
We are a professional refractory insulation material company, and have stakes in a number of refractory insulation companies. In order to make better use of the resources of various factories, We set up this trading company, In the near future, we will build a large warehouse just like Big Supermarket to provide you with more convenience. we not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Refractory Brick, Insulating Firebricks, Calcium Silicate Products, Honeycomb Ceramics Products, Sic Products, Glass Wool Products, Mineral Wool, Rock Wool Etc.
3.Can your company provide samples or can we have a visit to your factory ?
Yes! Of course. Samples are available, and welcome to visit our factory at anytime.
4.Why we choose the products of your company ?
Our company is located in Shandong Province China, All the famous Ceramic Fiber Products, Refractory Brick, Insulating Firebricks, Calcium Silicate Products factories are located in Shandong Province China. We have so many resources of various factories. So the price and quality of the product can be guaranteed. And In Shandong Province there is a large port-QINGDAO PORT , It is convenient for us to book a ship and deliver the goods quickly. We are a professional refractory insulation material company, It is more convenient to do your business from the moment you choose us.
5.What is the warranty for your products ?
After your order, we will always focus on ensuring the control of product production, After the product comes out, we promise to share the product testing process with you. And give you the test report for your confirmation. If you have any problem when you receive the good, please confirm with us in time. We will find out the reason to prevent it happen again. And we will take responsibility of it. Sometimes you will found that Trust is built by buying again and again.
