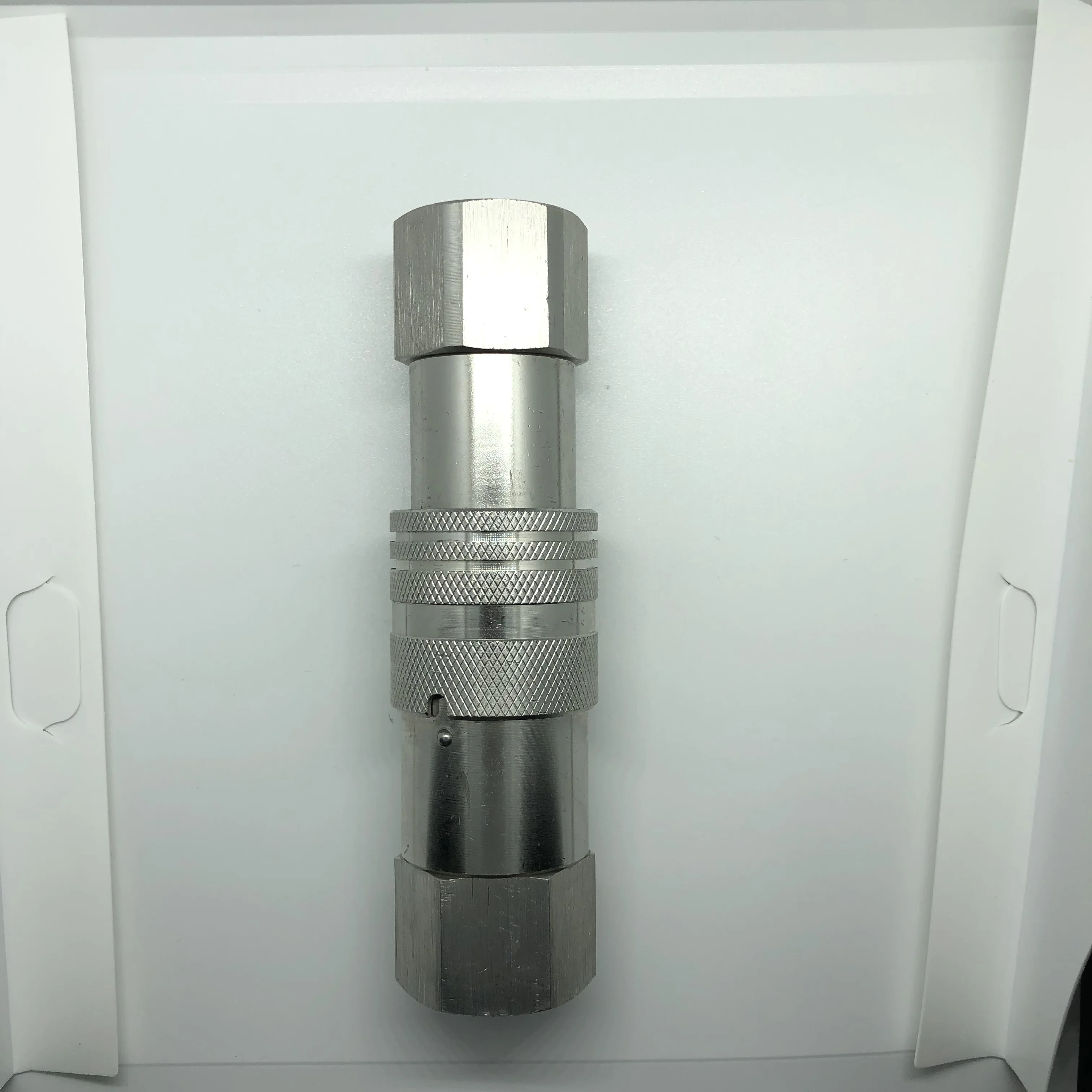

ISO 16028 Flat Face Carbon Steel 30 Mpa Working Pressure Hydraulic Quick Couplings

1. Kis-PT is designed to meet or exceed the requirements called out in ISO 16028 as wells as all HTMA specifications.
2. Heavy Duty Construction - High strength steel with zinc yellow dichromate plating
3.Flush-faced poppet is available for a minimum air inclusion when connection, minimum Fluid loss when disconnection as well as easy clearing.
4.A safety sleeve lock prevents accidental ,push-to connect system allows one hand operation when connect the    coupling.
5. 4:1 Safety Factor.
6. Industry Interchangeability - mates with other manufacturers' ISO 16028 couplings
7. The CP option allows for connection against static pressures without spillage or damage to the coupling. Construction, portable hydraulic tools and utility equipment are a few of the many industries where the connect-under-pressure option saves valuable time & money.

Product Name	ISO 16028 Type Hydraulic Quick Coupling
Material	Zinc chromate plating
Standard	ISO 16028
Temperature Range(std seals)	-20℃~+80℃
Thread	BSPP
Interchange	Parker FE/FF/FEM, Hansen Qa 2900,Foster FF series,Faster FF,Cejn X62

Products Show

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample.
