Syble Hot Selling 2D Wireless Barcode Scanner XB 6208RB factory barcode scanner

Product Overview

Description

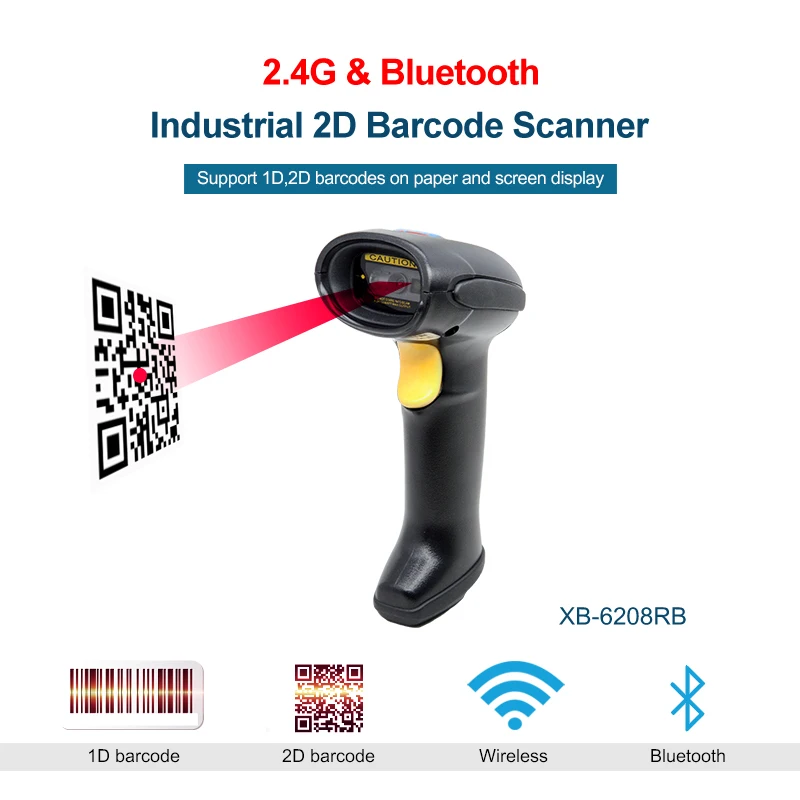

Lower Price 2.4G & 2D Wireless Barcode Scanner Syble XB-6208RB











Specification:

Model Number	XB-6208RB
Performance Parameters
Light Sources	617nm LED Aimer,White LED

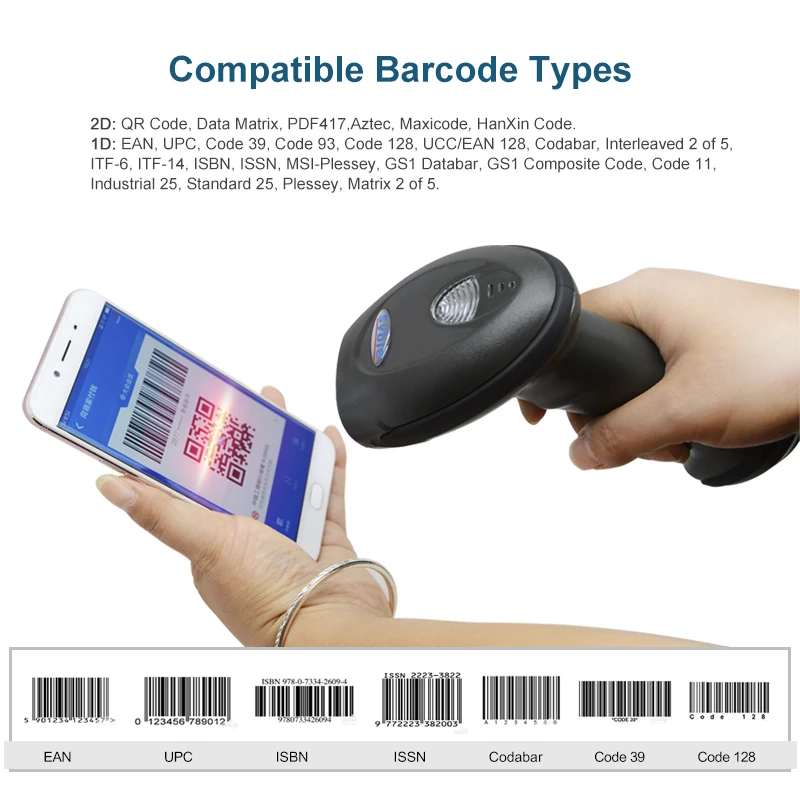

Supported Symbologies	1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5. 2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode,HanXin Code.
Scan Type	Image CMOS
Resolution	640*480
Scan Method	Manually/Continuous/Automatic inductive scanning
Scan angle	Yaw ±55°, Rotation 360°, Pitch ±55°
Contrast	≥20%
Precision	≥5mil
Depth of scan field	EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-130MM(6.67MIL)
Error Rate	Less than 1/5 million

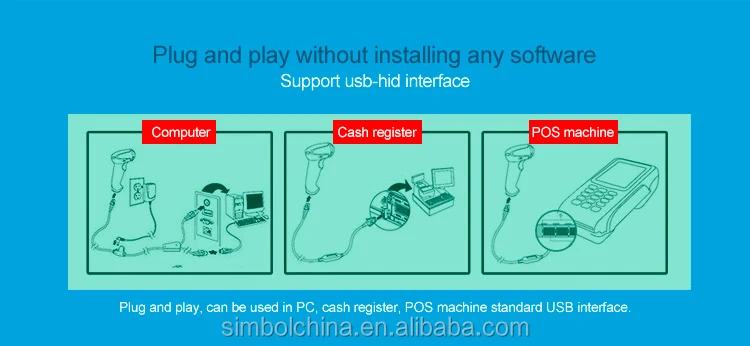

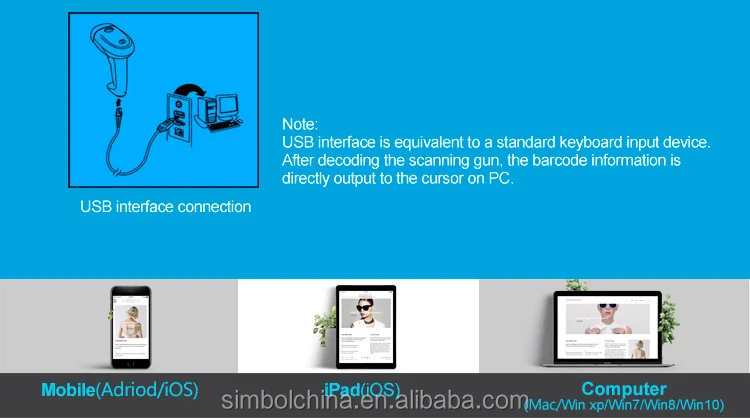

Interface	USB-HID
Wireless Communication	Pairing dedicated receiver: 2.4G communication Pairing Mobile Wireless Devices: Wireless BLE 4.0

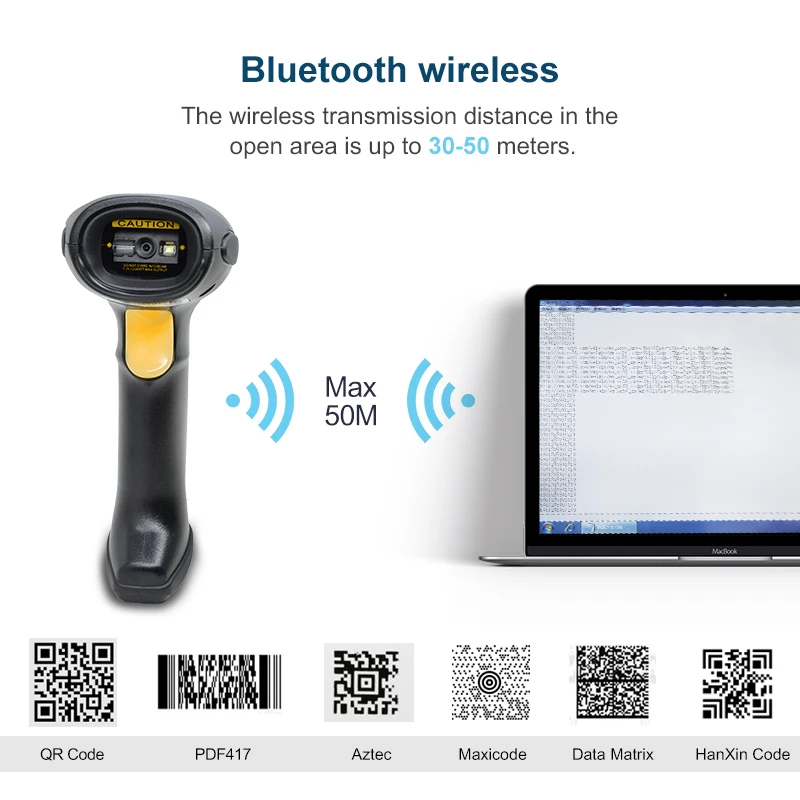

Wireless transmission distance	30-50 meters (open distance)

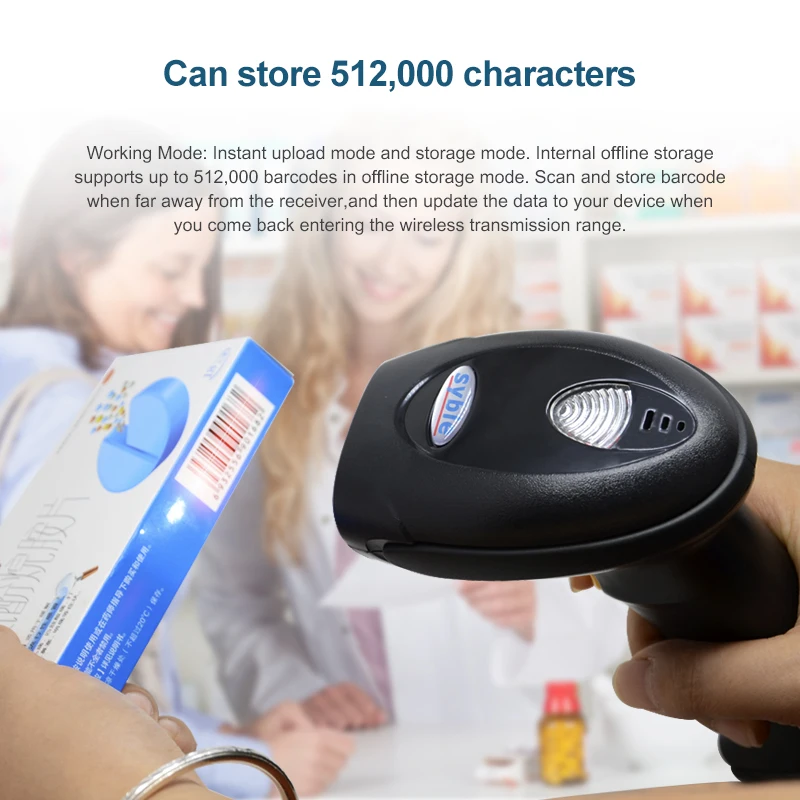

Storage Mode	Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored.Storage capacity is 512000 characters. Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.
Pairing Mode	One to One: One Scanning Gun Pairs One Receiver;One scanner paired with a Wireless mobile device
Receiving End	Dedicated Wireless U Disk Receiver,,Android,IOS Mobile devices.
Physical Parameters

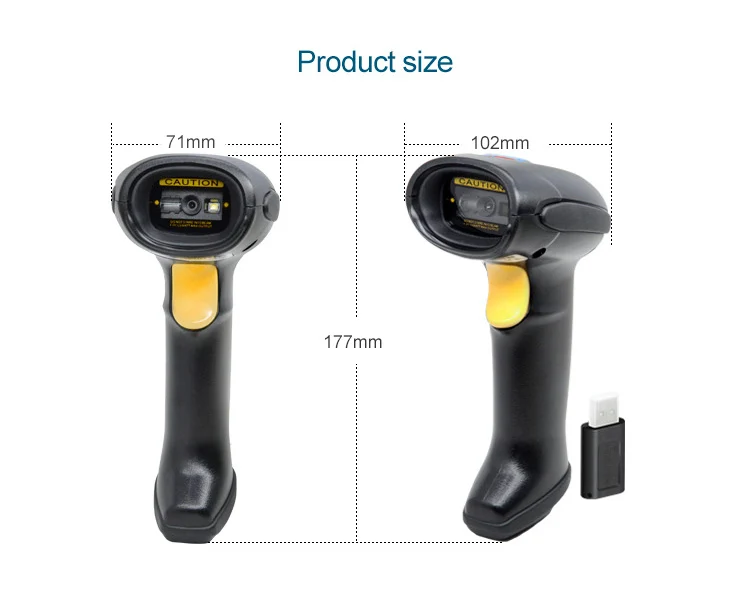

Dimensions	102mm*71mm*177mm
Weight	253g
Material	ABS+PC
Cable Length	0.6M
Environmental Parameters
Operating Temperature	-20℃~50℃
Storage Temperature	-40℃~70℃
Ambient lighting	0~100000LUX
Relative Humidity	5%~95%(Non-condensing)
Electrical Parameters
Voltage	DC5V±5%
Operating Current	when not scanning code ≥26mA;when scanning code ≥28mA
Standby Current	0mA(Standby is to cut off battery power)
Battery Working Time	7h
Charging Time	5h

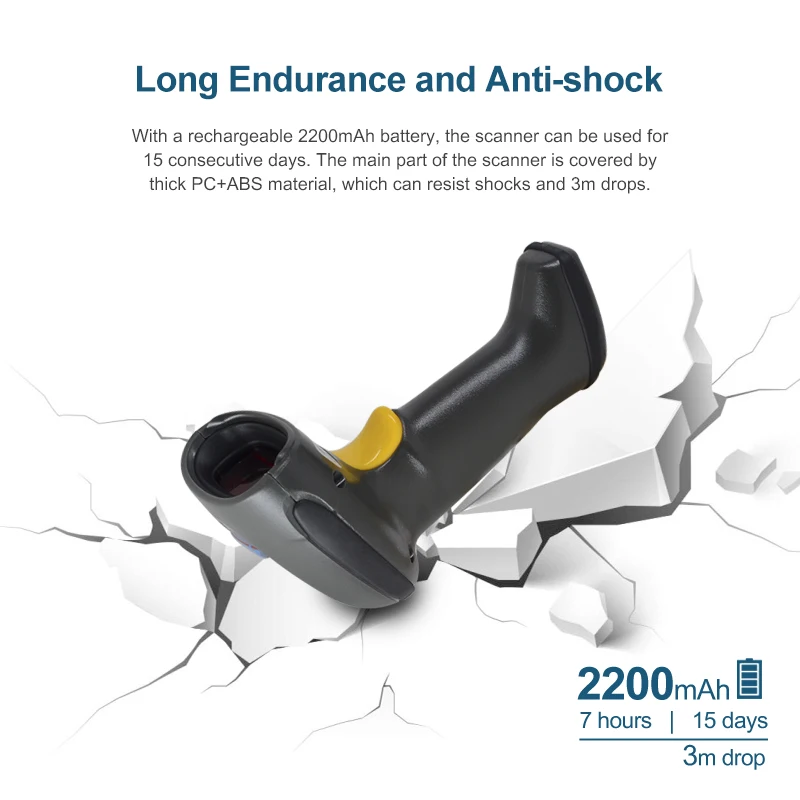

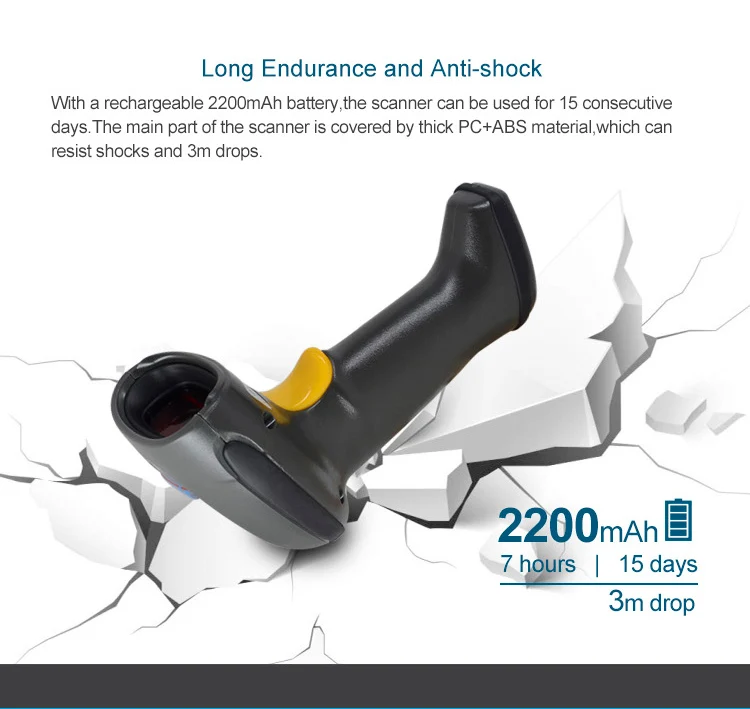

Lithium battery	18650 2200mA
Charging Model	Square USB charging cable, plug straight charge









Features:

1.New decoding chip to interpret various 1D codes/QR codes

2. USB Wireless receiver, plug and play, simple setup, fast use

3. Wireless transmission distance reaches 30-50 meters (open space)

4. 512,000 characters can be stored in the offline/counter storage mode

5.Directly transmit Chinese QR code

6.Scanning WeChat, Alipay 1D code / QR code



 Application:















1) Every inquiry is warmly welcomed and paid high attention to. Emails and inquiries are replied by professional and experienced sales teams within 24hours.



2) OEM service & neutral packing are accepted even for small order.



3) Every order regarded as important. From inquiry to order, later from production to delivery, customers can know the process at any time. Skillful and large production department makes sure the timely delivery. Every customer’s satisfaction is always the goal of our service.

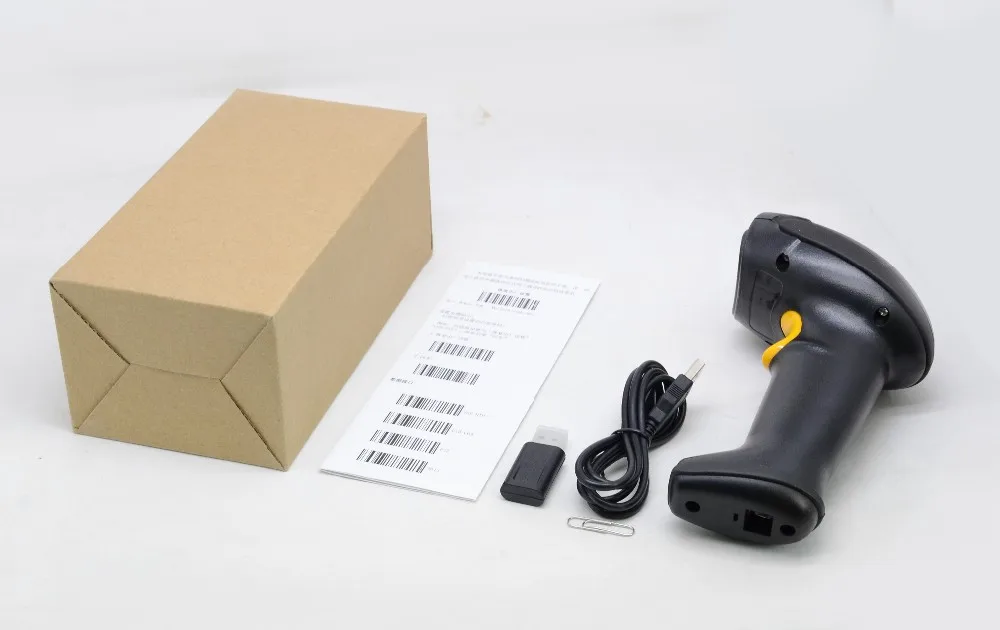

Packing list: scanner x 1, Receiver x 1, User's manual x 1, cable x 1;

Packaging: neutral carton packing. 50 sets/ctn; 16kg/ctn; carton size: 55 x 52 x 45cm

Port: Guangzhou

Lead Time : 3 working days after receipt 100% advance payment







Exhibition:













FAQ:

1. Delivery on time.

Have your orders met with late delivery? We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.

2. Strict and perfect QC system.

For each order, strict inspection will be carried out by the QC department before shipping, and the bad quality and situation will be avoided in door.

3. Certificates approved quality.

CE,FCC, ROSH and more,will guarantee the production process in good orders and products in high quality.



4. Fast response.

Our team will respond your requests within 8-working hours.
