Ex 25A/YT/GZ 4J No spark three phase quadrupole socket plug

      QDLECHATEX 15A,25A,32A,60A,100A,150A,200A,300A YT/GZ-YZ series single-phase

three core non sparking electrical connector, apply to oil exploration,drilling,lighting circuit,

mobilt power distribution room,cable and cable connection with,has reliable contact,

easy assembly and disassembly,sealing performance and good insulation,shockproof,

dusproof rainproof,etc..

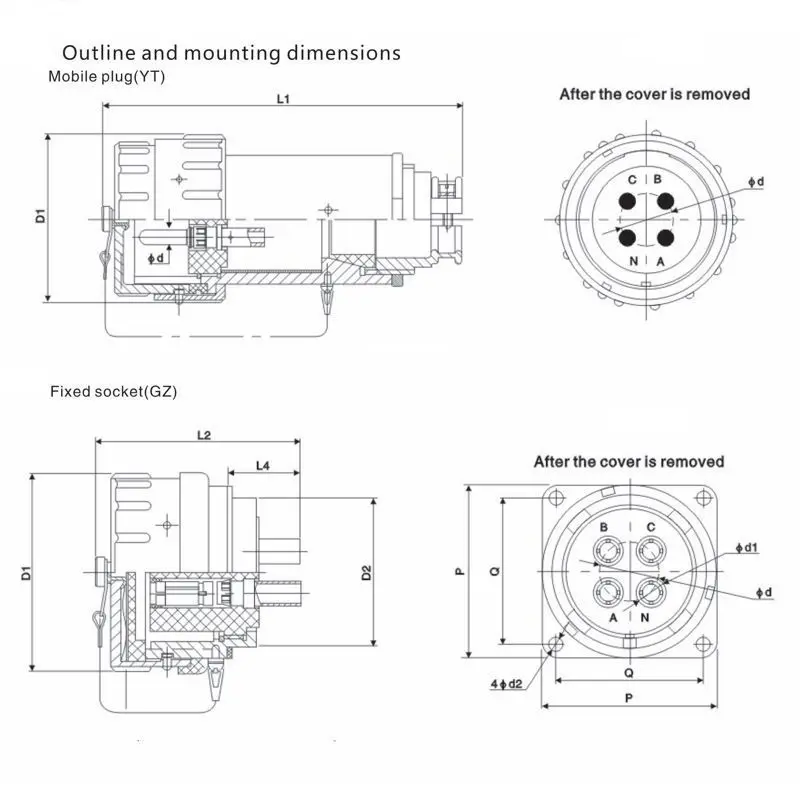

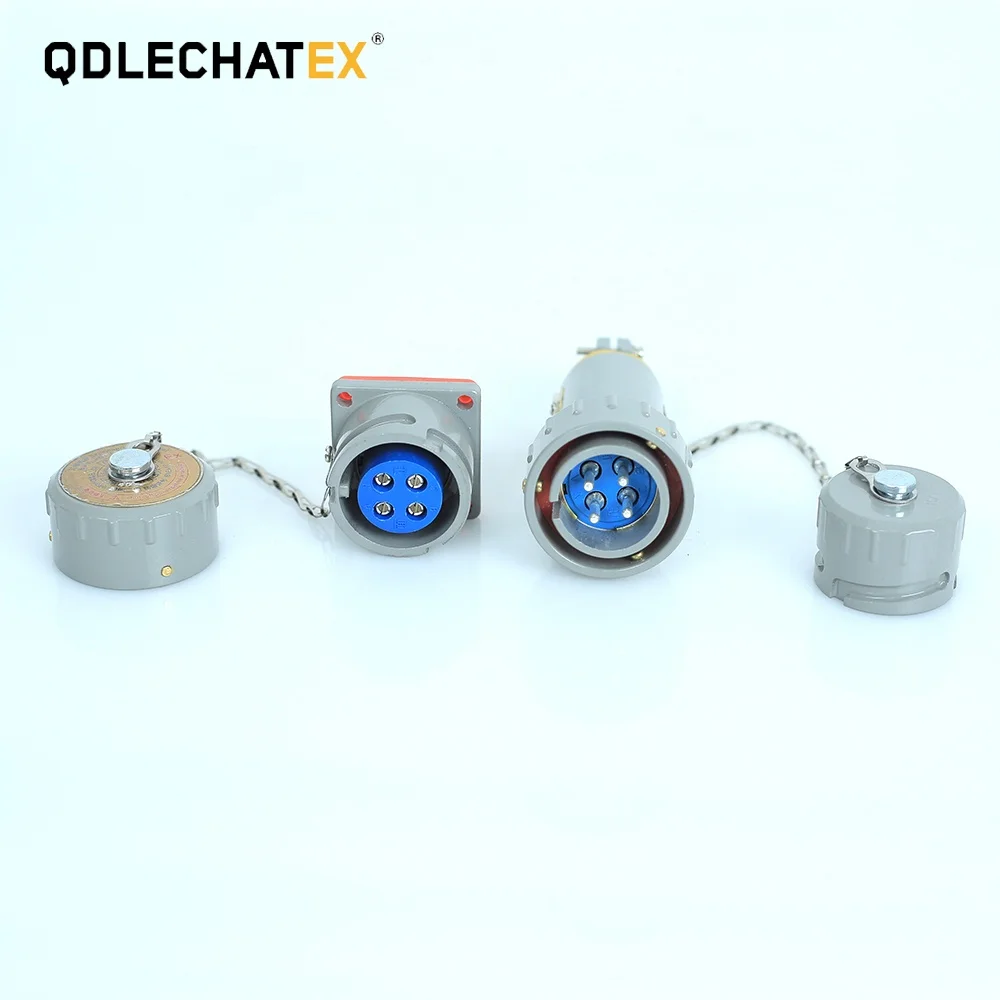

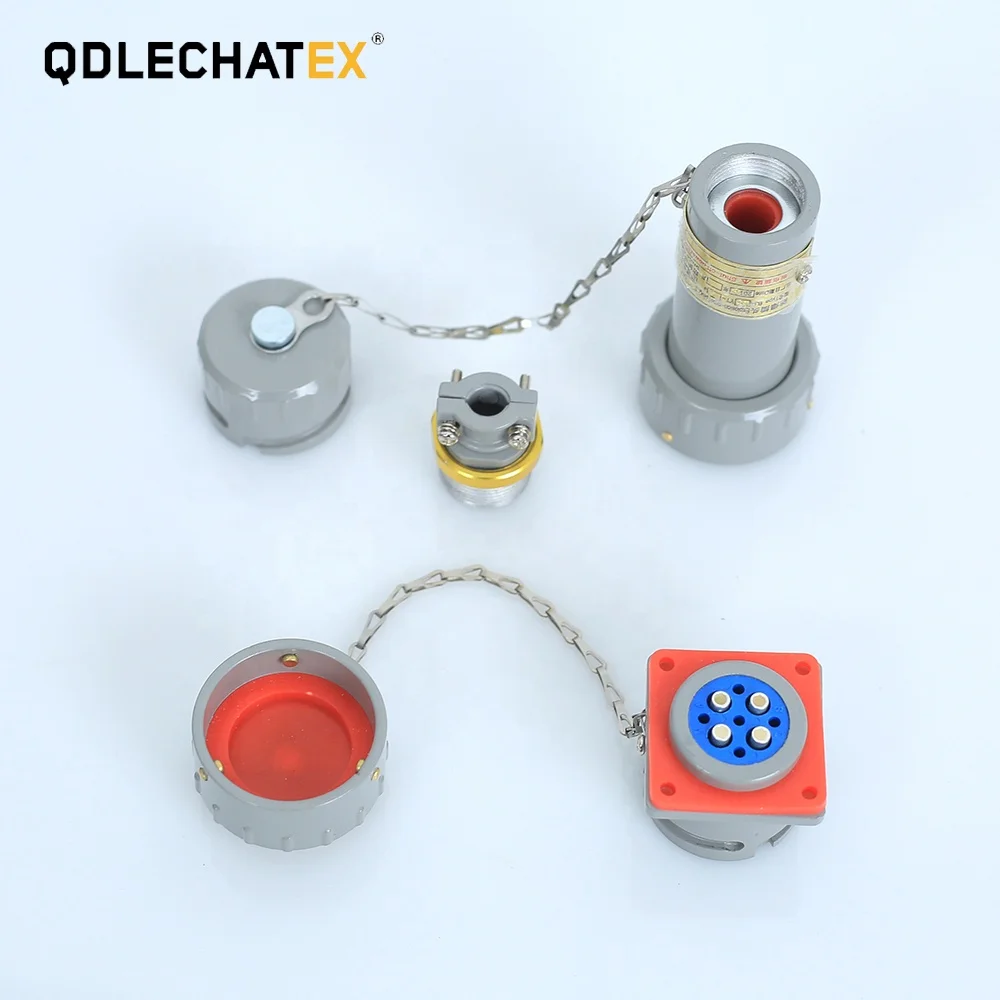

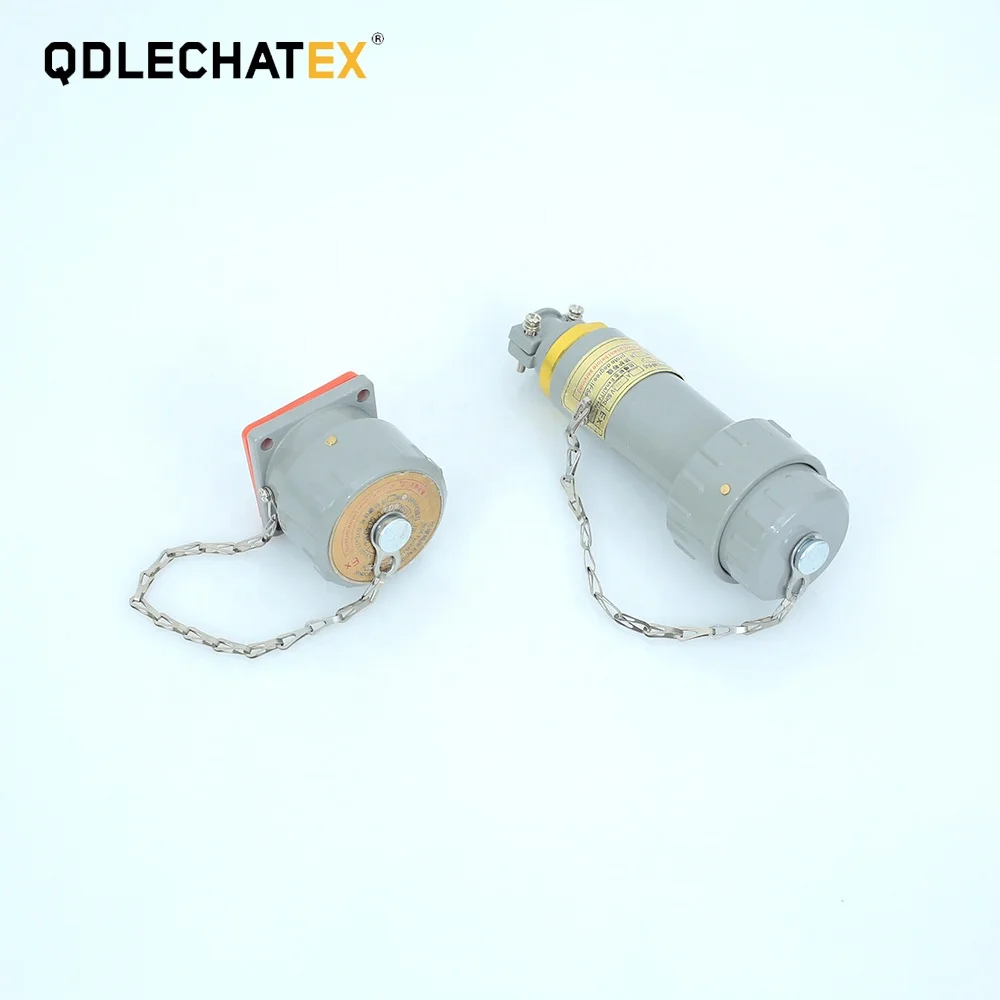

       The connector comprises a plug and socket is composed of two parts,wherein the plug

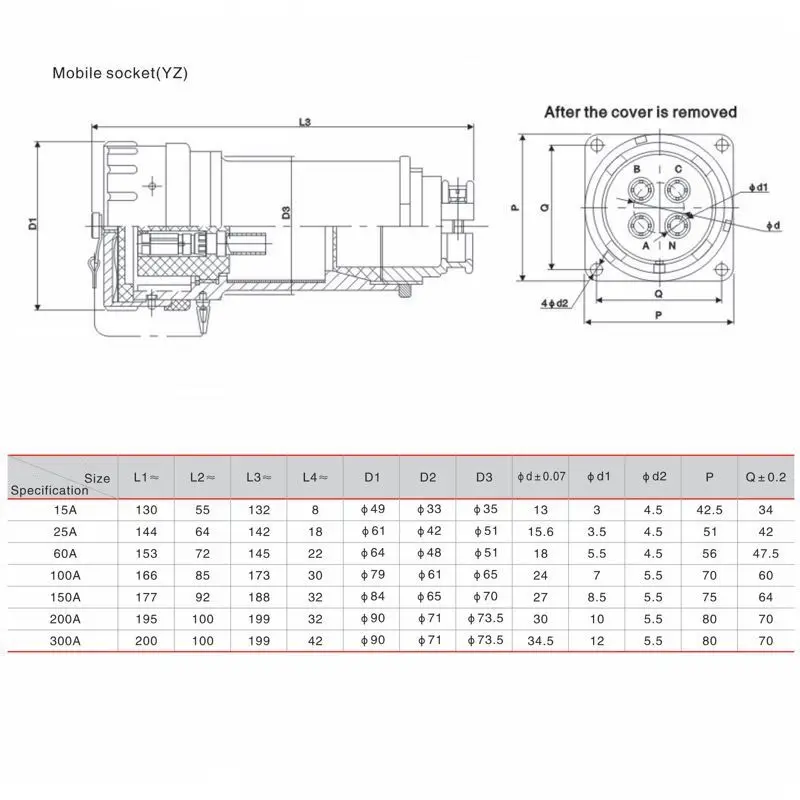

for mobile(YT),socket has three forms: 1.the panel fixed type(GZ), 2.mobile(YZ), 3.oblique

type fixed socket (XGZ). Connection plug and socket for the bayonet,fast connection,contact

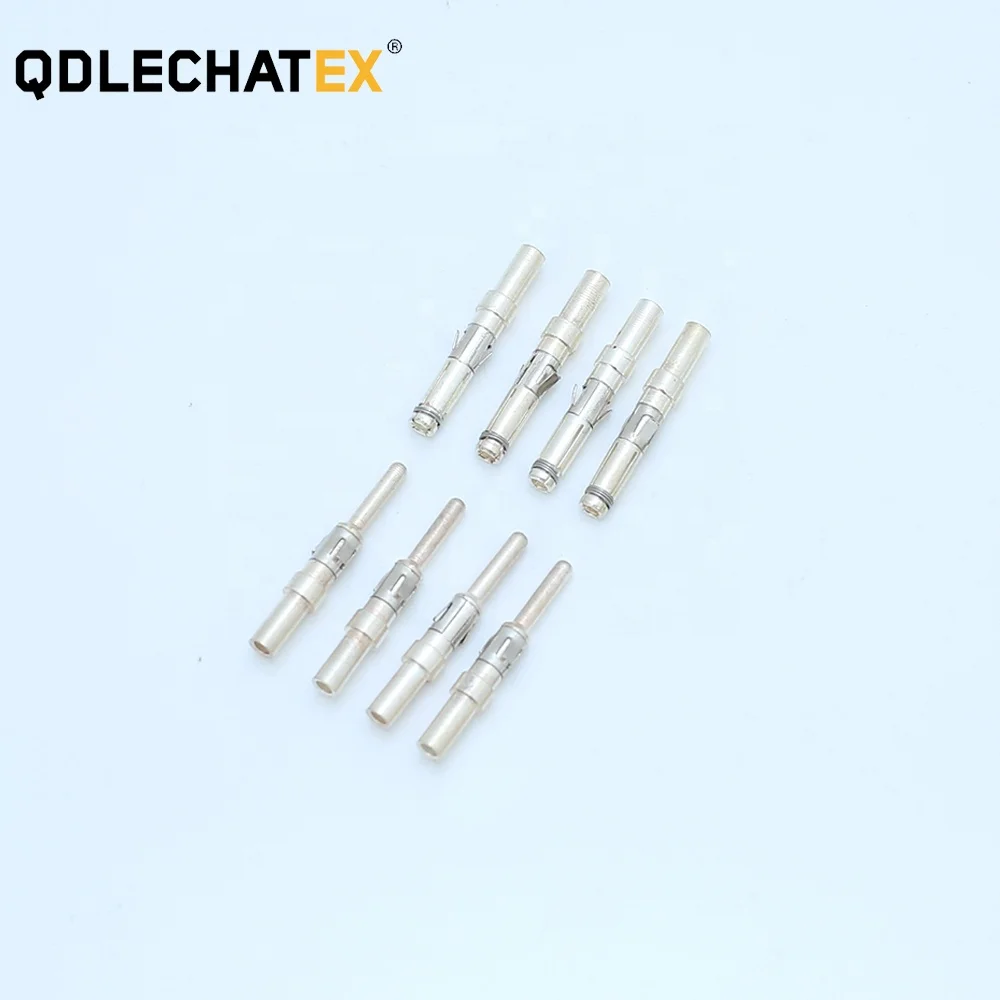

wire terminal crimping,crimping.contact with elastic ring gear support localization,after instalied

before the demolition of the structure,the contact sliver plug,shell is made of casting aluminum alloy.
