high efficiency Good thermal shock resistance intalox ceramic saddle packing
- Category: >>>
- Supplier: Pingxiang Huihuang Packing Co. Ltd. [Jiangxi China]Pingxiang
Share on (62104358592):
Product Overview
Description
Performance features and uses:
Ceramic Intalox saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Ceramic Intalox saddle is the opening packing with the structure of groove hemicycle, which reduce the cover between the packing and enlarge the space, therefore, the availability of the mass transfer surface will be enhanced efficiently, and it has favorable liquid distributing capability.
Chemical analysis
Composition | Value |
SiO2 | >73% |
Al2O3 | 17-25% |
Fe2O3 | <1.0% |
CaO | <0.5% |
MgO | <0.5% |
K2O+Na2O | 2-4% |
other | <0.1% |
Physical properties
Type | Diameter*height*thickness mm | Surfacearea m2/m2 | Void fraction % | Bulk fraction kg/m3 | No,elements n/m3 | Packing-factor m-1 |
Φ16 | 16*12*2 | 450 | 70 | 710 | 382000 | 1311 |
Φ25 | 25*19*3 | 250 | 74 | 610 | 84000 | 617 |
Φ38 | 38*30*4 | 264 | 75 | 590 | 25000 | 389 |
Φ50 | 50*40*5 | 142 | 76 | 560 | 9300 | 323 |
Φ76 | 76*57*9 | 92 | 78 | 520 | 1800 | 194 |
Advantage:
(1)These saddles are made from chemical porcelain and have excellent resistance to acids except in the case of hydrofluoric acid.
(2)Moisture absorption must less than half a percent.
(3)The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20℃ and 500℃ of 0.22 cal/g.℃)
XINGFENG ceramic saddles softening point is 1400℃ min. And they show good thermal shock resistance during repeated cycling between 20℃ and 820 ℃.
(2)Moisture absorption must less than half a percent.
(3)The porcelain's specific gravity is 2.3-2.4g/cm3 and an average heat capacity (between 20℃ and 500℃ of 0.22 cal/g.℃)
XINGFENG ceramic saddles softening point is 1400℃ min. And they show good thermal shock resistance during repeated cycling between 20℃ and 820 ℃.
Our Certifications
Our Team & Partner

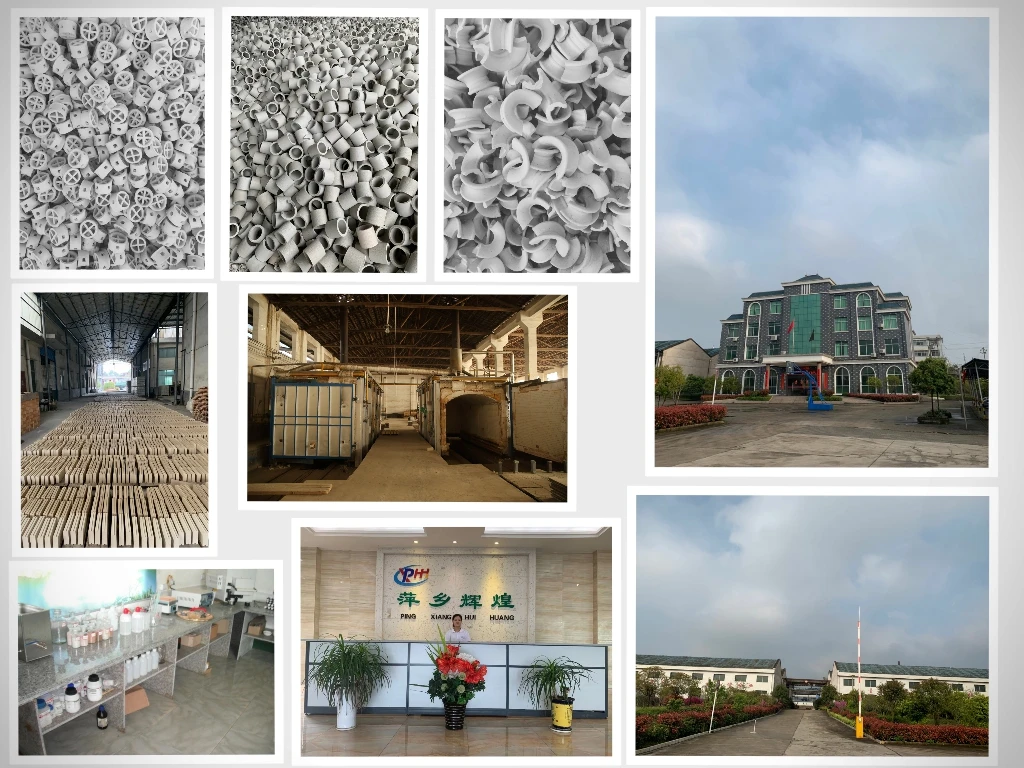

Factory Display
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
