Ebook reader HD display 5.83 inch 648x480 e ink display
- Category: >>>
- Supplier: Dalian Good Display Co. Ltd.
Share on (62104632256):
Product Overview
Description

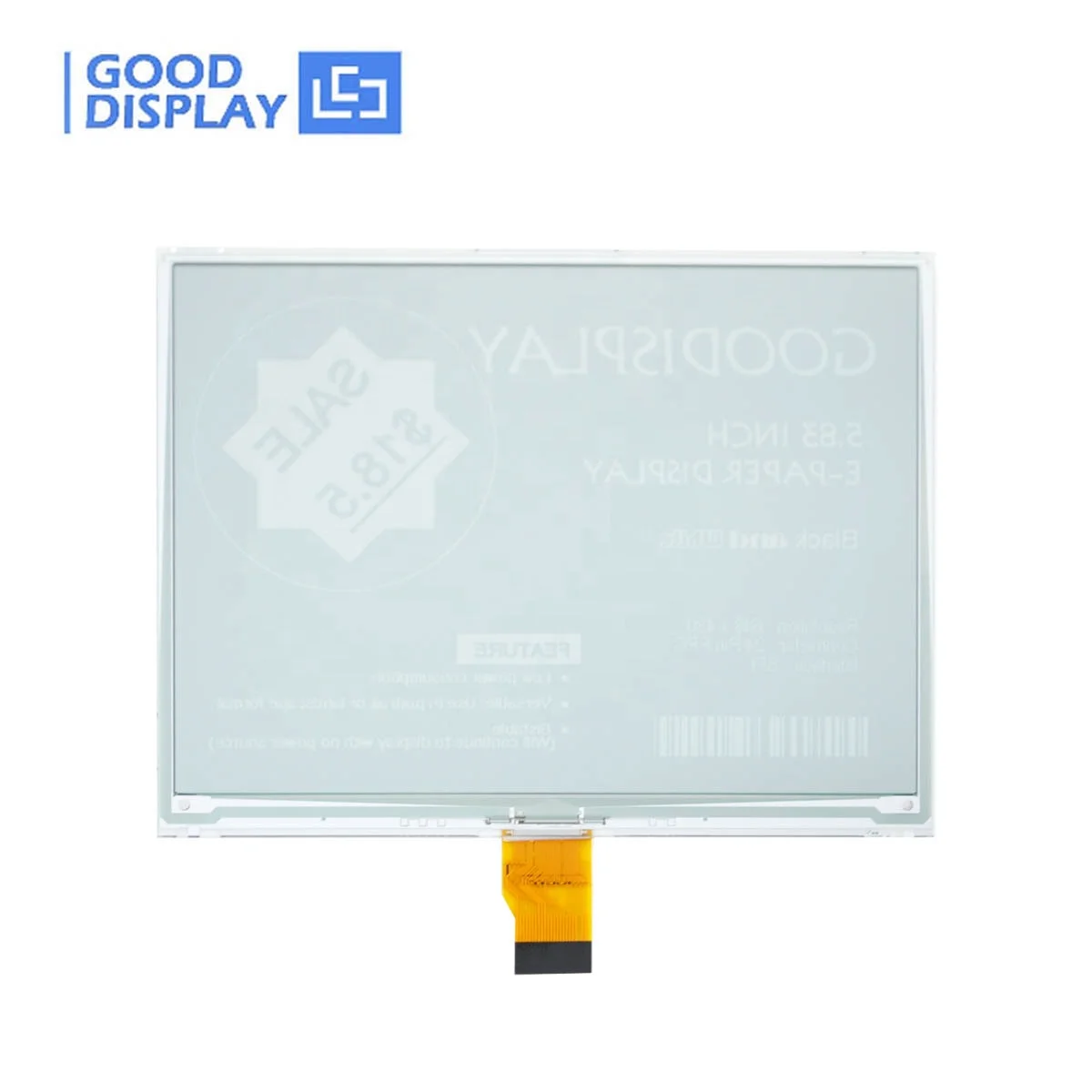

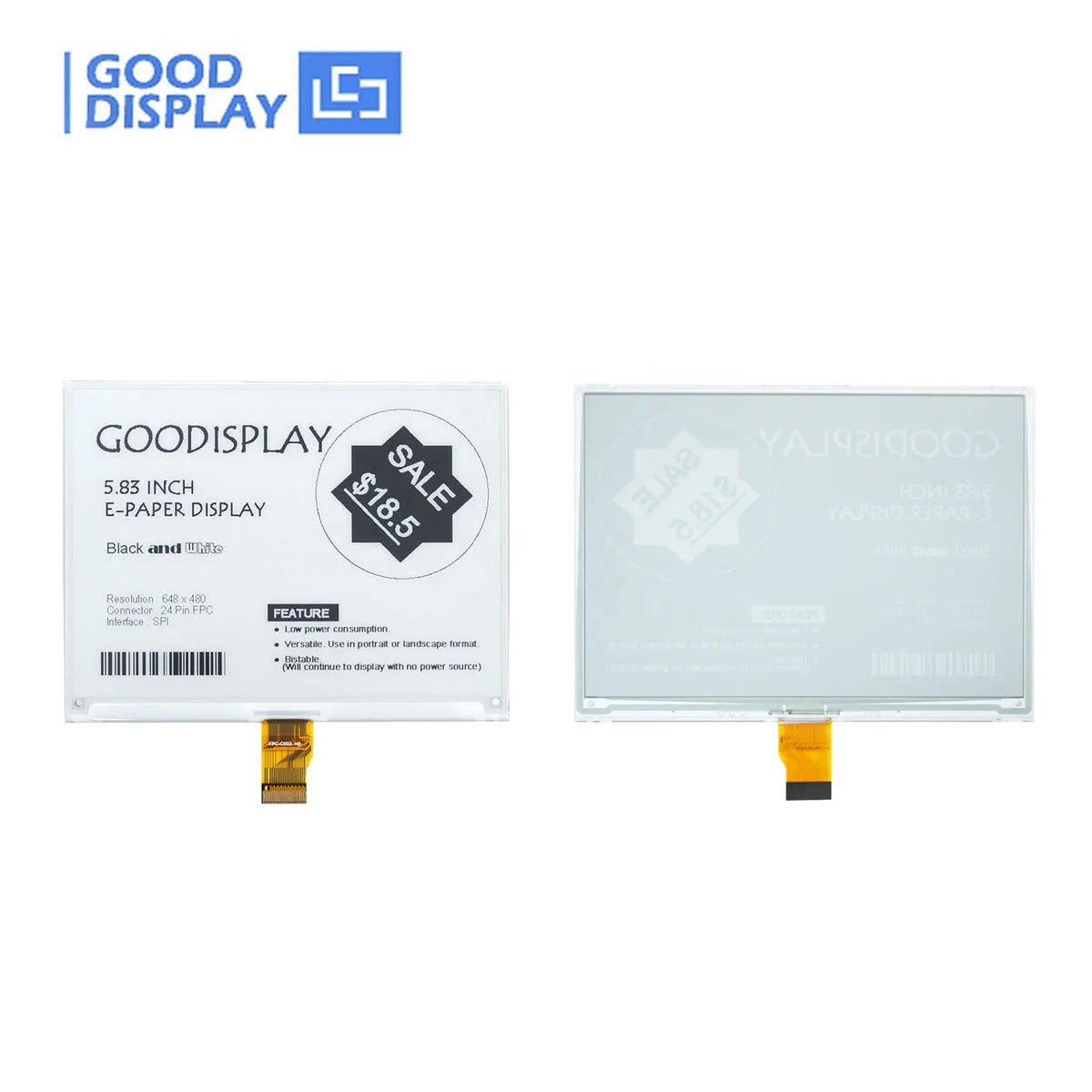

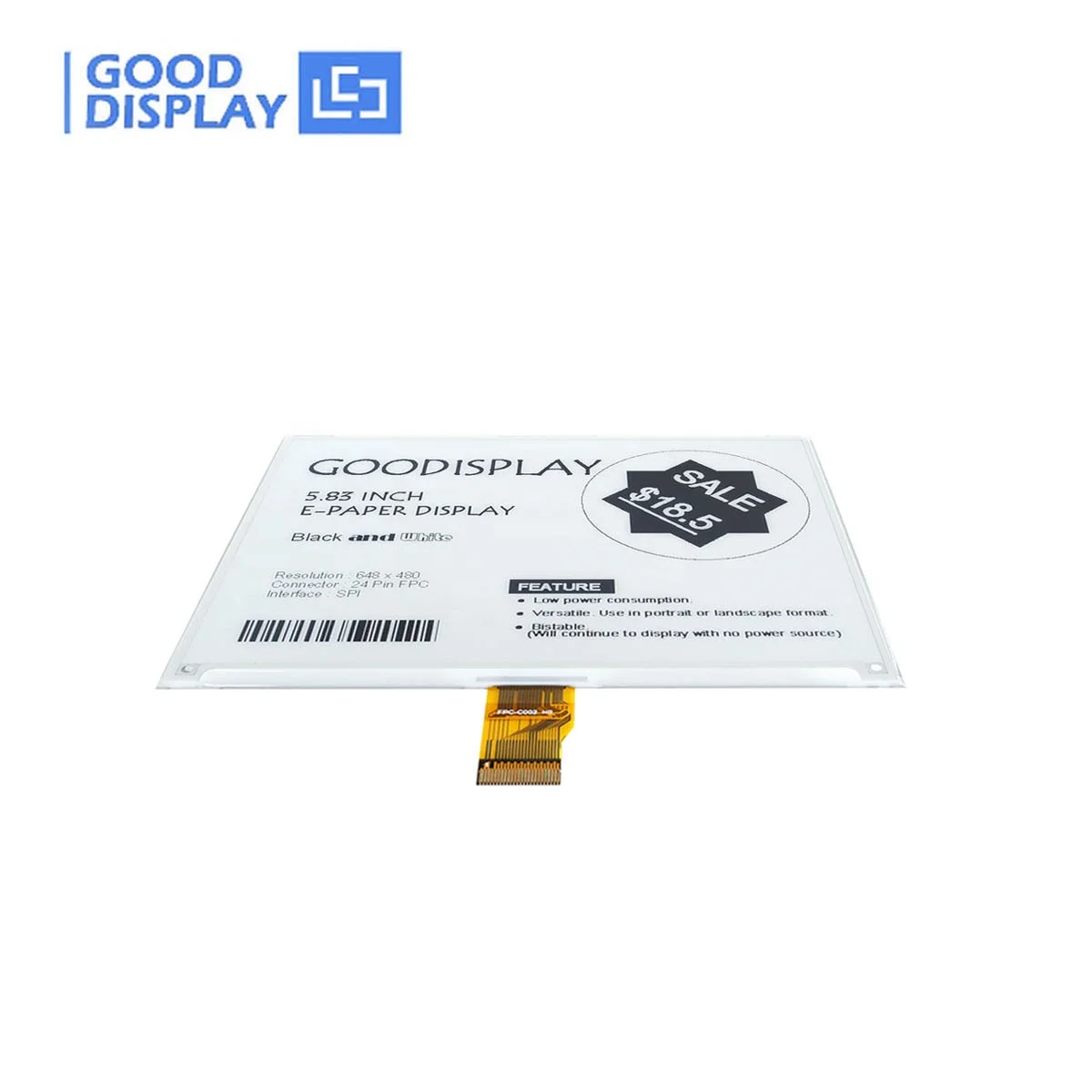

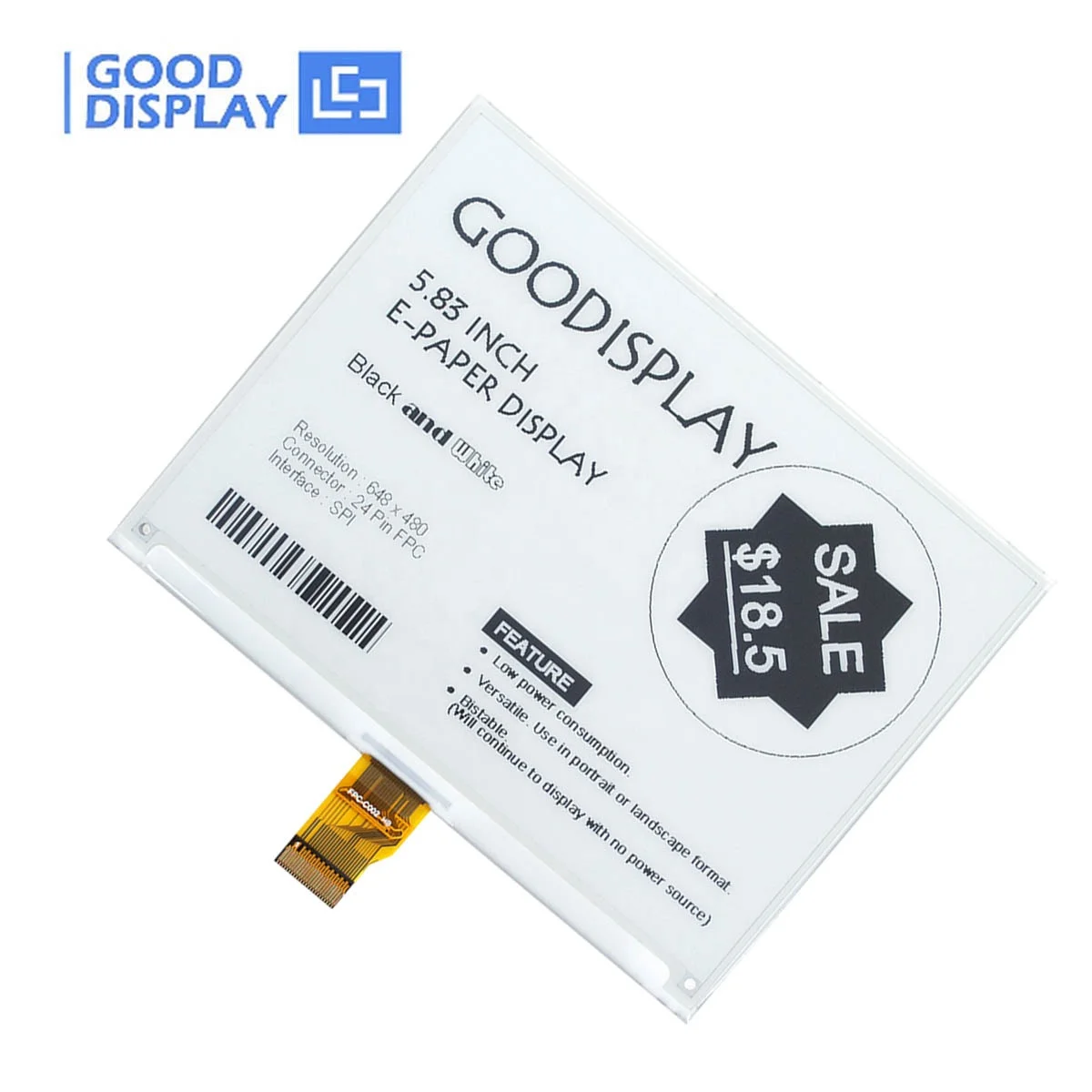

Ebook reader HD display 5.83 inch 648x480 e ink display
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t
This is a 5.83 inch e-ink display with 648x480 resolution, 24 pins FPC connection, SPI interface. The full refresh rate is 3s/time. Its IC is UC8179. The I2C signal master interface to read built-in temperature sensor.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEY0583T8 is a very good choice for applications like shelf label, smart home application, industrial instrument, electronic conference table card and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEY0583T8 is a very good choice for applications like shelf label, smart home application, industrial instrument, electronic conference table card and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
Main Parameters
Part Number | GDEY0583T8 |
Size | 5.83 inch |
IC | UC8179 |
Type | Dot Matrix |
Resolution | 648x480 |

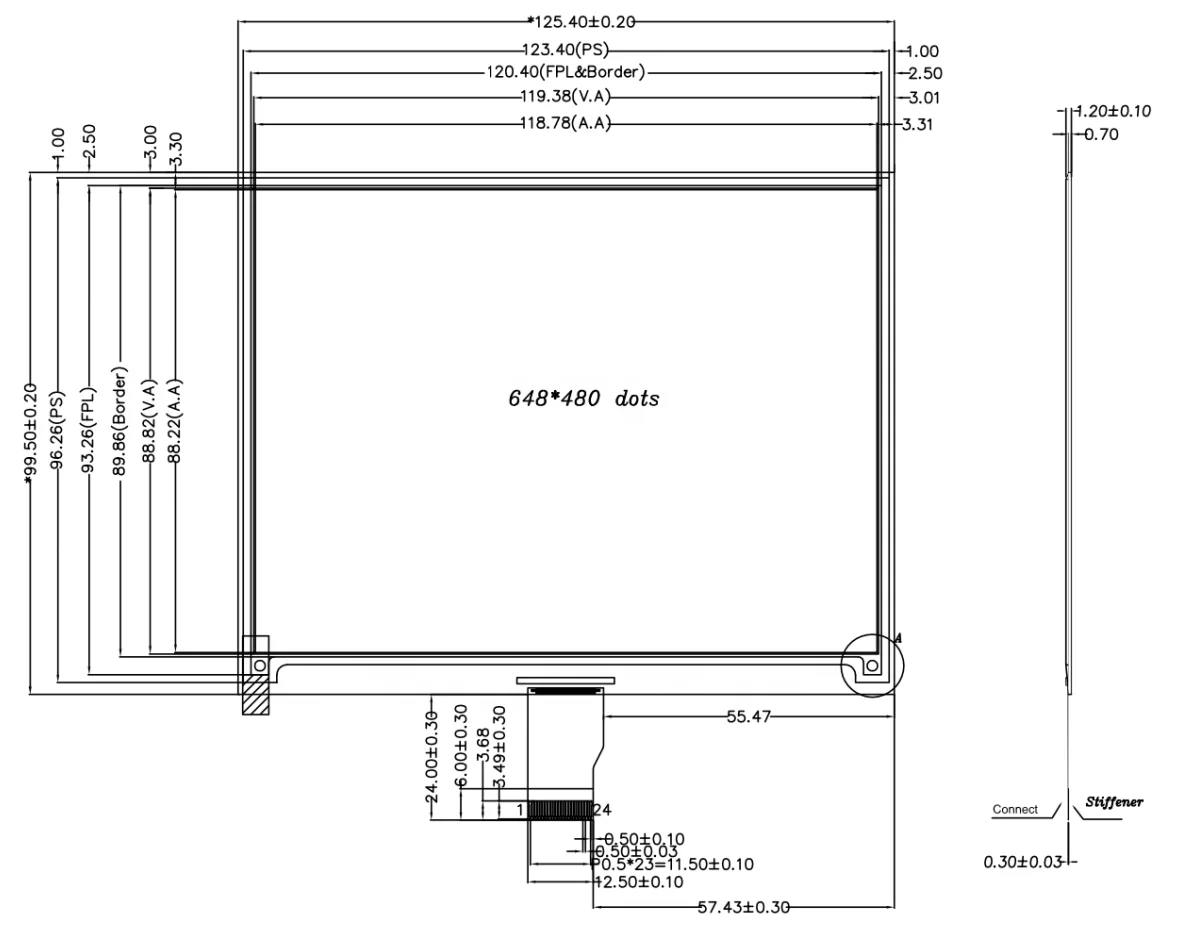

Outline Size(mm) | 125.40x99.50x1.2 |
Active Size(mm) | 118.78x88.22 |
Pixel Pitch(mm) | 0.1833x0.1833 |
Operating Temp. | 0℃~50℃ |
Storage Temp. | -25℃~70℃ |
Max Grayscale | 4 |
Color | Black,White |
Refresh Time(s) | 3 |
Interface | SPI |
Refresh Time(s) | 3 |
Power Consumption(mW) | 33 |
Standby Power Consumption(mW) | 0.003 |
Particular
Features
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.

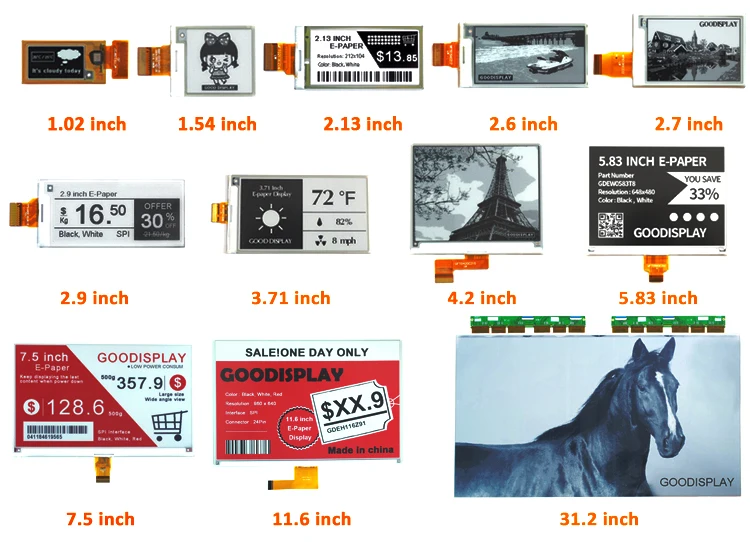

\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
