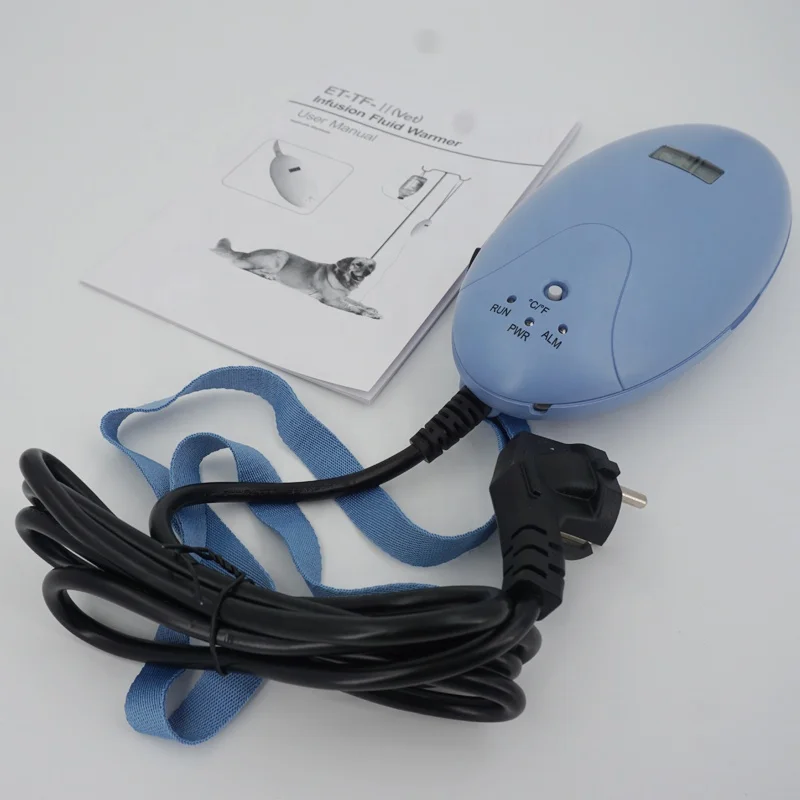

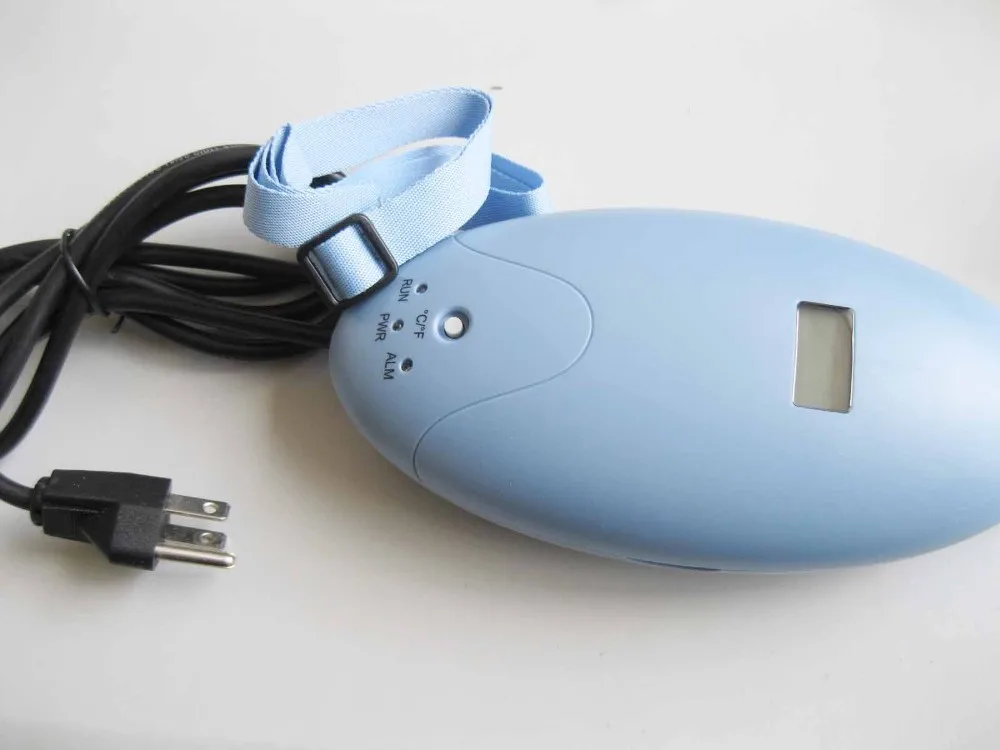

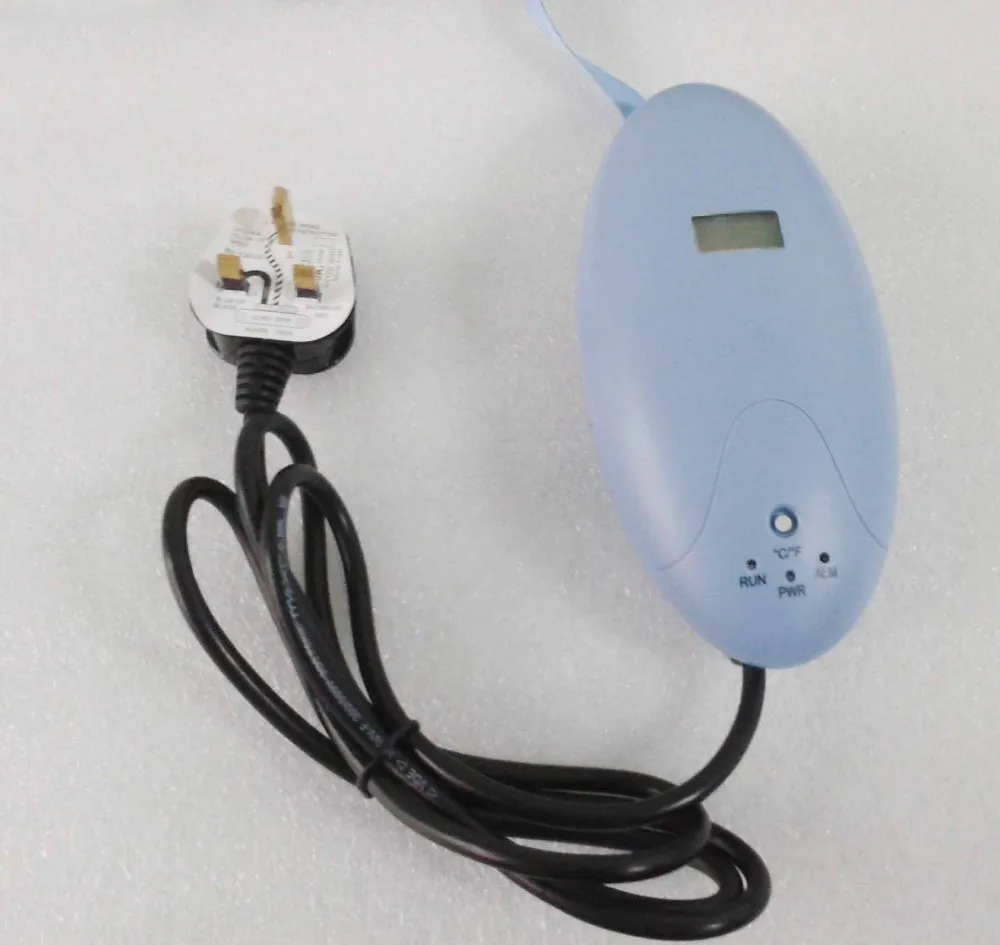

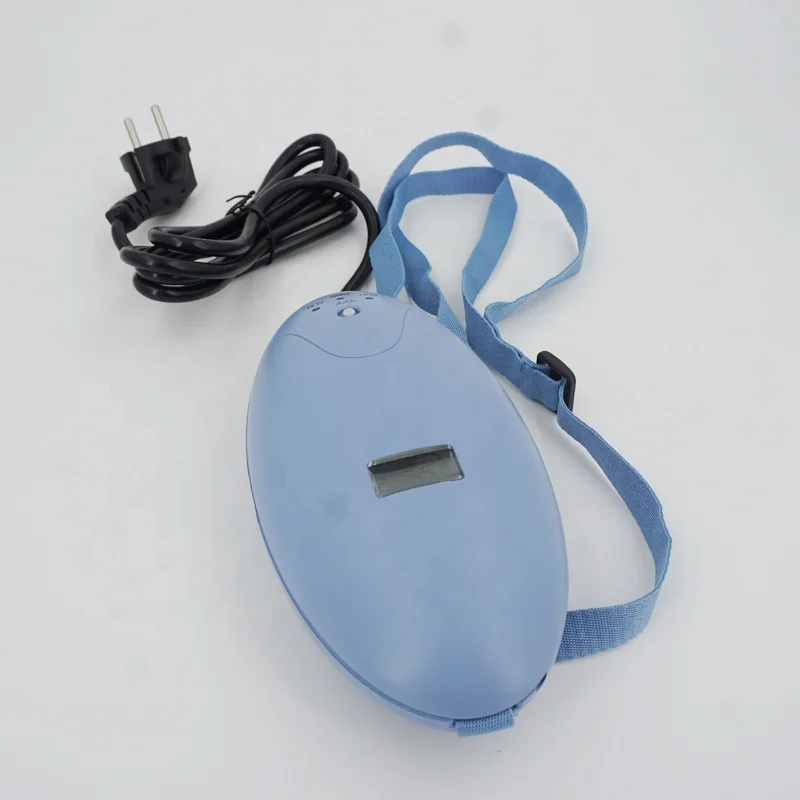

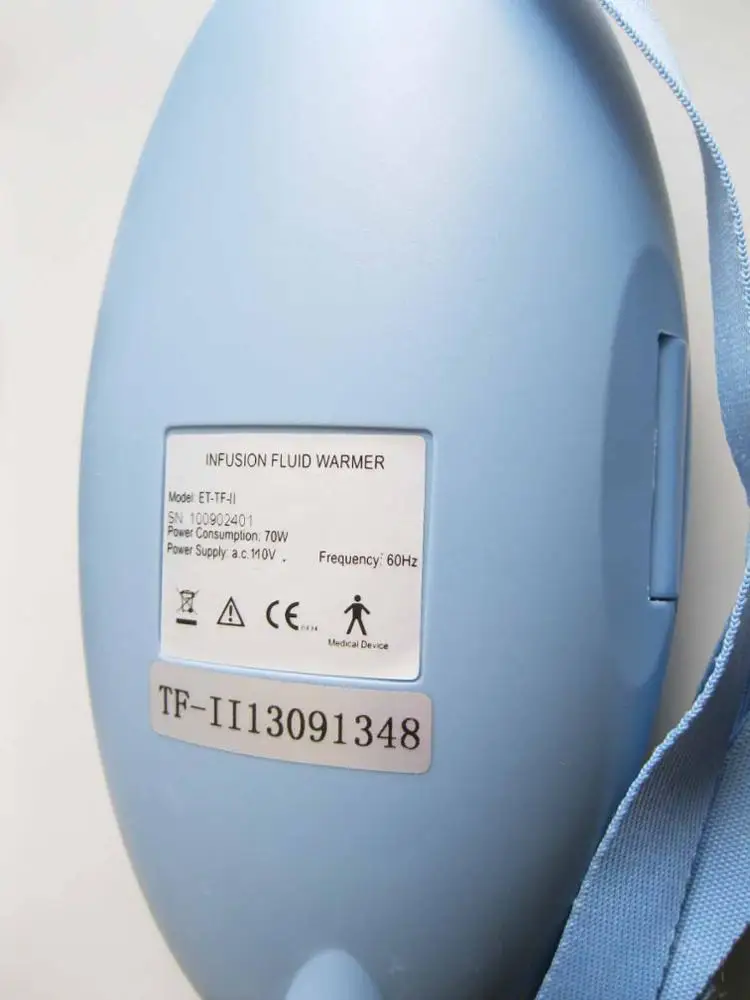

VET Veterinary IV Infusion Fluid Warmer

Features and Functions

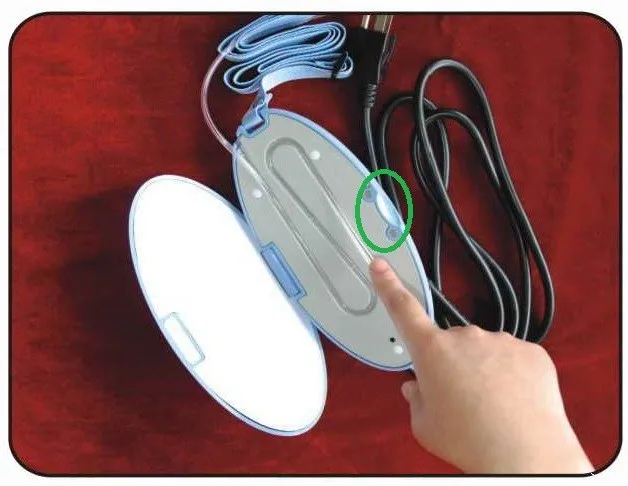

·Four parts: Heating source,Power supply,

Control module,Shell body

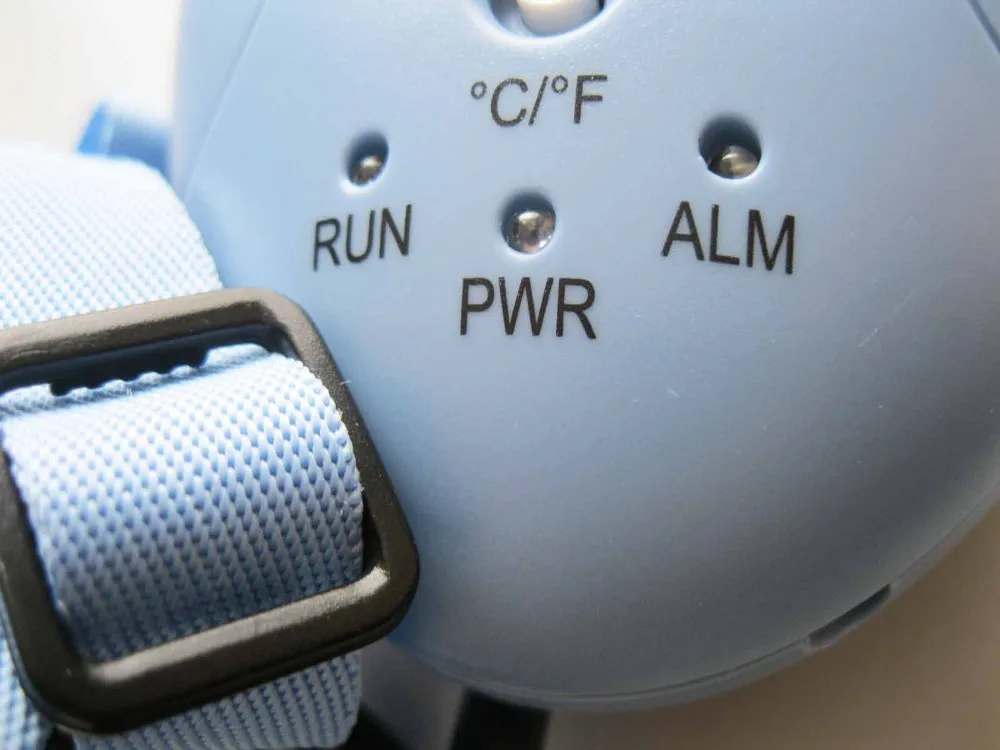

·Three indicator: Run indicator,Power indicator,

Alarm indicator

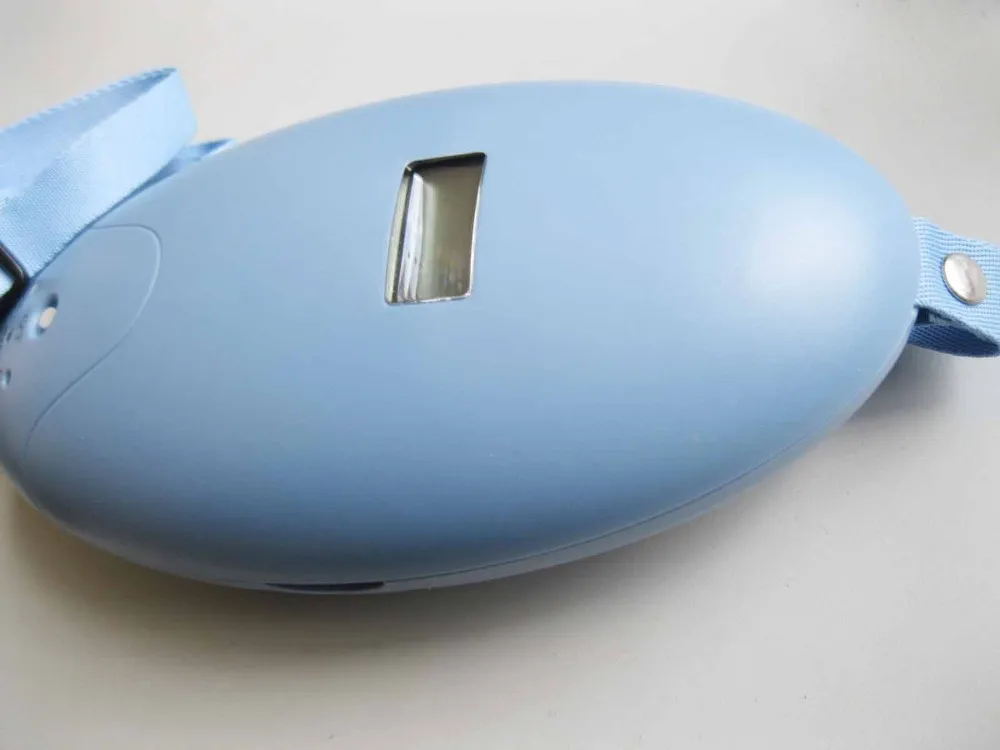

·LCD Display

·°C/°F Switch Button



Technical Parameter:



Environmental conditions of transportation and storage

a. Ambient temperature:-40~+55°C

b. Relative humidity:≤80%

Environmental conditions of operation

a. Ambient temperature:5~40°C

b. Relative humidity≤80%

Power supply

AC110V±11V or AC220V±23V

Frequency

60Hz±1Hz or 50Hz±1Hz

Input power

≤70W





Temperature controlling

a. Liquid temperature at the entrance:15°C~25°C or 59°F~77°F

b. Liquid temperature at the exit:35°C!46°C or 95°F~114.8°F

c. Display error of temperature: ≤2°C or 3.6°F

Safety

The power supply will be automatically cut off when the heating plate reaches 47°C+2°C or 116.6+3.6°F.Meanwhile, the buzzer phone gives an alarm and red-guided light glimmers.

Suitable speed of infusion fluid

40~80 drop/min(2~5.3ml/min)

Fuse

T5..Mal250v

Max. Weight

<600g
