200L stainless steel electric heating beer equipment
- Category: >>>
- Supplier: SHANDONG SHENDONG CO. LTD.
Share on (62105040406):
Product Overview
Description
200L stainless steel electric heating beer equipment
Product Description
1. 200L Beer Brewing Equipment Configurations
Milling system | Malt miller | 150-200kg/h | 1pcs |
Brewhouse | Mash tun/ Lauter tank | Volume is 200L, with false bottom, grant, raker with motor | 1pcs |
Kettle/Whirlpool tank | Volume is 200L, electric heating | 1pcs | |
HLT water tank | Volume is 400L, electric heating | 1pcs | |
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines | |||
Fermenting | Fermenters | Volume is 200L or 400L (double batches) | 6pcs |
BBT(option) | Volume is 200L or 400L (double batches) | 2pcs | |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||
Cooling system | Glycol tank | Volume 400L or 800L | 1pcs |
Cold water tank(option) | Volume 400L, cooled by glycol tank | 1pcs | |
Chiller | 3HP, Copeland | 1pcs | |
Cleaning | CIP | 50L two tanks, heated by electric, with pump and trolley | 1pcs |
Controlling | Control cabinet | PLC touch screen or PID controller | 1pcs |
2. 200L Mashing System
3. 200L Fermentation System
1). A serials of the fermetation tanks
Fermentation tank series | Volume in US Gallon | Diameter | Height |
100l Fermentation tank | 26US Gallon | 640mm | 1500mm |
200l Fermentation Tank | 53US Gallon | 760mm | 1800mm |
300l Fermentation Tank | 79US Gallon | 860mm | 2000mm |
500l Fermentation Tank | 132US Gallon | 960mm | 2350mm |
1000l Fermentation Tank | 264US Gallon | 1260mm | 2650mm |
2000l Fermentation Tank | 528US Gallon | 1560mm | 3150mm |
3000l Fermentation Tank | 793US Gallon | 1800mm | 3550mm |
5000l Fermentation Tank | 1321US Gallon | 200mm | 4450mm |
10000 Fermentation Tank | 2642US Gallon | 2200mm | 6100mm |
2). Specifications of 200L fermentation tanks:
| No. | Item | Introduction |
01 | Volume | 200L |
02 | Dimention | 760*1800mm |
03 | Material | Stainless steel 304 |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimpled jacket on the cone and side Or single wall with jacketed, or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on. |
3). Details of 200L Fermentation Tanks:
Send Inquiry>>
4. Auxiliary Equipment for 200L Beer Brewing Equipment

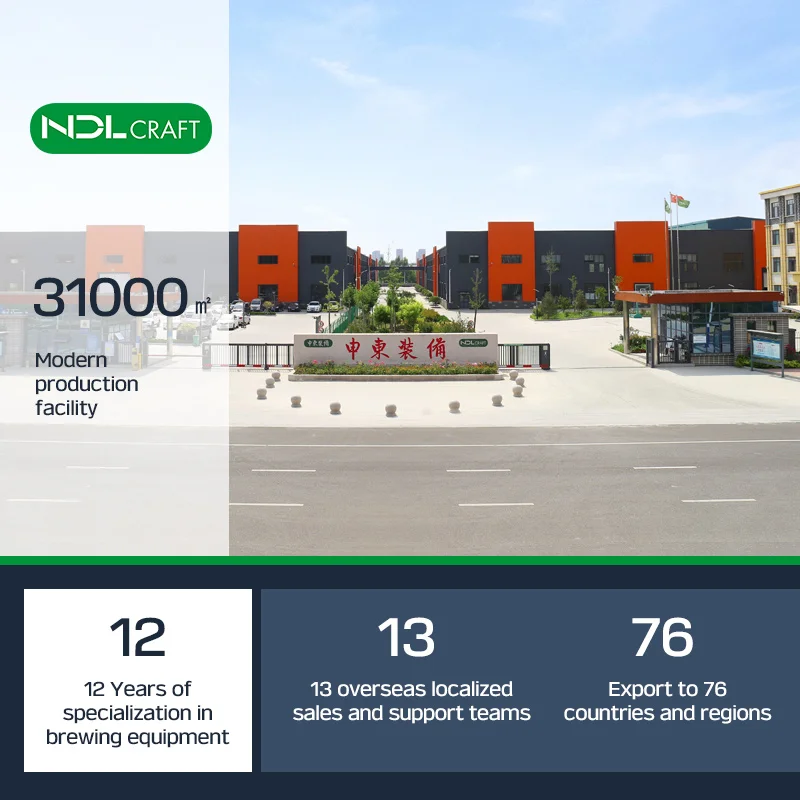

Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
