Мономер тип металла воздушный кованый кузнечный молот машина (C41 16KG C41 20KG C41 25KG C41 40KG)

Product Overview

Description

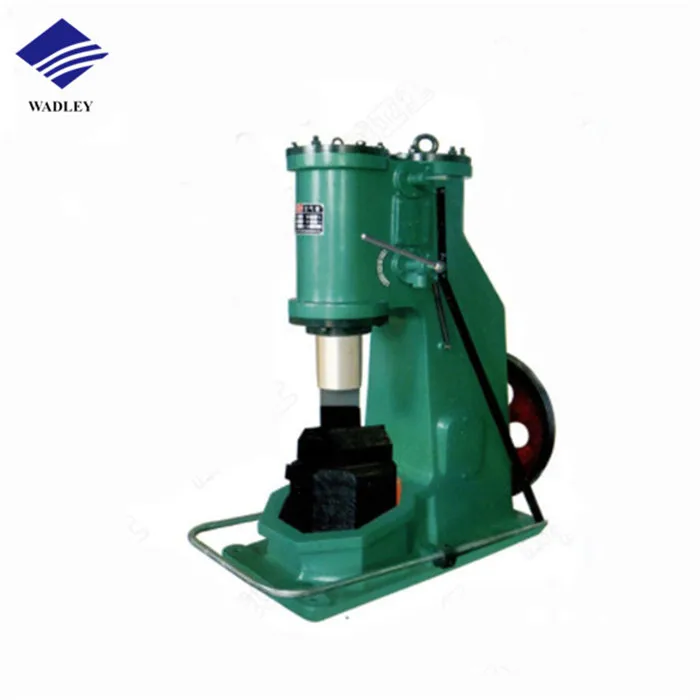

Monomer Type Metal Air Forging Hammer Machine (C41-16KG C41-20KG C41-25KG C41-40KG)

1.The main performance characteristics:

A. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
B. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
C. Simple mechanism ,Is not easy to damage

2.Application:

Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.

3.Product main parameters:

Parameter / project / model	Units	C41-40kg	C41-25kg	C41-20kg	C41-16kg
Blow energy	K j	0.53	0.27	0.22	0.18
Height of working area	mm	245	240	200	180
Number of blows	min-1	245	250	255	258
Anvil block size	mm	120x50	100x50	90x50	70x40
Malleable square steel length	mm	52x52	40x40	30x30	20x20
Malleable circular  steel length	mm	¢68	¢45	¢35	¢22
Match use of power	K w	4	Single-phase 3/220V, Three-phase 2.2/380V	Single-phase  2.2/220, Three-phase  2.2/380	Single-phase 1.5/220, Three-phase 1.5/380
Motor speed	r. p. m	1440	1440	1440	1440
Anvil sitting of  weight	kg	-	-	-	-
Gross weight	kg	880	-	-	-
Appearance size	mm	1080x600x1430	--	--	--

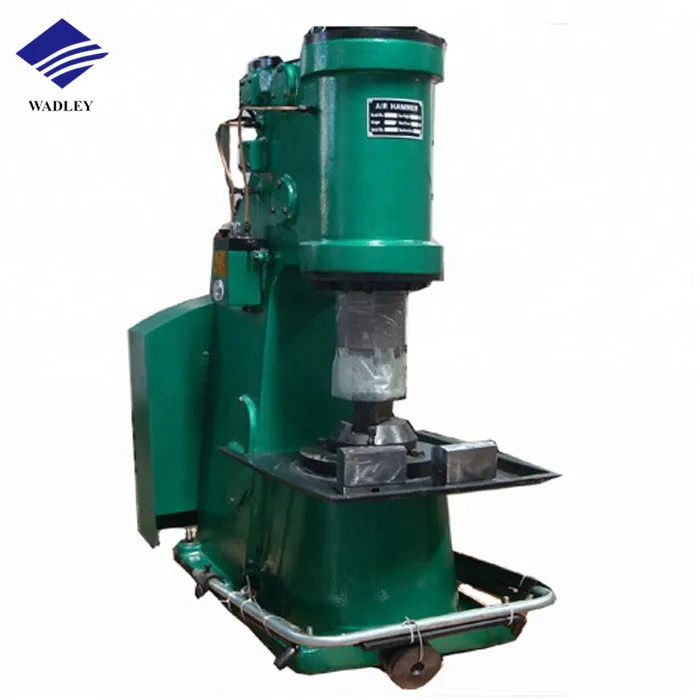

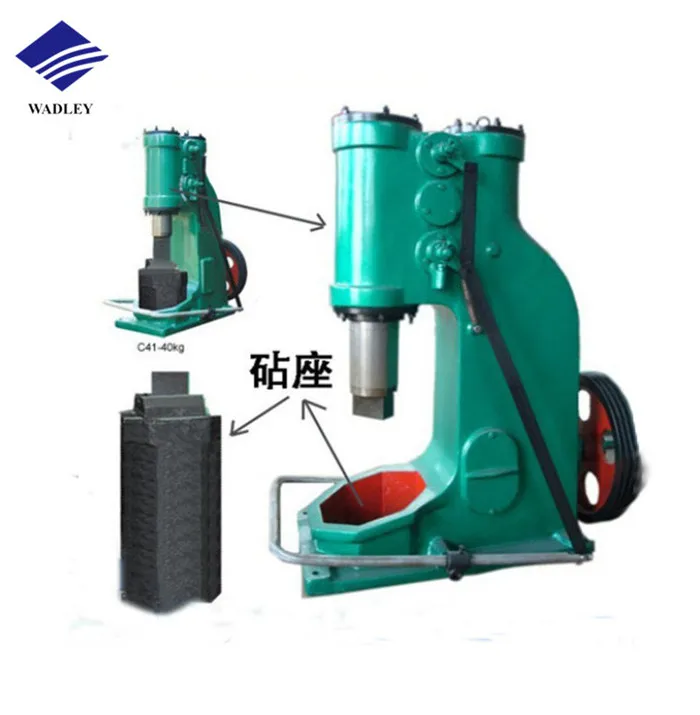

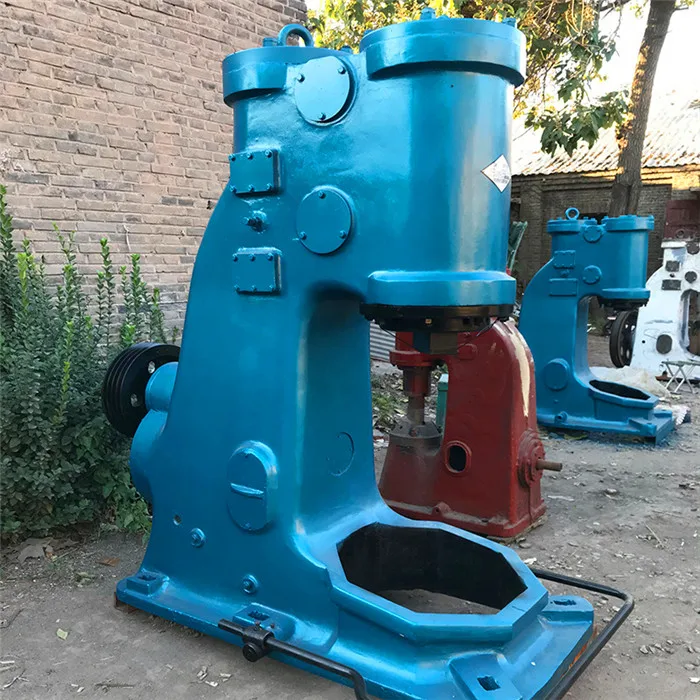

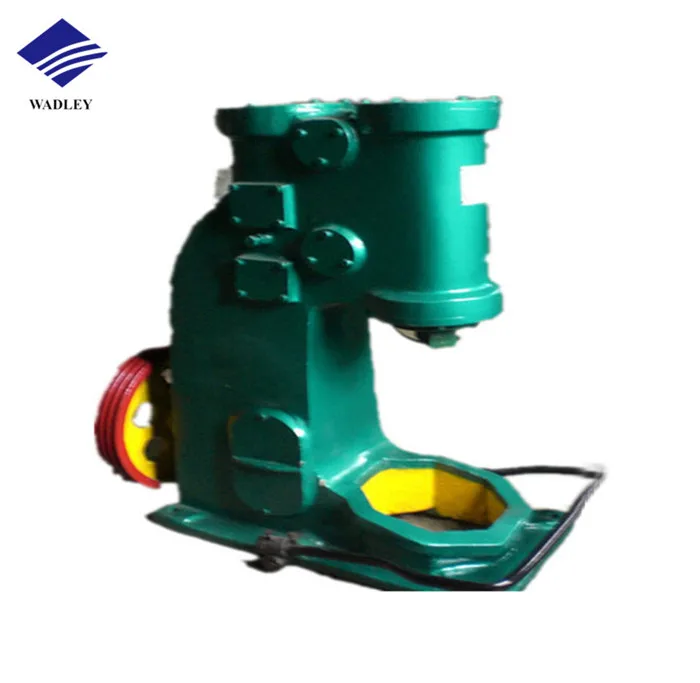

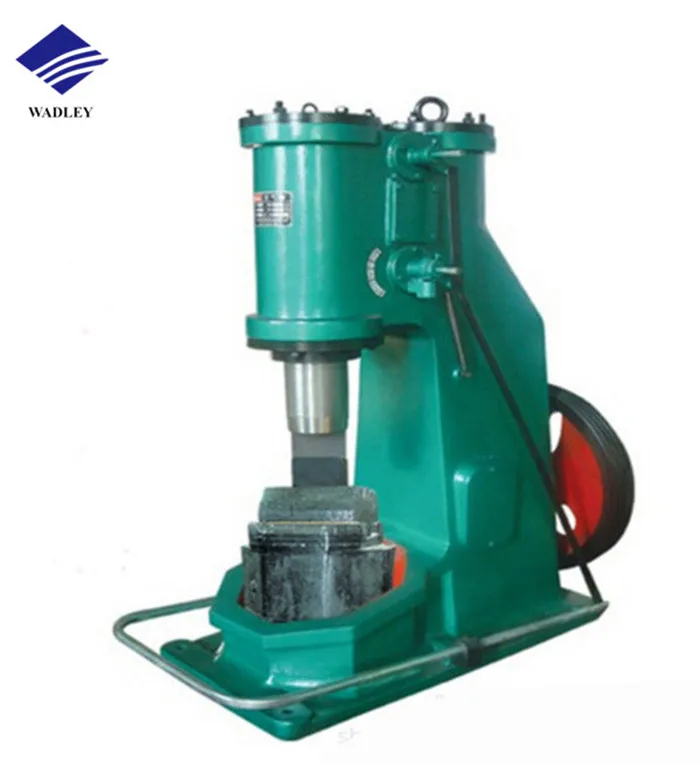

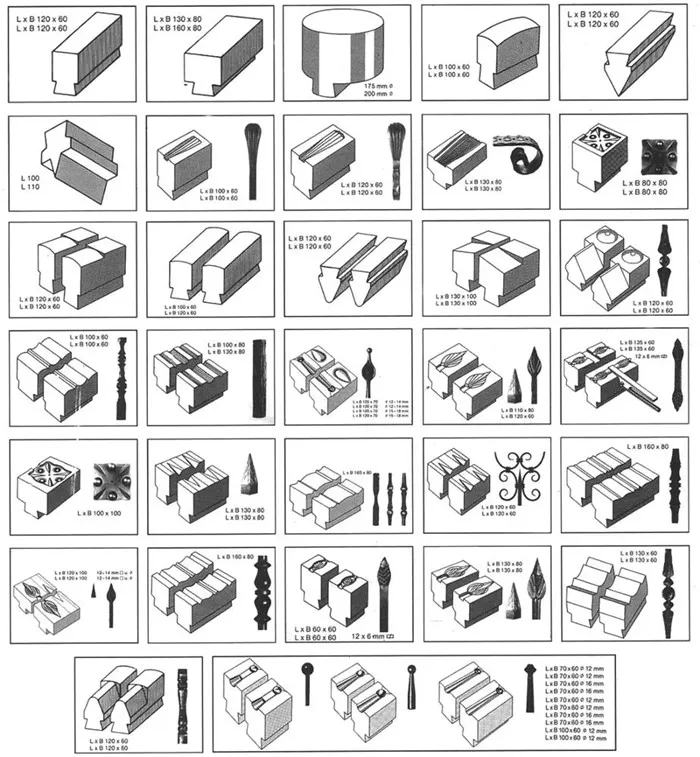

4.Product images:

5.Our service:

A.Shipping the product out in time;

B.We have outstanding team of after sales service;

C.24 online service.

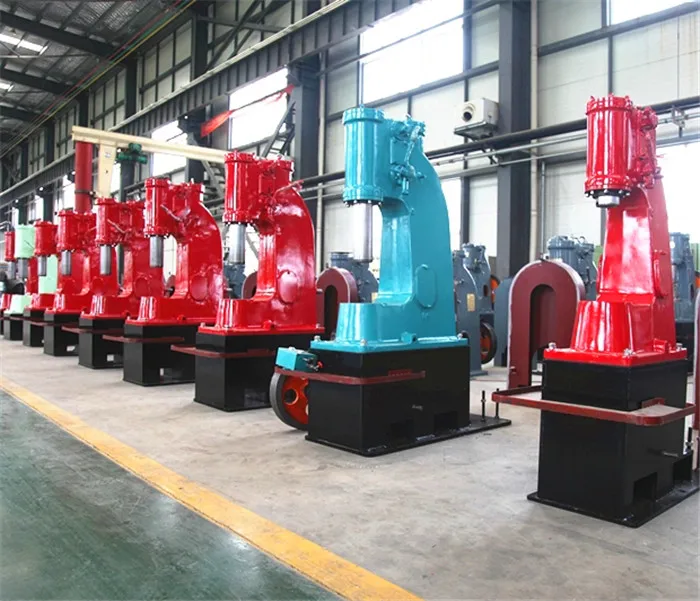

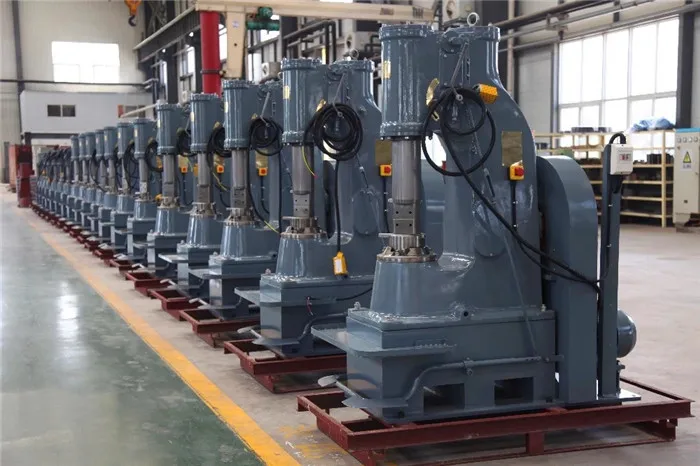

6.Our company:

Henan Wadley Import & Export Trading Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.

7.Packing&delivery:

8.FAQ:

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we're Made in China Gold Suppliers,
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
