Plastic Recycling Equipment, Shredding And Hot Melting Styrofoam EPS Recycling Machine
Yurefon EPS recycling machine is a Styrofoam recycling machine, which can smash the waste Styrofoam materials into small pieces by the blades and gears, and then it could be easily compressed into tight foam ingots at a ratio of 50:1. After compaction, the waste Styrofoam can be reused to make other products, such as frame products and construction moldings.
EPS recycling machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also called EPS densifier and EPS compactor. It is widely used in sea food processing plant, electronic factories, White goods and black goods stores, and the supermarkets.

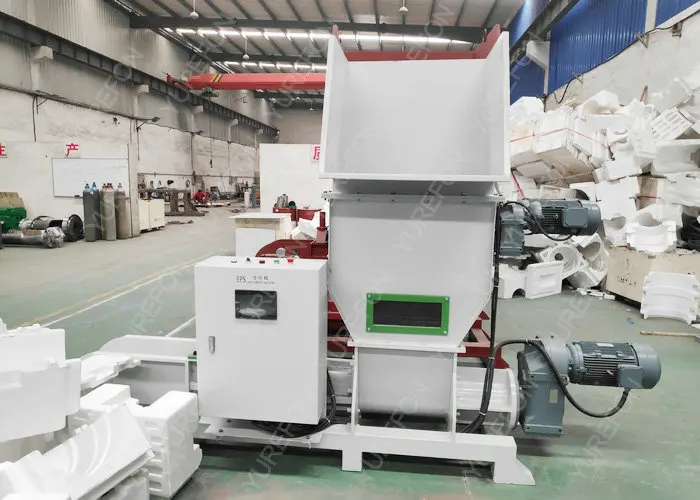

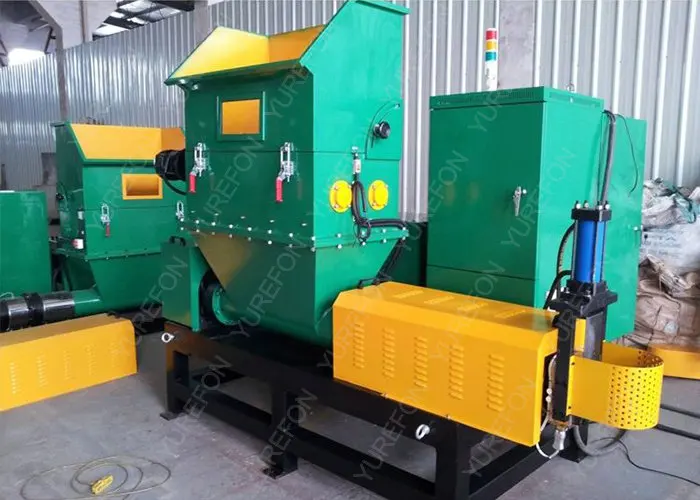

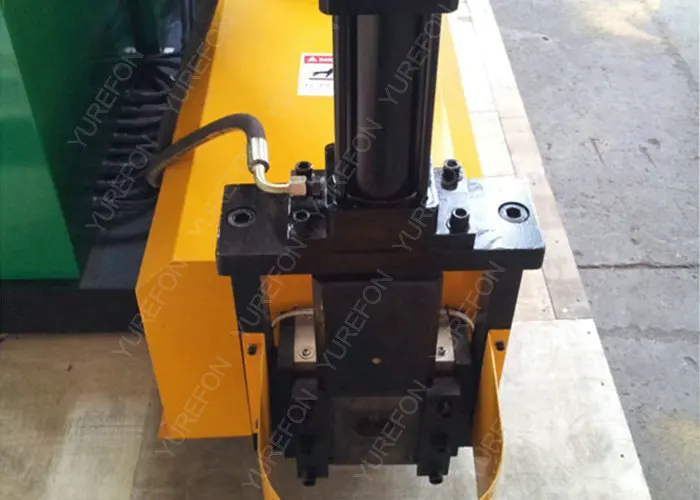

Photos of Hot Melting Styrofoam EPS Recycling Machine
Technical parameters of Shredding And Hot Melting Styrofoam EPS Recycling Machine:
|Screw diameter||Φ250 mm|
|Pitch length||180 mm|
|Screw speed||160 r/min|
|Filter aperture||50 mm|
|Extruder center height||366 mm|
|main motor power||22KW|
|Heating rate||The total area of the three districts is 14KW.|
|Crusher motor power||2.2kwx4|
|Number of crusher blades||Four axes 11 +10 +11 +10|
|Machine weight||1800 Kg|
EPS plastic recycling machinery working principle:
The twin shaft are two parallel shafts with blades, they running in different rotation direction. Each shaft has blades and driven by the gear box, to crushing the EPS material then the material will get throught the sreen into the barrel. The material will be processed by the high speed rotary screw to the heating barrel. Then EPS material will be melt under high temperature and can extruding to expected shapes.
EPS plastic recycling machinery for the environment:
1.EPS is uniquely recyclable – all manufacturing waste can be fully reprocessed as can the products at end-of-life.
2.EPS is comprised of 98% air and therefore only 2% polystyrene making it a highly efficient use of raw material.
3.Although EPS is derived from a non-renewable resouce - oil, it represents less than 0.1% of crude oil usage.
4.As EPS is highly energy efficient – the energy saved over the lifetime of an insulation panel.
