13.3inch laptop style usb c dock monitor for samsung huawei smart phones and development board, change mobile to pc

Laptop-Style Dock, monitor for USB-C mobile phone & HD&MI Devices.

13.3inch/14inch/15.6inch/11.6inch optional

Wired version smart view, huawei desktop.

Wireless version optional.

Support Devices

Support Mobile phones, Samsung S8/s9/s10/s20/note20, huawei mate10/mate20/mate30, and aboves etc.

Support Macbook second screen

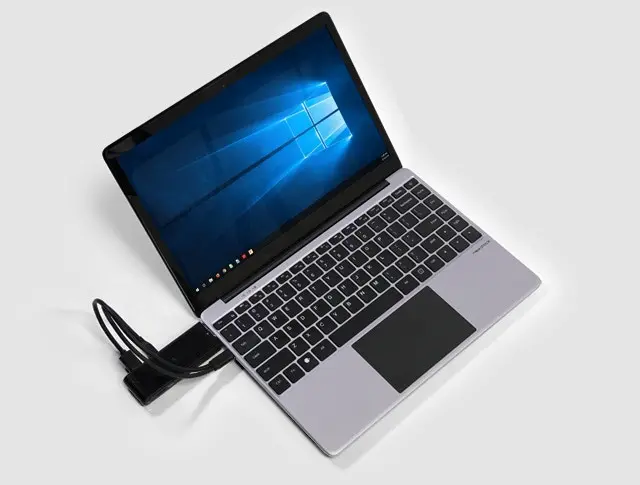

Support Mini PC, Stick PC, Development Board, do not need extra power for 5V 3A devices.

A power bank for your mobile phone.

A cloud PC best partner.

Support OEM, ODM.

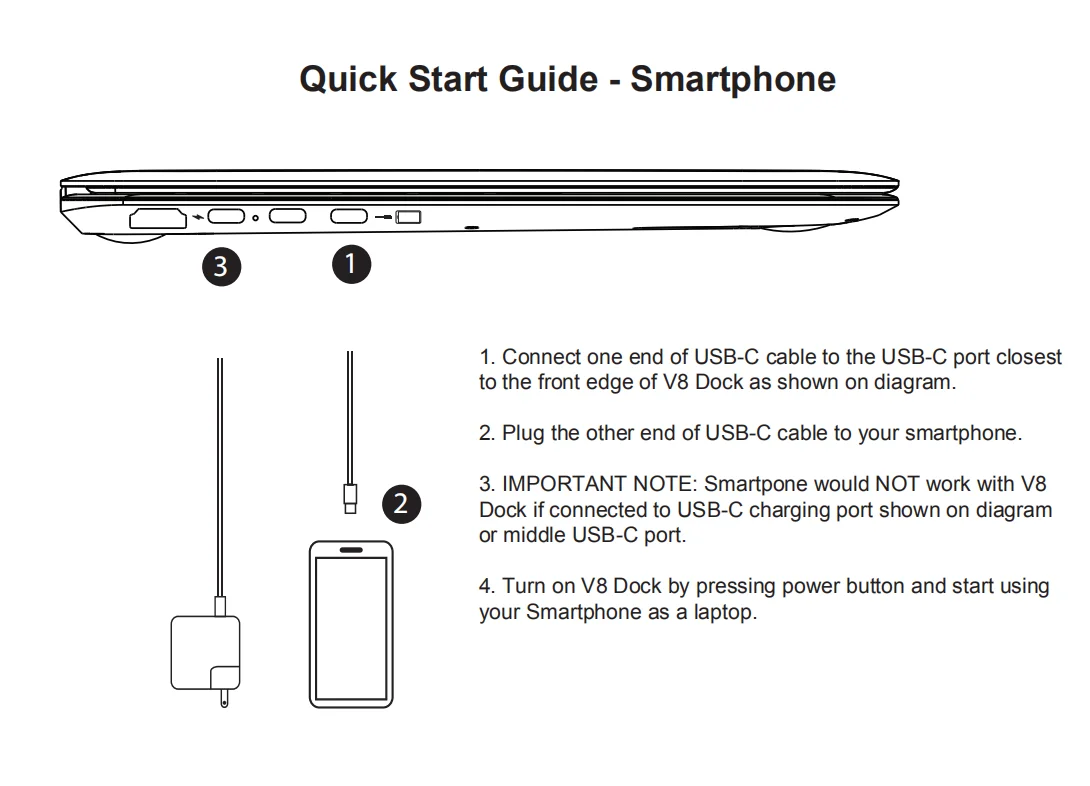

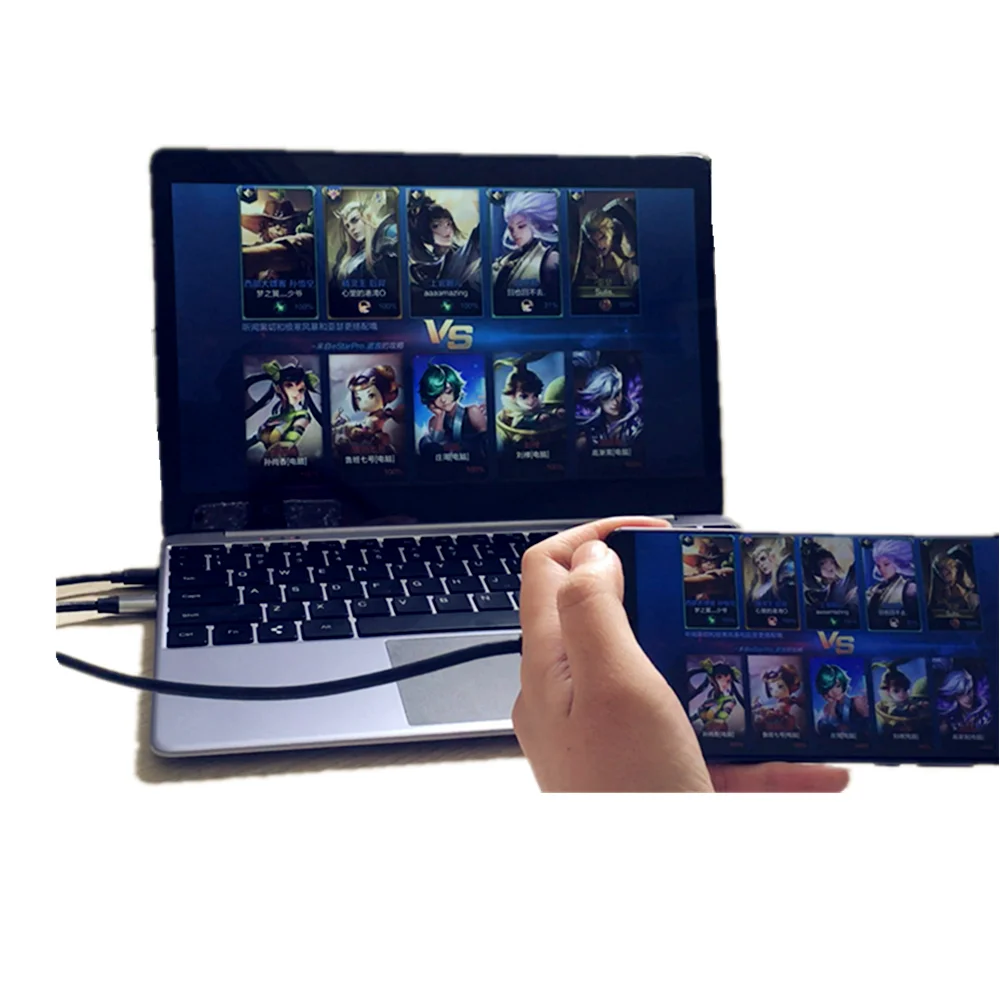

Mobile phone connect way.

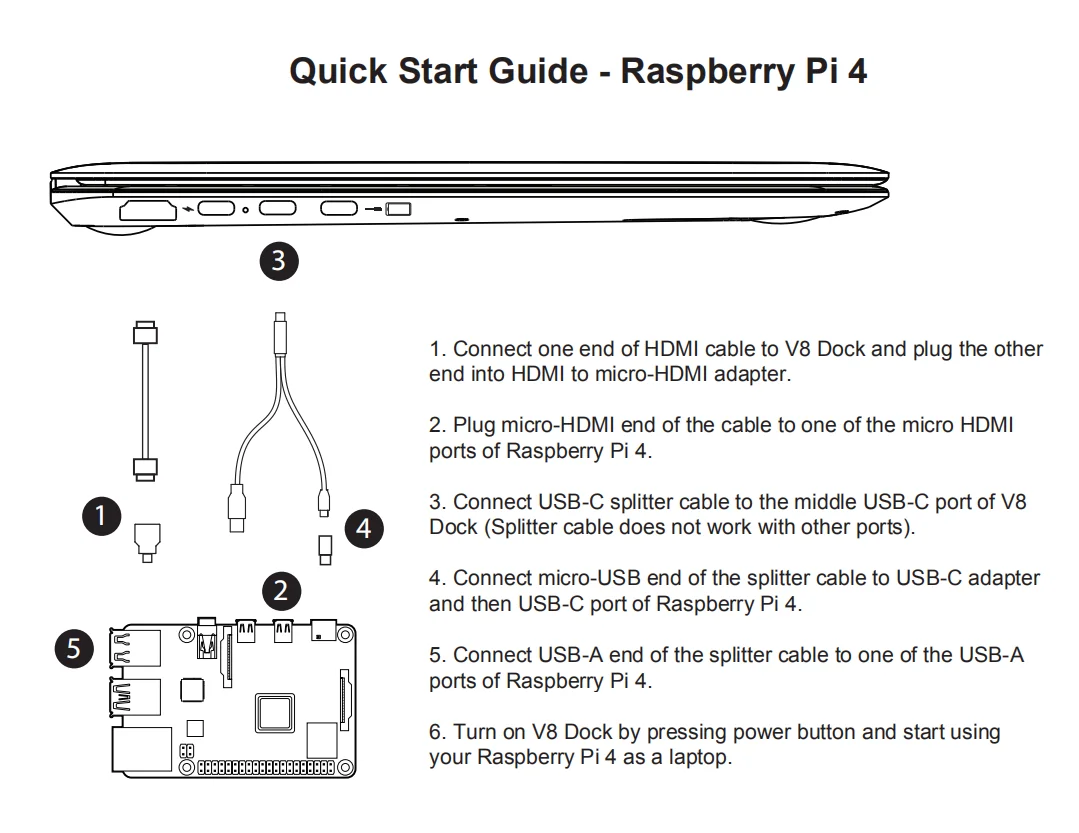

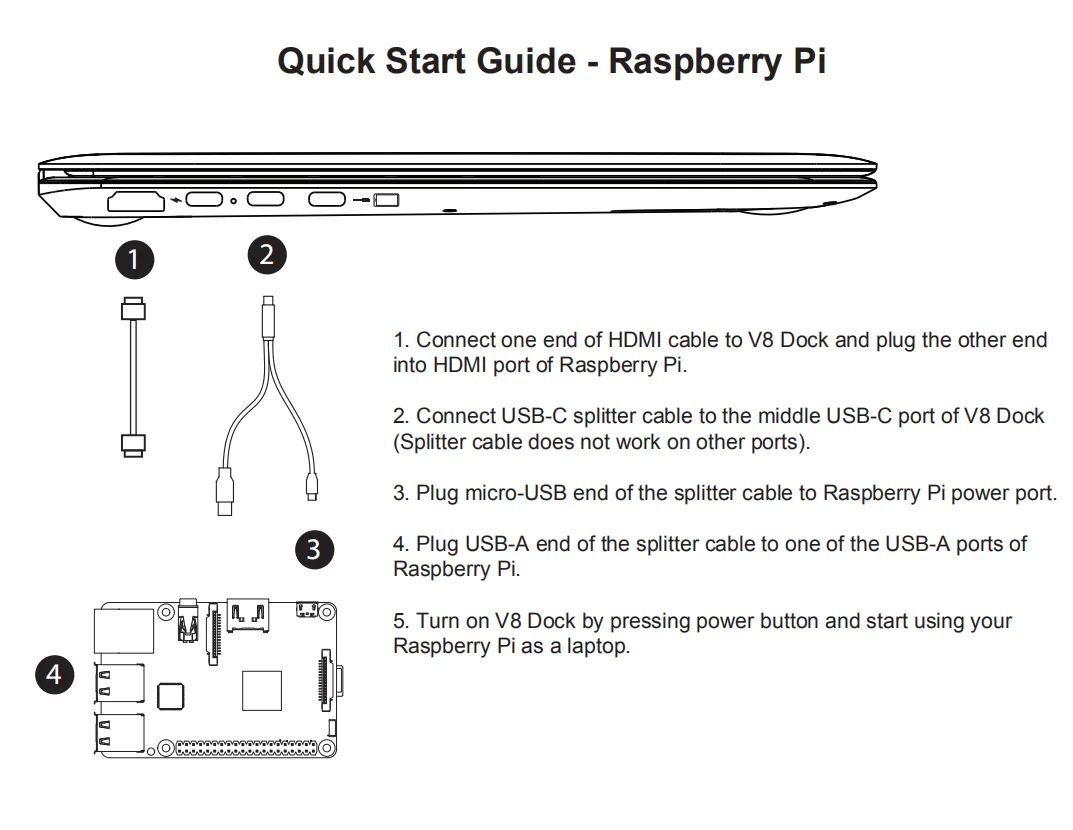

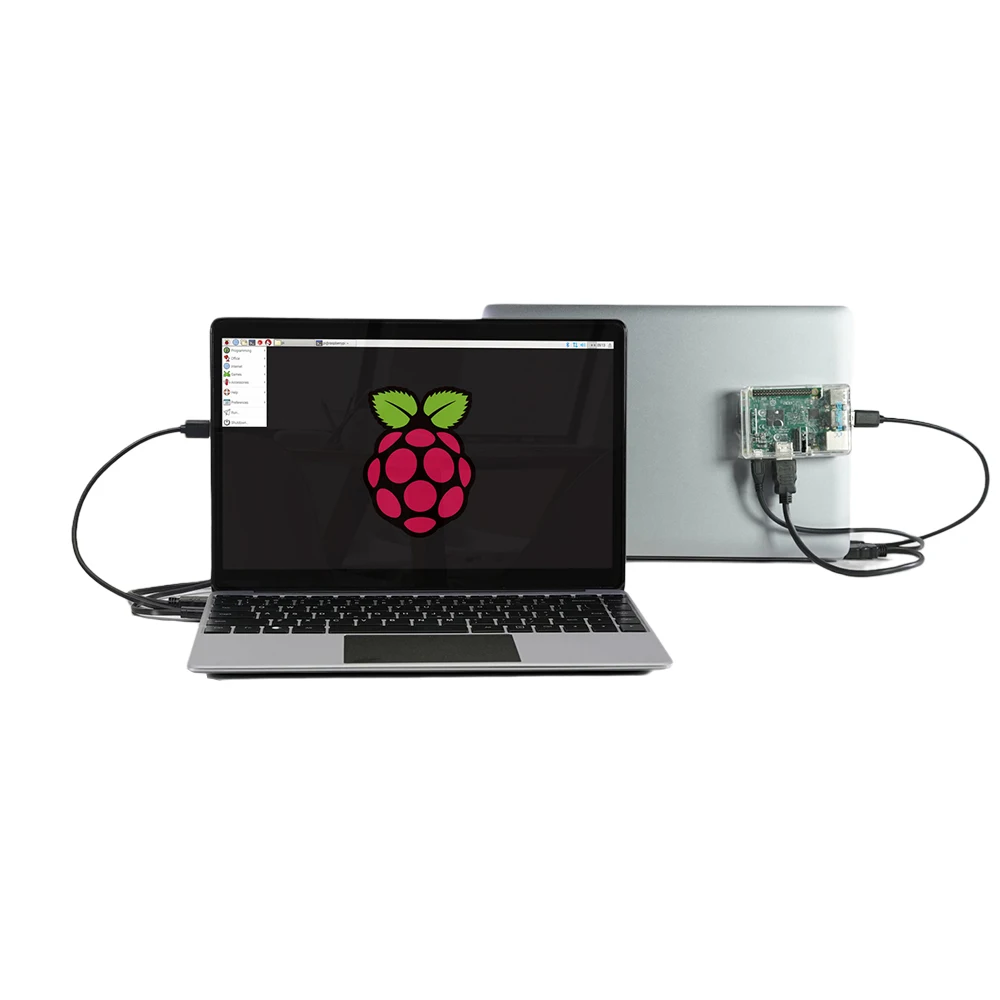

Development board connect way.

1920*1080 HD Full Lamination Screen with Glasses

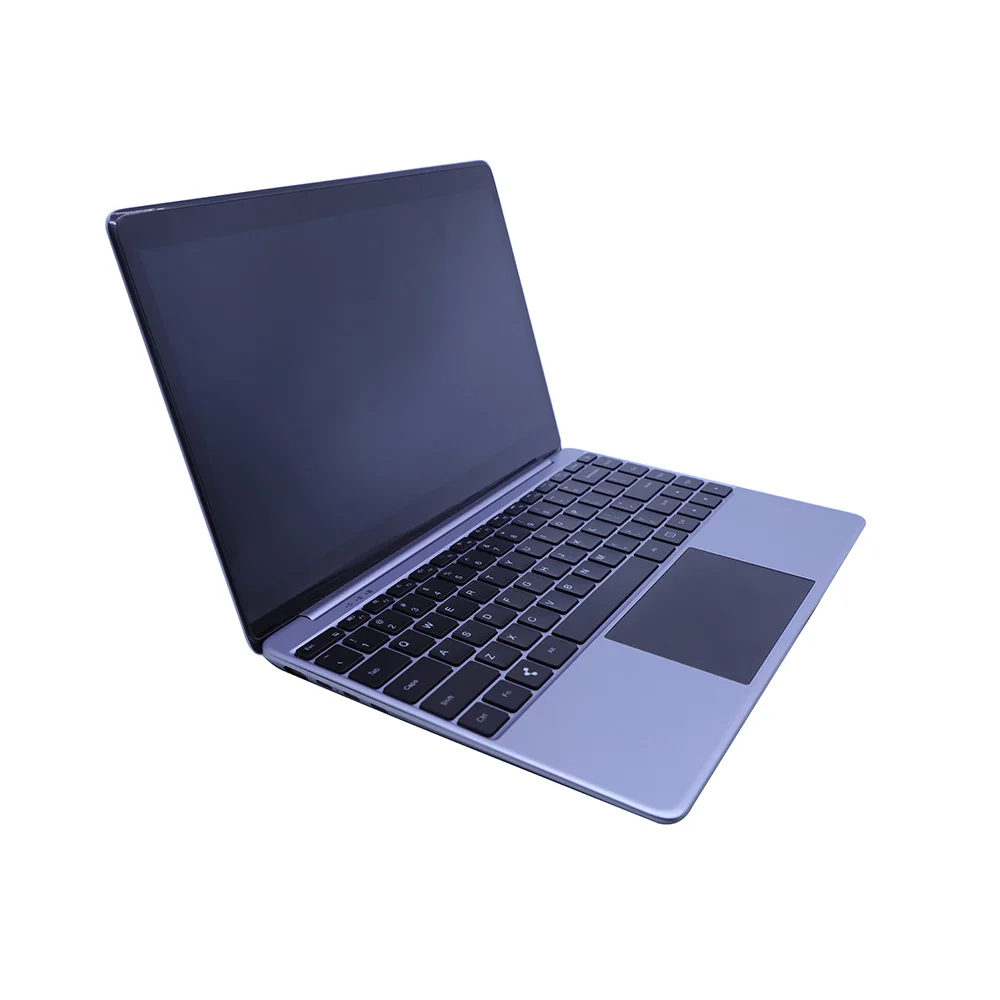

With 13.3inch slim body, MEEGOAPD V8 use full lamination tech to make sure no gas space between screen and display.

The over size is reduced 30% compare with traditional notebook due to the lamination tech.

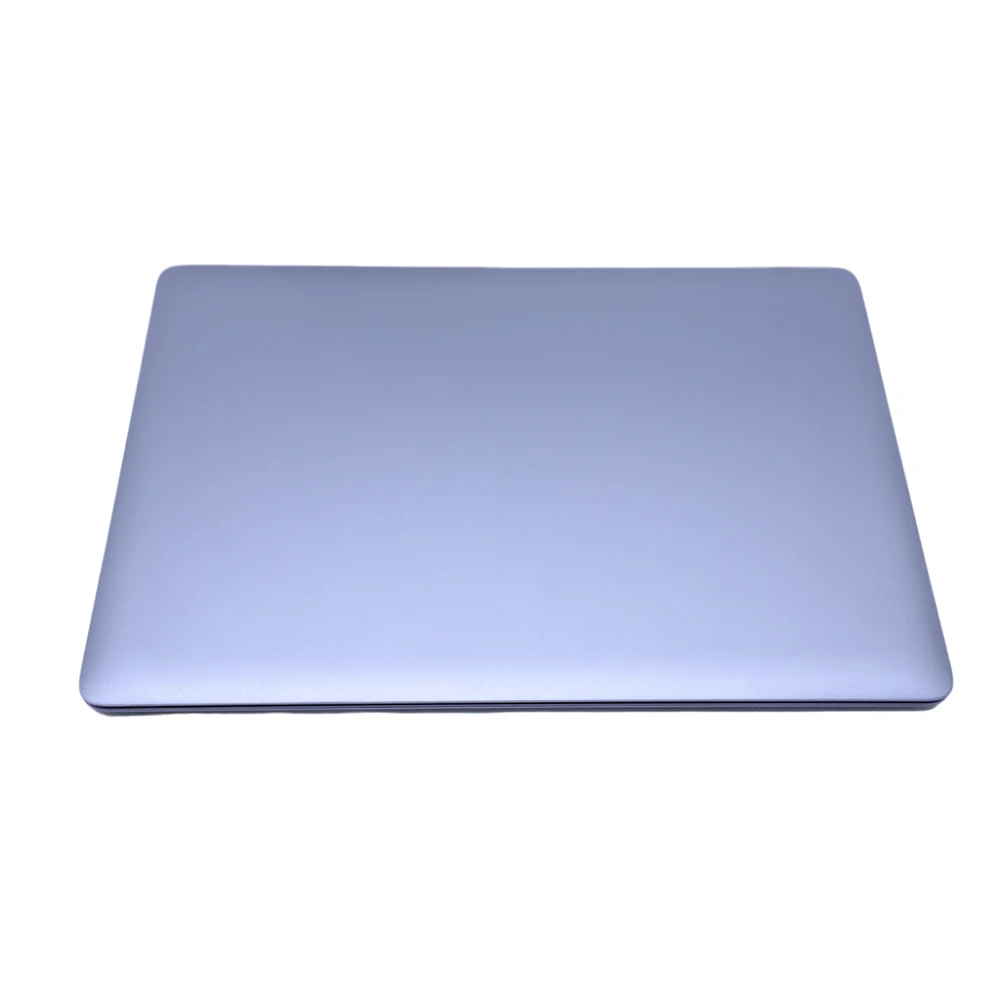

V8 ware a metal case, use edge to edge full funciton keyboard.

7.6V/6800MAH (4pcs 3.8V/3400MAH battery or 2pcs 3.8V/6800Mah battery).

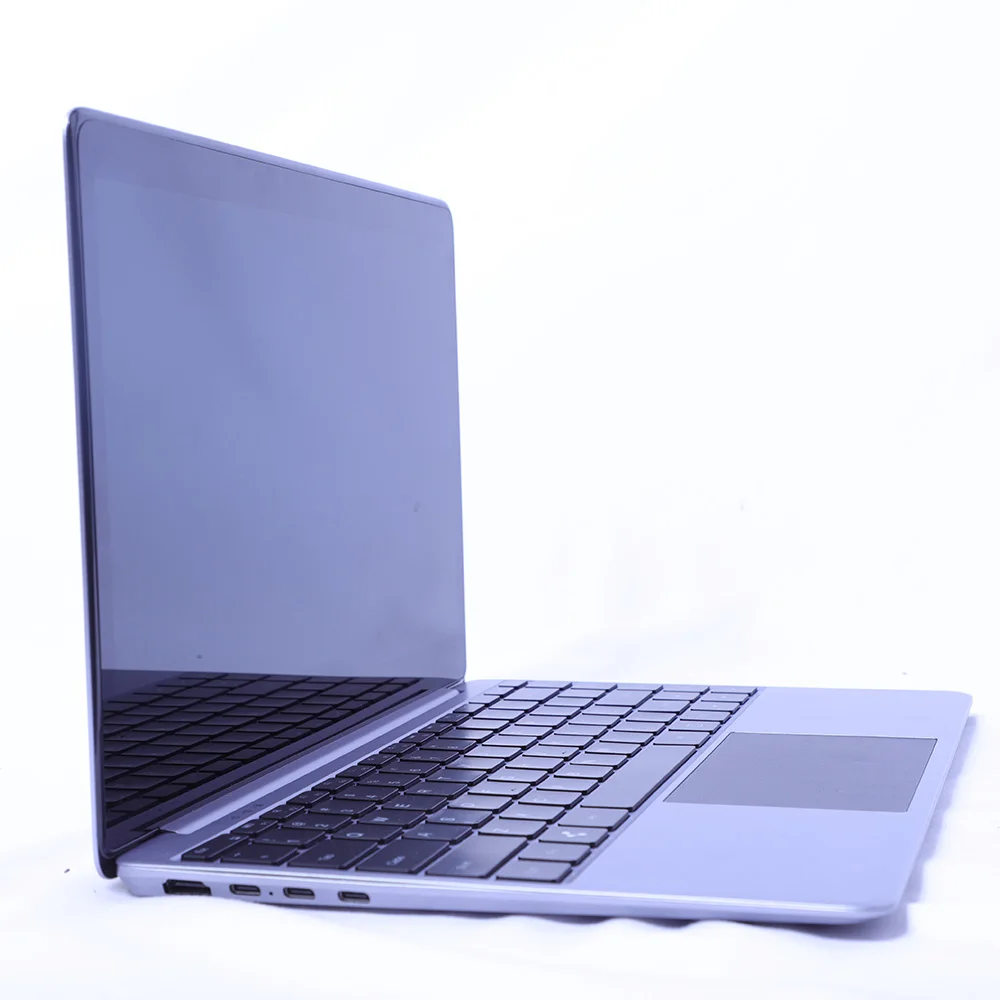

Left Side Ports

1. First is HD &MI port for HD &MI products

2. First type c port near HD port for DP charging.

3. Second type c port supply power and data

4. The Third type c port supply power, display, data

Right Side Ports

1. USB port support keyboard,mouse,USB driver etc.

2. Audio port support earphone.

3. Micro SD card slot support 128G.

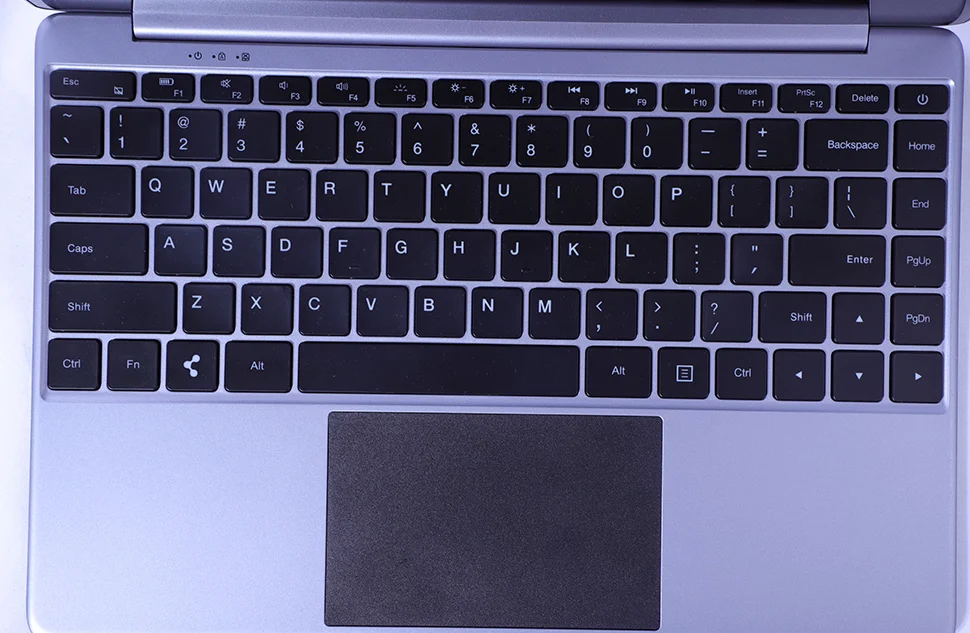

A full size keyboard with function keys and touch pad, just use your device as a laptop.

1. Function keys:

F1~Battery level, F2~Mute, F3~ V-, F4~V+, F5~keybard backlight, F6~ Display brightness-,

F7~Display brightness+, F8~previous, F9~ Next, F10~Suspend

2. Touch pad:

Left +right

Two fingers touch ~ slide display up or down

Three finger touch ~ Back to touch or current page.

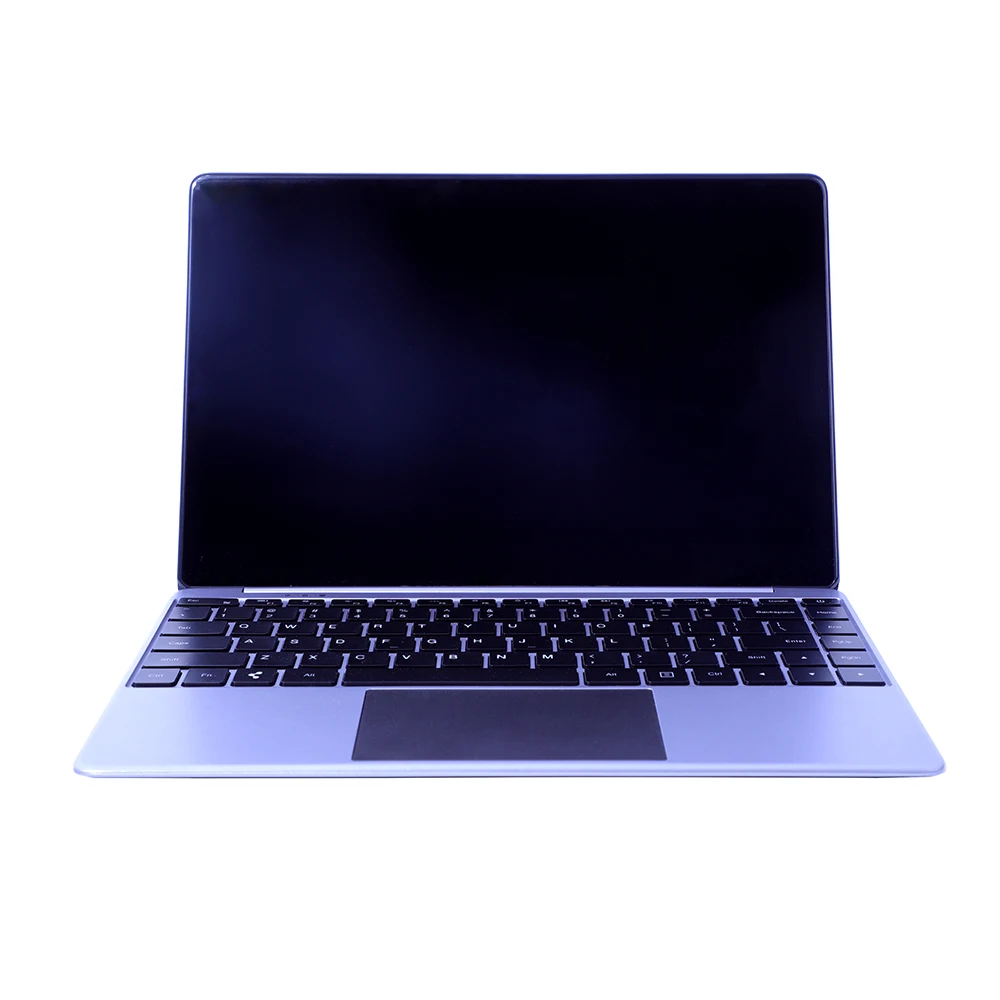

Detailed Images

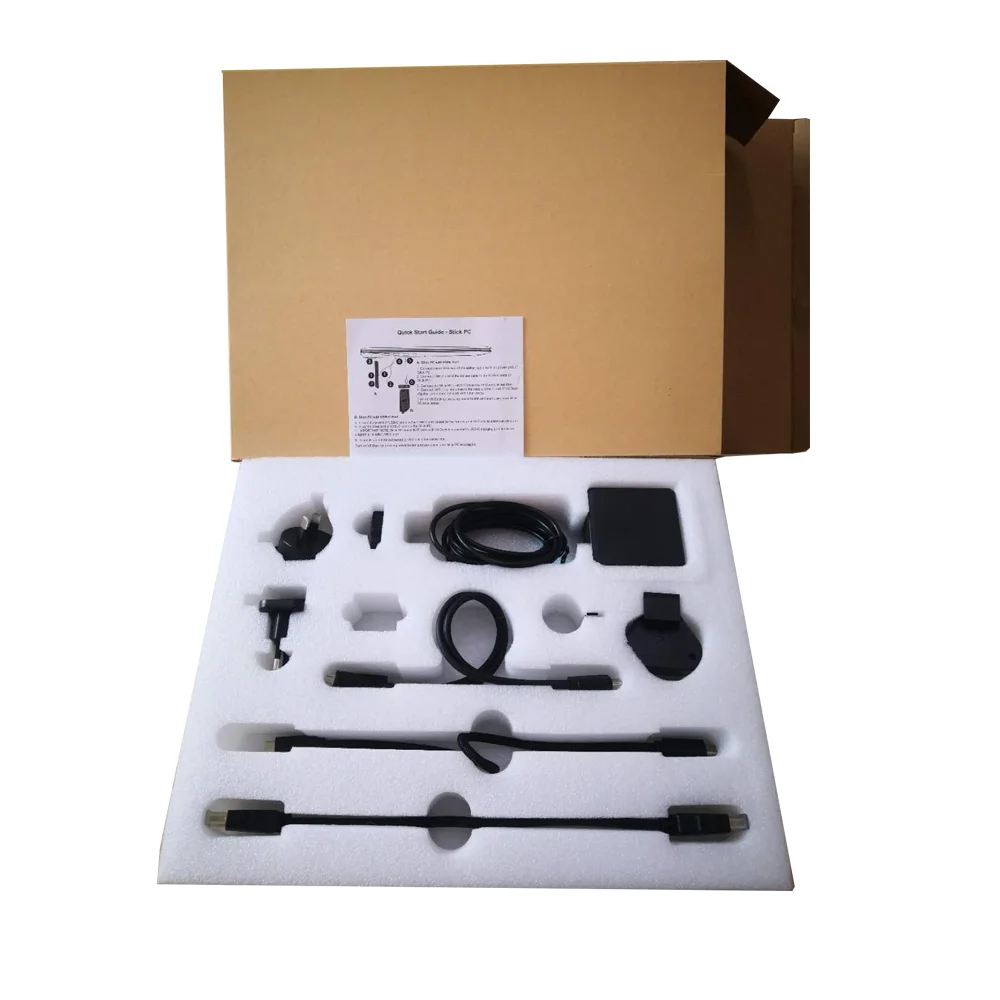

Package

High quality foam keep safe in transist.

Power adapter with US,Euro,Australia,UK four type in one kit*1

PD60W power adapter with 1.8~2m cable*1

USB C cable length can be customized*1

USB C to Micro USB connector*1

Micro HD#MI to HD#MI adapter *1

HD#MI male to male cable*1

Related Products

V9 15.6inch monitor

V10 YOGA style wireless version touch screen monitor

Meegopad V6 Type-c Hub

Our Company

Customer's Visit

Dust-free Workshop

One of the SMT line

5S Warehouse

Our Service

1. MeeGopad is Intel Smart Manufacturer base member and Microsoft Partner.
2. More than 10years Intel Research and Development experience, supply service to OEM&ODM customer.
3. High capacity SMT technology, raw materials ispection, strict burn in test, make sure every product arrive good.
4. Facotry passed ISO9001, TS16949.
5. Our delivery time is 15-30days for 5000-50000pcs order, make sure delivery customer order on time.

FAQ

1. Q: Do you accept sample order?
A: Yes. Sample fee and freight is on customer charge.

2. Q: What is your MOQ?
A: OEM customer MOQ1000pcs. Blank brand no MOQ.

3. Q: If I want my design and spec, can you realize it?
A: Yes, we can make Intel,MTK, Allwinner chipset ODM service.

4. Q: What about Warrenty?
A: All goods one year warrenty.
