Silicone Rubber Coated Fiberglass Cloth Fire Proof Fabric

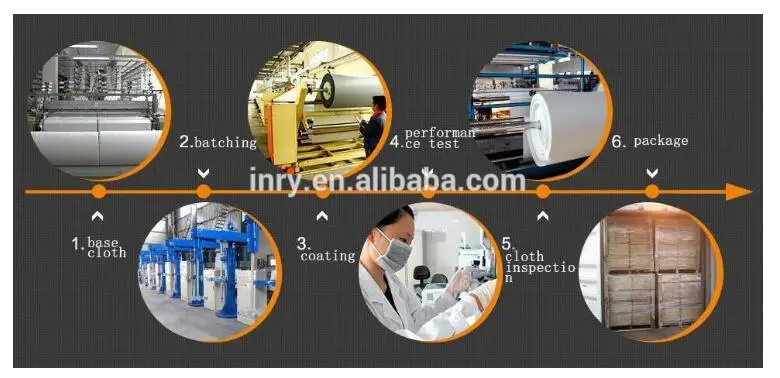

Silicone coated fiberglass cloth is made of glass fiber cloth as base cloth and produced by coating or calendering. It is made of glass fiber cloth with high temperature resistance, corrosion resistance and high strength and is calendered or impregnated by organic silicon rubber. It is a new composite material product with high performance and multiple purposes.

\t
Silicone rubber coated fiberglass fabric
\t
Base Cloth
\t

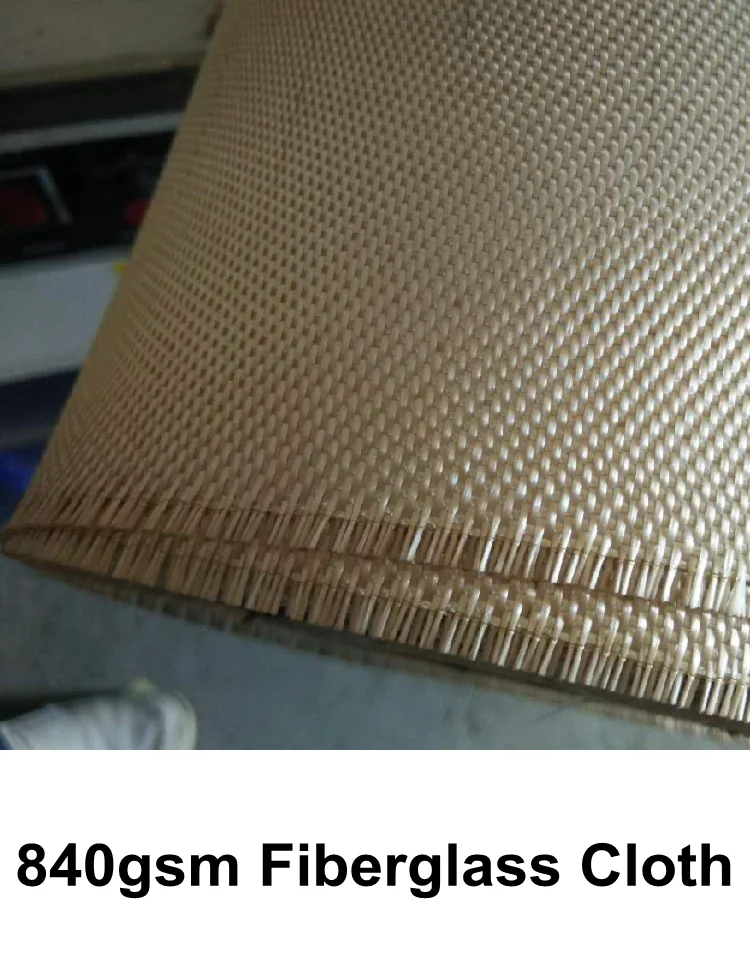

7628, 3732, 3784 fiberglass cloth
\t
Width/Length
\t
1m~2m * 50m (Can be customized)
\t
Thickness
\t
According to customers' requirement
\t
Color
\t
White, Red, Black, Gray, Orange, etc.
\t
Coating Type
\t
Solid silicone/Liquid siliocne/Calendering coating
\t
L.O.I
\t
<0.5%
\t
Temperature
\t
-70°C - 310°C
Detailed Images

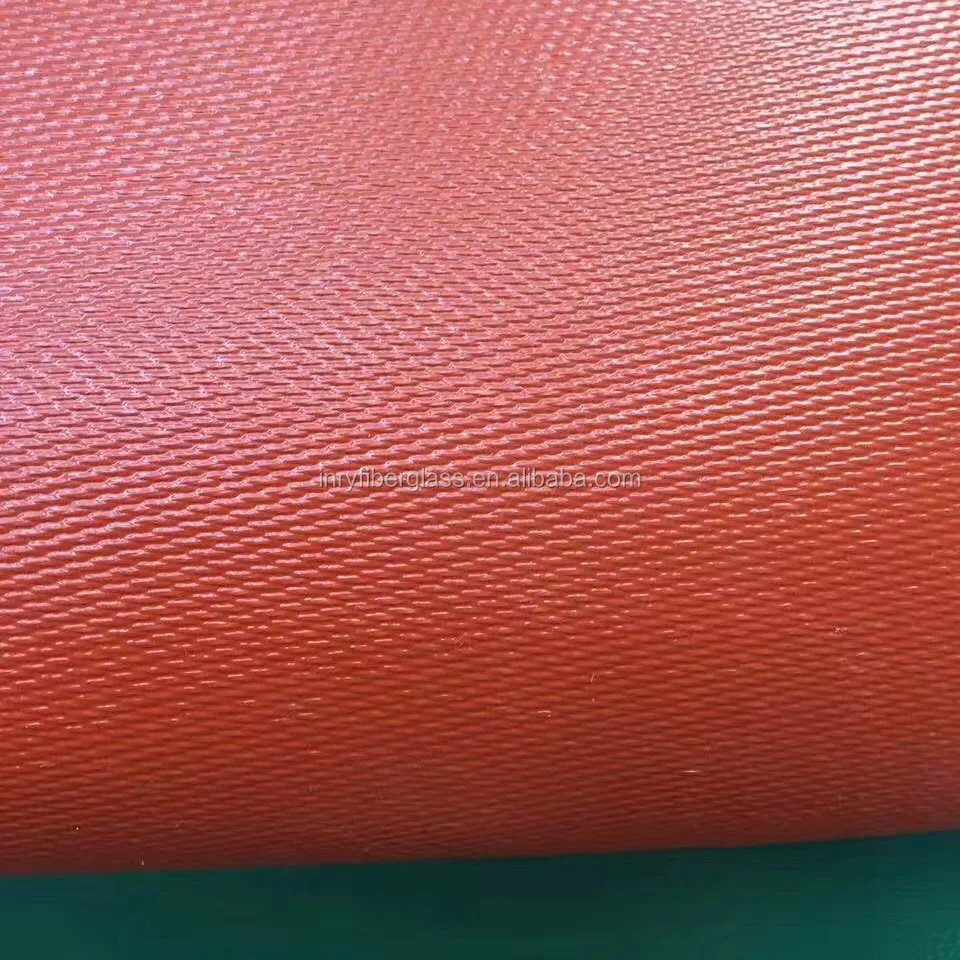

Solid Silicone Coating

Liquid Silicone Coating

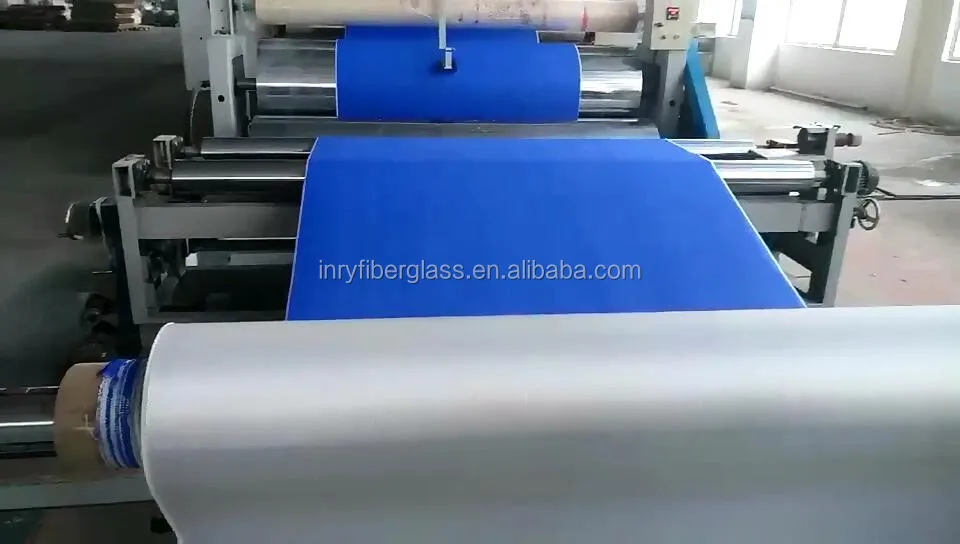

Calendering Coating

Features

-Excellent release properties
-High strength and tear resistance
-High dielectric strength
-High resistance to wear and flexing
-High chemical resistance, impervious to mild alkalies, non-oxidizing acids, most salts, mineral and lubricating oils, air, moisture and sunlight
-Operating temperature range from -70°C to +260°C
-Non-toxic odorless and tasteless

Applications

- Fabric expansion joints

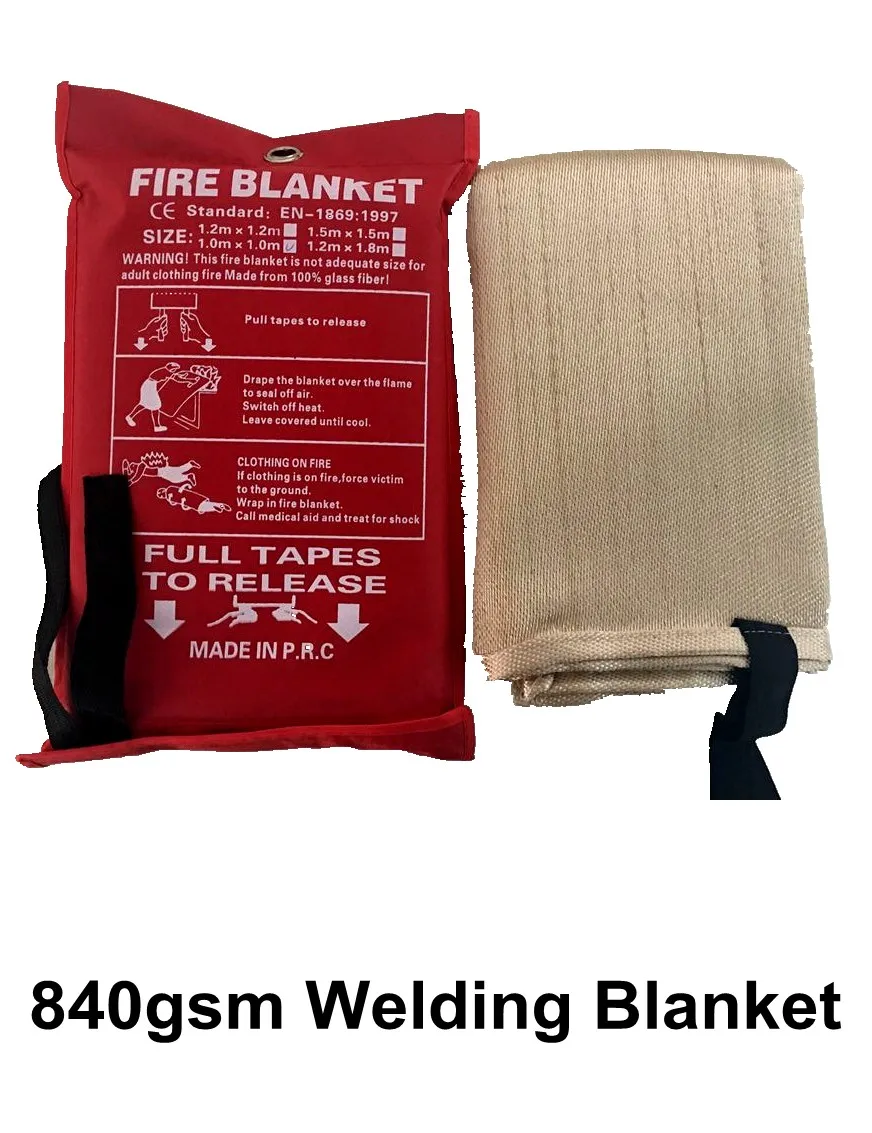

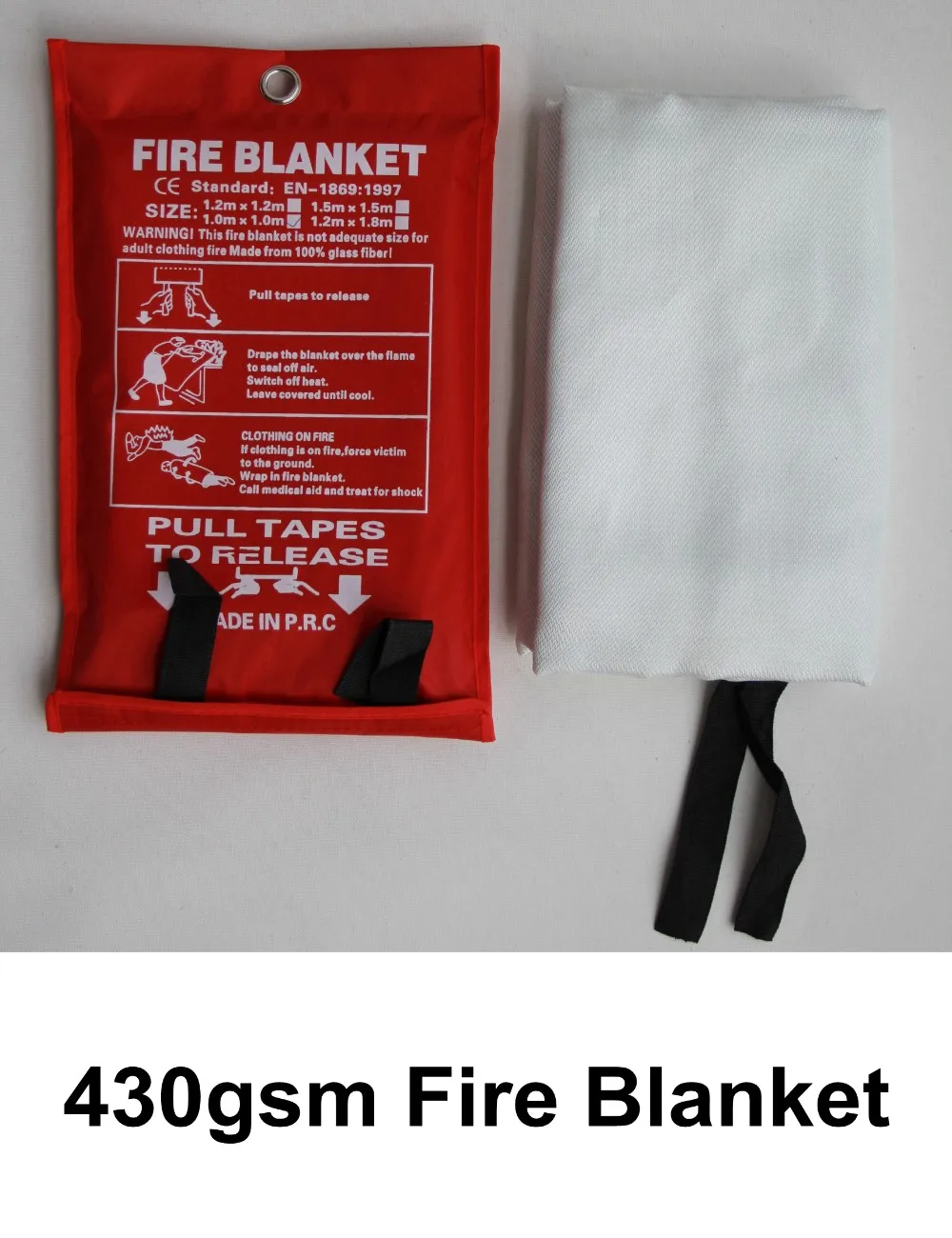

- Silicone coated welding/fire blankets
- Fire insulation doors and curtains
- Heat shield and containment
- High temperature insulation
- Removable insulation cover
and so on

Our Advantages

Production Advantage

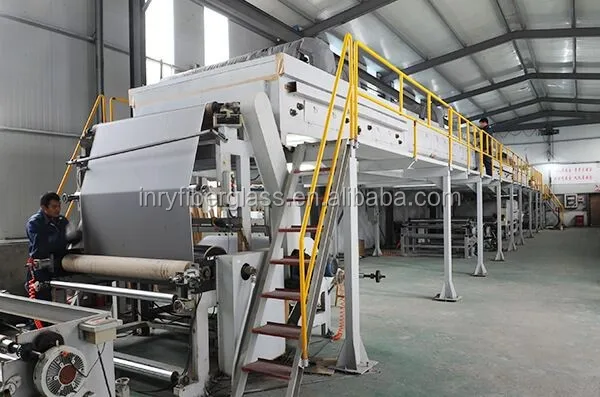

We have advanced coating production equipment

Material Selection

Selecting the best glass fiber cloth suitable for coating to make the products meet the requirements of customers for high quality and high performance.

Advantages of flexible customization in
independent production and processing

Professional R & D team will improve and upgrade the
formula according to customer's needs to give customers more choices. We have our own sewing assembly line to
meet the customized needs of our customers.

Proofing Advantage

Professional proofing department. Corresponding raw and auxiliary materials can be selected according to the
requirements of customers. Finish the sample making with the fastest speed.

Packaging Advantage

We have our own design team can customize your LOGO
and language according to customer requirements.
Building Free Brand Advantage.

Cost Advantage

According to our one-stop production line, not only can the quality control be optimized, but also the cost can be minimized.

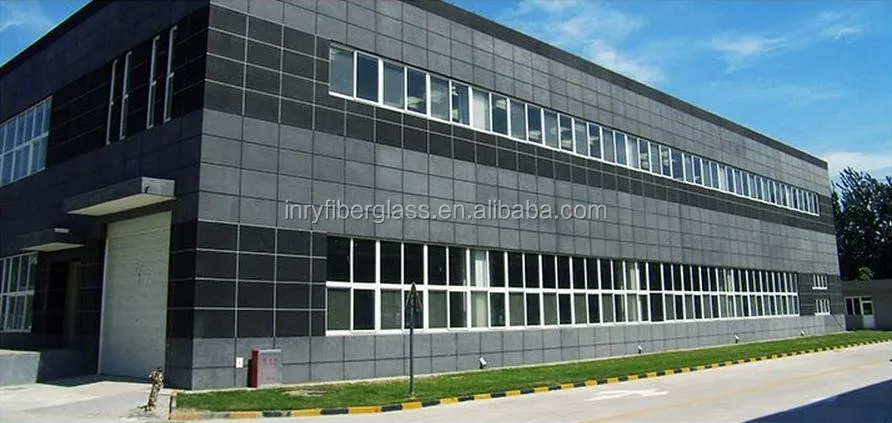

Factory Overview
Main Products
\t
Item No.
\t
Coating
\t
Weight
\t
Thickness
\t
Weave
\t
Size
\t
Color
\t
SFC-3732
\t
Two sides
\t
560±25gsm
\t
0.45±0.02mm
\t
Twill
\t
1/1.2/1.5/2m*50m
\t
Gray, Red, Black, etc
\t
SFC-3732S
\t
One Side
\t
510±25gsm
\t
0.43±0.02mm
\t
Twill
\t
1/1.2/1.5/2m*50m
\t
Gray, Red, Black, etc
\t
SFC-7628
\t
Two sides
\t
330±10gsm
\t
0.25±0.02mm
\t
Plain
\t
1/1.2/1.5/2m*50m
\t
Gray, Red, Black, etc
\t
SFC-7628S
\t
One Side
\t
280±10gsm
\t
0.22±0.02mm
\t
Plain
\t
1/1.2/1.5/2m*50m
\t
Gray, Red, Black, etc
\t
SFC-3784
\t
Two sides
\t
1050±40gsm
\t
0.95±0.02mm
\t
Satin
\t
1/1.2/1.5/2m*50m
\t
Gray, Red, Black, etc
\t
SFC-3784S
\t
One Side
\t
990±40gsm
\t
0.90±0.02mm
\t
Satin
\t
1/1.2/1.5/2m*50m
\t
Gray, Red, Black, etc
