manufacturer 18k gold magnetron sputtering coating machine for mobile frame , jewelry
- Category: >>>
- Supplier: Foshan Foxin Vacuum Technology Co. Ltd.
Share on (62105544149):
Product Overview
Description
Product Description
manufacturer 18k gold magnetron sputtering coating machine for mobile frame , jewelry
Working Principle: Cathodic arc deposition or Arc-PVD is a physical vapor deposition technique in which an electric arc is used to vaporize material from a cathode target. The vaporized material then condenses on a substrate, forming a thin film. The technique can be used to deposit metallic, ceramic, and composite films.
We can custom made machine size and configuration according to customer's request.

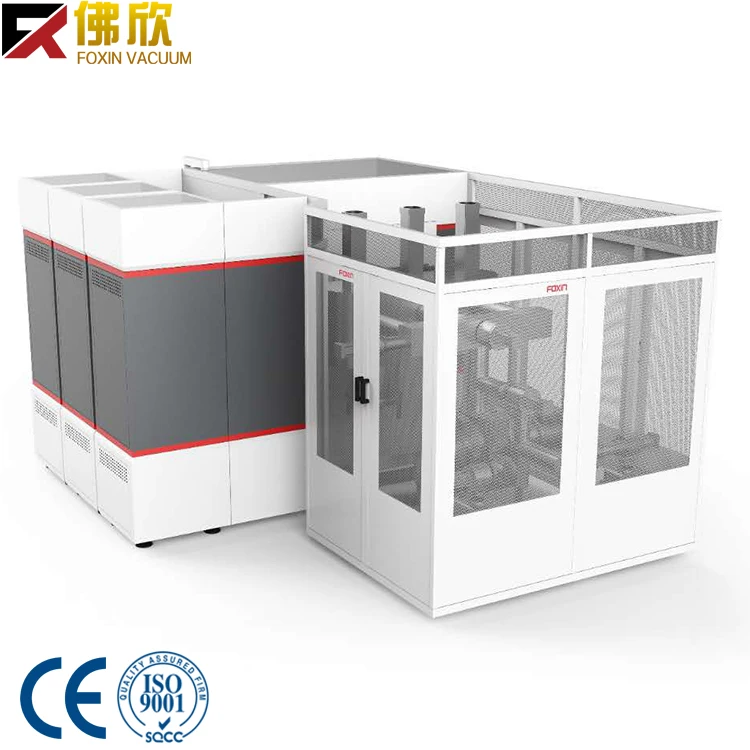

FOXIN-IP MAGNETRON ION SPUTTERING COATING MACHINE
Advantage :high ionization rate , high deposition rate .Magnetron sputtering stably at Low temperature .

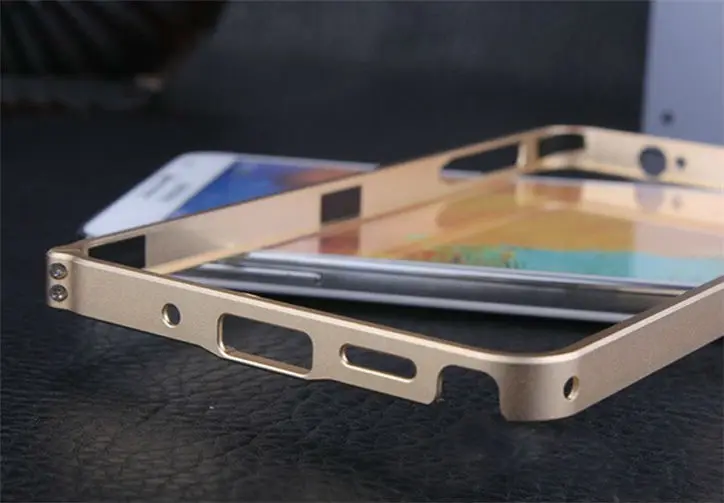

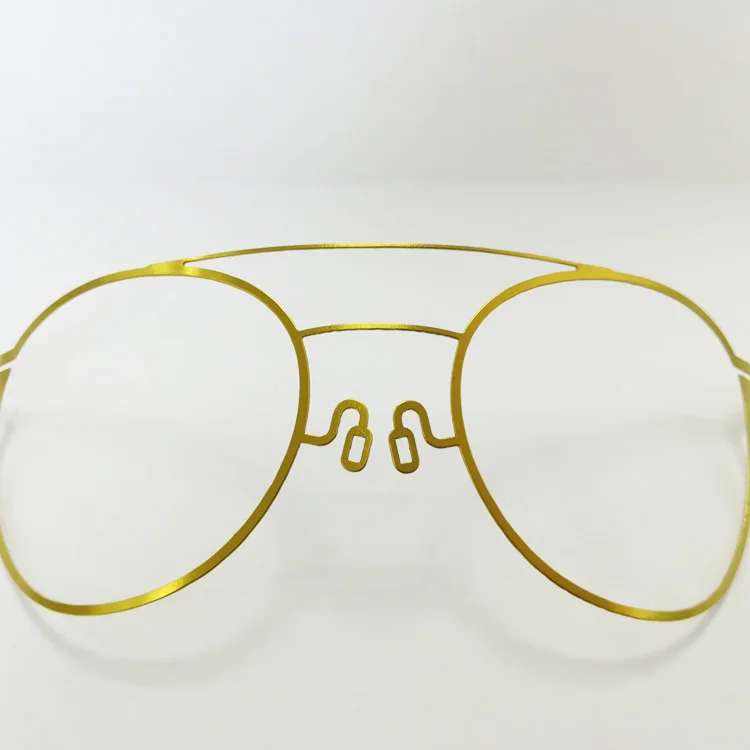

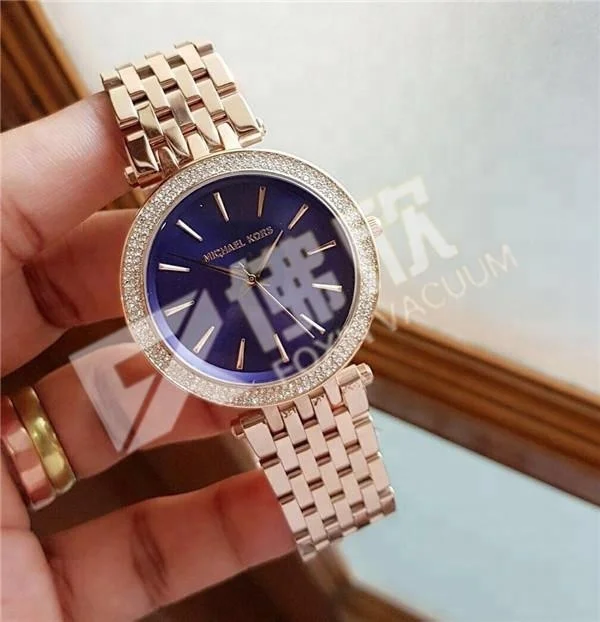

Application :Phone case ,jewelry glasses frame ,watch case ,golf head .
Film Feature :High firmness and hardness of composite film or functional film .
Note:Specially tailored according to customers' products and process requirements
FOXIN-IP Series Parameters | ||||||||||||
Model | IP-1010 | IP-1012 | IP-1212 | IP-1412 | IP-1413 | IP-1215 | ||||||
Chamber Size(mm) | D1000xH1000 | D1000xH1200 | D1200xH1200 | D1400xH1200 | D1400xH1300 | D1200xH1500 | ||||||
Pumping System | Rough Pump + Roots Pump + Diffusion Pump(Turbo Pump) + Hold Pump | |||||||||||
Measurement | 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge | |||||||||||
Arc Source | 6 | 8 | 12 | 12 | 12 | 14 | ||||||
Arc Power Supply | 200A | |||||||||||
Magnetron Target | DC or MF, Plane or Cylinder | |||||||||||
Magnetron PowerSupply | DC or MF, 30 or 40 kW | |||||||||||
Bias Power Supply | 30KW | |||||||||||
Gas | Ar, N2, C2H2, O2 | |||||||||||
Cooling | Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) | |||||||||||
Vacuum Index | Extract time (no load cold state): from atmosphere to 9.9×10-3Pa≤10min | |||||||||||
Ultimate Vacuum | Superior to 5.0x10-4Pa | |||||||||||
Pressure Rising Rate | New machine cold state air leaking rate≤0.5Pa/h | |||||||||||
Running Power(kW) | According to specific configuration | |||||||||||
Output Frequency | Custom made | |||||||||||
Occupation Space(m2) | 8 | 10 | 12 | 12 | 12 | 12 | ||||||
Accessory Equipment | Oven, Water Tower, Water Pump, Air Compressor, Jig Rack, Water Tank or Pool | |||||||||||
Remark | All configuration can be custom made | |||||||||||
Production process
DRAWING DESIGN
The professional team provides personalized and professional design of equipment according to the requirements ofcustomers
CAVITY WELDING
Advanced welding technology ensures the airtightness of the cavity
PIPELINE DESIGN AND FABRICATION
After carefull calculation and deetailed operation ,Adopt good qaulity material to make pipes
AUTOMATIC WELDING
Automation technology ensures the accuracy of welding process
THE POWER TO MAKE
Electrical production by Siemens ,mitsubishi and other international cutting-edge brands
THE DEBUGGING IN THE FACTORY
In order to ensure the normal operation of equipment, the company conducts equipment debugging in the factory.
Application
COATING APPLICATION
decorative coating machine can be applied to coat different colors and film on all kinds of stainless steel , glass , ceramic products , such as bathroon hardware , stainless steel straps ,jewelry, golf heads , stainless steel/ceramic tableware ,etc. if you need the super hard film tools coating , please choose our company Foxin .
Certifications
Detailed Images
Machine Parts

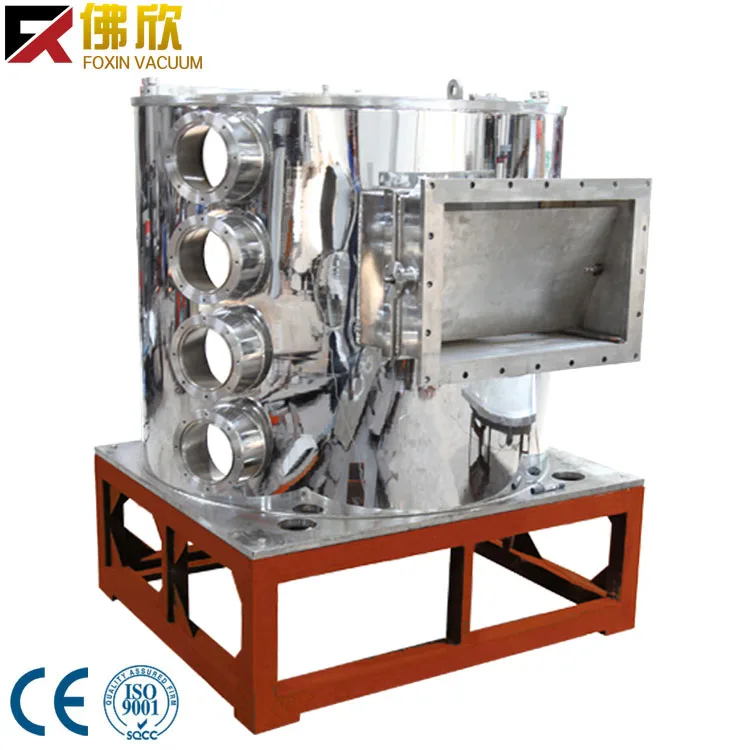

Name: Chamber
Brand: Foxin
Original: China
304 SS door , firm , not easy destroy , small windows can see inside.
Machine Parst
Name:Windows
Brand: Fonxin
Original: China
stalinite can see inside , make you care the course
Power supply
Name:Unipolarity Pulse-Bias Power supply series
Brand: Fonxin
Original: China
PWM technology , small size , high efficiency ,
fast arc extinction≤3uS , Dipolar high frequency conversion , voltage and duty cycle adjustabl.
control system
Name:control display
Brand: Fonxin
Original: China
multilingual control system, and LCD display .easy to
control .
Roots pump.
Name:RTO-1200 Roots Pump
Brand: Shanghai Cuiman
Original: China
Pumping Speed: 1200L/s
Motor Power: 9.5KW
About us
Foshan Foxin Vacuum Technology Co.,Ltd was founded by the chairman Mr. Wu .Mr. Wu has engaged in vacuum technology industry for 28 years . He was awarded the "national science and technology progress prize" in 90s.
Since establishment, our company adheres to the objective "Technology Innovation, Quality First, Customer Supreme". In order to ensure the quality, we have equipped multiple equipments for quality detection such as helium mass spectrometer leak detector and digital oscilloscope, etc. We constant pursuit of innovation and work hard, and we won the good reputation in the vacuum industry.
We are focusing on vacuum coating equipment manufacture. Main products: Multi Arc lon Coating Machine, Magnetron Sputtering Coating Machine, Glass Ceramic Coating machine, Hardware Decorative Coating machine, Large Furniture Frame Coating Machine, Large Diameter Stainless Steel Sheet Coating Machine, etc. Our equipment is widely used in building materials, large hardware, clock, cellphone, aerospace, electron, toy, computer components, automobile, decoration, etc. In addition, we provide technical supports to our customers, and also we serve various kinds of accessories and consumables.
We are committed to providing high quality vacuum equipment, central technical support, personalized solutions and considerable after-sales service
Integrity, innovation, unity, pragmatic and dedication are the spirit of our company. We promise to provide the best service for you
Foshan Foxin Vacuum Technology Co, Ltd is looking forward to cooperating with you
Packing & Delivery
FAQ & After-sale
Q1. How about the quality control about your products?
We have the ISO9001 QMS , CE certification
All machine will past the internal quality test and fiel testing.
Q2. Does your company provide after-sale service ?
Yes. We have the field engineer to set-up and debug the machine
After the machine is fully runing . we have one year of quality warranty and
full-life maintance service .
Q3. Can you provide technical support about my work-flow?
Yes . The Foxin have more than 20 years of experience in Vaccuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Foxin are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
Contact us
After Sales Service: If you have any after sales problem, we will solve by phone, wechat, whatsapp, QQ such chatting tools; If still, we will send engineer to your factory to fix the problem.
One stop solution: We will offer all consult service about setting up a PVD coating plant.
PVD coating is total green plating process and it is future trend in surface treatment industry.
You may send us your inquiry. Hope to cooperate with you!
