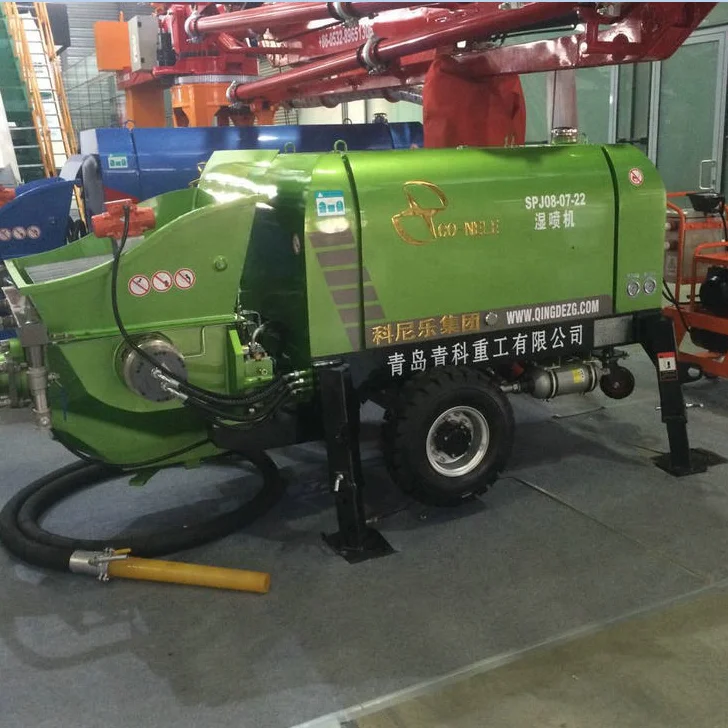

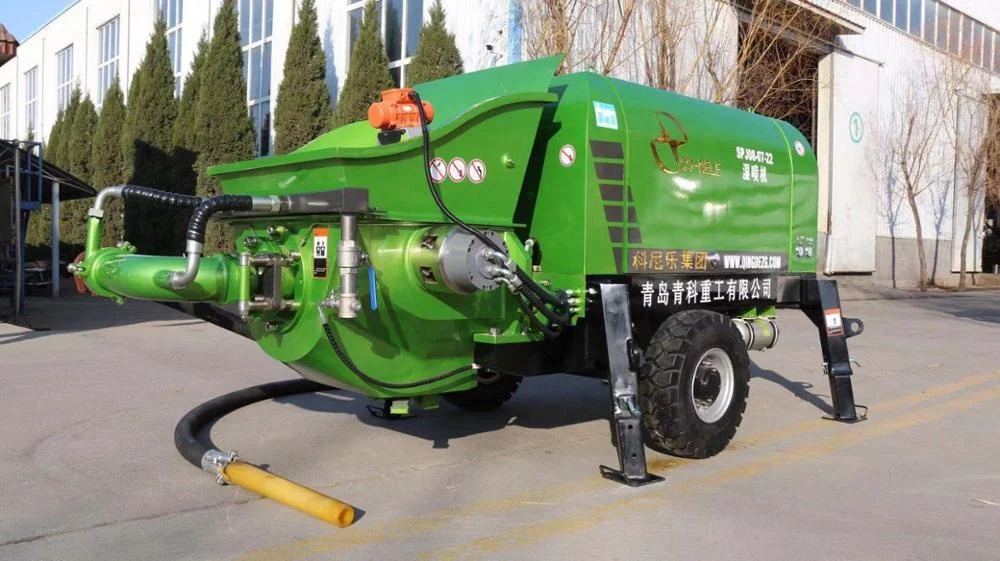

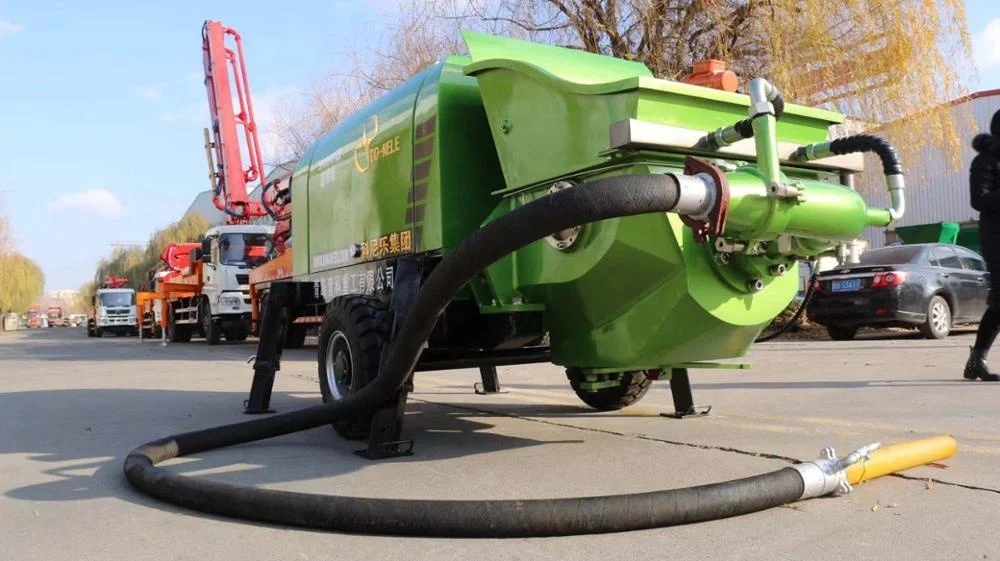

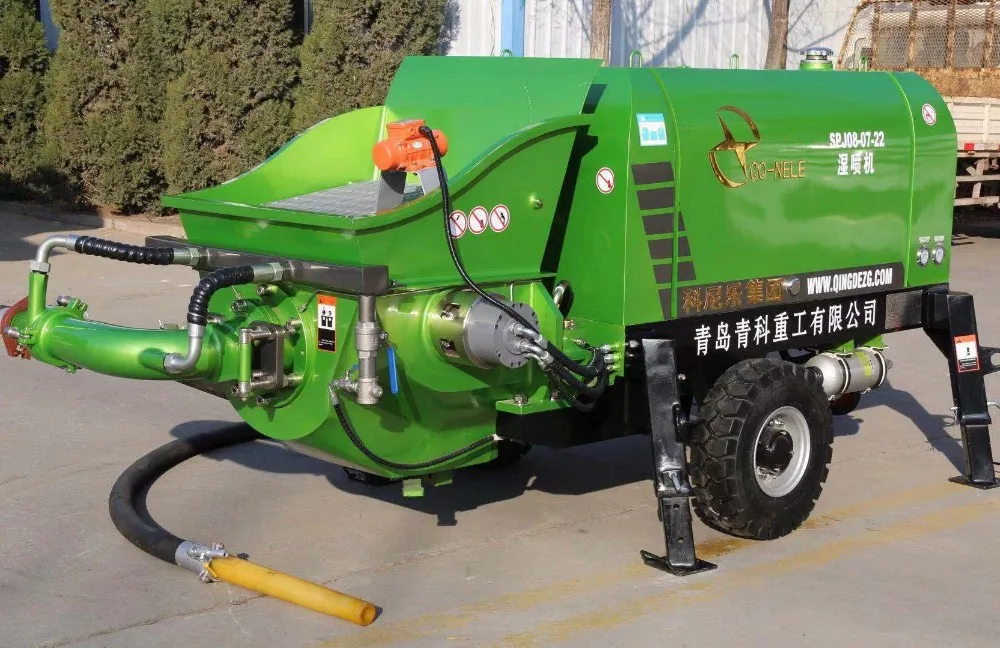

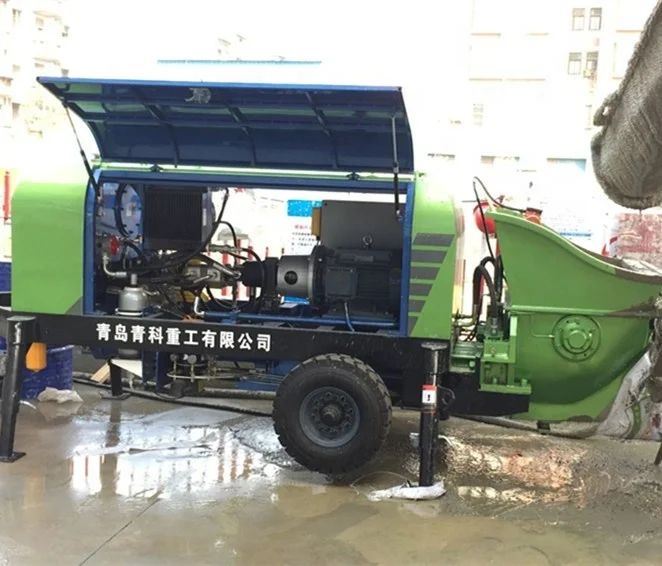

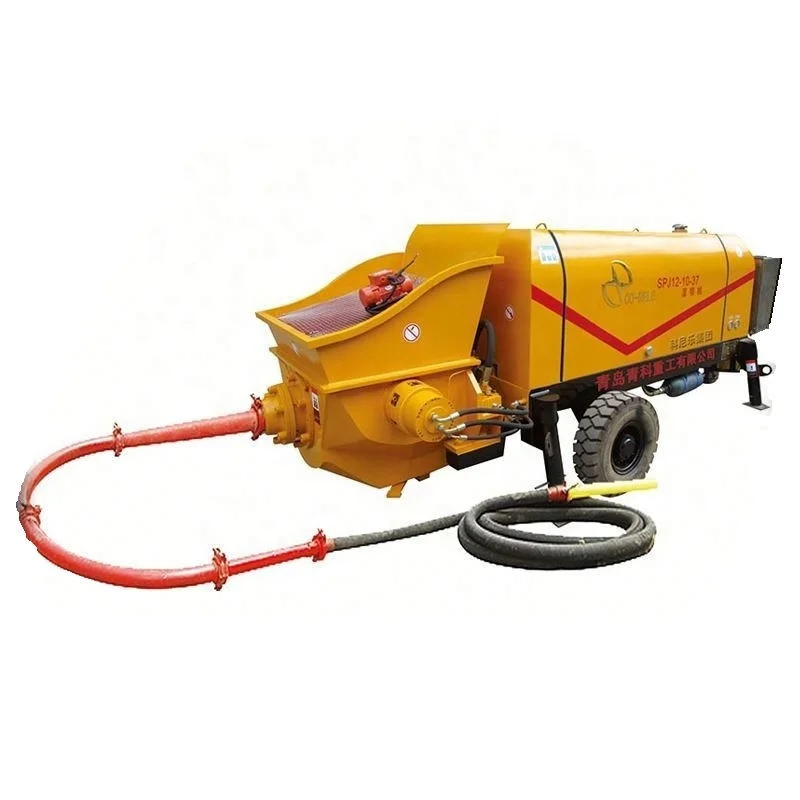

Wet shotcrete machine for concrete spraying ◆The concrete spraying pump is used for pumping and spraying of dense flow of concrete. The general-purpose pump type wet concrete sprayer is suitable for wet concrete spraying. ◆Application for civil buildings such as, Tunnels, Culverts and Mine working in undergroud construction. Type of Wet Concrete Spraying Pump ◆Basic type: Motor and Tyre type ◆Extending type: Diesel engine drive, Sledge, or Rail-wheel type chassis Technical Advantages of Wet Concrete Sprayer Pump: -◆Hydraulic piston type pump, S Valve Reversing -◆ Compact in structure and small in size - ◆Compatible for both manual operating spray nozzle and mechanical arm spraying - ◆Convenient for on-site usage with integratedly assembled concrete accelerator pump and high-pressure washing pump.
Parameters
Item
Unit
SPJ08-07-22
The
machine
performence
Max.Theor.spray output
m³/h
0-8
Max.Theor.pumping pressure
Mpa
7
Max.pumping frequency
times/min
12
Distributing valve form
-
S valve
Delivery cylinder specification
mm
140*800
Discharging outlet diameter
mm
125
Feeding height
mm
1100
Power system
The rated voltage
V
380
Main motor power
KW
22
Rated speed
r/min
1470
Hydraulic system
Hydraulic circuit form
-
Open circuit
The main system MTP
Mpa
25
The hydraulic oil tank volume
L
200
Other parameters
Max.aggregate size
mm
15
Delivery pipe diameter
mm
57
Whole machine weight
KG
2200
Towing speed
Km/h
≤8
Overall dimensions
mm
4300*1500*1550
Our Company

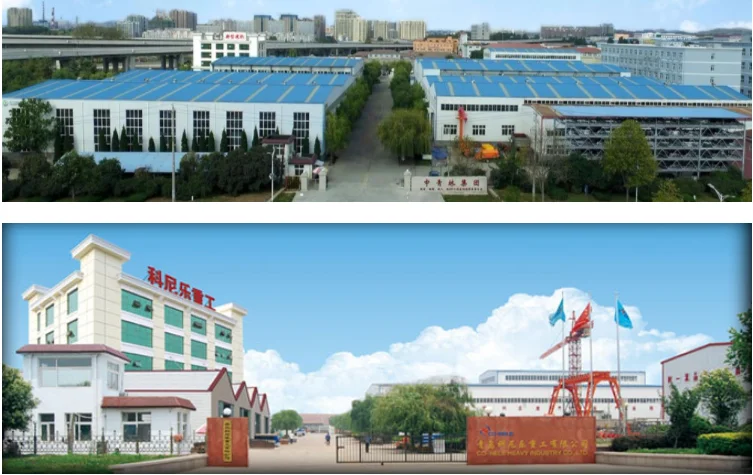

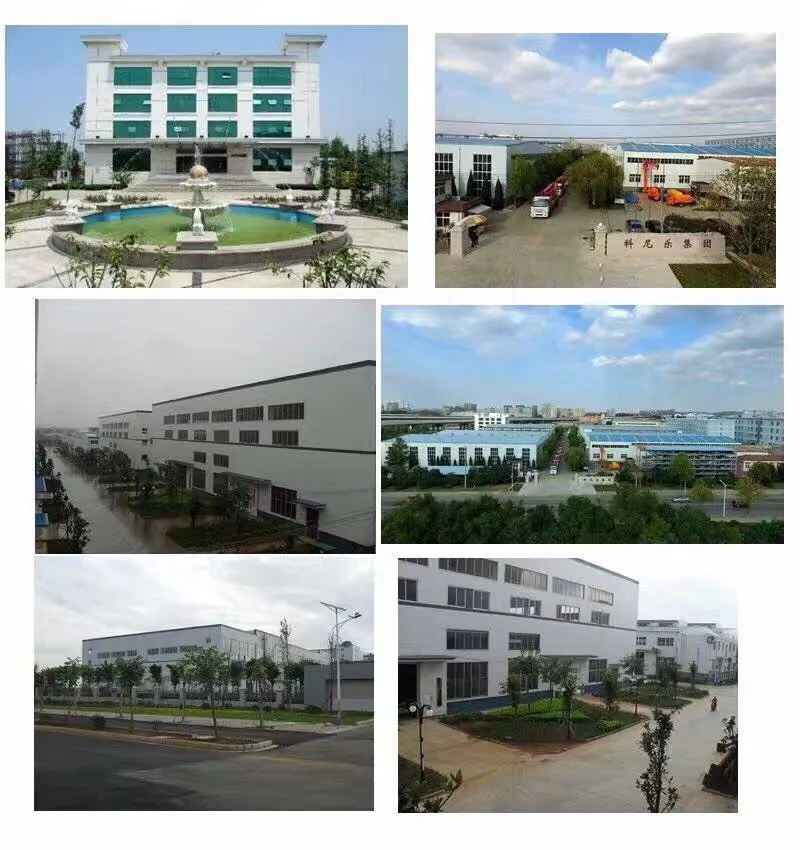

3 production bases (Qingdao,Shanxi,Guangxi)
26years' experience (R&D,producing, sales and after-sales service)
1000 employee (come from China,Indoesia,Thailand,Pakistan,etc.)

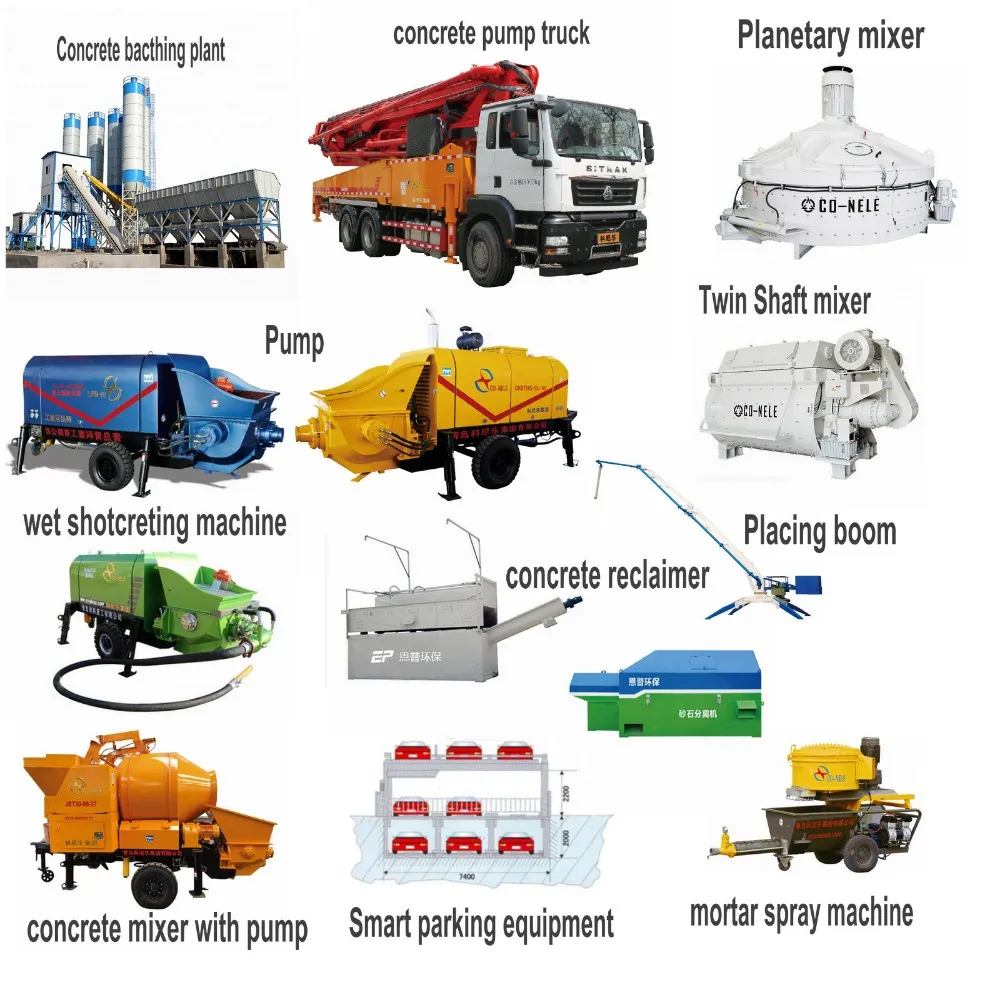

CO-NELE Group Co. Ltd. specializes in the manufacture of large-scale construction machinery. we combine technical research, producing, sales and after-sales service together. Our company is people-oriented, considers science and technology as the basis of its prosperity, invites talents widely, introduces advanced technology from home and abroad, adopts up-to-date crafts and scientific means of testing. All these make our products including HBT series concrete pump, XBS series fine stone concrete pump and mini concrete pumps for large aggregates,PJB series spraying pumps and SLJ series continuous feeding mixer, have more reliable performance. So our products are very popular with clients in construction industry.
At present, our products could be found all over China and have been exported to Russia, Kazakhstan, Pakistan, Iran, Mongolia, Philippines, Singapore, Malaysia, Vietnam, Indonesia, Australia, Romania, Armenia, Egypt, Niger, Nepal, Congo, Mauritius and other countries. The products of CO-NELE GROUP CO,.LTD are serving clients world-wide with superior performances.

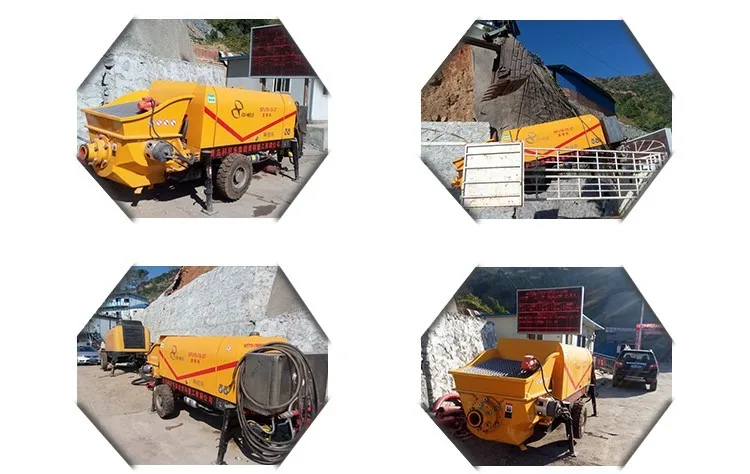

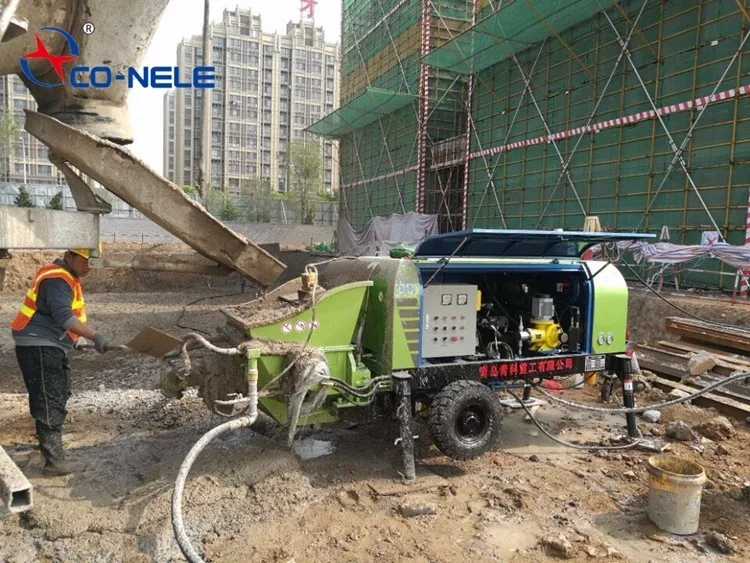

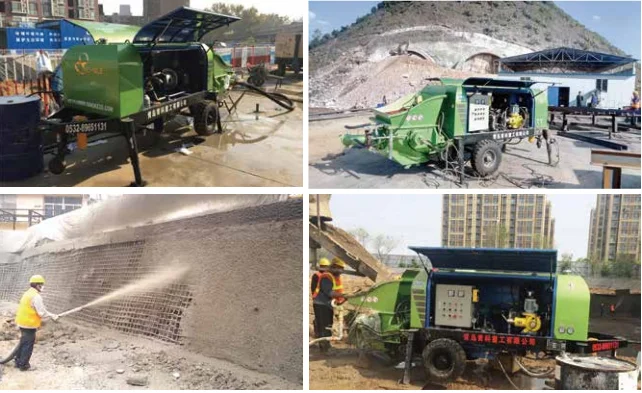

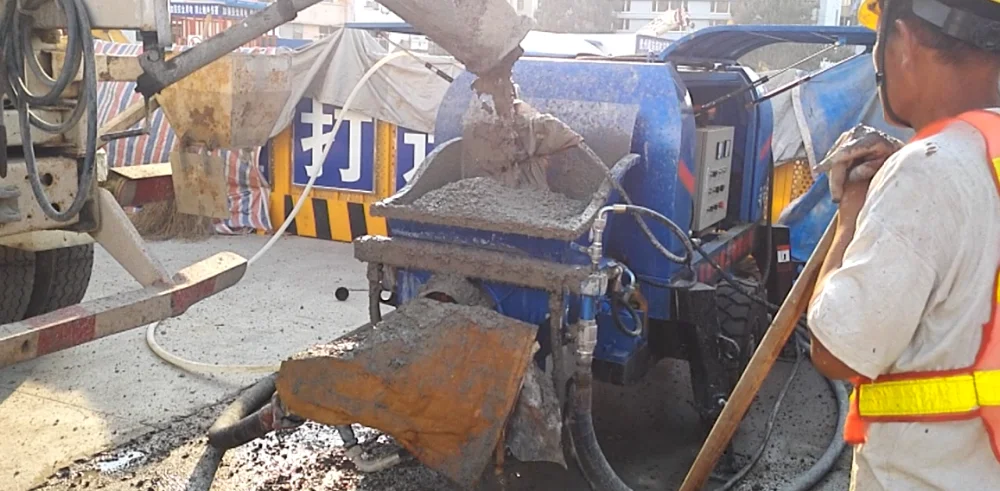

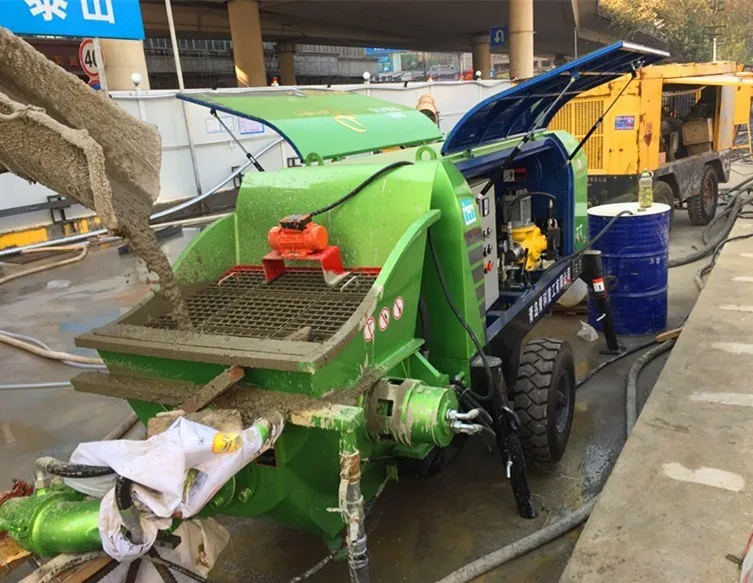

Consrtuction case

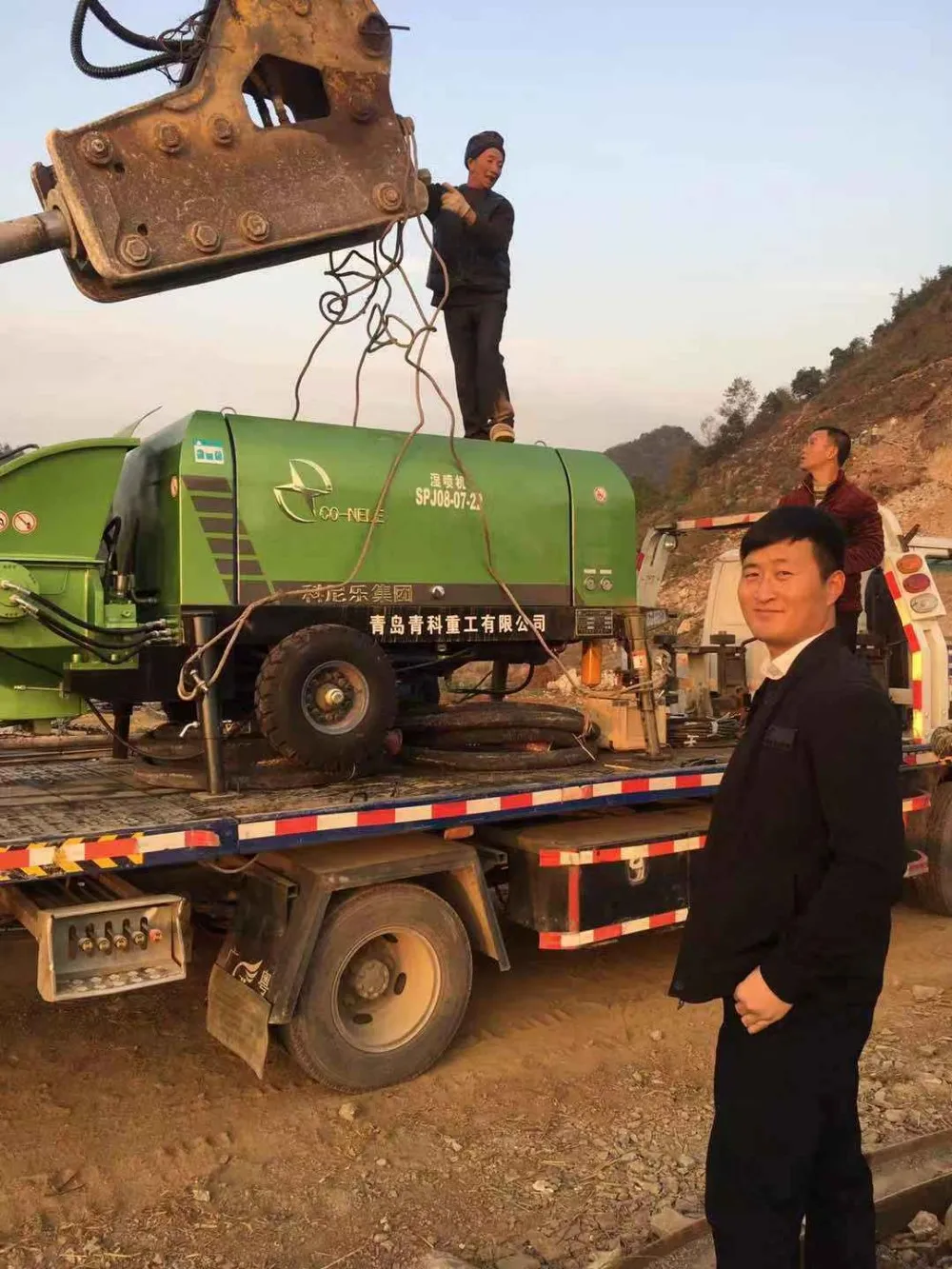

Packing & Delivery
Our certificate
Our Service
Pre-sales: ● Warranty: 12months ●Spart parts: provide with genuine spare parts with the highest quality, exact fitness and appropriate function. ● Installation & Maintenance: provide with installation of complicated machinery and equipment ●Training: provide training service. The trainng sections include product training, operation training and others
After-sales: ●24x7 online service ● One stop solution for purchasing, optimized product recommendation ●Worksite assemble service ●Engineer training for customers
