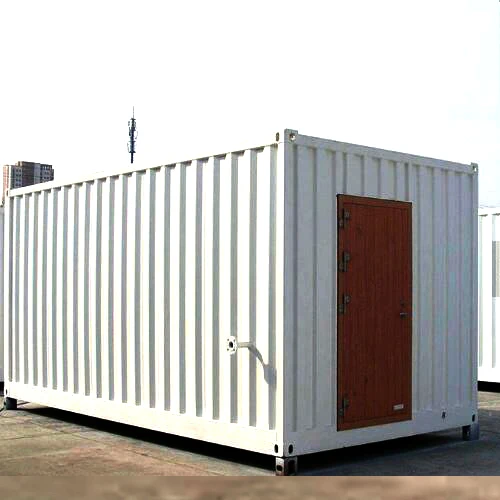

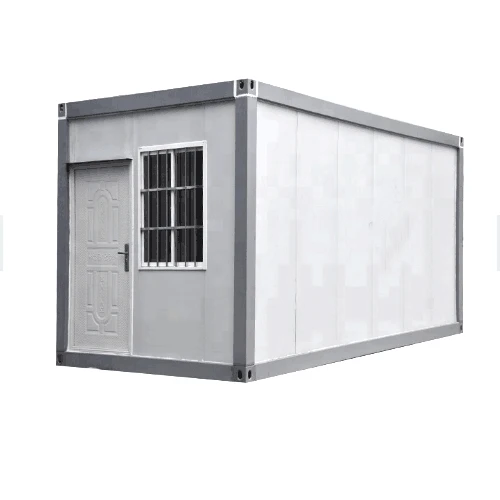

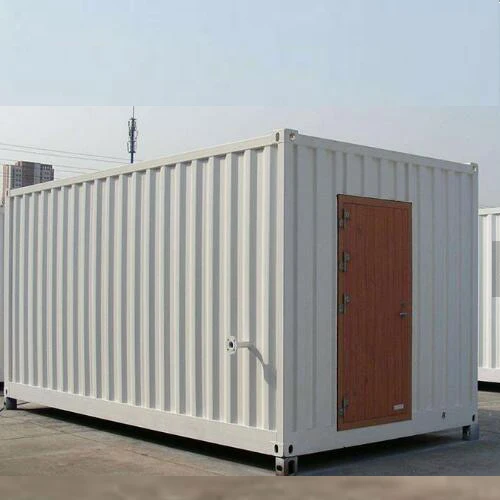

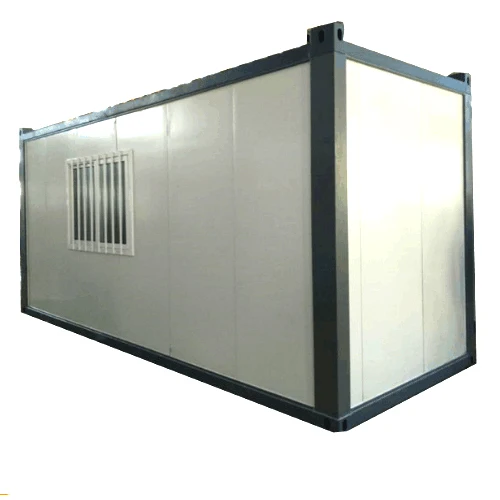

Customized Steel Structure Frame Modern Container House Prefab Houses

Product Overview

Description

Customized Steel Structure Frame Modren Container house Prefab house



External Size	6000mm(L)*3000mm(W)*2800mm(H)
Internal Size	5800mm(L)*2800mm(W)*2600mm(H)
Roof Board	Insulation board with corrugated Steel Plate
Wall Panel	50mm/75mm thickness Panel
Floor	18mm Mgo Board

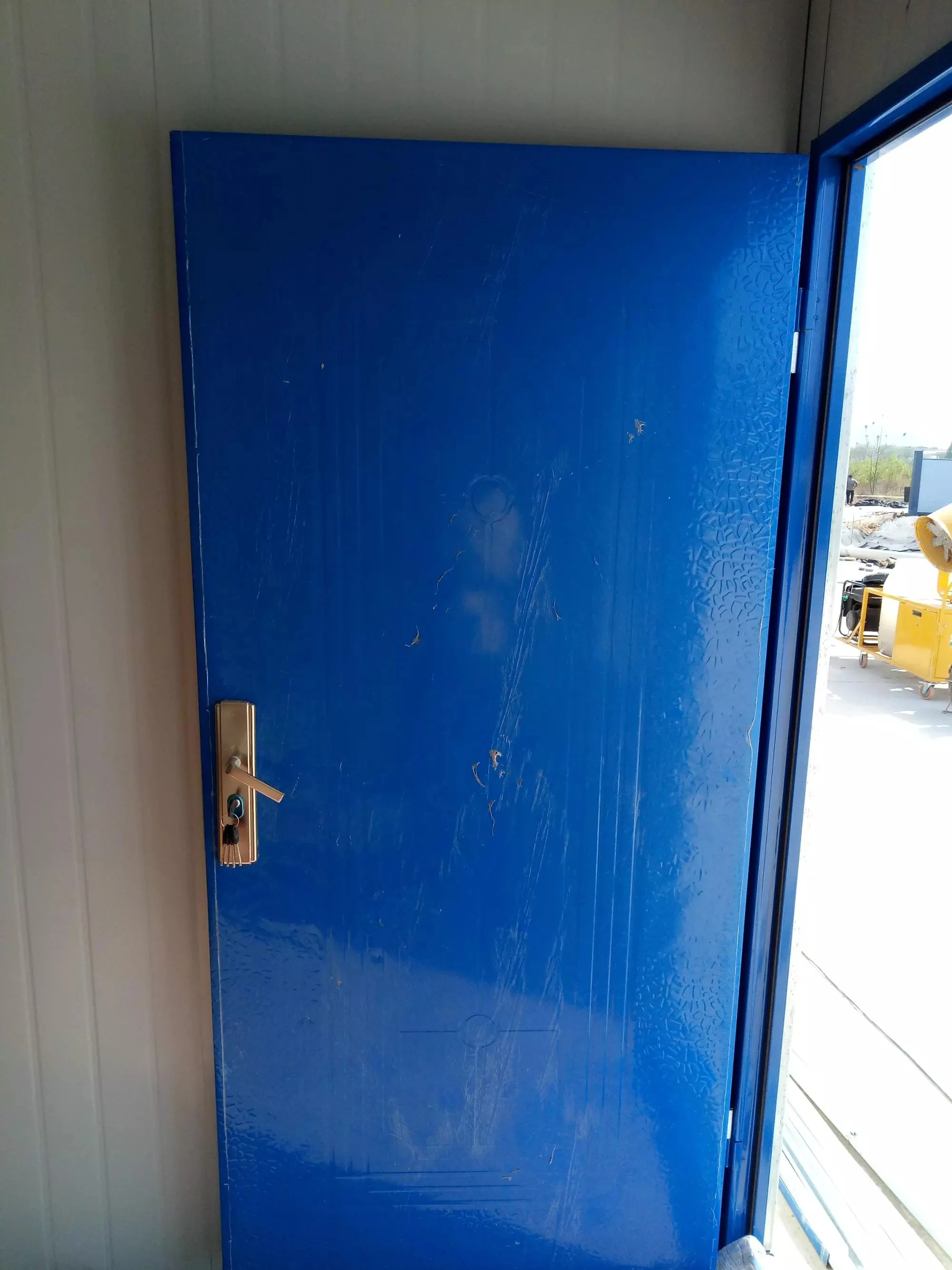

Door	930mm*2000mm

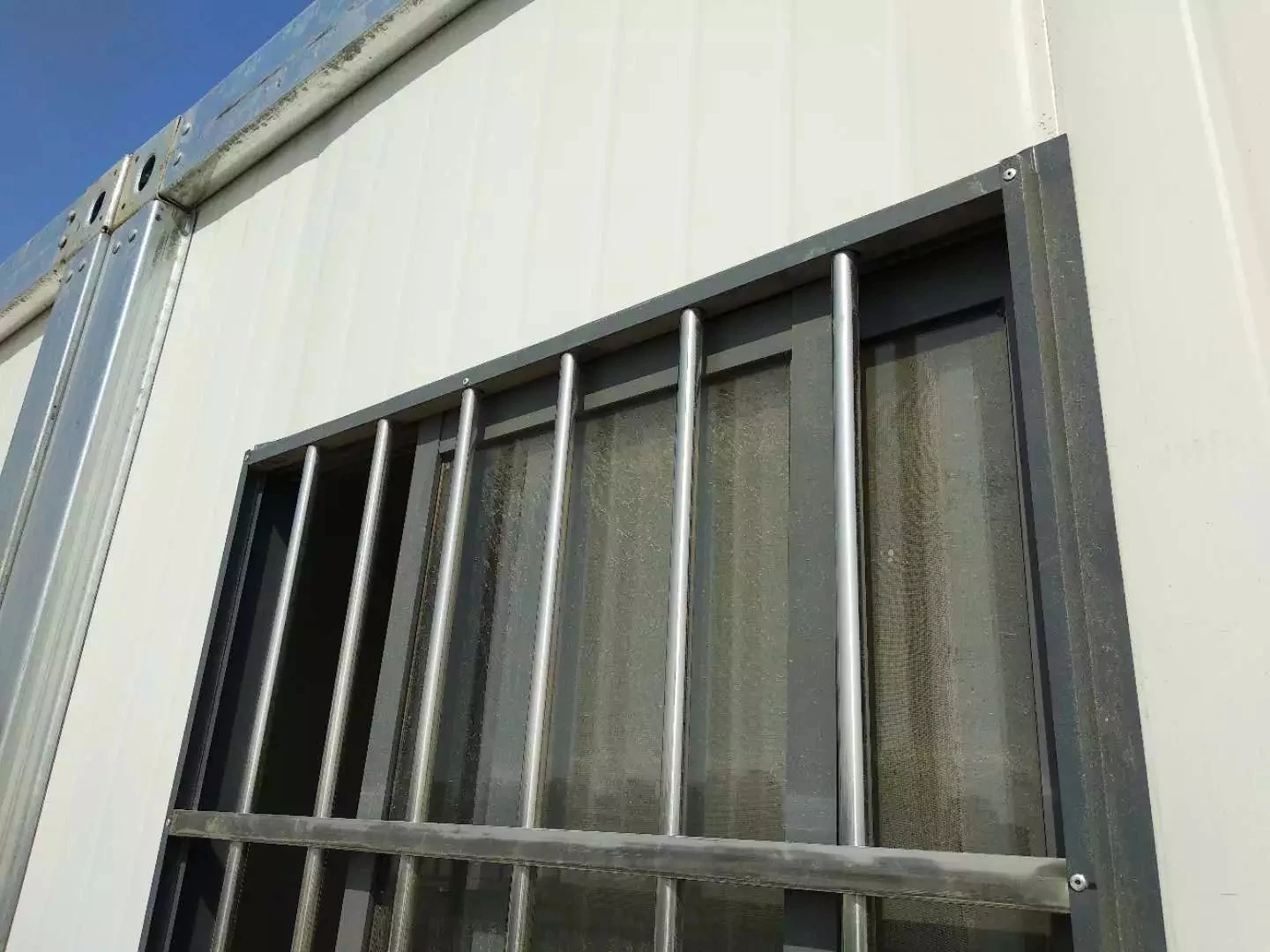

Window	W930mm*H1200mm PVC/Aluminum alloy
Frame	Q235 steel
Material	All Steel Galvanized + baking varnish



Introduction of the Customized SteelStructure Modren Container house Prefab house

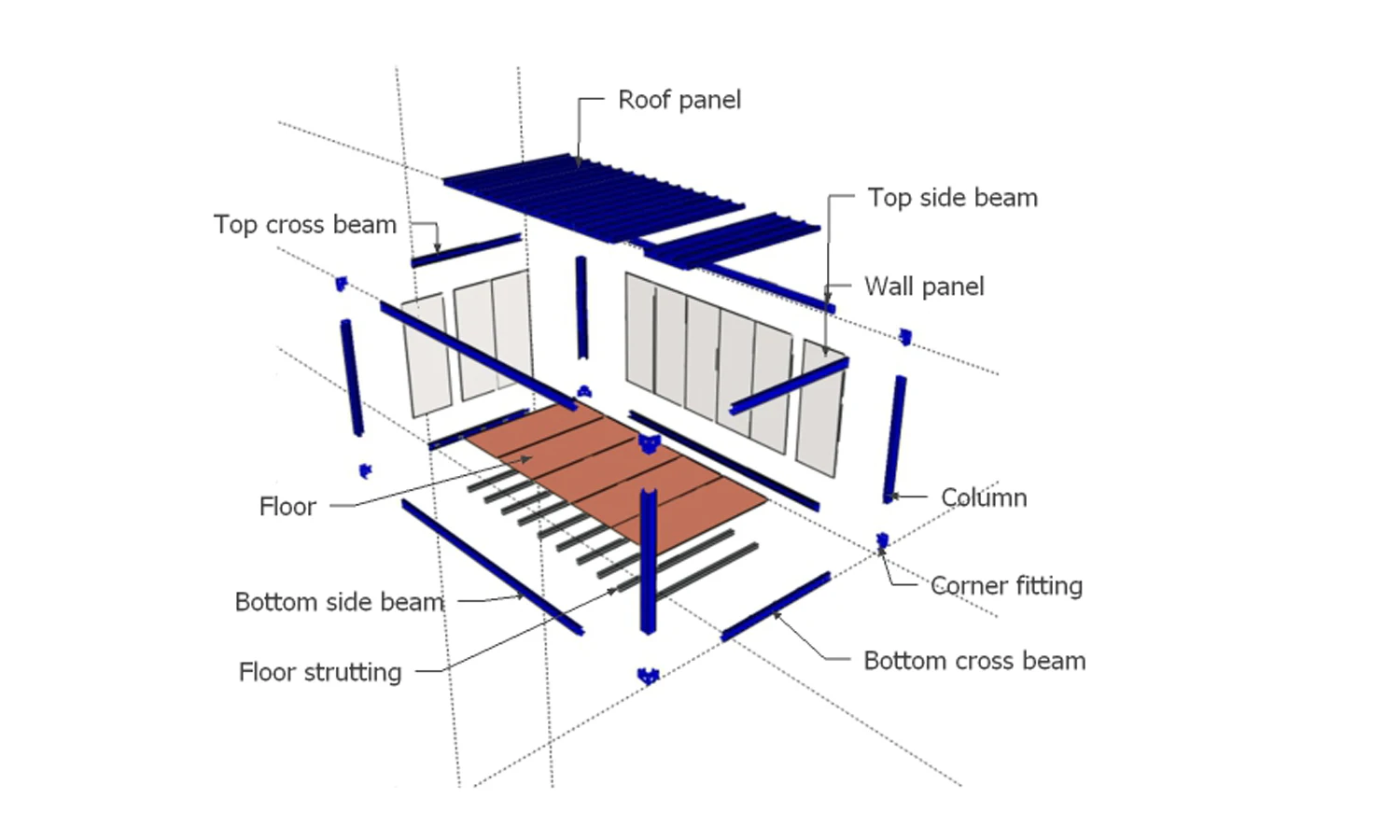

Frame made of Q345 steel board,  seamless bended, seamless welded, surface galvanized. Painted with anticorrosive paints, laying materials: laminate board, PVC board, blockboard, cement fiber board etc.



Introduction of the Wall System

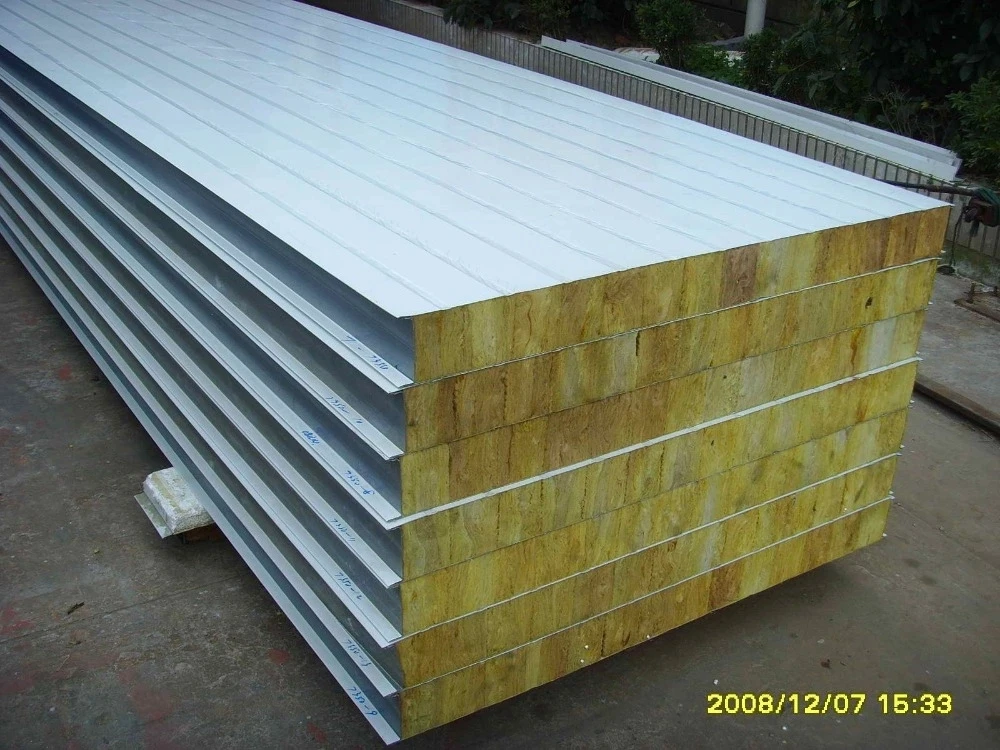

Consists of 0.42mm colored steel sheets on both sides or one 0.42 colored sheet and one 0.42mm stainless sheet, integrated with EPS\\ROCK WOOL etc. The thickness of wall panels is 50mm--75mm. The density of the EPS is 12kg\\m³, the density of the rock wool is 120kg\\m³. And the color of the wall is as per the clients’ demands.



Advantage of high qulity airport construction workers camps

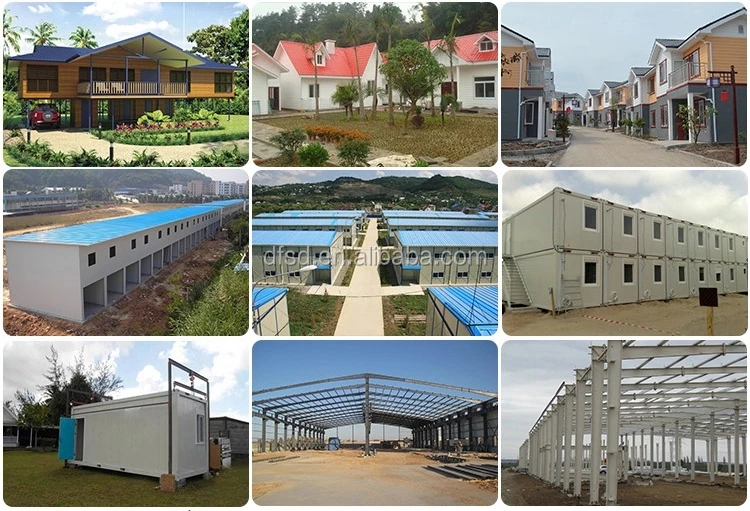

 1.Perfect for modular/prefab site offices,cabins,warehouse,villa,toliet,shop,hotel,camp,office.

 2.Efficient, low cost designs that can be customized for end user requirements.

 3.Easy for low skilled workers to assemble.

 4.The light steel frame structure is strong and reliable.

 5.Many modular units can be stacked and linked together to create more space.

 6.Neat inside: plumbing and wires are hidden into the sandwich panel.
