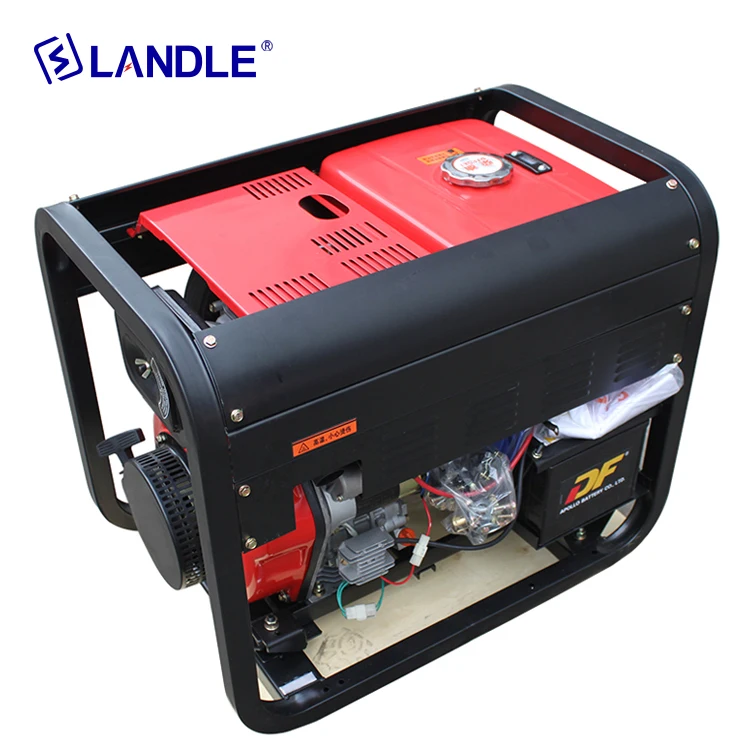

6.5kw silent diesel generator set for home use

Product Overview

Description

High Efficiency Single Phase Open Type Diesel Generator & Welding Sets



Feature

• Constant voltage AVR control germany technology
• heat insulation F class insulation heat resistant 155 citidegree
• security intelligence smart oil alarm automatic locking waterproof plug

Model	160EW	180EW	3500X/E		6500X/E		6500T		7500X/E		8500X/E		12E3
Rated frequency (Hz)	50		50	60	50	60	50	60	50	60	50	60	50	60
Rated voltage (V)	230		230/ 115	240/ 120	230/ 115	240/ 120	230/ 115	240/ 120	230/ 115	240/ 120	230/ 115	240/ 120	230/ 400	240/ 416
Rated current (A)	9.6		11.4/ 22.6	12.5/ 25	19.6/ 31.9	20.8/ 41.7	19.6/ 31.9	20.8/ 41.7	21.5/ 43	23/ 46	26/ 52	27/ 54	18.1	19.1
Rated output (KVA)	2.2		2.6	3.0	4.5	5.0	4.5		5	5.5	6	6.5	10	11
Max output (KVA)	2.4		2.8	3.2	5.0	5.5	5.0		5.5	6.0	6.5	7	11	12
Rated speed (r/min)	3000		3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600
Power factor (CosΦ)	1
Number of phase	Single phase												3
Insulation class	F
Dimensions (L*W*H) (mm)	705x490x600		660x460x545		700x490x610								920x660x850
Net weight (kg)	146	148	65	70	95	103	171		106		110		110
Structural style	Open type						Silent type		Open type
Starting system	Electricity starting		Hand starting/electricity starting				Electricity starting		Hand starting/electricity starting				Electricity starting
Red electric capacity (V-Ah)	XW:NO E:12V APOLLO:36Ah		X:No E:12V Apollo:36Ah		X:No E:12V Apollo:24Ah								X:No E:12V Apollo:36Ah
Fuel tank capacity (L)	13.5												25
Engine type	186FA	188FB	178F		186FA				188FB		192F		290F



Application

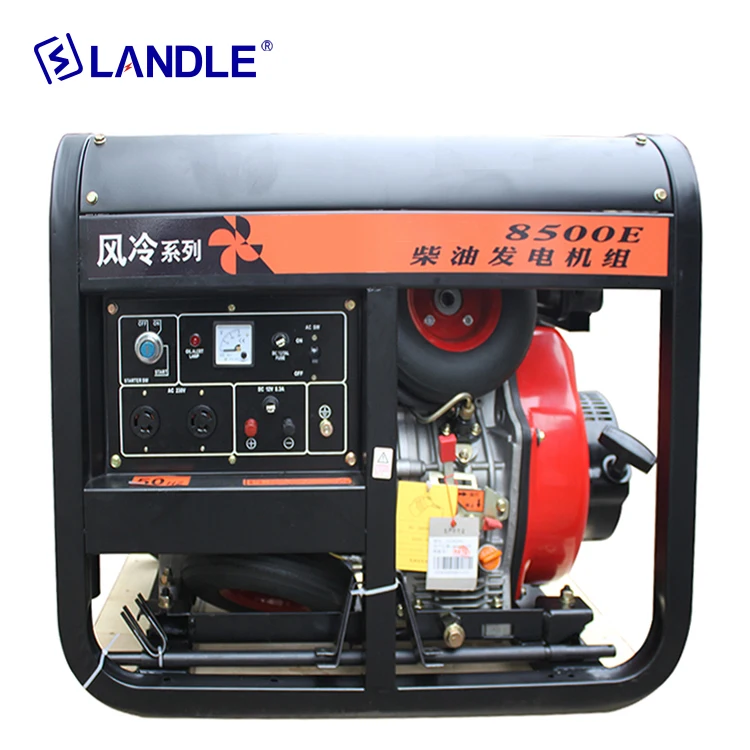

Agricultural Machinery AIR-cooled Diesel generator 8500E mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).





Production Process

Production Workshop
