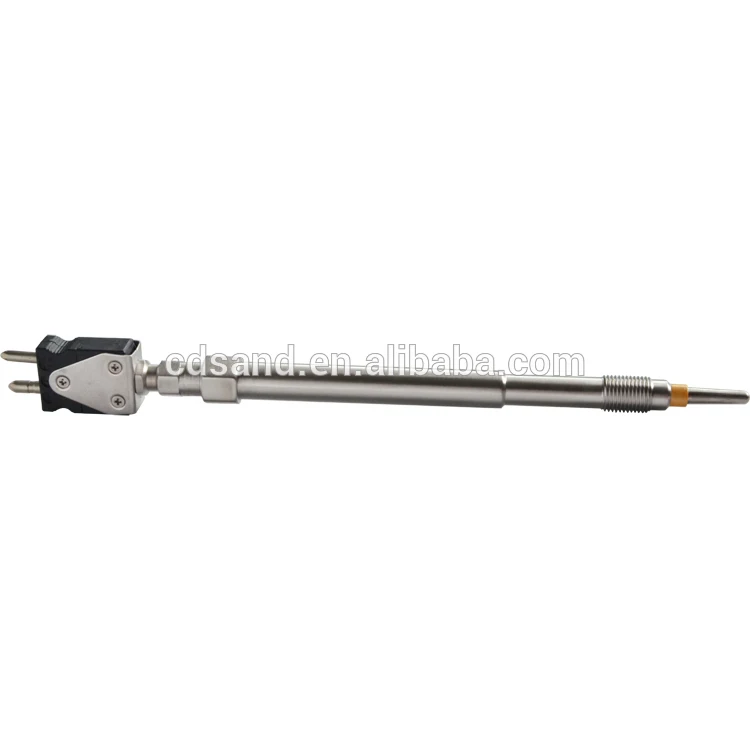

MT Series Temperature Sensor for Melt, fluid, gas temperature measurement

Introduction

MT Series melt temperature sensors are suitable for petrochemical, textile and chemical plastics, rubber, non-woven fabric industry melt, fluid, gas temperature measurement. Temperature sensor probe with a cone or ship structure, the flow resistance in reducing medium, while the sensitive parts of the probe measured entirely in the medium to ensure greater accuracy of measurement , shorter response time, better reliability . The advantages of this kind of products including good stability, installation easily, beautiful appearance, and good quality.

Features

Temperature range: 0~400℃

Accuracy: ±0.2%FSO,±0.5%FSO

Temperature Configuration:

Thermocouple: E/J/K/S

Thermal resistance: Pt 100

Electrical connection: 2PIN special connection; 3PIN special connection;

Probe thread: M10×1.0,M12×1.5,M14×1.5,1/2"-20UNF etc.

Probe depth : 0mm~30mm

Probe shape:

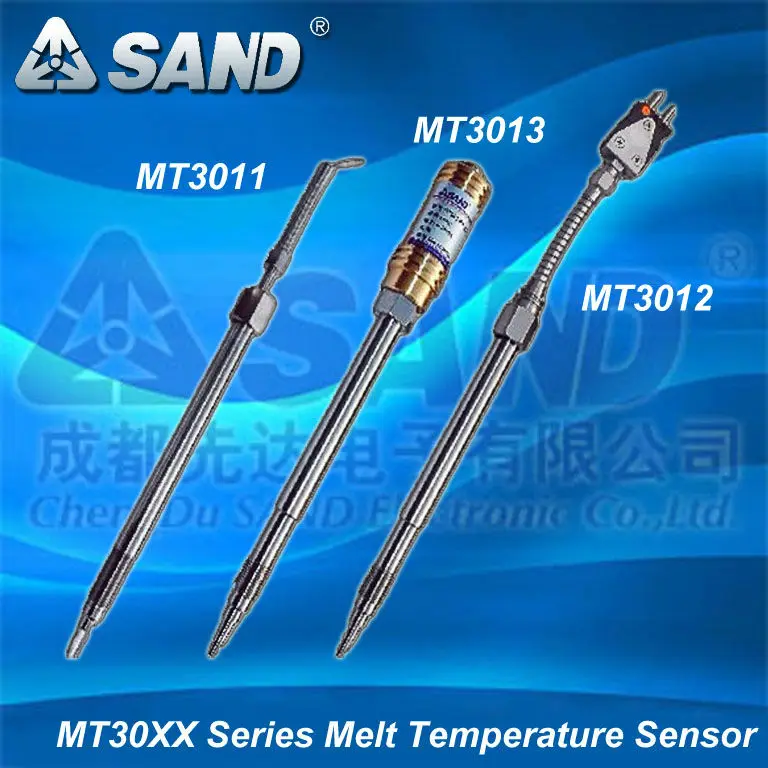

MT301X series :Conical probe ;

MT302X series: Diamond probe

Rigid / Flexible stem: Rigid =150mm(max<450mm) Flexible=50mm(max<1000mm)

Order Format

Format : MT Model - Mounting thread - probe depth - Straight Size / hose size - Temperature Configuration

Example 1: MT3011-1/2 "-20-15-150-K

Product Design Model "MT3011", melt temperature sensors, conical probe directly lead type .

Probe thread is 1/2 "-20UNF; conical probe depth is 15mm; rigid stem size is 150mm; no flexible ; using K -type thermocouple .

Example 2: MT3022-M18-20-150/180-J

Product Design Model "MT3022", melt temperature sensors, diamond probe, two -pin connector type .

Probe thread is M18 * 1.5; diamond probe depth is 20mm; rigid stem size is 150mm; flexible stem is 180mm; using J -type thermocouple .

Example 3: MT3013-M14-10-250-pt100

Product Design Model "MT3013", melt temperature sensors, cone probe, three -pin connector type .

Probe thread is M14 * 1.5; conical probe depth is 10mm; rigid stem size is 250mm; no flexible ; using pt100 RTD temperature measurement .
