80kw/H power needed used hydraulic oil purifier with 30Tons processing capacity

 Luoyang Ninca Environmental Technology Co.,Ltd is located in High-Tech Zone, Luoyang City, Henan China. there is a yong group technical department which is maily doing the design for waste engine oil distillation plant to base oil and diesel, Crude oil refinery plant and waste tyre&plastic pyrolysis to low-sulphur diesel . Until now, we have exported 1set of 50Tons waste engine oil distillation to base oil plant to America, 1 set of 50Tons crude oil refinery plant to Myanmar and 1set of new designed 3Tons pyrolysis to diesel plant to UK.

There is another 200Tons waste engine oil plant under manufacturing in China for America client

Product Description

Layout Drawing

About The plant

Model	Capacity(Tons/day)	Power	Water	Heating fuel	Catalyst	Labours
Ninca-5BD	5	45kw/h	500kg	400kg	1.5tons	1-2per shift
Ninca-10BD	10	45kw/h	500kg	800kg	1.5tons	1-2per shift
Ninca-20BD	20	60kw/h	500-800kg	1.6tons	3tons	1-2per shift
Ninca-30BD	30	60kw/h	500-800kg	2.4tons	3tons	1-2per shift
Ninca-50BD	50	80kw/h	800kg-1ton	4tons	3tons	1-2per shift
Ninca-100BD	100	140kw/h	800kg-1ton	8tons	8tons	2-3per shift
RNinca-200BD	200	250kw/h	1-1.5ton	16tons	20tons	2-3per shift

Packaging & Shipping

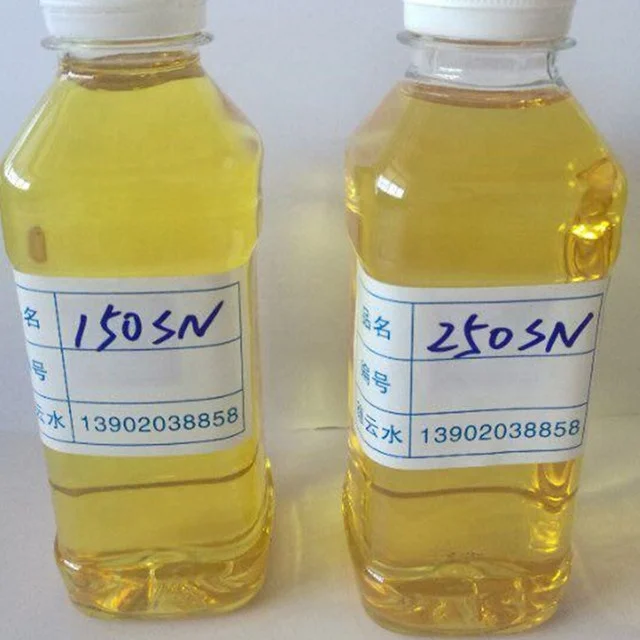

Raw material can be processed	waste engine oil, Used Hydraulic Oil, Used transformer oil
Output
Base oil	70%-75%
Light oil	5%-7%
Heavy oil	10%-13%
waste gas	0.5%-1%
waste water	3%-5%

The Profit Calculation ( Take 30Tons /day capacity as example)

Input	Unit	Cost	Total Cost
Used oil	30Tons/day	300$/Ton	9000$
Power	60KW/H*24	0.12$/KWH	172.8$
water	800kg/day	6$/Ton	4.8$
heating fuel	Light oil as fuel
Labors	4	80$/person	320$
catalyst	10$	10$*30Tons	300$
In Total			9797.6$
INcome
Base oil	0.7$*30Tons/day	650$/Ton	13650$
Light oil	as fuel		0$
Heavy oil	0.1$*30tons/day	100$	300$
Total Income			13950$
Profit			4152.4$

Our Services



Manufatcuring Time	45-60days
Installation Time	30days-45days
Warranty Time	18months
Continuous running
Vacuum system
PLC control
Tube furnace and Thermal oil heating system

FAQ



1.

 Q: What's the material the machine can be processed?

 A: Used engine oil, Waste Hydraulic Oil, Used transformer oil

2.

Q: What's the capacity the machine can do ?

A: 5Tons-300Tons

3

Q: What's the output ?

A: 80%-85% base oil

     5%-10% light oil

     10%-15% heavy oil

4

Q: how many days for manufacturing ?

A: 45-60days afrer deposit

5

Q: what's the main technology?

A: Continous running

     Vacuum system

     Tube furnace and Thermal oil heating system

     PLC control system

      By using catalyst
