ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage
- Category: >>>
- Supplier: Shanghai Sunny Elevator Co. Ltd.
Share on (62106093746):
Product Overview
Description

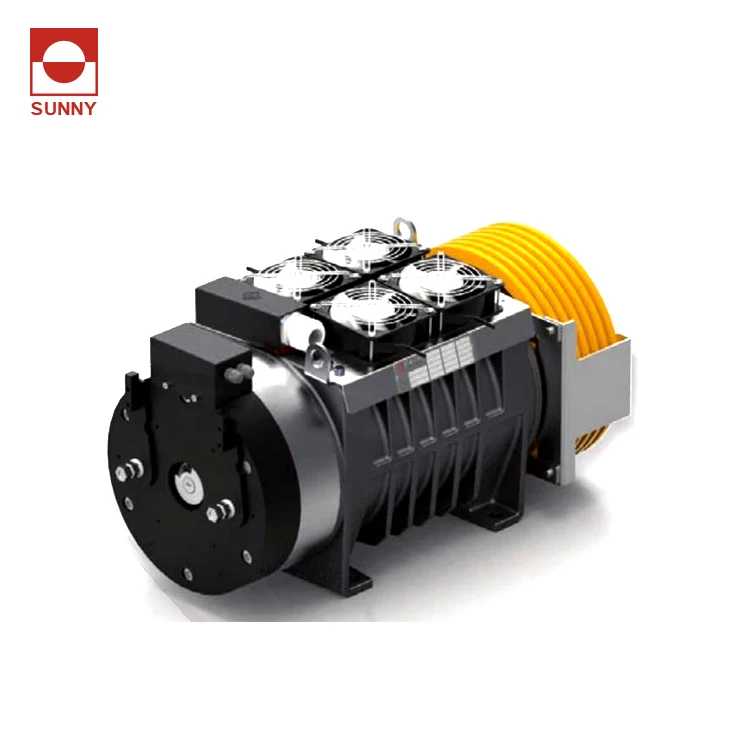

Elevator Gearless Traction Machine, Elevator Machine, Load 800~1350kg Lift Motor
| Load range | 800~1350kg |
| Speed range | 0.5~2.0m/s |
| Static load | 3400kg |
| Sheave | Φ240~320mm |
| Rating | S5-40%ED |
| Net weight | 220kg |
| Encoder | ERN1387 |
| Brake torque | 2x600Nm |
| Brake power | 253W |
| Brake voltage | DC110V/2.3A |
| INS.CLASS | F |
| Poles | 16 |
| IP code | IP41 |
| Trough | β=90 y=30 |
| Traction Sheave | Ropes | |||
| ΦD | F | Φ | min-max | Pitch |
| mm | mm | mm | n° | mm |
| 240 | 105 | 6,5/8 | 6-8 | 9,5/12 |
| 320 | ||||
| 79 | 5-6 | |||
| 114 | 7-9 | |||

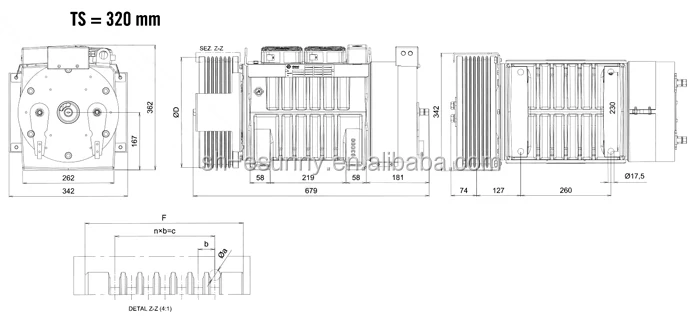

DIMENSION DRAWING
| No | a | b | c | D | n | F | Groove |
| 1 | Φ8 | 12 | 60 | Φ320 | 5 | 79 | 3 |
| 2 | 72 | 6 | 114 | 4 | |||
| 3 | 84 | 7 | 5 | ||||
| 4 | 96 | 8 | 6 |

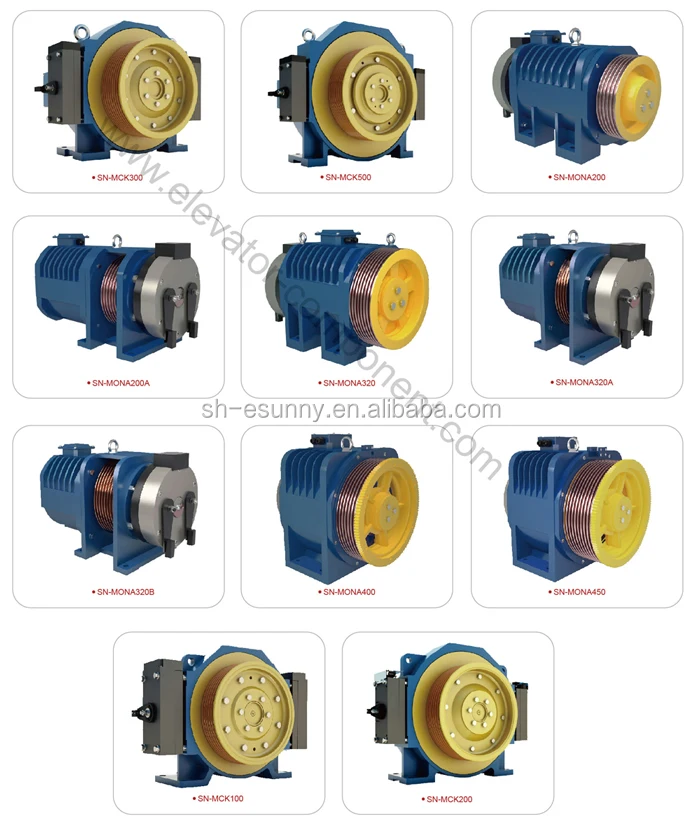

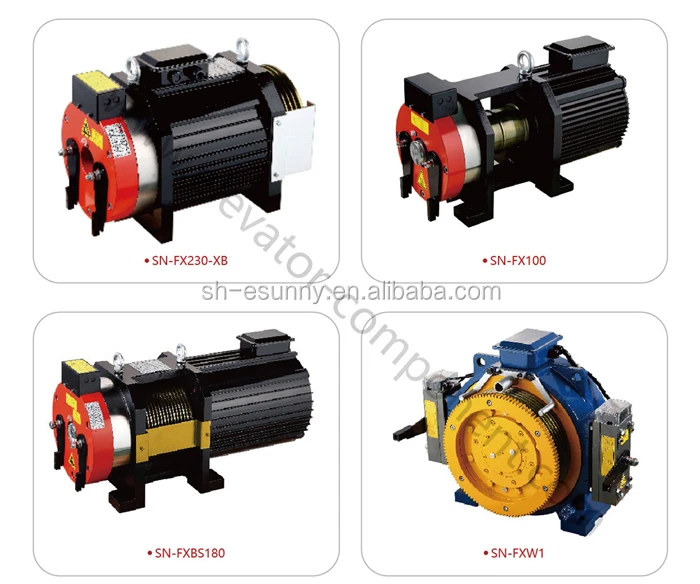

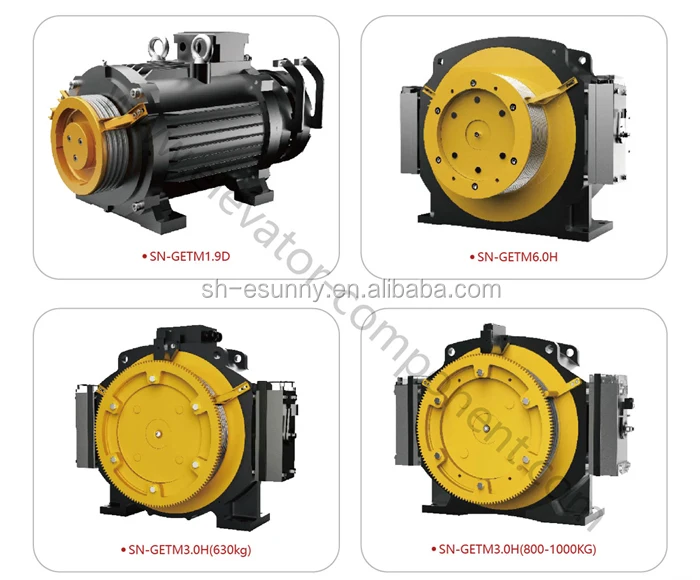

This is our hot product:

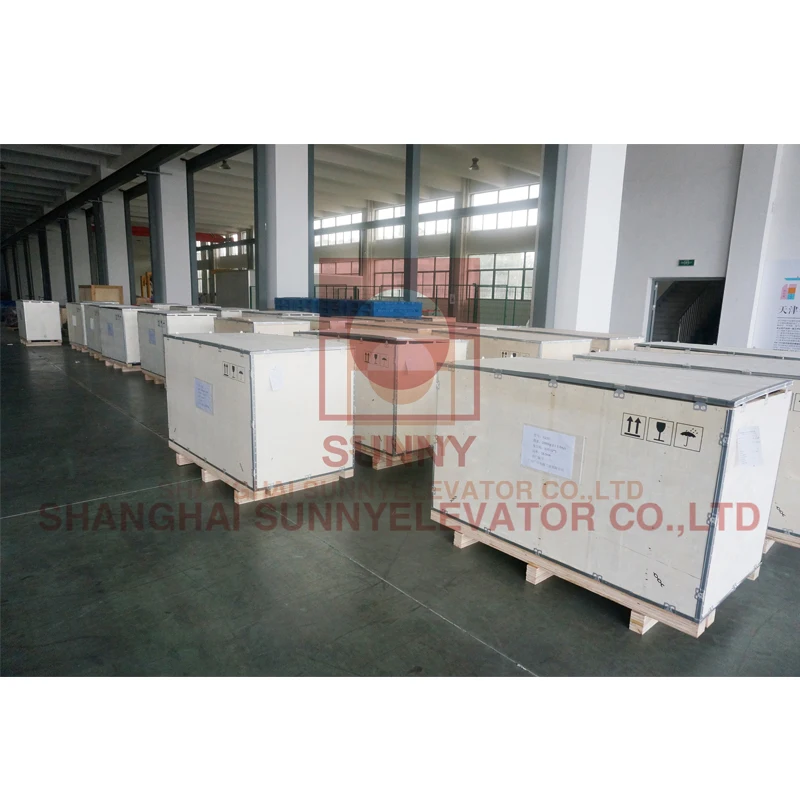

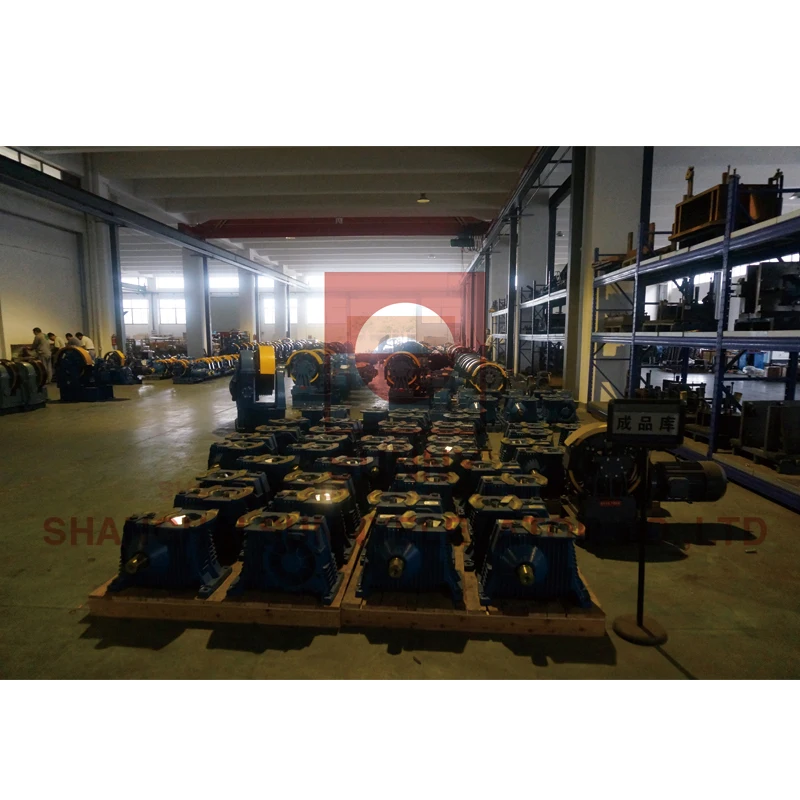

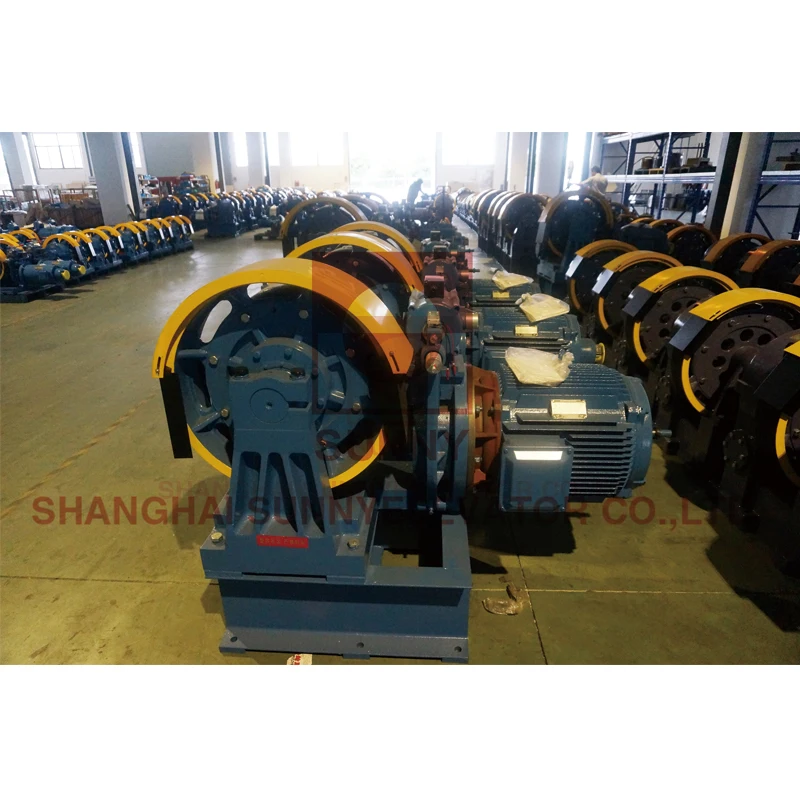

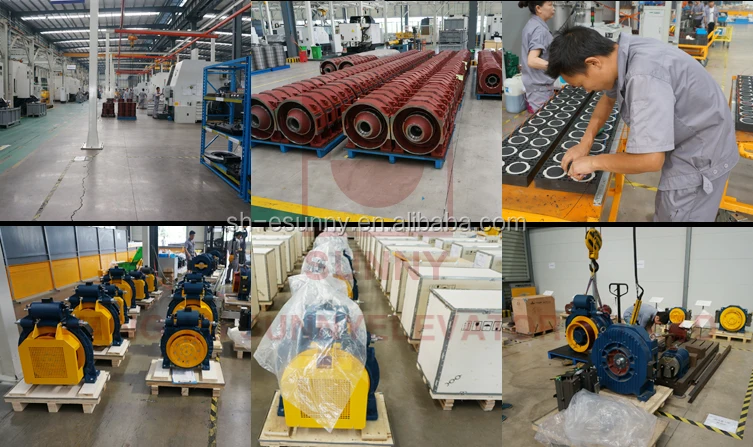

Our factory
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 27-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
