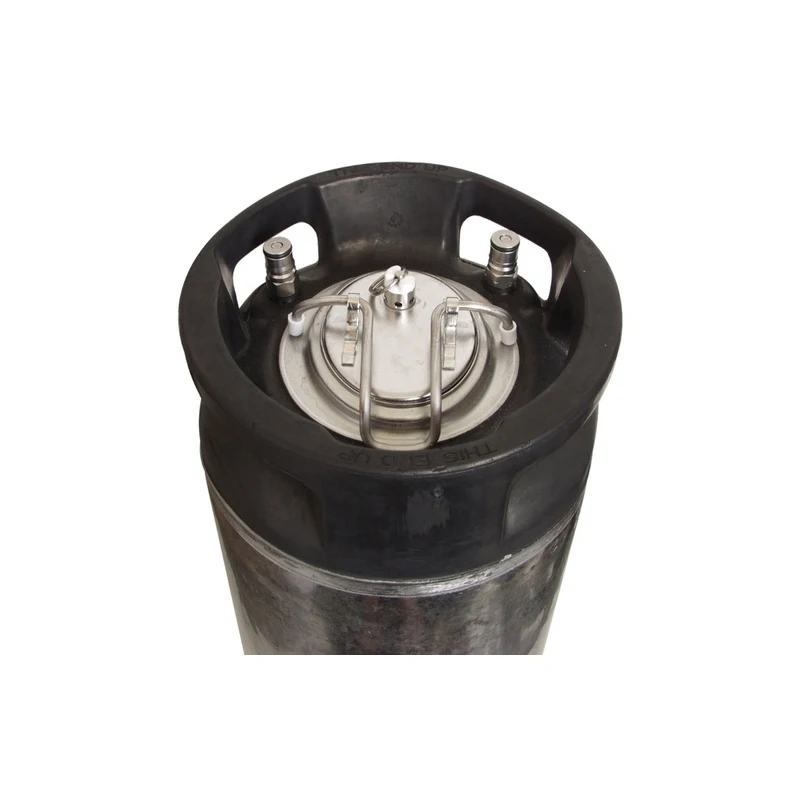

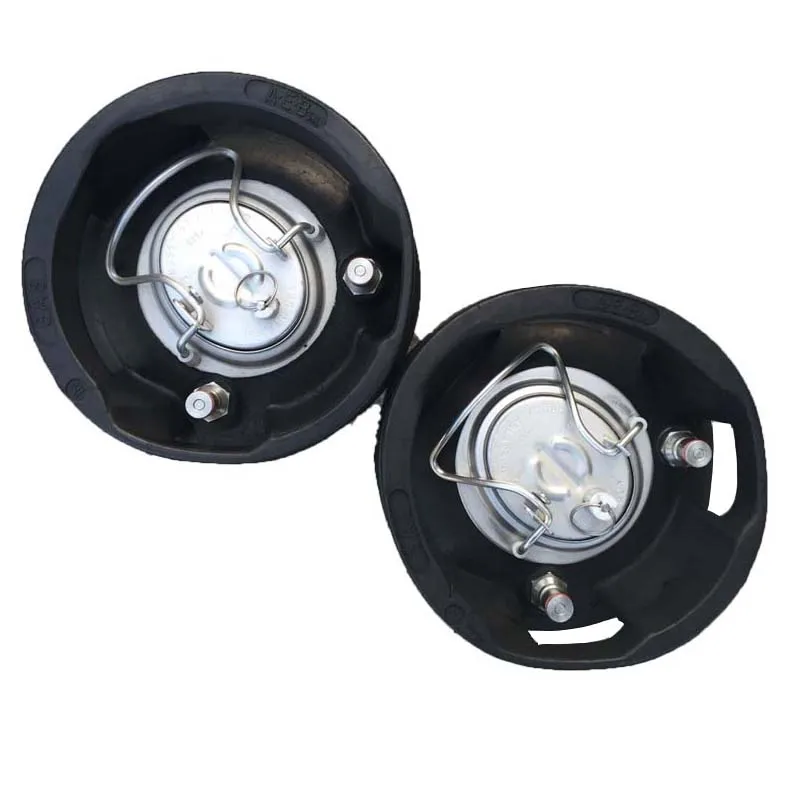

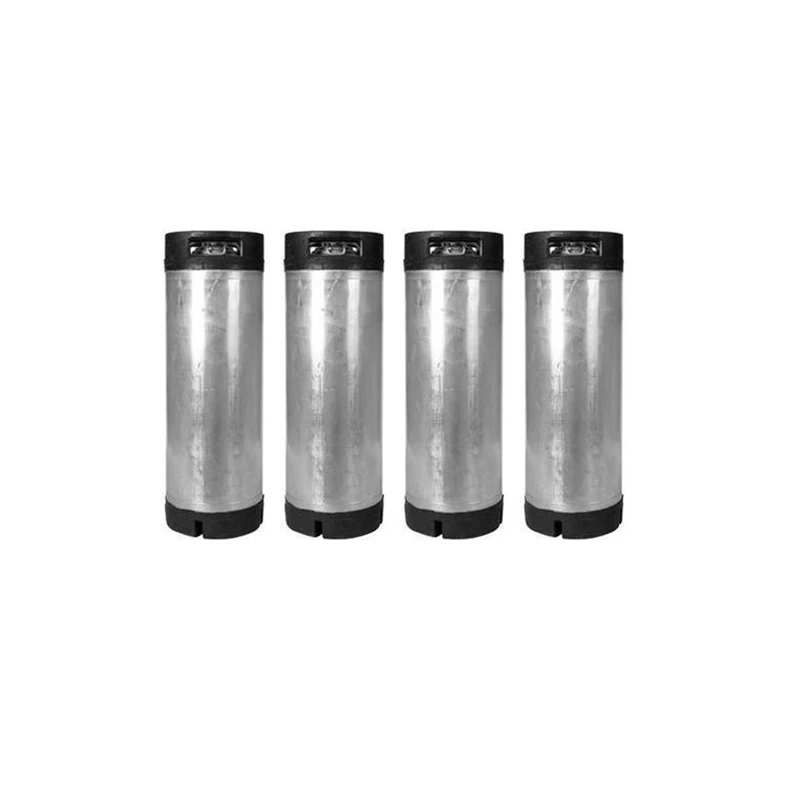

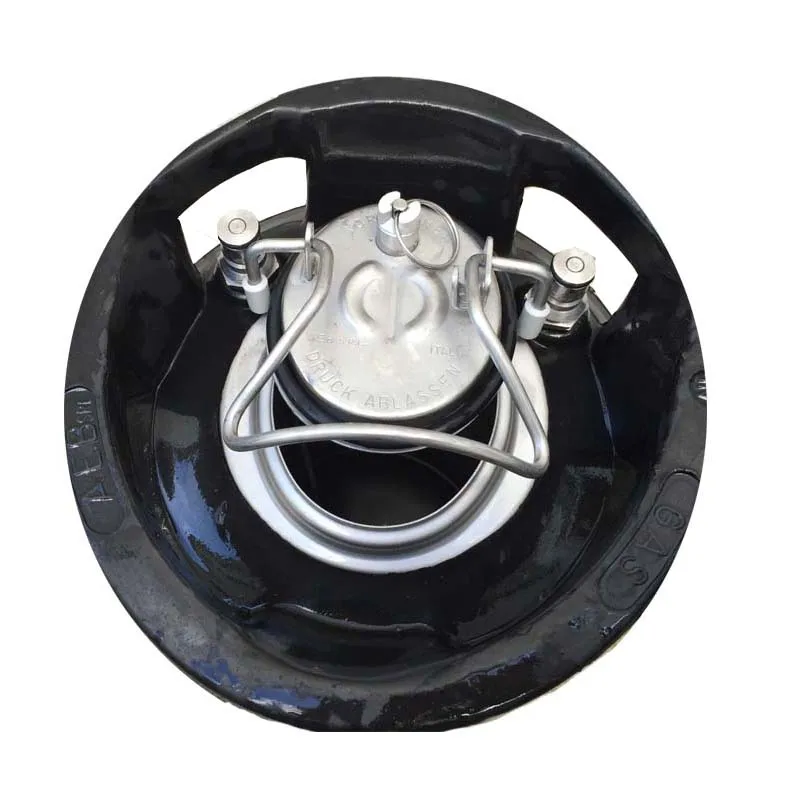

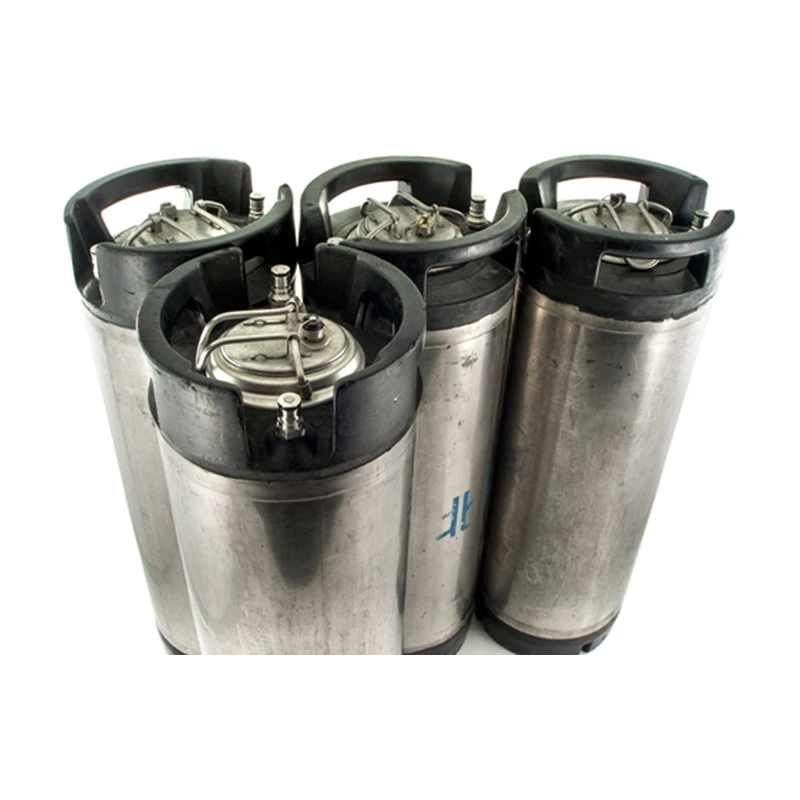

Used Stainless Steel 5 Gallon Ball Lock Kegs Cornelius Keg with Dual Rubber Handles Corny Keg for Home Brewing

Product Overview

Description

US standard beer keg 20L capacity, slim barrel shape, for brewery and beverage storage keg

• Used pressure tested 5-gallon capacity, ball lock cornelius kegs with rubber tops and bottoms (color may vary). The interior and exterior we will  washed to ensure that no soda flavor or residue was left behind.
• Gaskets and pressure relief valve included.
• All used kegs have some cosmetic blemishes.
• 8.5" Diam. x 23" Height to 26 1/4" Height. Measurements may vary slightly.
• A great price on a Cornelius keg. These Cornelius kegs could have residual soda syrup inside and will need to be cleaned. PBW works as a great cleaner for eating away sticky residual soda residue. Kegs are sold "as is".



Factory  Show:

Production Process:



1 Deep drawing: Special drawing presses are used to produce highly accurate, precision-dimensioned, smooth-surfaced deep-drawn parts from circular blanks.

2 Forming: Technical crimping of beads in the cold-formed keg halves. Cutting the keg halves. Making the bunghole in to half of the keg.

3 Welding in the necks: The necks are automatically welded in the top keg halves using a special method.

4 Embossing and labeling: Customer-specific data are embossed or stamped on the kegs in a special press. Such data include the customer’s name, logo, type approvals and serial numbers

5 From bending, welding, rolling: The chime strips are rolled into rounds, tensed and welded fully automatically to produce the chime rings. These are rolled in a hydraulic forming press equipped with special tools.

6 Stamping and forming: The hand and drain holes are stamped and punched fully automatically by precision machines. All parts are mechanically deburred safe handling.

7 Welding the chimes on the keg halves: The chimes are welded on the top and bottom keg halves by special welding methods.

8 Circumferential welding of the two keg halves: The keg halves are welded together to obtain the complete keg on fully automatic circumferential welding machines. Hygienic, smooth, narrow, flat weld seams and perfect weld root, especially on the side in contact with the product.

9 Pickling, pre-rinsing, passivation, rinsing: The kegs are pickled, rinsed and passivated inside and out, to ensure a grease-free, hygienically sealed surface.



Material:

SUS304/2B, the thickness is using 1.2mm, 1.5mm, 18mm, 2.0mm according to the capacity and customer’s requirements.

5. The pressure test

The keg is pressed with 0.5MPa and kept 3 minutes.
