Roller glass coating machine
US $10000-$13000
Cullet Processing Line Broken Glass machine Tempering Lehr
- Category: >>>
- Supplier: Yantai Hunk Machinery Co. Ltd.
Share on (62106497030):
Product Overview
Description

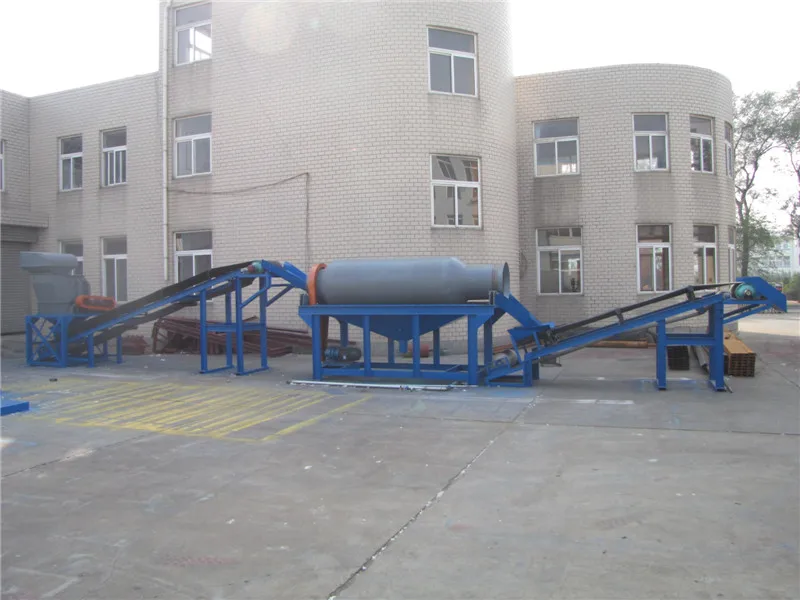

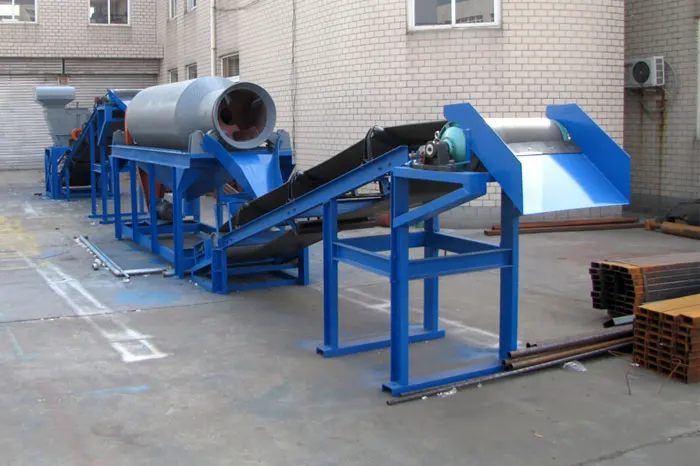

A cullet processing line
A cullet processing line technical data
I. SCOPE OF SUPPLY
1 A Storage Bin with a vibration feeder;
2 A Slope Conveyor with Self-unloading Iron Remover ;
3 A Crusher with a spill proof surge hopper ;
4 A Slope Conveyor without an iron remover but normal drive drum ;
5 A Dry Screening Machine with a spill proof surge hopper and discharge Chute;
6 A Water Washing Machine with a set of spare water spray nozzle;
7 A Level / flat Conveyor ;

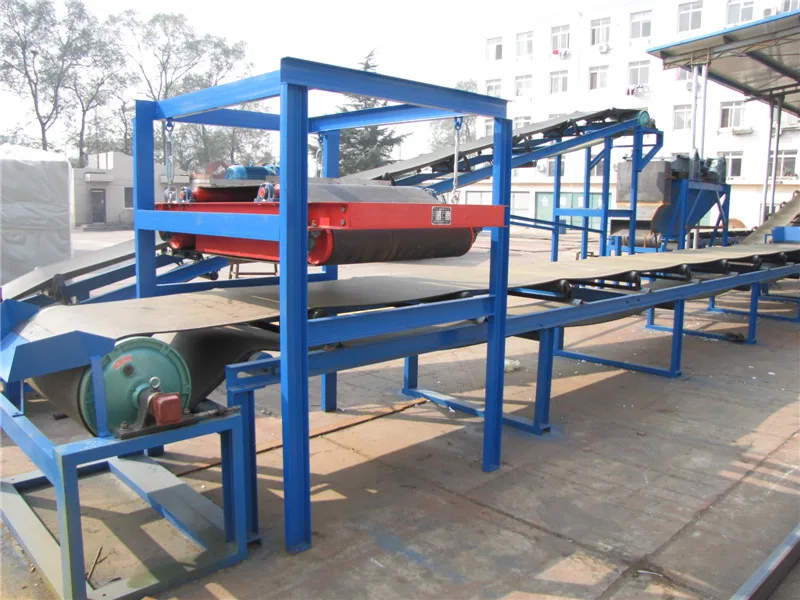

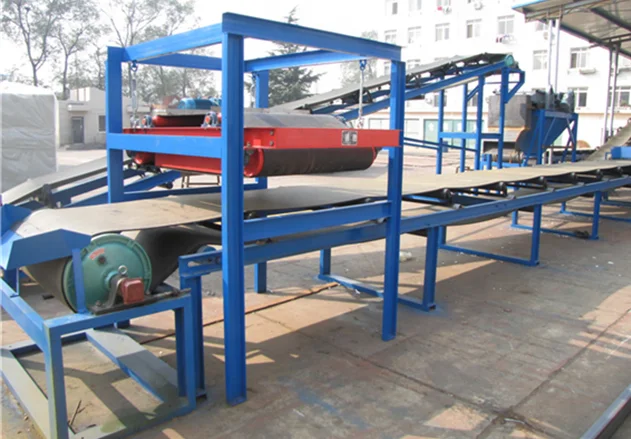

8 Self-unloading Iron Remover;
9 A Movable Slope Conveyor;
10 Electrical Control Cabinet;
Detailed Description of Each Equiment and Supplied Item

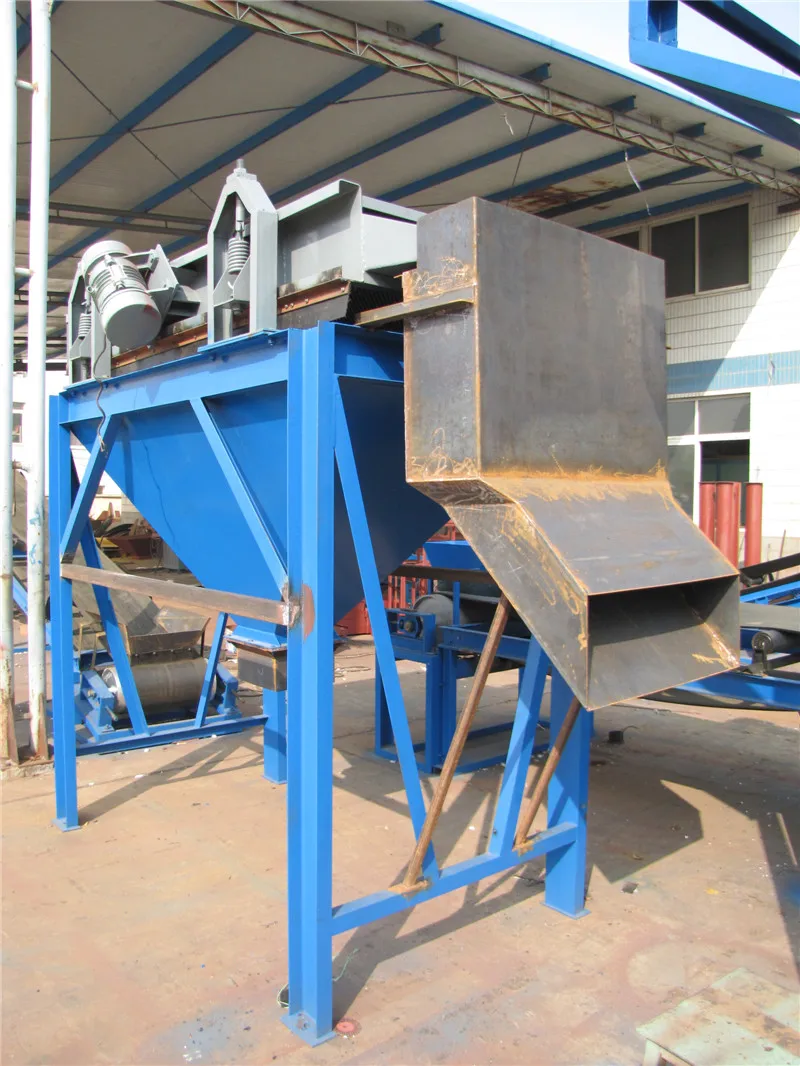

1. Storage Bin with a vibration feeder (with discharge Opening 450 x 450)
| Capacity | 20tons |
| With wider Vibration feeder type | GZ3 0.2kw |
| Weight | 4.5tons |
| Overall dimensions | 4200(L) X 4200(W) X 3300(H) mm |
2. Slope Conveyor with Self-unloading Iron Remover
| Length: | 10000 mm |
| Belt width | 650mm |
| Belt speed | 42m/min |
| Angle of elevation | <20° |
| Geared motor | XWD4-5-1/21 4kw |
| Weight | 1.7 tons |
| Overall dimensions | 10920(L) X 1000(W) X 2700(H)mm |

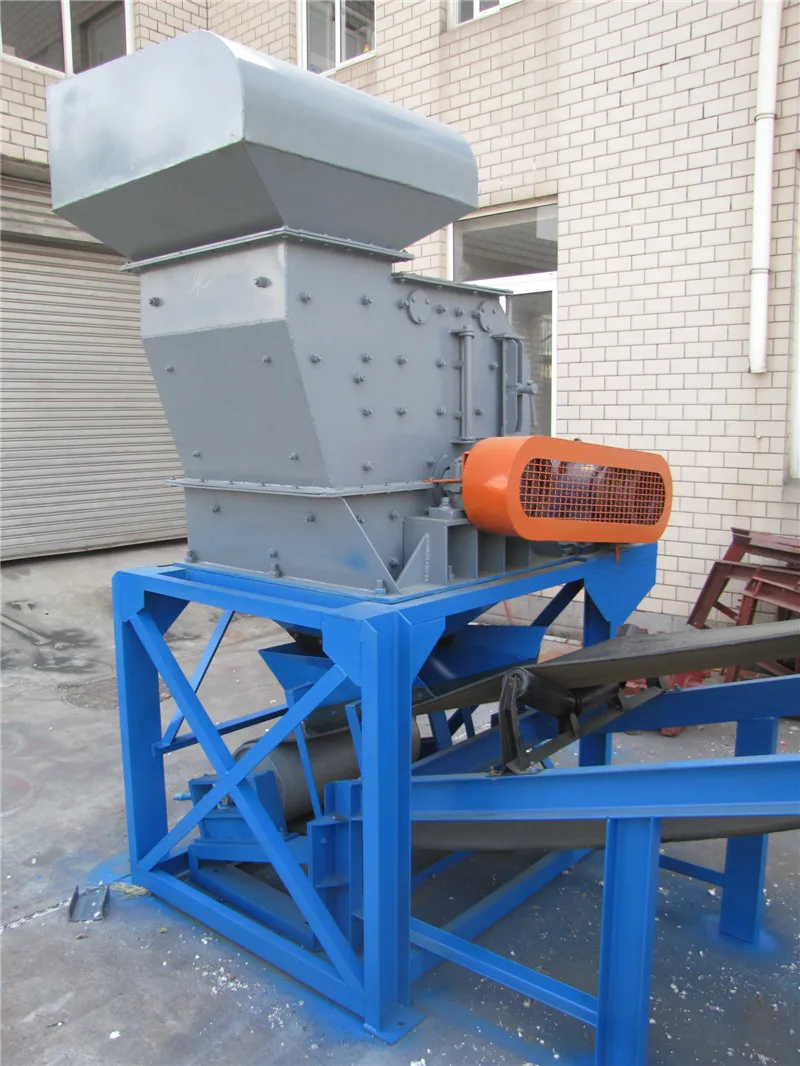

3. Crusher with spill proof surge hopper
| Capacity | 8 ton |
| Diameter of rotator | 520mm |
| Length of rotator | 400mm |
| Rotation speed | 185 rpm |
| Max size of input | hard block less than 50mm |
| Out put size | more than 85% at size from 10mm to 50mm |
| Geared motor | XWD11-6-1/9 11kw |
Weight: | 2.45 tons |
| Overall dimensions | 2230(L) X 1340(W) X 2250(H)mm |
4. Slope Conveyor without an iron remover but normal drive drum
| Length | 10000 mm |
| Belt width | 650mm |
| Belt speed | 42m/min |
| Angle of elevation | <20° |
| Geared motor | XWD4-5-1/21 4kw |
| Weight | 1.7 tons |
| Overall dimensions | 10920(L) X 1000(W) X 3150(H)mm |
5. Dry Screening Machine with a spill proof surge hopper and discharge Chute
| Capacity | 8 tons/hour |
| Way of function | continue |
| Screen area | 800 X 2400 mm |
Diameter of screen hole | 6 mm |
| Weight | 1.67 tons |
Overall dimensions | 2600(L) X 1730(W) X 2900(H)mm |
| Motor | YZDP -8-0.4-4 0.4X2=0.8kw |

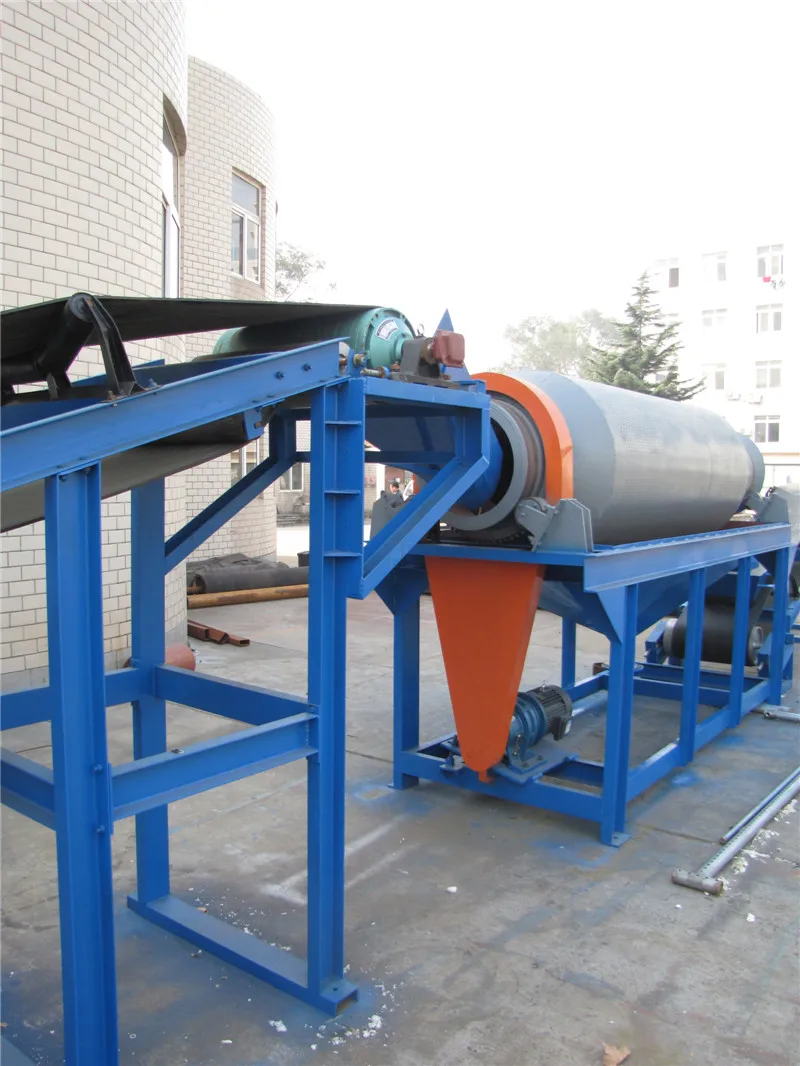

6. Water Washing Machine with a set of spare water spray nozzle
| Capacity | 8 tons/hour |
| Rotation speed of the drum | 20rpm |
| Diameter of the drum | 1000mm |
| Length of the drum | 3100mm |
| Diameter of screening hole | 7mm |
| Consumption of water | 250 liter/ton(recycled) 875liter/ton(not recycled) |
| Motor | Y112M-4-4kw |
| Reducer | XW-4-1/17 |
| Weight | 2.75 tons |
| Overall dimensions | 3100(L) X 1800(W) X 2250(H)mm |
7. Level / flat Conveyor
| Capacity | 30 tons/hour |
Belt width | 800mm |
| Belt speed | 10~42m/min |
| Geared motor | XED4-5-1/21 4kw |
| Weight | 1.65 tons |
| Overall dimensions | 12000(L) X 1400(W) X 950(H)mm |
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visiting.
Service before delivery
* After finishing,offer the details photos or vedios for inspection
After-Sales Service
* Training how to install & use the machine.
* Engineers available to service machinery overseas.
Company Information
Yantai Hunk Mining Machinery Co.,Ltd is located in Yantai City, Shandong Povince, where the scenery is beautiful. transportation is convenient.
Our company is specialized in designing and manufacturing underground scrapers, spare parts for trackless mining equipment at home and abroad. After years of efforts, we formed a set of scientific management system, absorbed the advanced technology of the famous underground scrapers worldwide, we strictly keep JB/T5500-2004, JB/T5501-2004 and GB25518-2010 standards for producing.
Up to now, our company has successfully launched the electric and diesel scrapers, ranging from 1 cbm to 4cbm. We also have Ore trucks. Now we are developing the scrapers for coal mine use, remote control type scrapers and many other products.
Depending on our fine machining process, strong technical team, and modern equipment, we are looking forward to serving all customers with our sincerity and quality.
