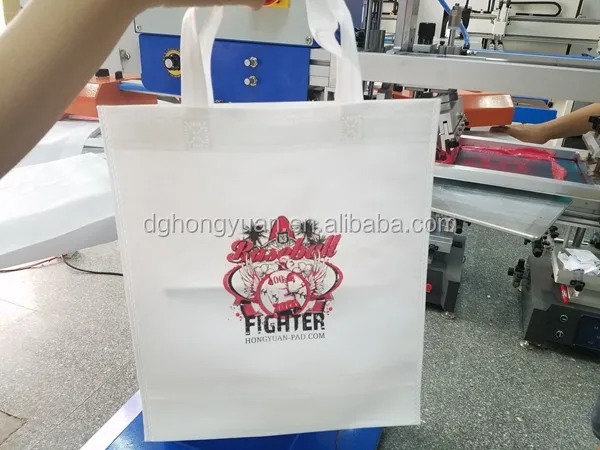

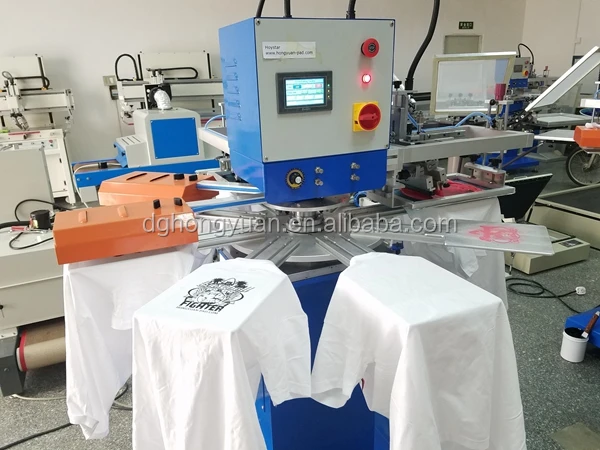

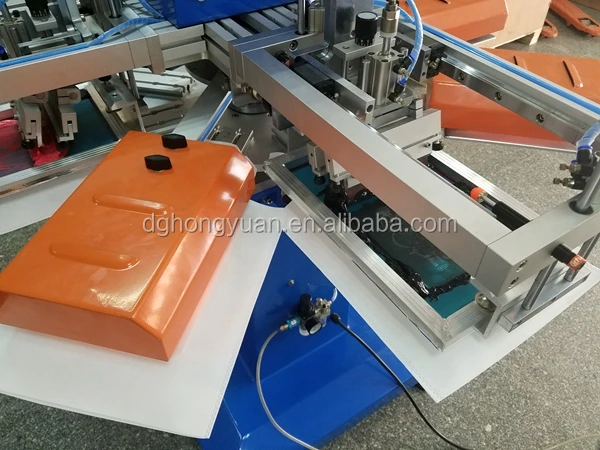

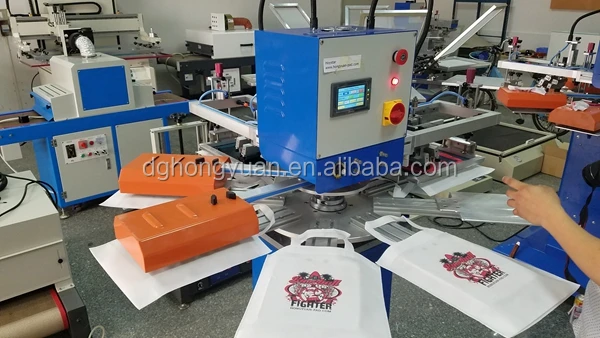

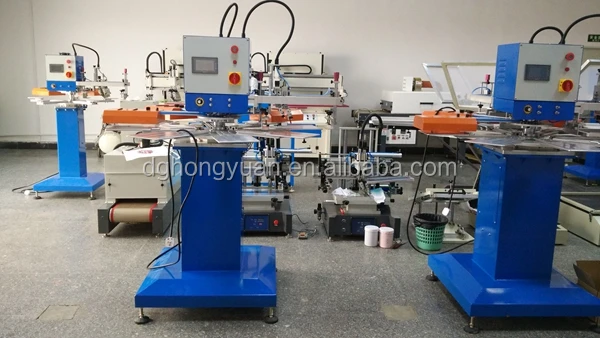

2 color silkscreen automatic octopus printing machine for paper bag/t shirts/swim cap

Technical Parameter

Max printing size:                      100*130mm

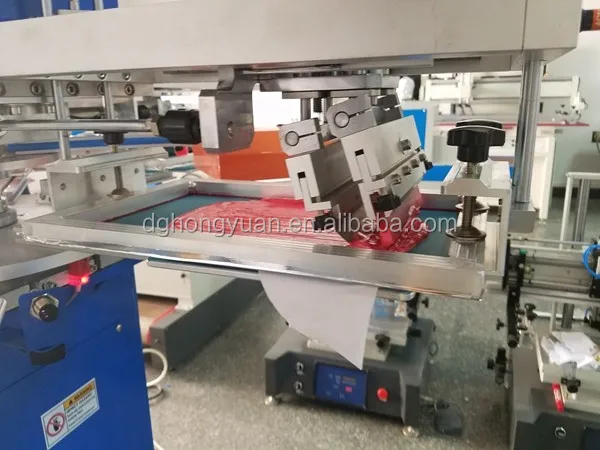

Print head:                                   2 pcs
Pallet/station:                             8 pcs

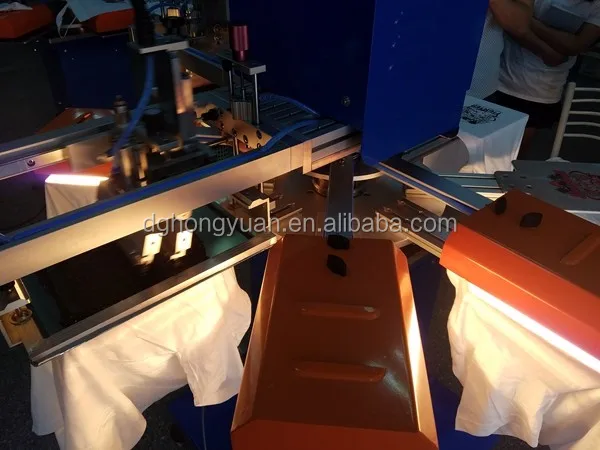

Infrared drying stations:           2 pcs
Power:                                          3.2KW
Air pressure:                                5-7 Bar
Voltage:                                        220V 50HZ
Machine dimension:                 1320*1355*1480mm
Weight:                                         210KG

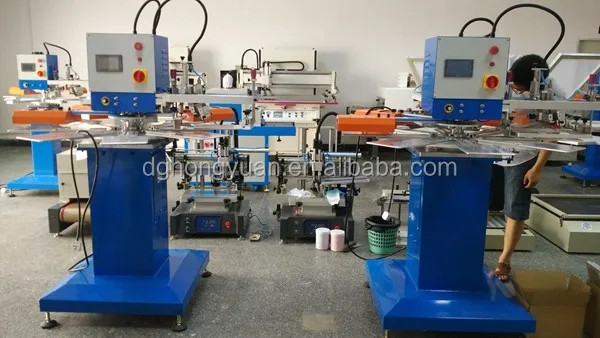

automatic octopus printing machine for paper bag/t shirts/swim cap

What's this Screen Printing Machine use for?

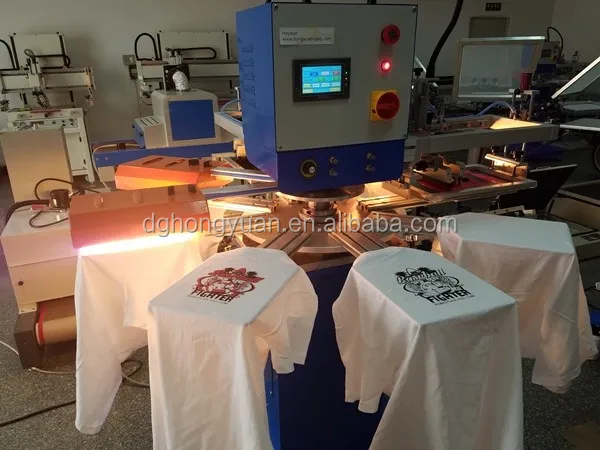

It is widely application for garment tagless label like T-shirt neck label

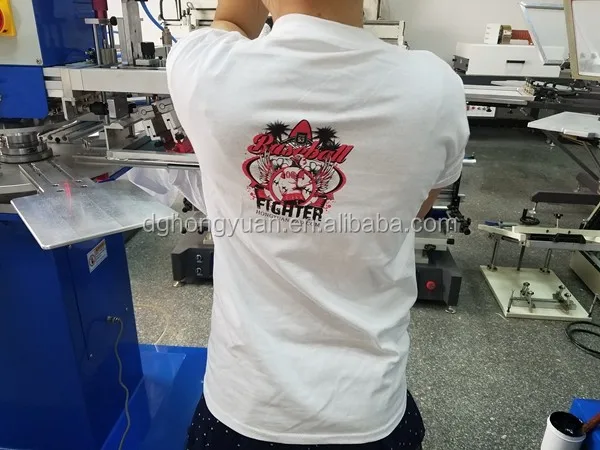

Also suitable for printing other textile or fabric items such as

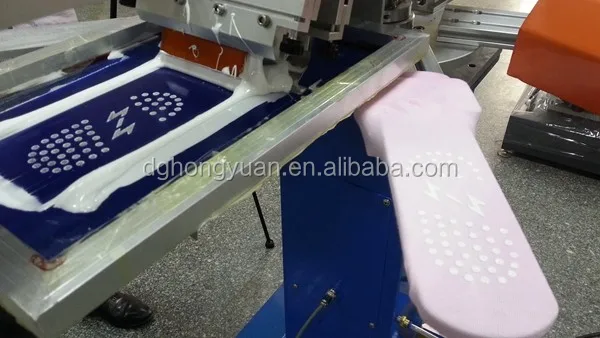

Underwear, polo t shirt's brand name, knitting socks, knitting gloves.

Can koozies, bottle cooler, napkin.....etc

Features

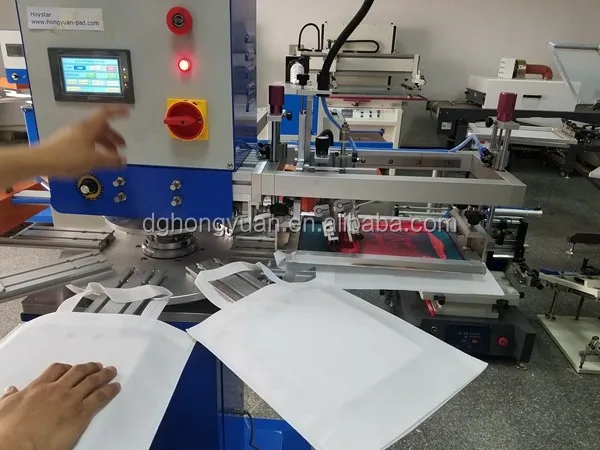

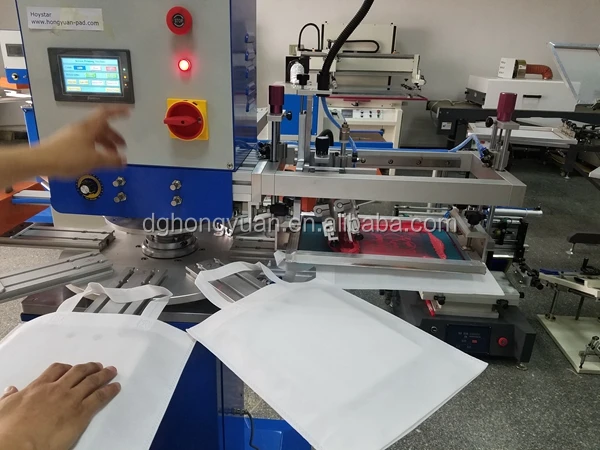

1.  High precision configuration which with PLC program controller and Touch screen control panel

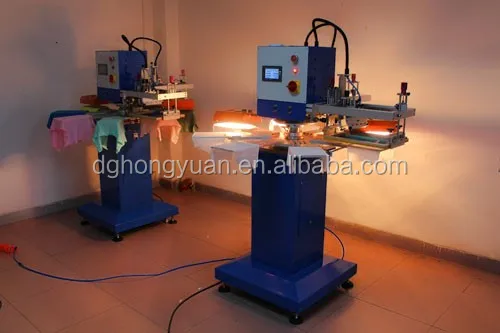

2.  Worktable Rotary speed and infrared drying lamp strong can be adjustable

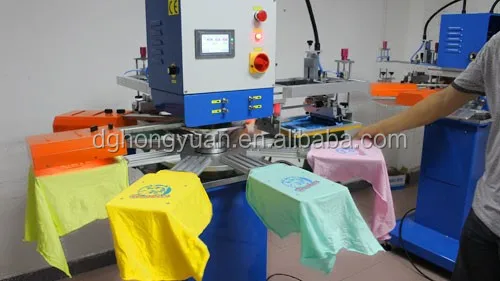

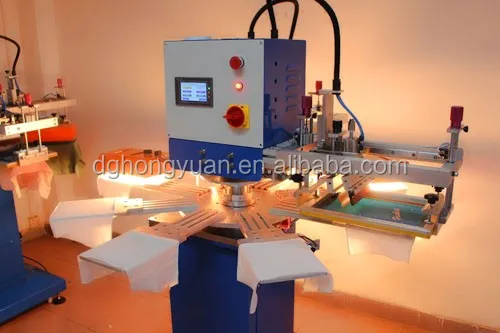

3.  Total 8 workstations spread: loading, unloading, printing, IR drying, IR drying, IR drying, blank, unloading, integration end products printing

4.  Machine with 3 types operation: Manual/semi auto/ auto,  also with footswitch assist

5.  Whole machine with small dimension to save scope

6.  Fast production speed can get max. 2000pcs/hour
