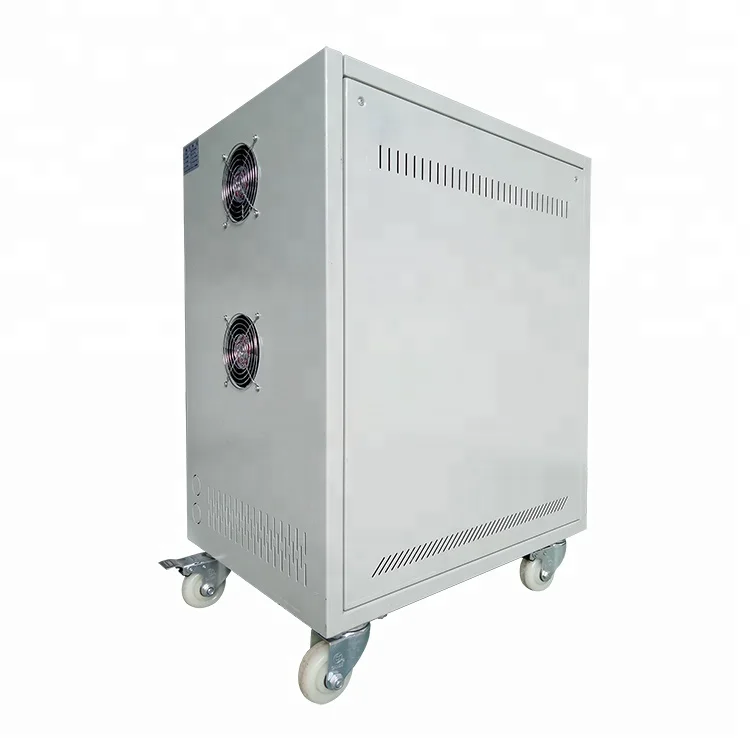

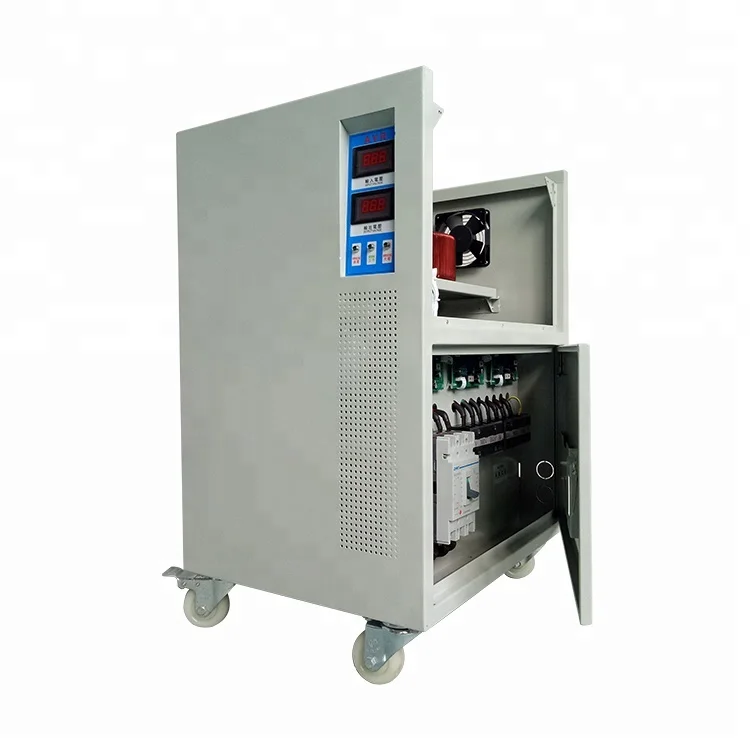

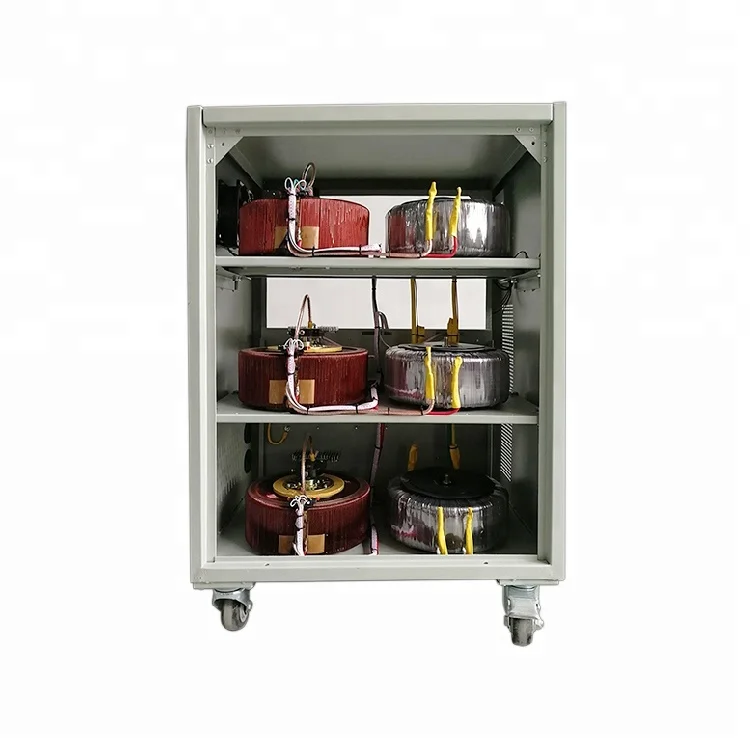

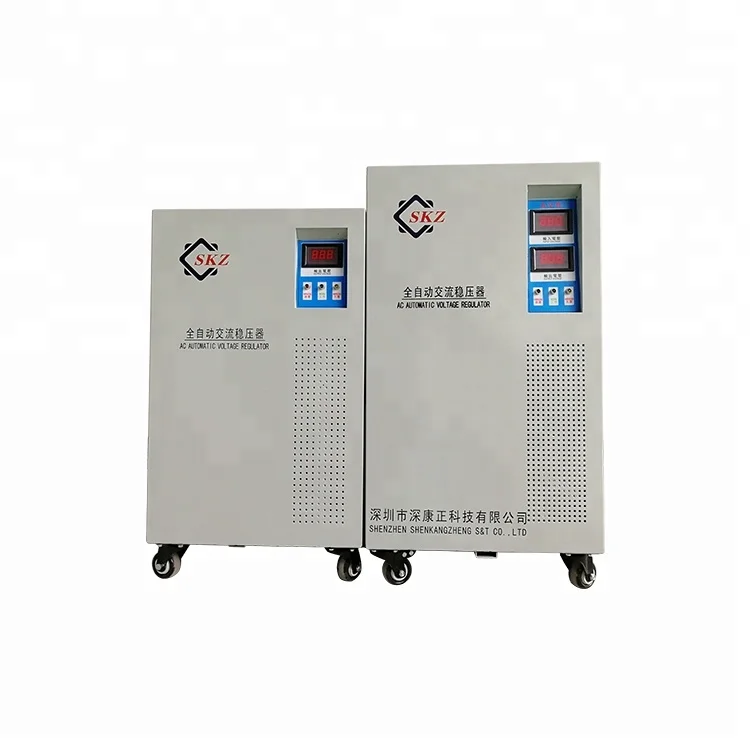

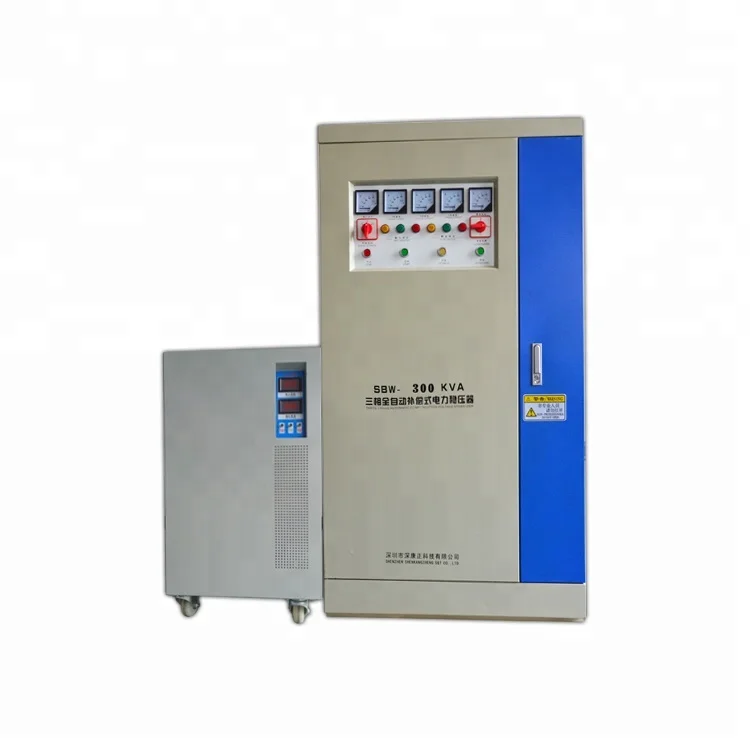

Good Quality 3 Phase 150kva Automatic stabilizer voltage regulator
- Category: >>>
- Supplier: Chongqing WS Import And Export Co. Ltd. [Chongqing China]Chongqing
Share on (62106650877):
Product Overview
Description
Good Quality 3 Phase 150kva Automatic stablizer voltage regulator
Description
1. CPU intelligent control, stable and reliable
2. Main Control PCB adopts SMT process.
3. Electronic components all adopt imported brands.
4. LCD screen, easy setup with menu button
5. Withstand all kinds of load
6. Overload, Under/Over Voltage, Short Circuit, Bypass protection
7. Remote control(Optional)
Specifications
| 150KVA 3 Phase Voltage Stabilizer | ||||||||||||
| Item | SBW | |||||||||||
| Power Rating(KVA) | 80K | 100K | 120K | 150K | 200K | 250K | 300K | 400K | 500K | 600K | 800K | 1000K |
| Control Method | Servo Motor(Microprocessor CPU) | |||||||||||
| Input | ||||||||||||
| Rated Voltage | 3 x 380VAC (3Phase + N) | |||||||||||
| Voltage Range | 304VAC ~ 456VAC | |||||||||||
| Frequency | 50/60 Hz | |||||||||||
| Output | ||||||||||||
| Rated Voltage | 3 x /380VAC (3phase + N) | |||||||||||
| Stabilizing Accuracy | ±1% ( ±1%~ ±5% Adjustable) | |||||||||||
| Power Factor | PF≥0.8 | |||||||||||
| Efficiency | ≥98% | |||||||||||
| Response time | ≤0.5S | |||||||||||
| Delay time(When it is on) | ≤5s(Optional) | |||||||||||
| Waveform Distortion | ≤1% | |||||||||||
| System Protection | ||||||||||||
| Over Voltage | The output voltage is higher than 10%(adjustable),cut off the input in 3~5s | |||||||||||
| Under Voltage | The output voltage is lower than 15%(adjustable),cut off the input in 3~5s | |||||||||||
| Overload | If over current,cut off the input in 3~5s | |||||||||||
| Phase Dislocation | When there is phase dislocation, alarm and cut off the input power | |||||||||||
| Phase Loss | When there is phase loss, alarm and cut off the input power. | |||||||||||
| Short Circuit | When the load device is short circuited, cut off the input power | |||||||||||
| Bypass | When the AVR fails or is repaired, the power transfer to bypass manually or automatically | |||||||||||
| LCD Screen | ||||||||||||
| Input Voltage | Real-time display of the input voltage | |||||||||||
| Output Voltage | Real-time display of output voltage | |||||||||||
| Output Current | Real-time display of working current | |||||||||||
| Working Status | AVR, Bypass, Fuse Blown, Over-voltage, Under-voltage,Over-load etc. | |||||||||||
| Others | ||||||||||||
| Cooling System | Air | |||||||||||
| Insulation Resistance | ≥2MΩ | |||||||||||
| Voltage-endurance | The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min. | |||||||||||
| Noise | <65dB/m | |||||||||||
| Working Environment | ||||||||||||
| Ambient Temperature | 0℃-45℃ ( No condensation ) | |||||||||||
| Working Humidity | 20%-90% | |||||||||||
| Dimension | ||||||||||||
| Size WxDxH(mm) | 650×1100×1200 | 700×1200×1500 | 800×1300×1700 | 1900*1600*2000 | ||||||||
| 1500×1600×2000×2door | ||||||||||||
| Net Weight (KG ) | 220 | 240 | 250 | 290 | 300 | 600 | 800 | 9500 | 1200 | 1350 | 1550 | 1750 |
| Gross Weight (KG ) | 260 | 280 | 290 | 330 | 350 | 650 | 850 | 1000 | 1300 | 1450 | 1700 | 1900 |
| Product specifications are subject to change without further notice. | ||||||||||||
