Railway/Railroad Covered Hopper Wagon

Railteco is a professional railway wagons manufacturer in China. With over 15 years experience in international railway wagon equipment, Railteco could provide tailer designed wagons for special purpose transportation by railway.

RTHW60 Railway/Railroad Covered Hopper Wagon is specially designed for railway transportation of bulk goods, such as grains, corns, soyas and etc, which need to be protected againter weather conditions. The car body adopts arc cladding structure to disperse the side pressure of bulk cargo and improve its stiffness. Loading hatches are covered with five independent covers, unloading hatches are covered with sliding doors. The wagon is loaded from the top and unloaded from the bottom hatches. Sliding doors are manually operated from both wagon sides, each door is independently. The goods are unloadede on the rails.

This covered hopper car is designed and manufactured in accordance to AAR standards.

Railteco Covered hopper cars have seen satisfactory feedback from end users.

Main Parameters for RTHW60 Railway/Railroad Covered Hopper Wagon
Tare weight	<=20 tons
Payload	54 tons
Capacity	66 cubic meters
Axle load	18.6 tons
Track gaue	1067mm
Max. Operating Speed	80km/h
Length over coupler	13095mm
Quantity of load hatch	5
Quantity of unload hatch	3
Angle of hopper plate	Horizontal:43°, Longitudinal:38°
Brake type	AAR
Bogie type	Casting type
Operating type of top cover	Manual
Operating type of bottom door	Manual

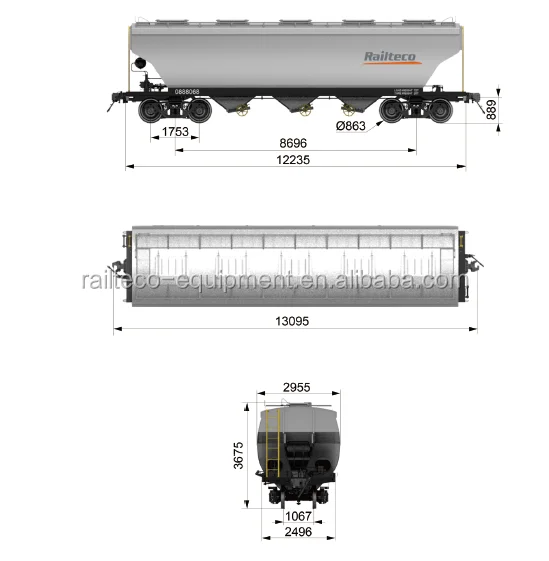

Detail Dimension

Manufacture Pictures

Delivery

Certifications
