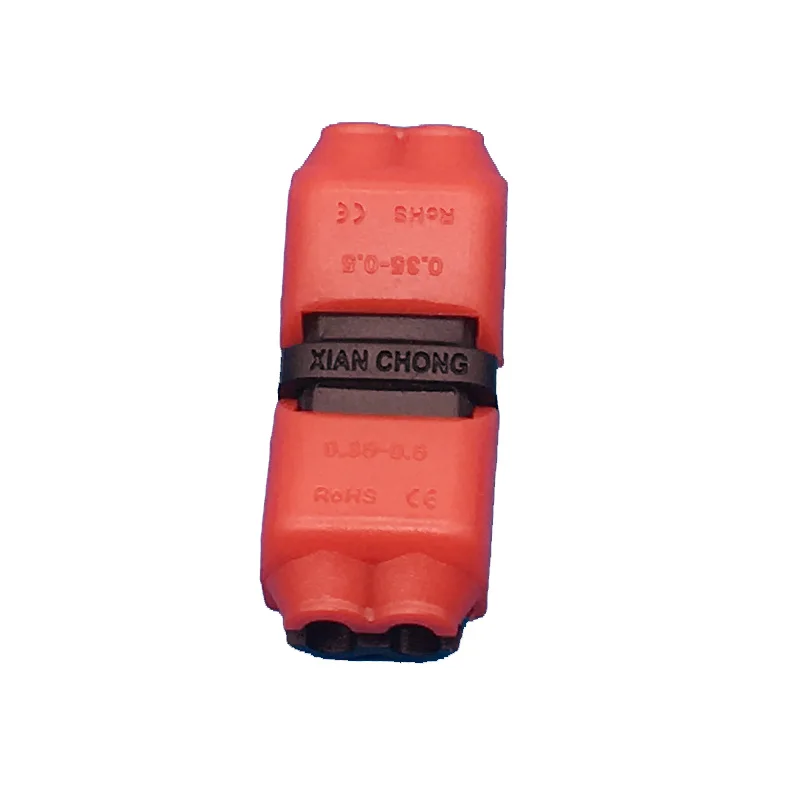

red 2wire 2way Quick Splice Wire connector
- Category: >>>
- Supplier: Shenzhen Longshine Technology Co. Ltd.
Share on (62106909708):
Product Overview
Description
Qijie Xianchong 0.35-0.5 H shape electrical automotive fast quickly snap led joint non-peeling wire cable connector
Feature &Benefit
1. Adopt piercing connection technology without stripping
2. Conductor is not exposed after connection
3. Big contacting area bring low impedance and excellent current-carrying
4. Multiple insulation piercing and clamp-to fix structure to prevent from relaxing and avoid electric arc
5. Inner separated plastic to isolate conductor ,avoid short connection
6. Each conductor are connected one-to-one,make wiring standardized,friendly to after maintenance and inspection
7. Easy to operate,time and cost effective
8. Wide compatibility to various of wire such as solid ,strand and flexible wire
9. Wide application field
Specification
Product name | H shape wire connector | H shape cable connector |
Model NO | XC-JXD-H1 | XC-JXD-H2 |
Color | Red/black | Red/blace |
Wire Channel qty | 1 | 2 |
Polarity qty | 1 | 2 |

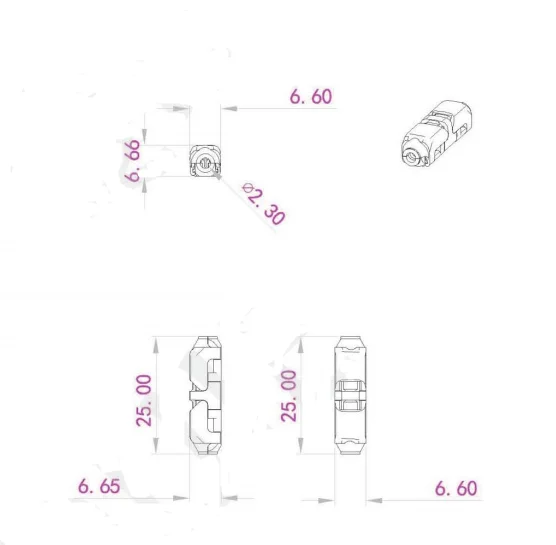

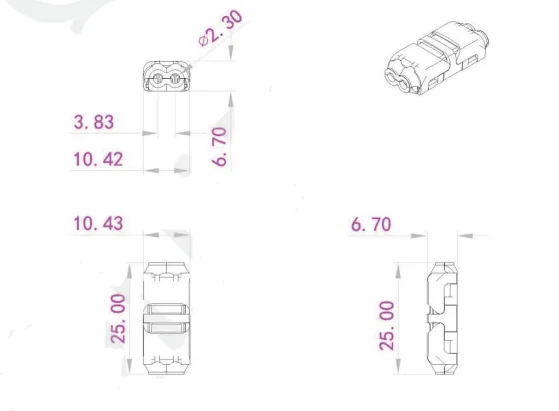

Dimension | 6.65x28.6x16.6-mm | 6.65x25x10.4mm |
Wire distance | 1.3mm | 1.3mm |
Rated Standard | IEC/EN 60664-1 | IEC/EN 60664-1 |
Over voltage category EN1 | III | III |
Class of pollution | 2 | 2 |
If Reusable | yes | yes |
EN Rated voltage | 300V | 300V |
Peak Voltage | 2.5kV | 2.5kV |
Rated Current EN | >=9A | >=9A |
Minimum Cross Sectional Area | 0.35-0.5mm2 | 0.35-0.5mm2 |
Workable Wire Type | Solid wire/Strand wire | Solid wire/Strand wire |
Workable Wire Gauge(AWG) | 22-18#AWG | 22-18#AWG |
Housing Material | Polycarbonate | Polycarbonate |
Pin Material | High-precision copper(Cu) | High-precision copper(Cu) |
Normal Working Temp. | -35~80℃ | -35~80℃ |
Working Ambient Temp. | -35~60℃ | -35~60℃ |
Flame Retardant Level | UL94V-0 | UL94V-0 |
Pin Surface Treatment | Corrosion Resistance Cleaning | Corrosion Resistance Cleaning |
Package | 100pcs/bag | 100pcs/bag |
