SBS bitumen rolls manufacturing production line China manufacturer install overseas

Product Overview

Description

SBS bitumen rolls manufacturing machines --- China manufacturer install overseas

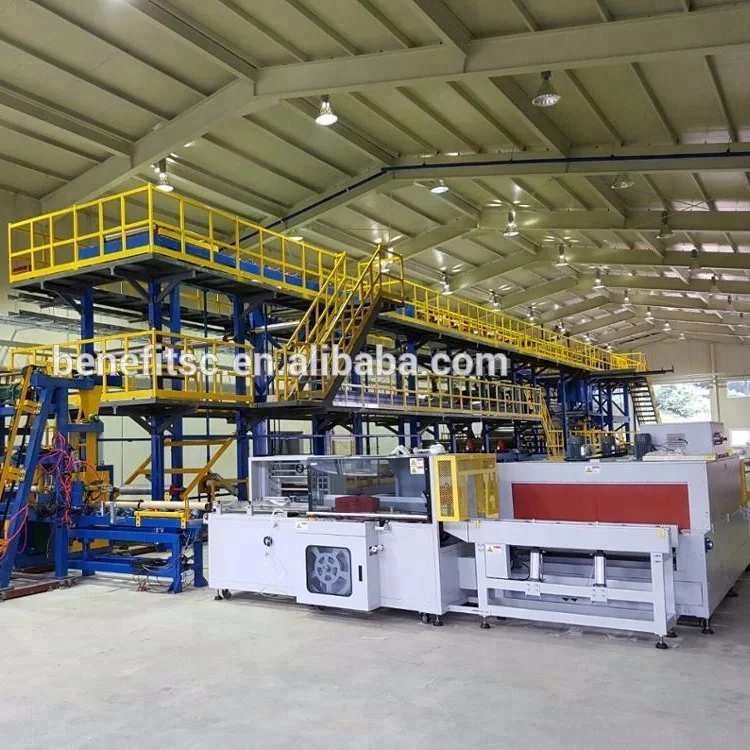

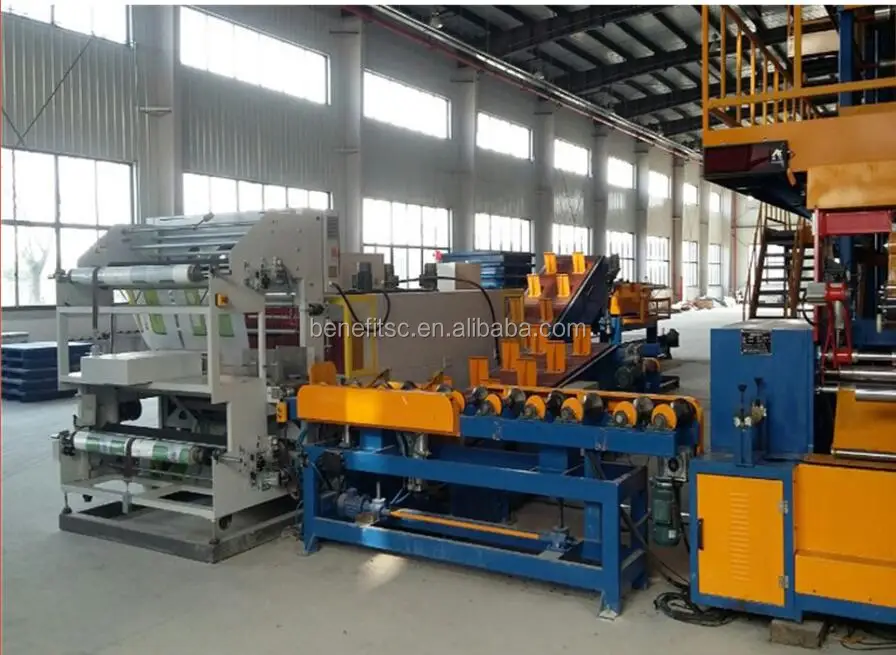

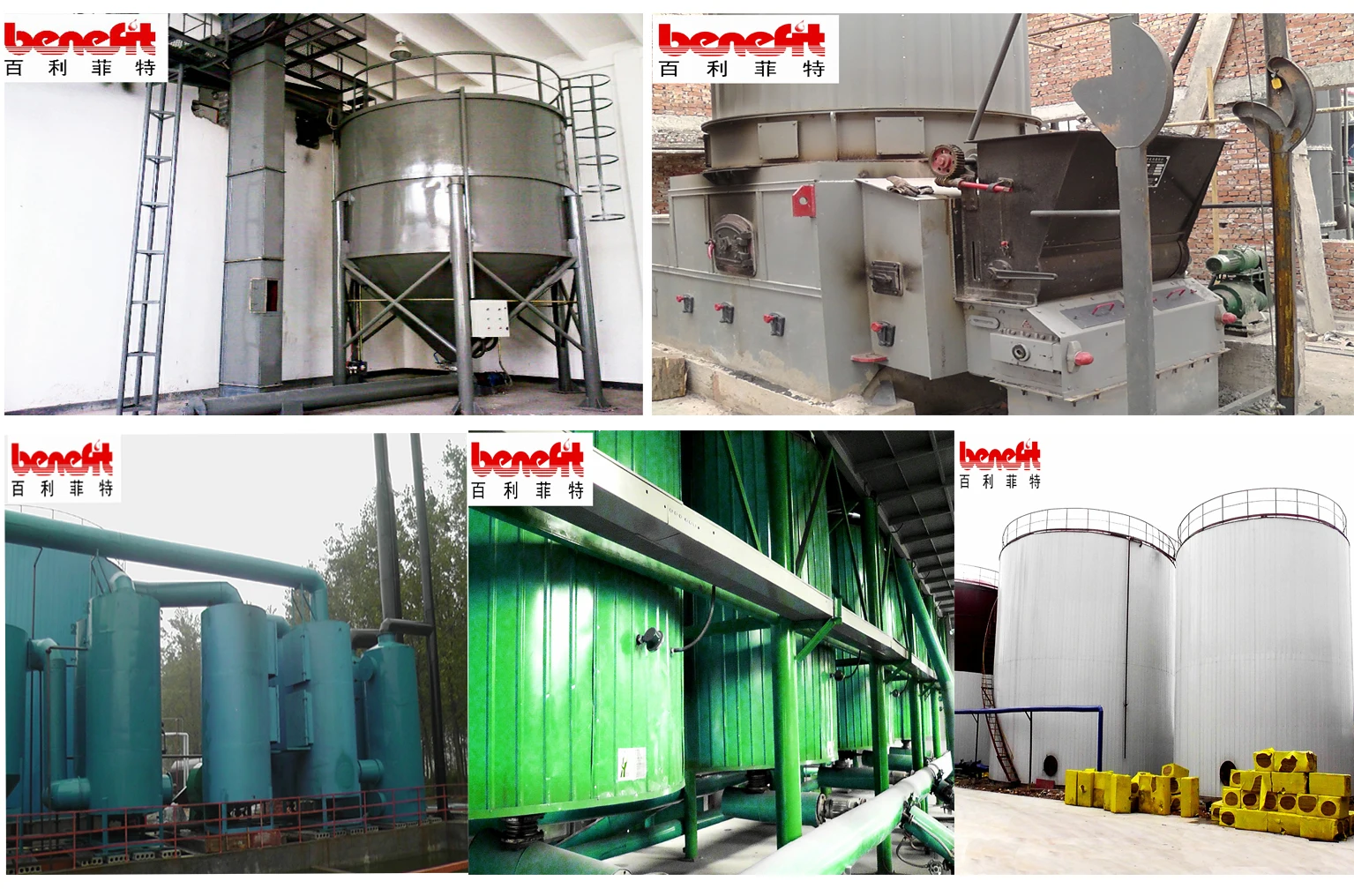

The main parts of the modified bitumen waterproof membrane line













Technical Data



ITEM		APP/SBS Modified Bitumen Membrane Production Line Technical Parameters
Capacity ,m2/year		For 3mm-thick products ,the annual output of various modified  bitumen waterproofing membrane can be 10 millions sqm per year , with 250 annualmanufacturing days per year ,2 working shifts  per day and 8 hour working time per shift
Width		1000mm
Reinforcement		Polyester mat ,fiberglass, compound
Modified materials		SBS,APP,Rubber powder
Facing materials		Self-adhesive ,Silver sand ,Slate flakes ,PE film ,Aluminum foil ,etc
Linear speed		5-60m/min(adjustable)





Working principle



The whole working principle can be divided into 3 steps.

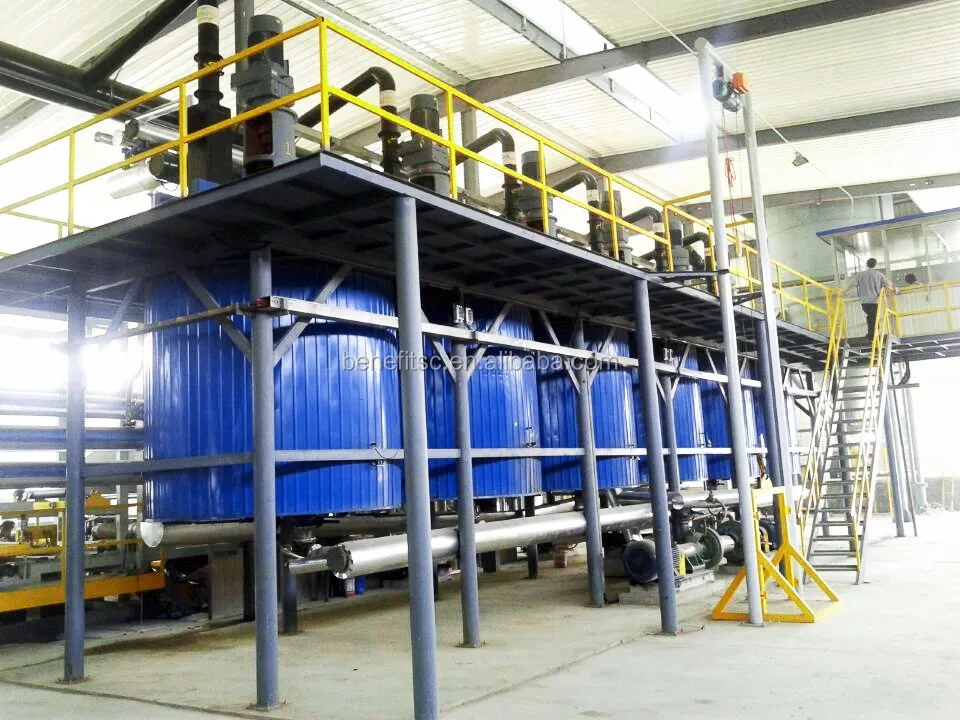

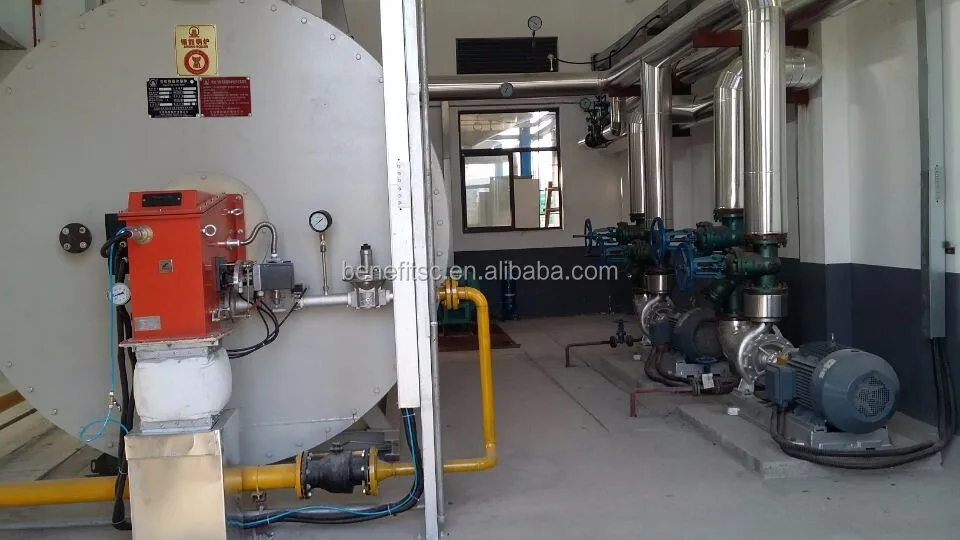

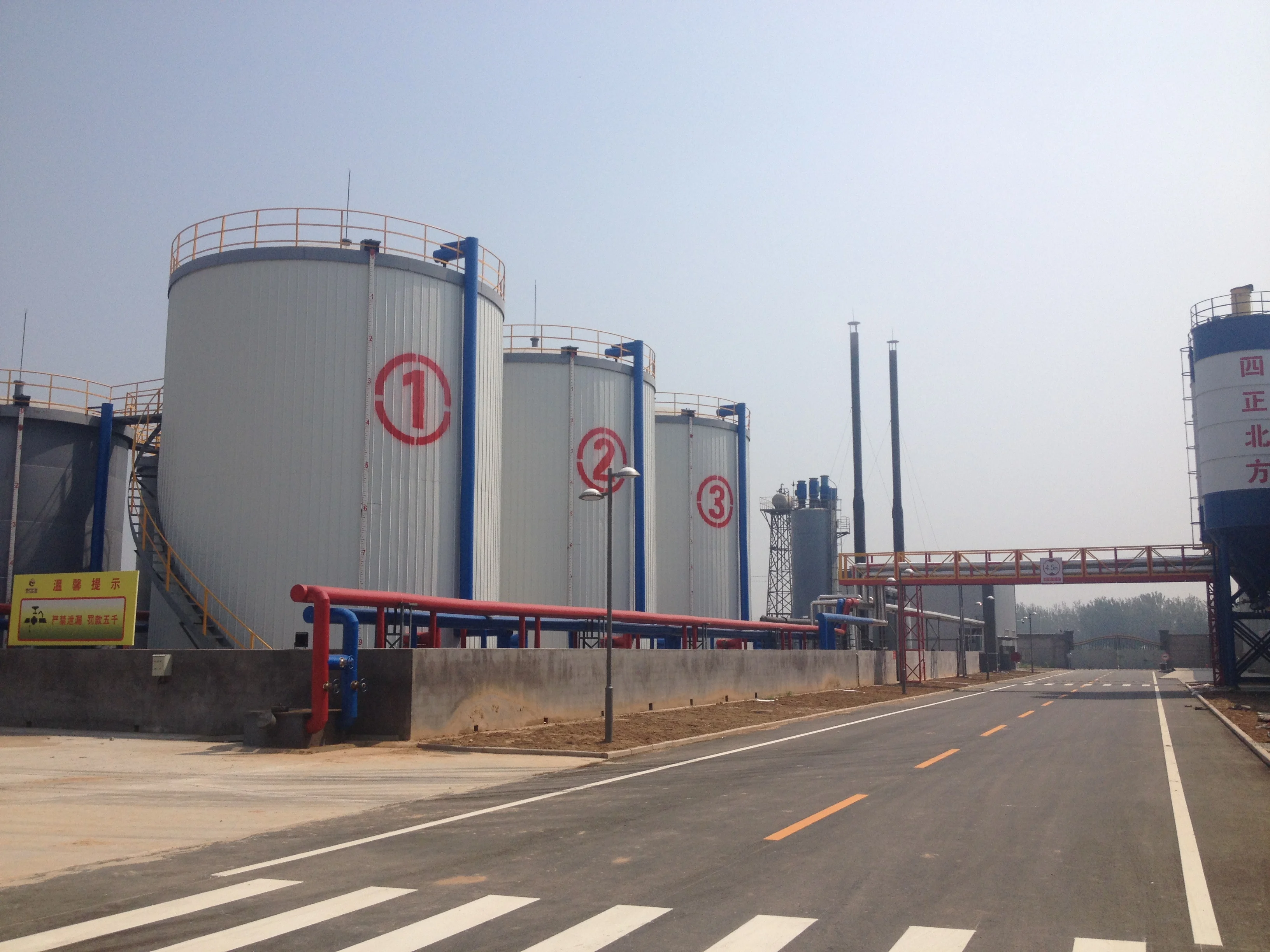

1.To mix the bitumen,rubber powder , talcum powder , engine oil and some other raw materials via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .

2.The bituminous mixtures will be deliveryed into coating pools.Then the base material(reinforcement) will be coated with the bituminous mixtures.At last ,the coated reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen membrane preliminary forming.

3.The finished products will be cooled by water and air,then be rolled by auto-winder.

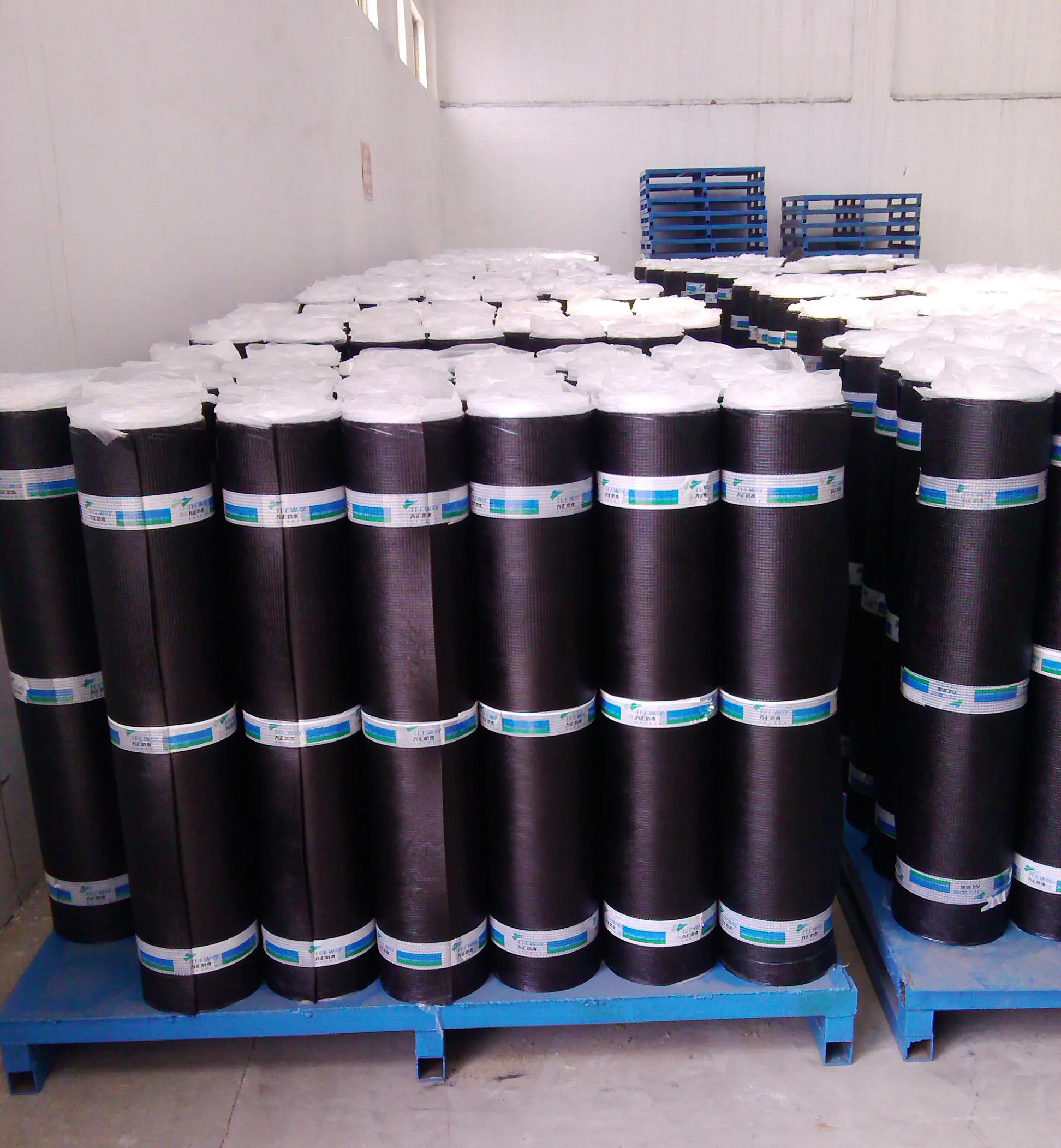

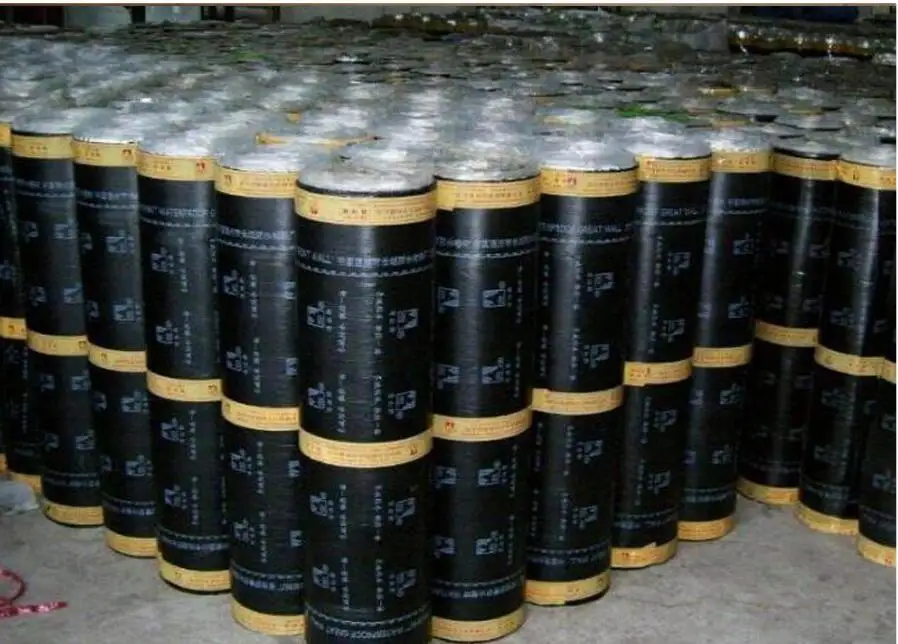

Finished production images





Charateristice

1. Easy installation and dimensional stability: Able to be wieldable under wide range of temperature and experience minus dimensional change in thermal treatment

2. High tensile strength and elongation thus can accommodate movements of substrates

3. Good flexibility under low temperature, good adaptability to ambient temperature difference

4. Secure anti-puncture and good rooting resistance, no pollution caused to environment when being welded and good waterproofing choice for plant roofs.

5. Good plasticity: Convenient and fast treatment of detailed parts of corners and edges

6. 3 meters width reduces the joints and helps saving materials or labor cost



Usage



Widely applied on various kinds of waterproofing projects:

1. Subways and tunnels

2. Roofs of sports complex

3. Green roofs

4. Exposed roofs

5. Steel roofs

6. Waste land filling yards

Application method

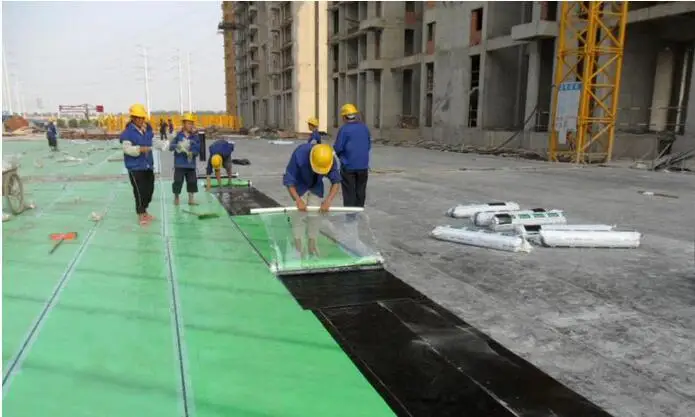

1.Make sure the roof deck smooth,clean and dry(Moisture<9%),then apply the surface of roof deck homogeneously with a kind bitumen paint till dry to start application.
2.There are two methods in application:
One way is by heating and melting method---Heat the polyethylene film of the membrane and roof deck surface by heating and melting method to be nearly melted (not flowing),then install the membrane fully bonded to the roof deck with overlaps of 5-10cm.The other way is by cold adhesive method---Pour the cold adhesive homogeneously on the roof deck,then roll the membrane to install it to be fully sticked to roof deck.By heating and melting method and by cold adhesive can be used in alternation in application as requested.
3.After application ,a full serious inspection is required to sure no air bubble,no fold,no falling away etc. to guarantee the waterproof life.



Company information



Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional manufacturer which is specialized in researching, producing, marketing and service waterproof equipment. As a private-owned enterprise, Our company is a famous supplier in the line of waterproof equipment in China, also an important supplier in the international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. The factory is strictly in accordance with international quality system to ensure product quality. Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty, customer-oriented and win-win situation. We are looking forward to cooperating with you.



FAQ

1.Are you trading company or manufacturer?

We are manufacturer,we have a 8000 sqm factory in Changzhou.

2.Do you have quality certificate?

Of course,we have CE,ISO.ect.

3.Can you provide after-sale service?

Yes,After sale service number works in 24 hours,making sure the machine problem can be solved in soonest time.

4.What the MOQ and your payment terms?

We usually accept 30% T/T before produce,70%T/T before shipment,MOQ is 1 set.

5.Is it available to add our logos on the machine?

Yes,it is available,please provide us your logo.

6.How long is your machine warranty and your lead time?

Usually guarantee 12 months,if something spares are wrong ,we could send you accessories,and normally our lead time is about 90 days after you pay for deposit.



Our service

   Changzhou Benefit company is not only supporting technology consulting,product consulting,and prefect pre-sale service,but also we have completely after sales service including follow:

1. We will offer the spare parts as low price to our customers.

2. We can send our engineers to your factory if you require,even though the product line have been running.

3. We will send our engineer to solve problems within the warranty date in 24 hours.

4. We will continue to support technology consulting after the warranty date.

5. Setting up project management files to traction in fixed date,supporting written report suggestion of maintenance and repairmen to customers.

6. After-sales number works in 24 hours,making sure the machine problem can be solved  in  soonest time.
