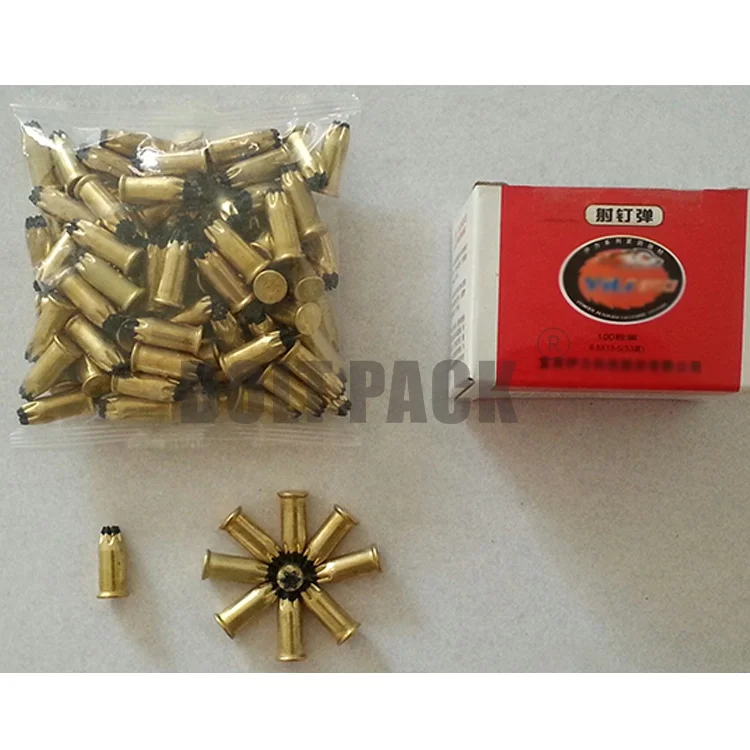

Multi functional bullet screw counting packaging machine for packaging bullet

Multi functional bullet screw counting packaging machine for packaging bullet

Category: >>>
Supplier: Foshan Dession Packaging Machinery Co. Ltd.

Price:$3,600.00 - $4,000.00

Quantity:

Product Overview

Description

Product Description

Product Application and Bag Type

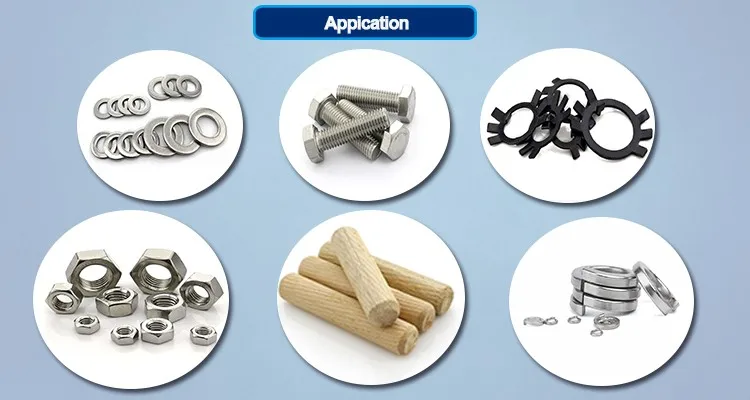

Weighing and counting packing machine is suitable for variery of hardware parts and plastic parts. For example hardware parts, nuts, bearing, bolts, plastic parts, screws, fasterner, bearings etc.

Technical Datas

Technical Datas	DS-320LS	DS-420LS	DS-520LS
Packing size	L:180mm(max.) W:40-110 mm	L:300mm(max.) W:140-200 mm	L:350mm(max.) W:140-250 mm
Packing speed	30-80 bags/min	4-12 bags/min	4-12 bags/min
Machine size (L×W×H)	1200×680×1650mm	3540×860×2450mm	4540×960×2750mm
Filling range	1-10 Unit/Plate	100g-6kg	100g-6kg
Film material	OPP/CPP,OPP/PE,CPP/PE	OPP/CPP,OPP/PE,CPP/PE	OPP/CPP,OPP/PE,CPP/PE
Tracking method	photoelectricity and numerical control	photoelectricity and numerical control	photoelectricity and numerical control

Main Features

1) PLC control system, easy operation, applicable to single items packing and mixed 2-3kinds of items packing.

2) Smooth and elegant bag shape, high efficiency and durability

3) Control by 7" industrial PC touch screen, easy operation and multiple language for choice.

4) A single species of single-dish measurement of screws, screw specifications for packaging the same time be supporting the use of multiple vibrating plate.

5) High-precision weighing module with light curtain points

Product Structure

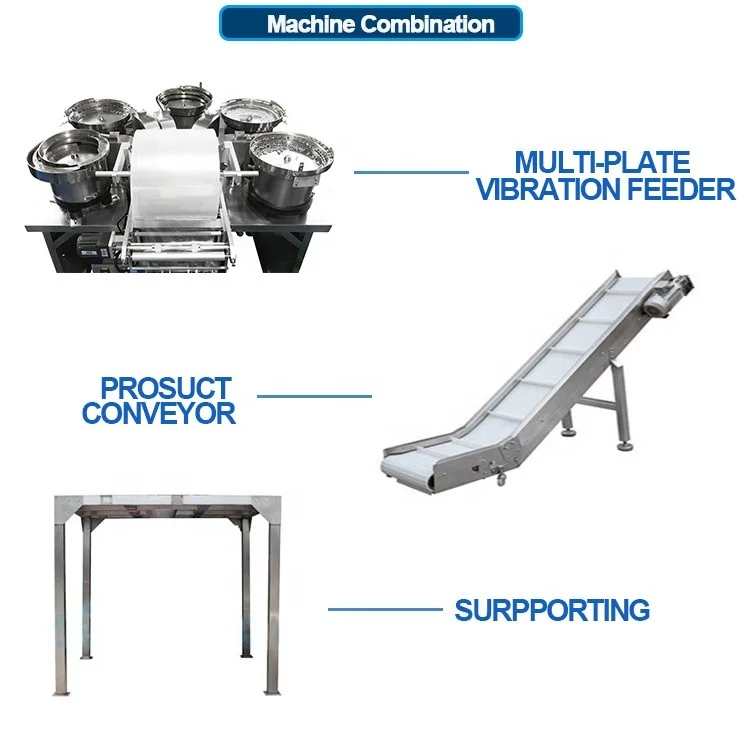

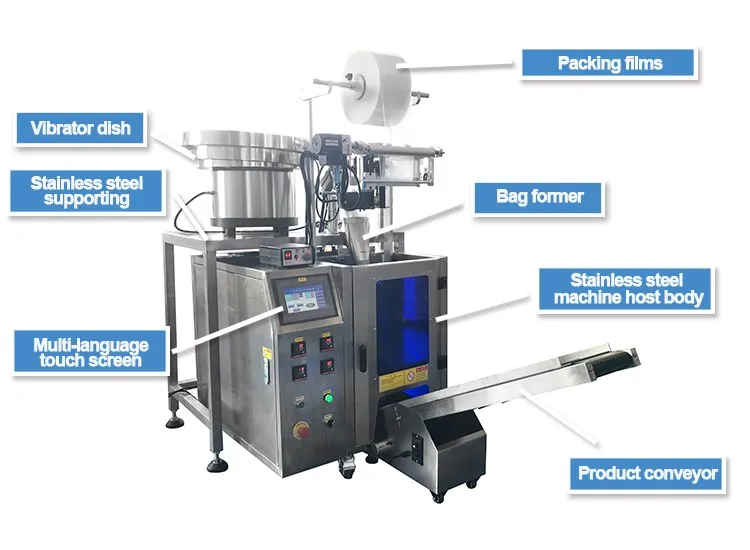

Main Structure

Product Detail

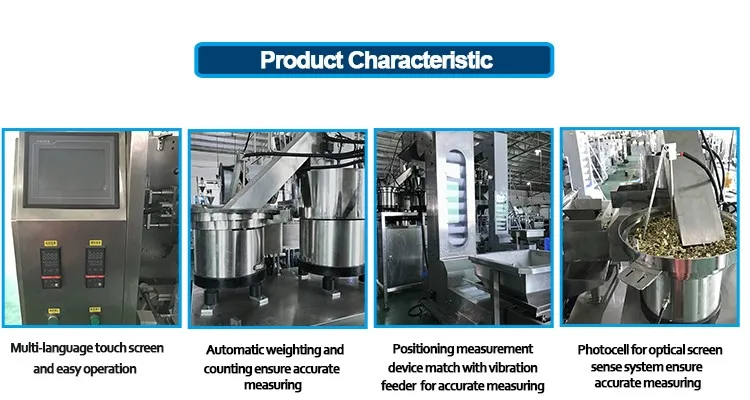

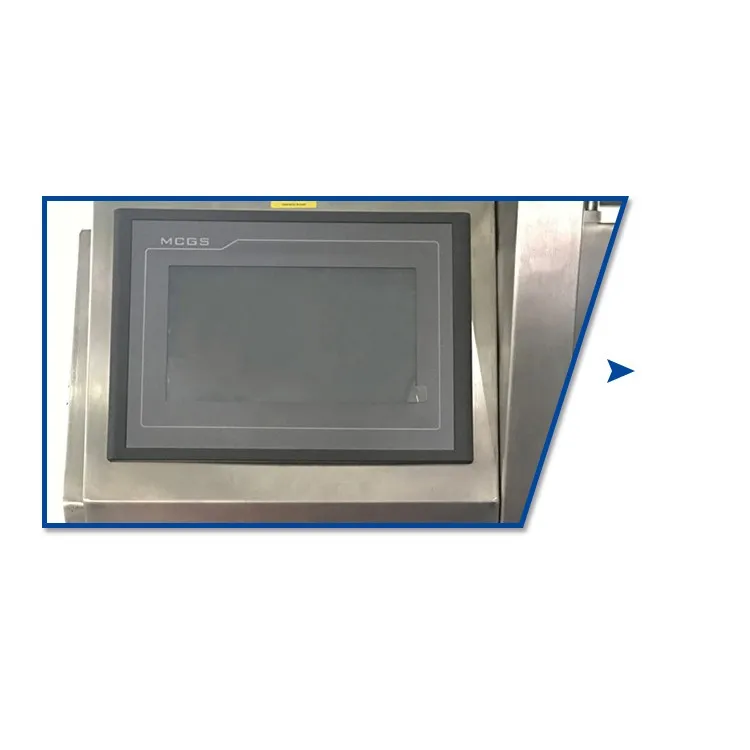

7 inch touch screen

Multiple language for choice, easy operation.

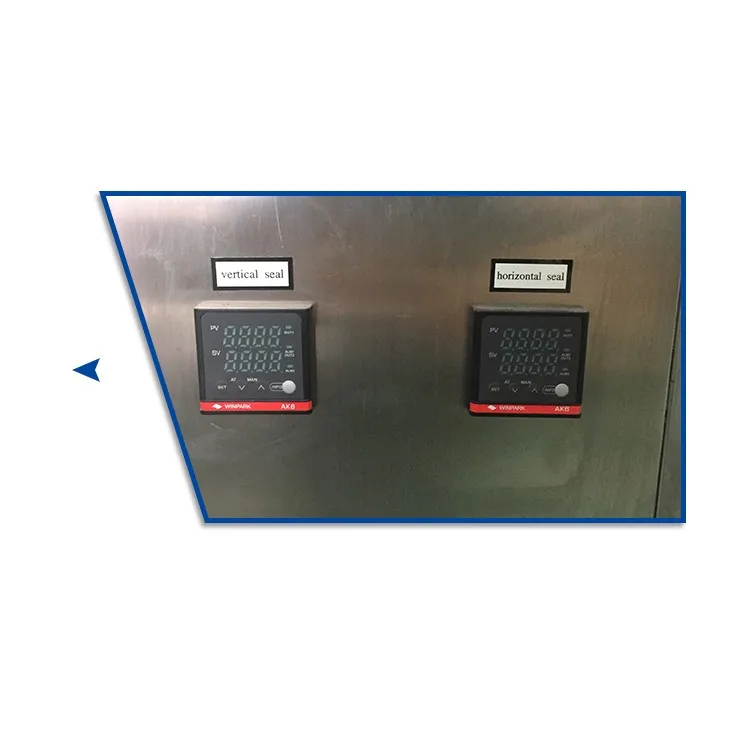

PID temperature controller

Separate PID temperature controller, suitable for various packing materials.

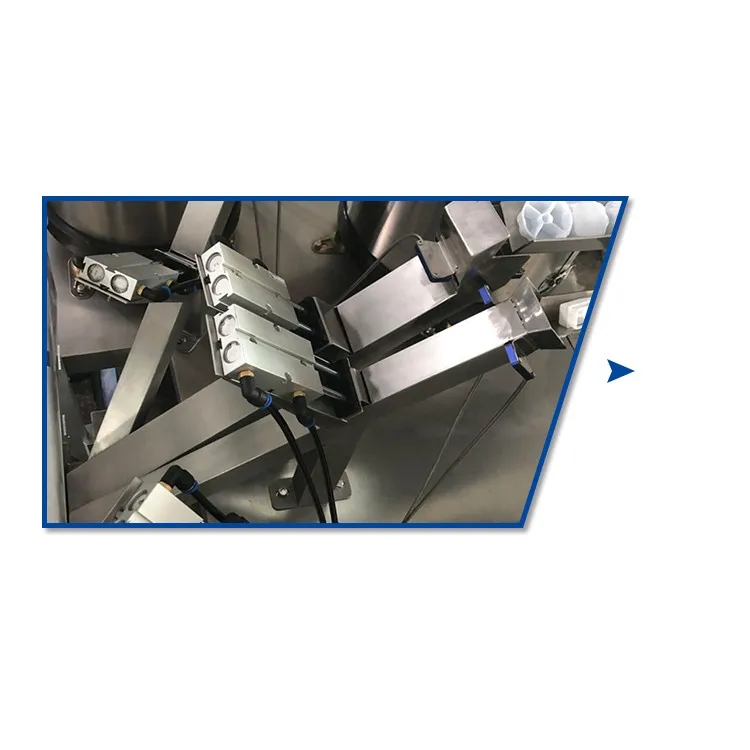

Positioning measurement device

Positioning measurement device match withh vibration feeder for accurate counting.

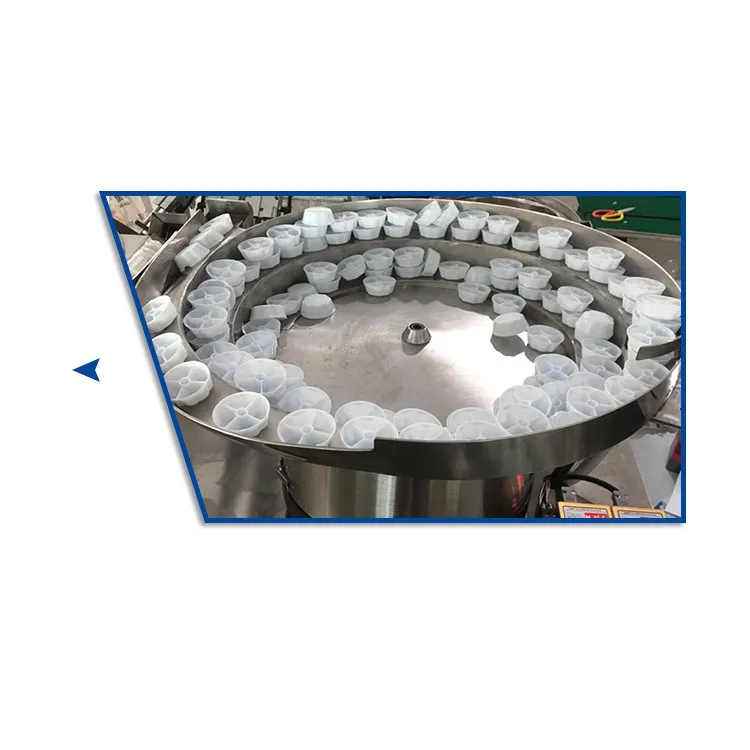

Vibration plate

Photocell for optical screen sense system ensure accurate measuring.

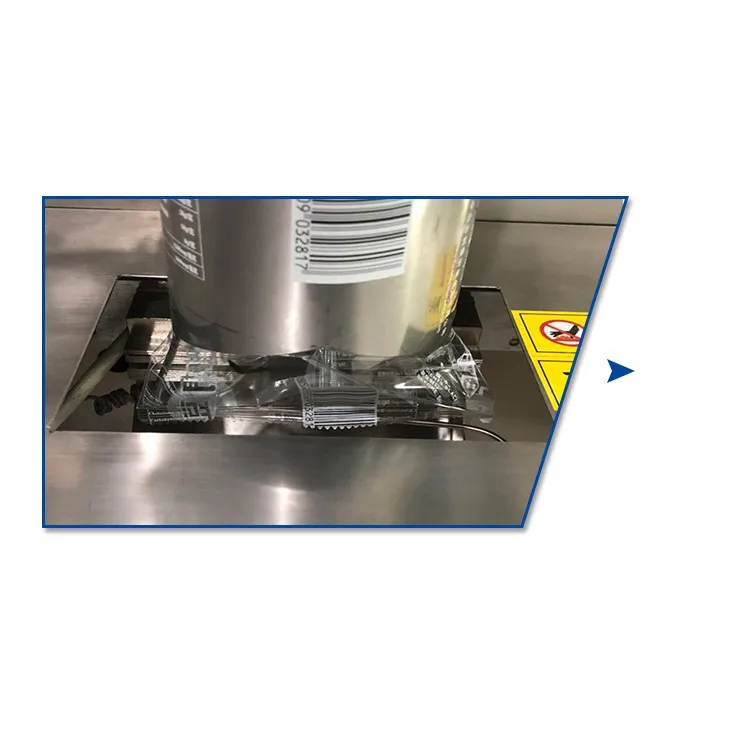

Sealing and cutting device

Sophisticated vertical and horizontal sealing framwork achieve the consistency of bag sealing and cutting.

Certifications

Packing & Delivery

First protect

Sealed packaging will be wrapped in the machine.

Wood packing

Outer packaging is no fumigation wooden box

Port

Guangzhou China

Shenzhen China

Payment

1.T/T and Western Union are accepted

2.30% deposit before production and 70% balance before shipment

3.All banking charges outside China are on buyers

Shipping:

Upon receipt of payment , delivery date will be in 15-30 working days,

By Air, by Sea or by Express (DHL etc)

Shipment cost will depend on the destination, shipment way and the weight of the goods

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2:How can I trust you for the first time business ?

Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q3:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q4:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q5:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
