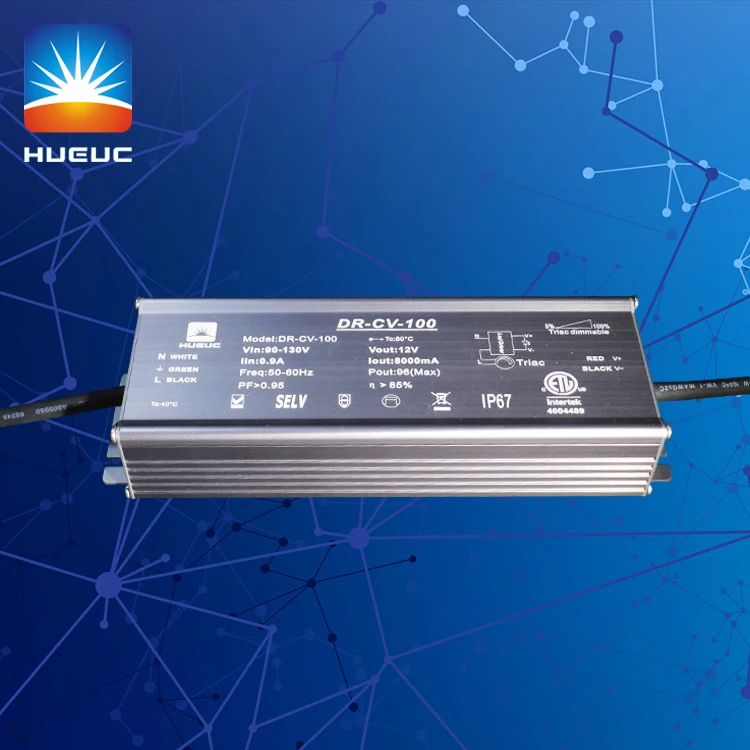

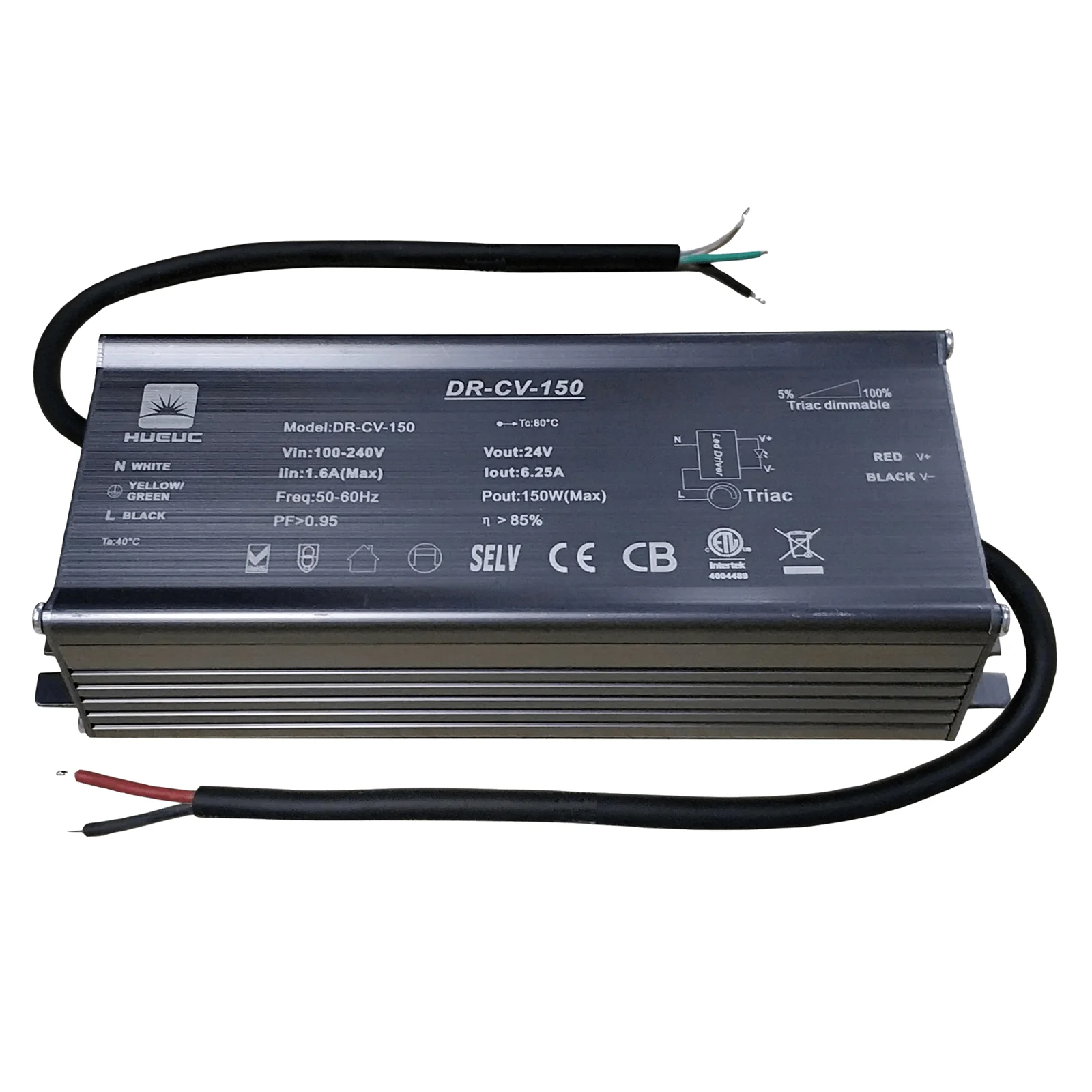

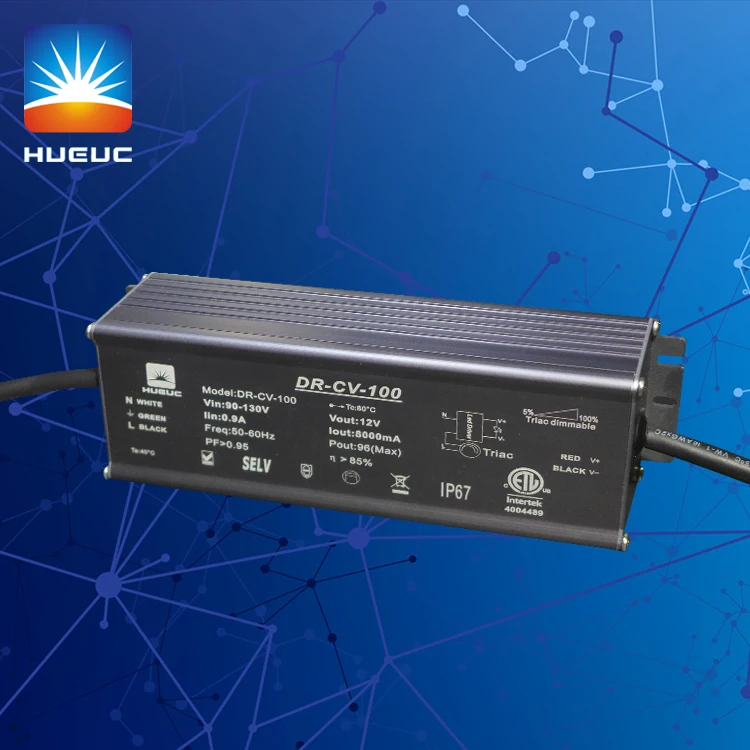

100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable
100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable
100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable
100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable
100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable
100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable
100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable

100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable

Share on (62107248692):


Price:$17.40 - $19.30

Quantity:


Product Overview

Description


100watt 24V Triac dimmable driver with SAA approval, Constant voltage Led driver manis dimmable






Product Overviews





led driver.jpg

































Output Power 9/12/18/20/24/30/33/40/60/80/100/150/180/240 to 300w (Customized)
AC Input  85v,90v,110v,130v,180v,220v,240v,265v,300V (Customized)
DC Output 12v-80V (Customized)
Dimming type Triac, 0/1-10V, DALI, PUSH, PWM, 2.4G wireless, Zigbee (Optional)
IP Class IP20, IP66, IP67 (Customized)
Certificate ETL, UL, FCC, TUV-GS, CE, RoHS, CB, SAA (Optional)
Life time 50,000 hours




The technical parameters above is only for your reference, please contact us for more infprmation.








Product Description











































































































































Dimming type  √ Triac           0/1-10V             DALI           PWM
Dimming Range 5% -100%, Flicker free, Noise free, Smooth dimming
Approved  Dimmers Lutron, Leviton, Euchips, Scnendais, Kaoyi
InputVoltage  range 180-240VACIn-Rush Current30A/186μs
Frequency  range 50/60HzMax.THD(Full Load)10%
Power  factor >0.95Time To Light(At230V)<1S
Full  load  efficiency ≥85%Surge  Protection1KV
No Load Power
Consumption		 0.8W
OutputOutput  mode Constant  Voltage
Output voltage range 24V
Rated  power 100Watt
Output LF Voltage Ripple (<120Hz) ±5%
Output  type Single output type
ProtectShort circuit protection Intermittent  restart  mode, after  the  exception  can  be  automatically  restored
Overcurrent protection Vout*150%
Overvoltage protection < 270VAC
EnvirontmentWorking Temp/Humidity -30-45℃,5-95%RH
Storage Temp/Humidity -40-70℃,5-95%RH
Temperature coefficient ±0.03%/℃(0-50℃)
Vibration 5-55Hz/2g,30  Mimutes
Safety& EMCSafety EN60598
Pressure I/P-O/P:3KVAC   IP-FG:1.88KVAC   O/P-FG:0.5KVAC
Insulation  resistance I/P-O/P   I/P-FG   O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC  Emission EN55022,EN55015  Class  B
EMC  Immanity EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
OtherLevel of protection IP67
Shell Material Aluminum

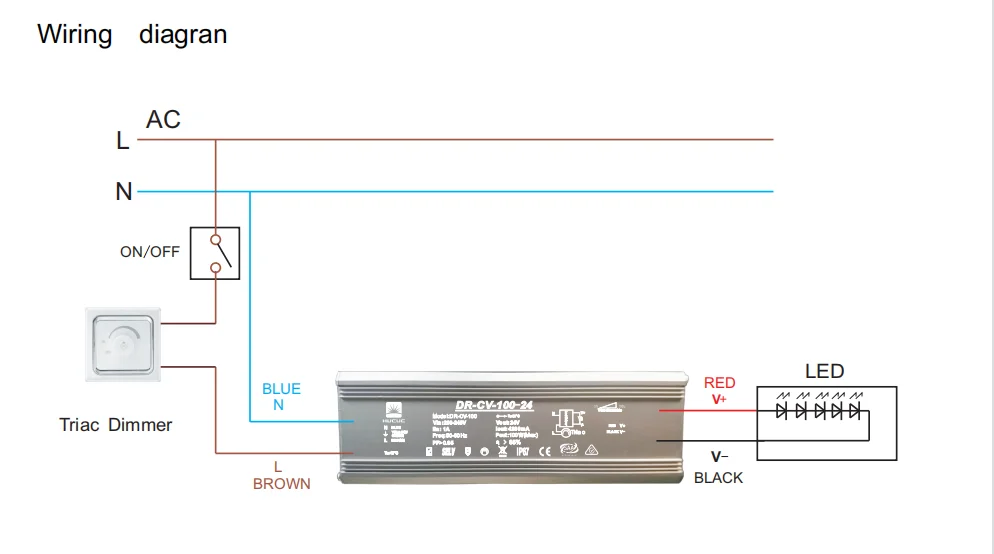

paste-pic-dp_uuid_9sagl






Application


led driver application.jpg





Customized Solutions

















Customized led driver


Huarui Lighting specialize in design, custom and manufacture power supply, Led driver , led power supply, led bulb driver, led transformer, dimmable led driver, including TRIAC led driver, 0/1-10V led driver, DALI led driver, PWM led driver, 2.4G wireless led driver, ZigBee led driver, Push led driver,Waterproof Driver,as well as non-dimmable led driver.





All of them can be fully and easily customized (see the process of customization optigzuoons listed below). We committed to offer high quality, high performance, cost effective options to meet customers demands. Choosing to customize one of the led drivers in our Product Categories now!






Company Information

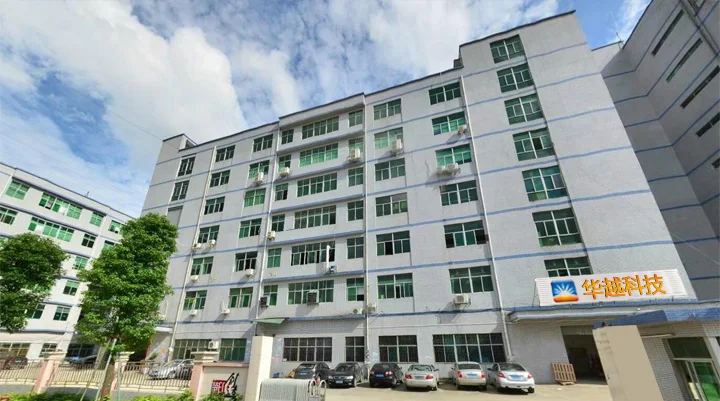

Huarui History.jpg












Since 2008, Huarui Lighting Co., Ltd. has designed and manufactured high quality, custom power supply, Led driver , led power supply, led bulb driver, led transformer, dimmable led driver, including TRIAC led driver, 0/1-10V led driver, DALI led driver, PWM led driver, 2.4G wireless led driver, ZigBee led driver, Push led driver,Waterproof Driver,as well as non-dimmable led driver.





We are proud to provide a designing sampling, testing, production, quality control, inspection and after service to companies that need a reliable supply of custom led driver from China.
