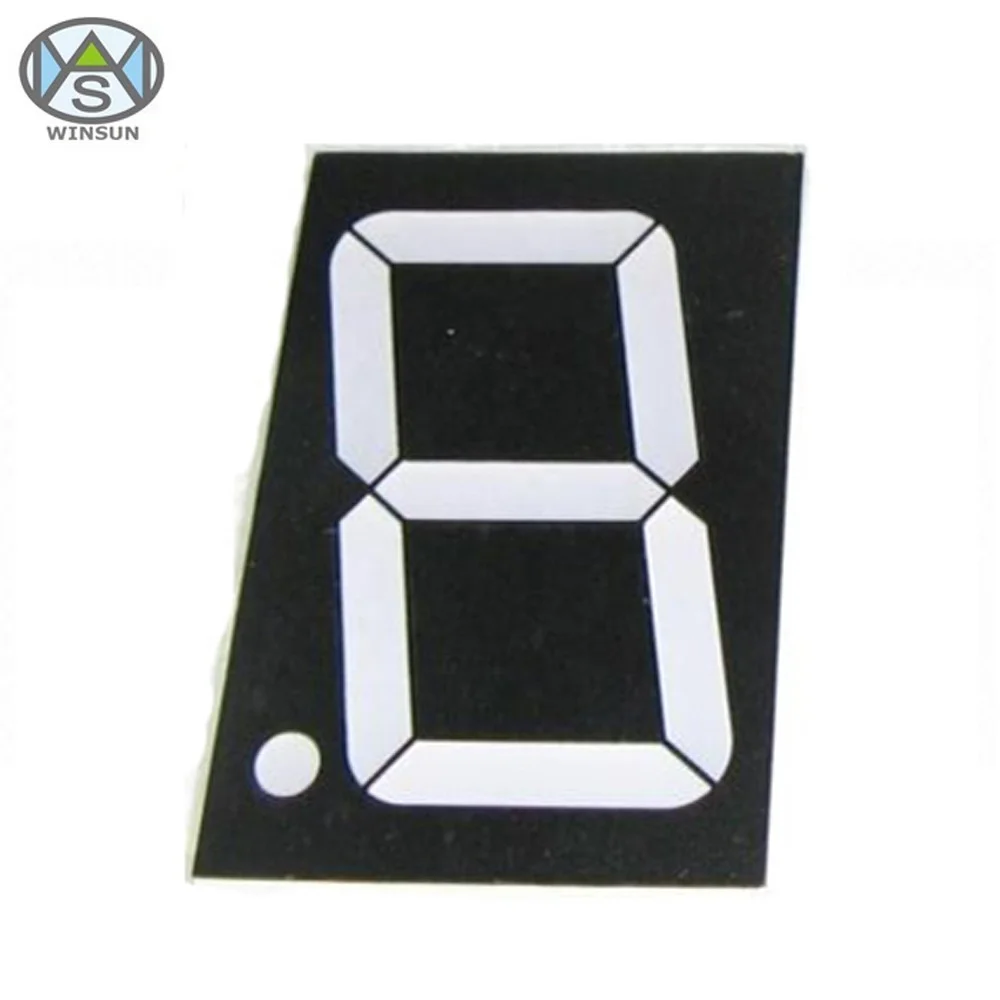

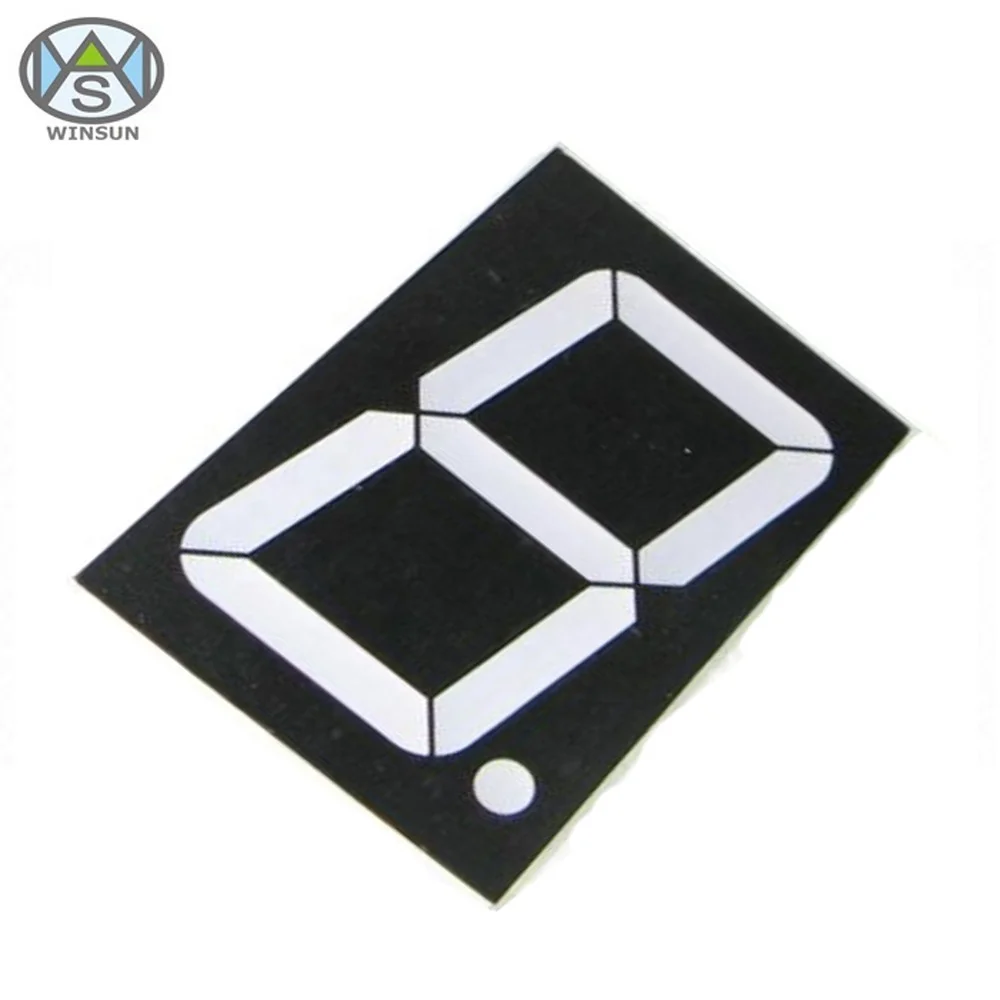

0.28 Inch Single / one LED Digit 7 Segment Display of Red Green Blue Yellow White

Product Overview

Description

0.28 Inch Single / one LED Digit 7 Segment Display of Red Green Blue Yellow White



Features:

Digit high:0.28 inch

Emitting Color: Red,Yellow,Blue,Green,White, Orange.

High efficiency, low power consumption
Wide viewing angle vertically and horizontally
Black surface with white segment
Recommended that the product is driven by TTL, CMOS
Easy mounting on PC Boards or sockets
Abundant figure and size



Applications:
Game units and other small electronics
Indoor character & Graphic displays
Subway ticket gates and ticket issuers ect.



Parametes:

Part NO.	Color	Size(mm)		High word	VF(V)	λD(nm)	IV(mcd)
WS-2181ARCA	Red	7.4X10.0X6.0		0.28	1.8-2.2	620-635	12-35
WS-2181BYCB	Yellow	7.4X10.0X6.0		0.28	1.9-2.3	585-595	13-40
WS-2181ABCA	Blue	7.4X10.0X6.0		0.28	3.0-3.4	460-475	30-65
WS-2181BGCB	Green	7.4X10.0X6.0		0.28	3.0-3.4	500-535	60-180
WS-2181AWCS	White	7.4X10.0X6.0		0.28	3.0-3.4	/	100-220
WS-2181BOCC	Orange	7.4X10.0X6.0		0.28	1.9-2.3	600-610	12-35
WS-2181AGCI	Y G	7.4X10.0X6.0		0.28	1.8-2.3	565-575	8-30

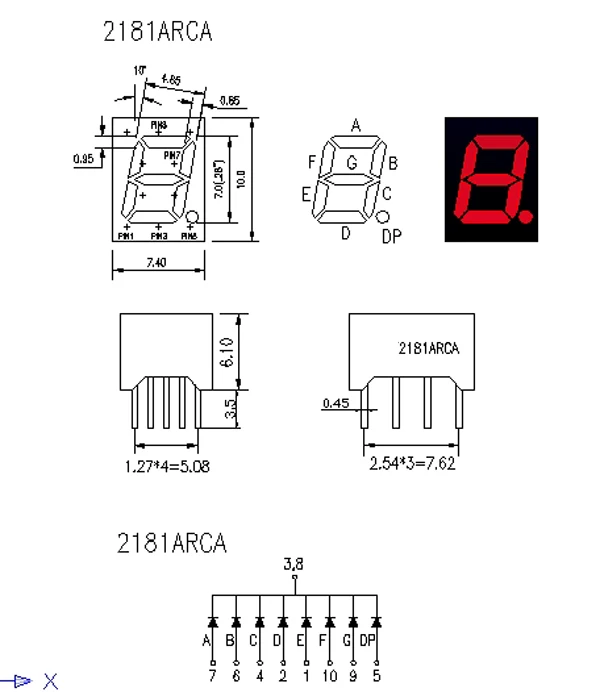

Dimensions:



 Technological process:
