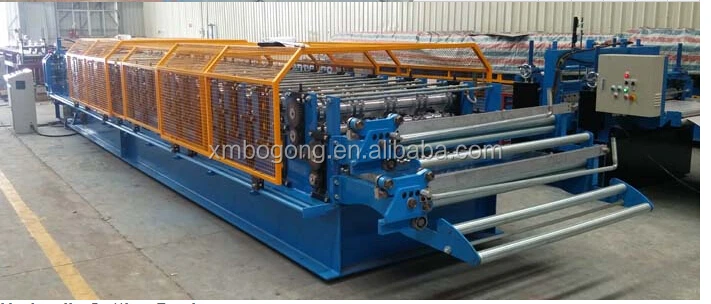

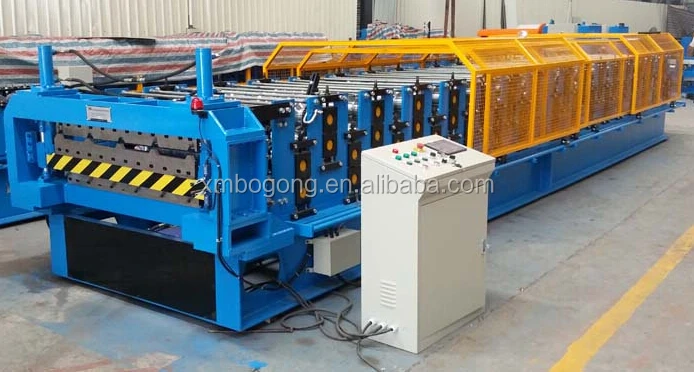

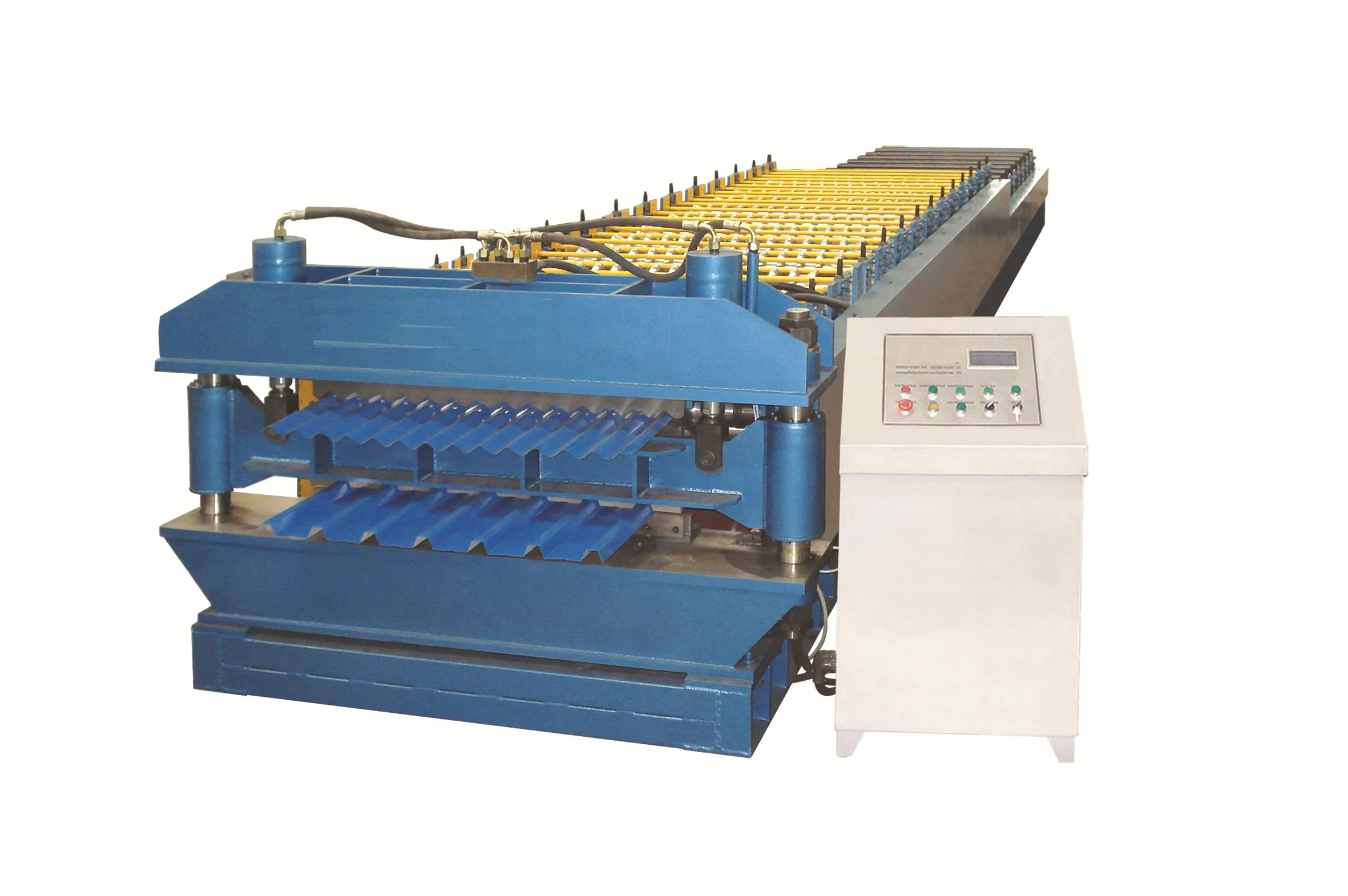

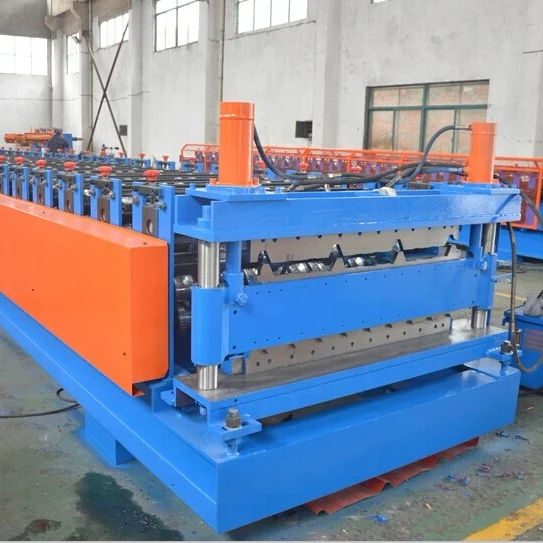

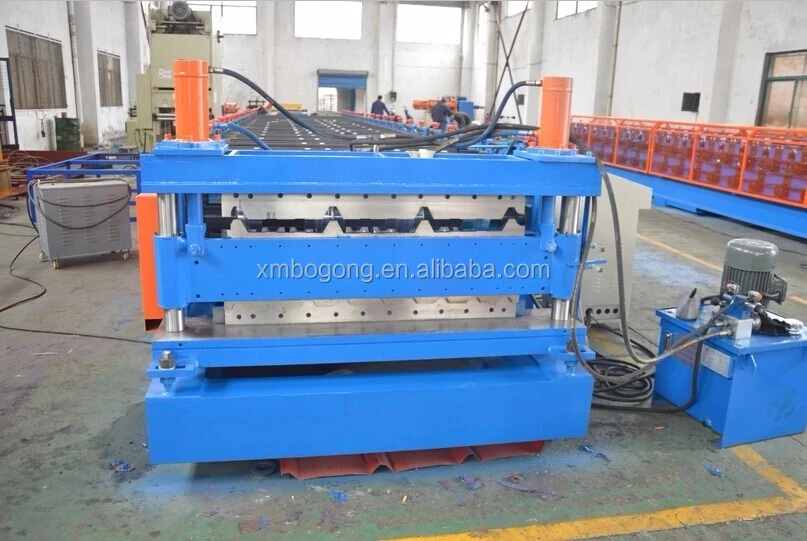

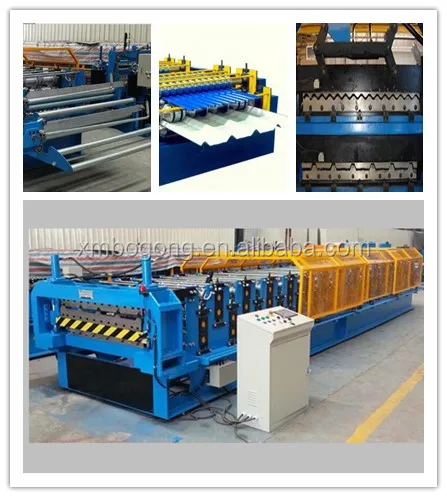

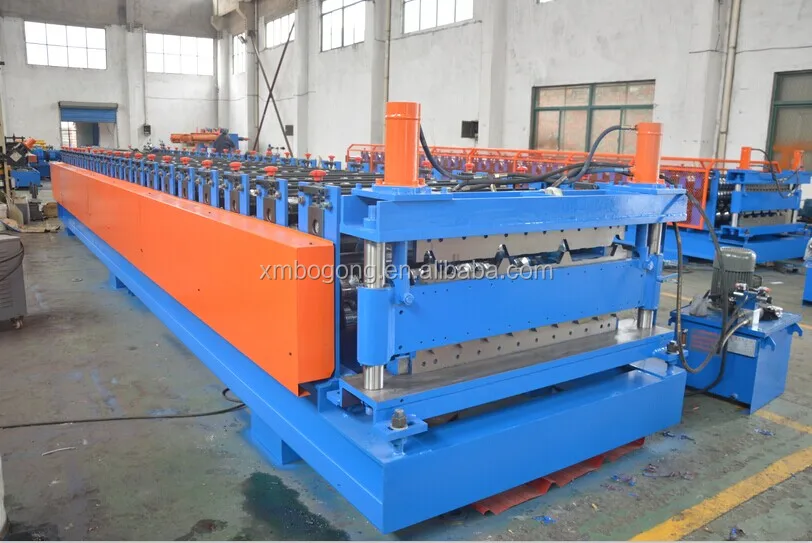

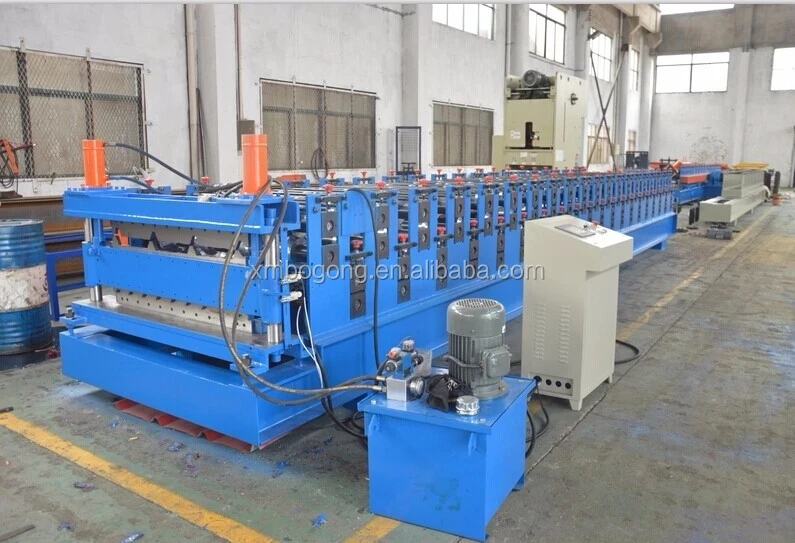

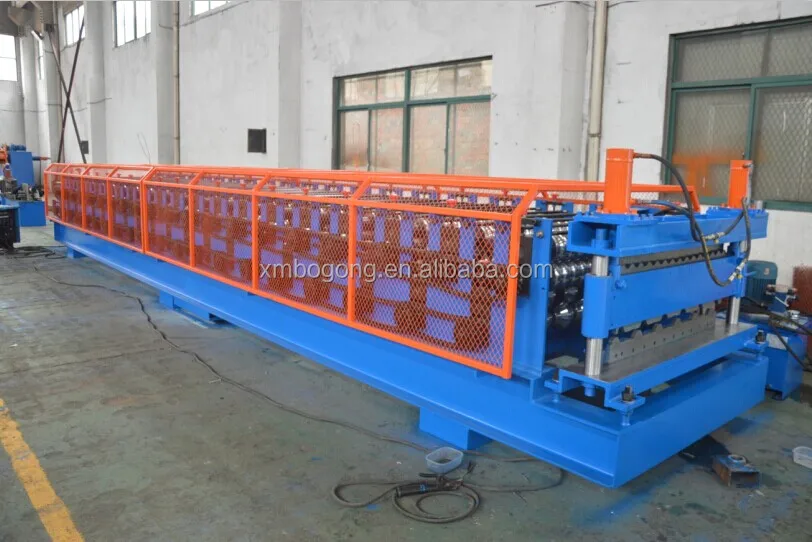

Double Layer roof Panel Metal Roof Tile roll forming machine
- Category: >>>
- Supplier: Xiamen Bogong Automatic Technology Co. Ltd.
Share on (62107639282):
Product Overview
Description
roduct Description
| Suitable Material | ||
| Material Width | 914mm | |
| Effective Width | 760/686mm | |
| Material Thickness | 0.4-0.8mm | |
| Material Type | Galvanized Steel Strip,Prepainted Galvanised Steel | |
| Yeild Strength | 235Mpa | |
| Main Machine | ||
| Size shaft diameter | 75mm | |
| Wall Panel Thickness | 18mm | |
| Base Specification | H399*199 | |
| Main Motor | 7.5KW | |
| Forming Speed | 0-20m /min | |
| Forming Station | 14 Stations | |
| Blade Material | Cr12(Die Steel) | |
| Roller Material | 45# steel,CNC lathes, Heat Treated,hard Chrome Coated | |
| Mode of Speed Regulation | AC Inverter Speed Regulation | |
| Driving Mode | Reduction Motor + Chain Transmission | |
| Cutting Mode | Hydraulic Type,Post-cutting | |
| Cutting Motor | hydraulic motor,2.2KW | |
| Measuring Mode | Photoelectric Encoder | |
| Control Mode | PLC | |
| Operation Mode | Button+Touch Screen | |
| Voltage | 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph | |
