# Semi Automatic PET Bottle Blow Moulding Machine #
# Features of Our Semi-auto Bottle Blowing Machine #
Easy and safe to operate
Strong Clamping Force: Adopt the new type double bend arm and four pull rod-clamping structure (won the patent). Cross direction; middle mould board is move parallel; the distance between two mold bases is adjusted by the chain wheel.
Efficient: Short mold stroke, quick action.
Stable Running: The machine frame is fastened on one whole complete casting bottom.
Durability: Adopt the straight slide way, reduce the friction and lengthen the life of the machine.
Power Saving in Design
Increase the Output: The single direction of pre-form placing and bottle picking.

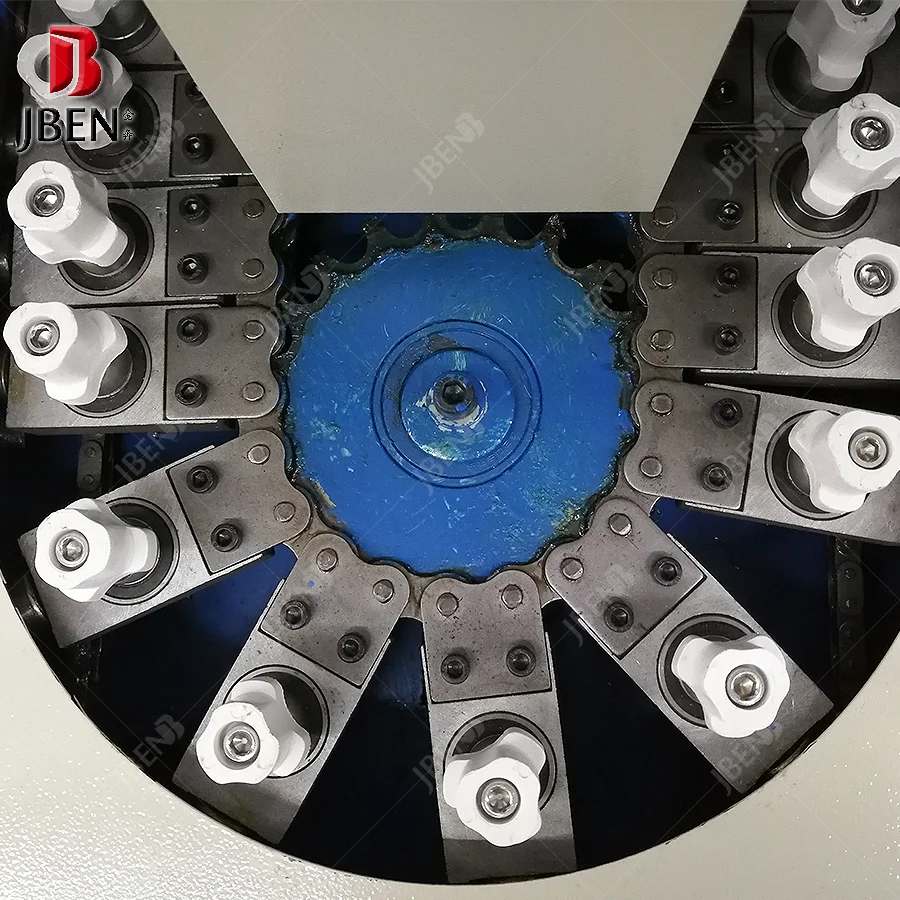

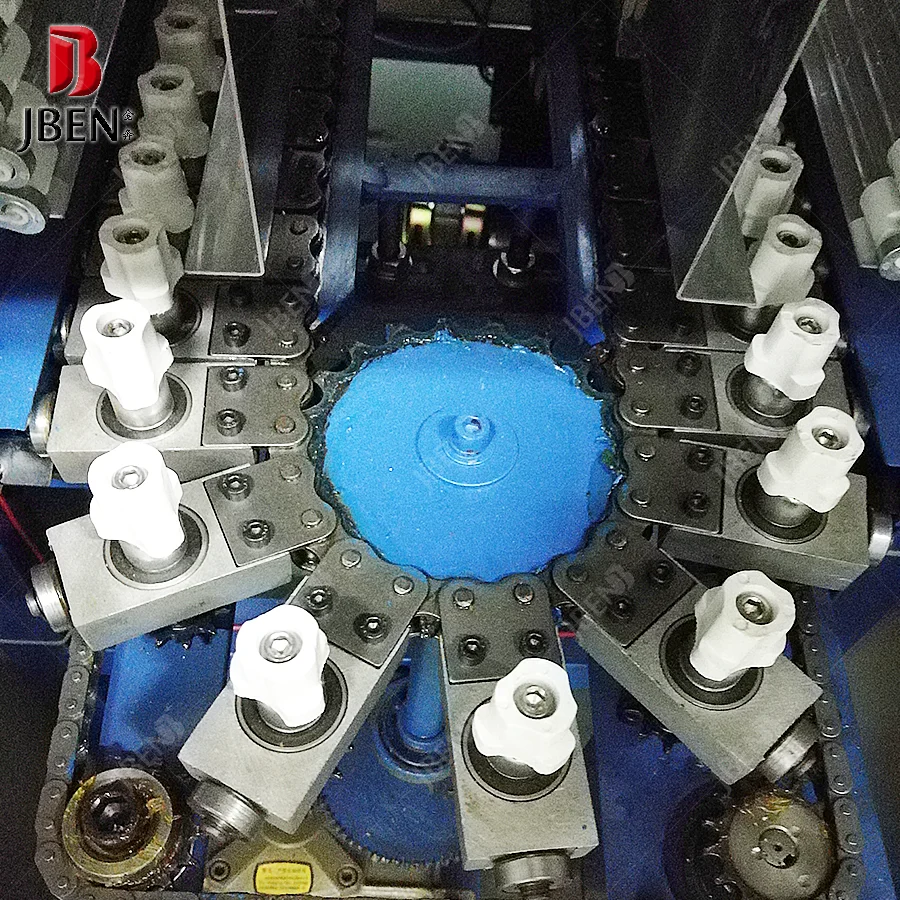

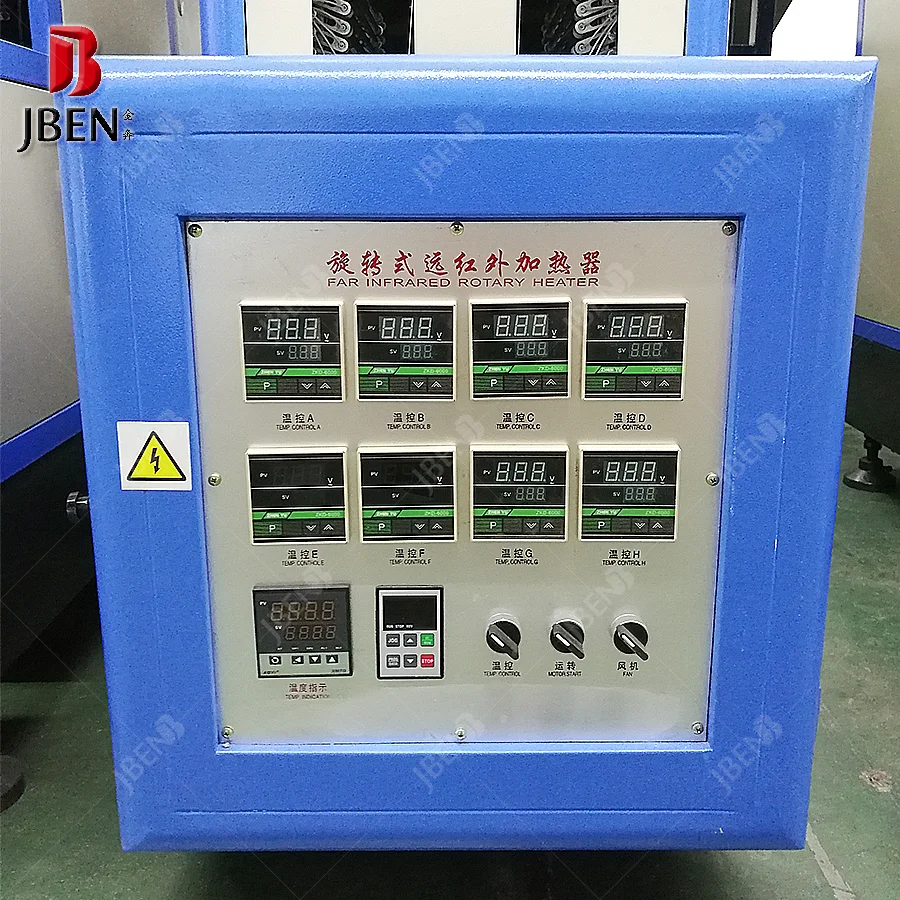

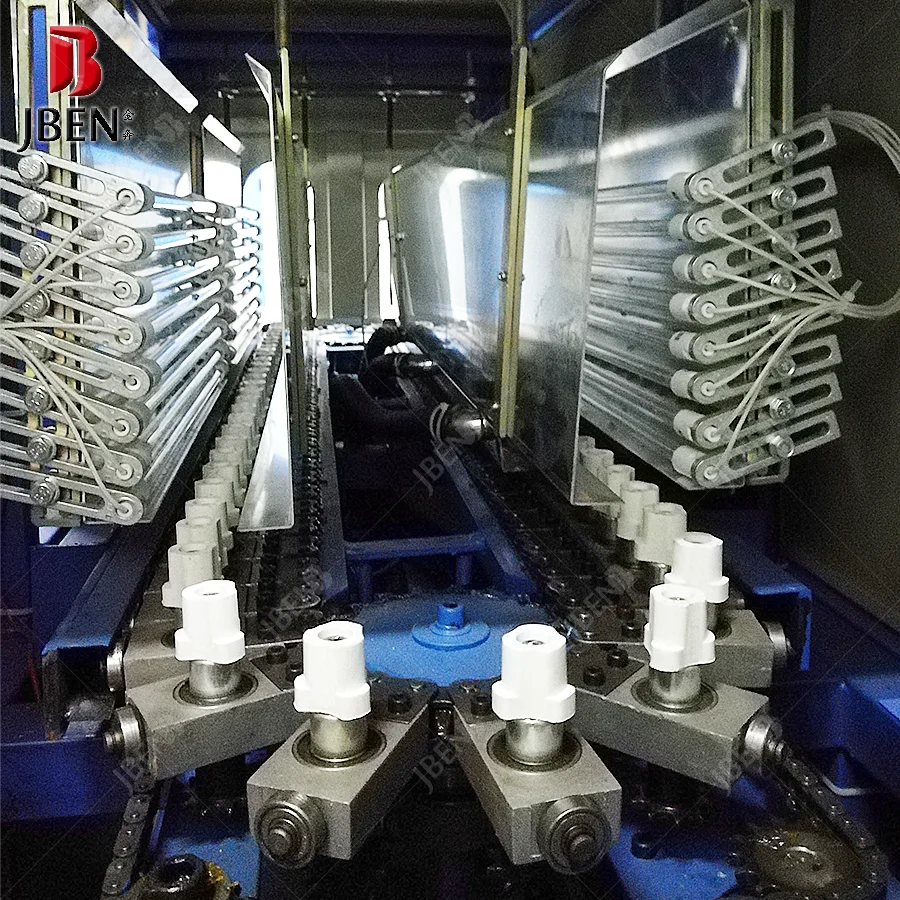

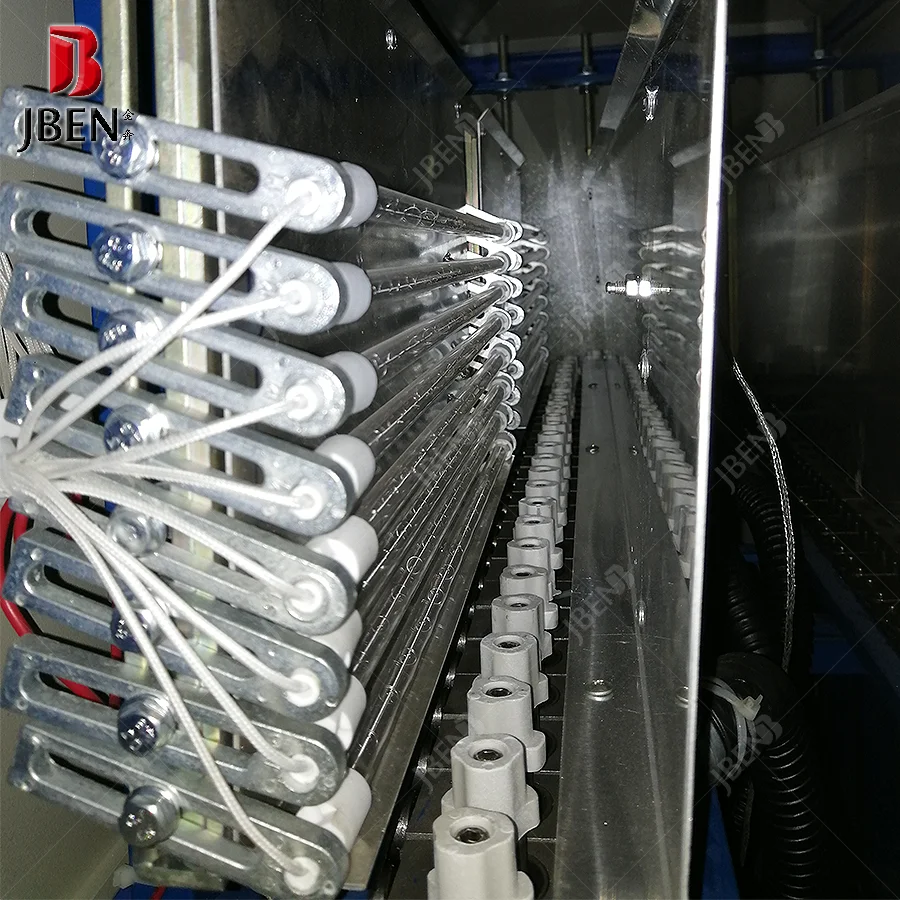

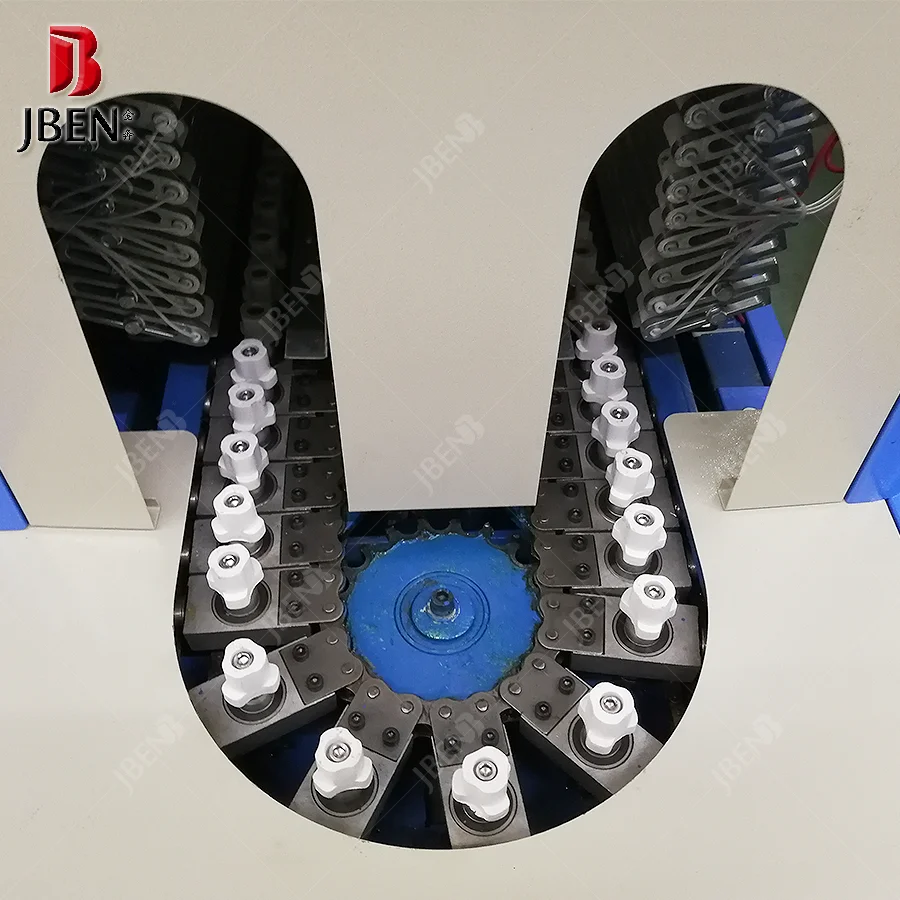

Heat Evenly: Adopt infrared oven to heat the perform
Wide Range of Application: The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles; Suitable for every type mold thickness.
Convenience in Use: The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
Double Mode Switch: The machine can be operated in automatic mode and semi-auto mode.
Precisely: High responsiveness pneumatic components
Low noise
Economic: The machine is small with low investment
# More Details #

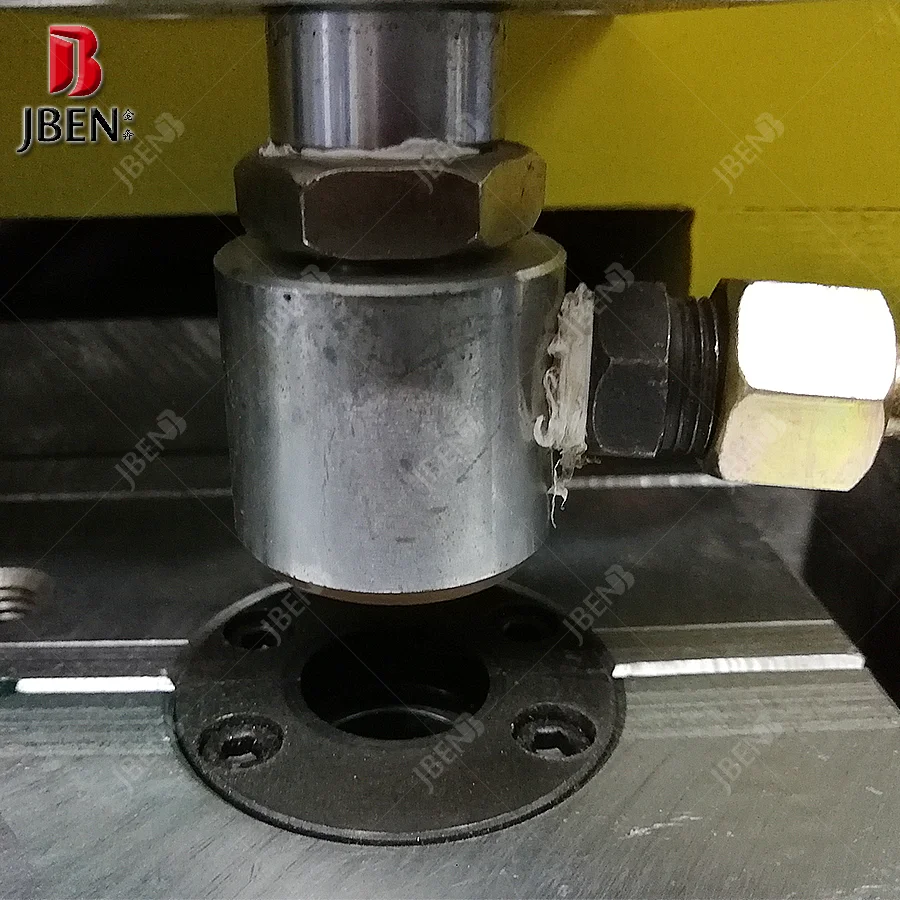

Machine basically consists of a blow unit and a heater. First put the bottle preform in the heater to make it soft and extensible. Then put it to the mold to blow the bottles. Set technical parameter properly to ensure product’s meet your required result.
# Main Technical Parameter #
ITEM
JB-BZ2-10L
JB-BZ-10L
Max .Volumn Of Product
10 L
10 L
Production Capacity
400-600 BPH
200-300 BPH
Neck Size Of Product
15-120 mm
15-120 mm
Useful Area Of Mould Plate
350×450 mm
350×450 mm
Mould Thickness
120- 200 mm
120- 200 mm
Mould Stroke
220 mm
220 mm
Clamping Force
50 kn
50 kn
Stretching Stroke
360 mm
360 mm
Working Pressure
≤1.2 Mpa
≤1.2 Mpa
Blowing Air pressure
≤3.0 Mpa
≤3.0 Mpa
Power Of Main Blower
0.2 kw ( 2 set )
0.2 kw
Power Of Preheater
30 kw ( 2 set )
20 kw
Weight Of Main Blower
470 kg
470 kg
Weight Of Preheater
650 kg
450 kg
Measurement Of Main Blower
1520×580×1780 mm
1700×580×1820 mm
Measurement Of Preheater
3500×750×1150 mm
1450×700×1150 mm
# Auxiliary Machine #
Bottle Mold
