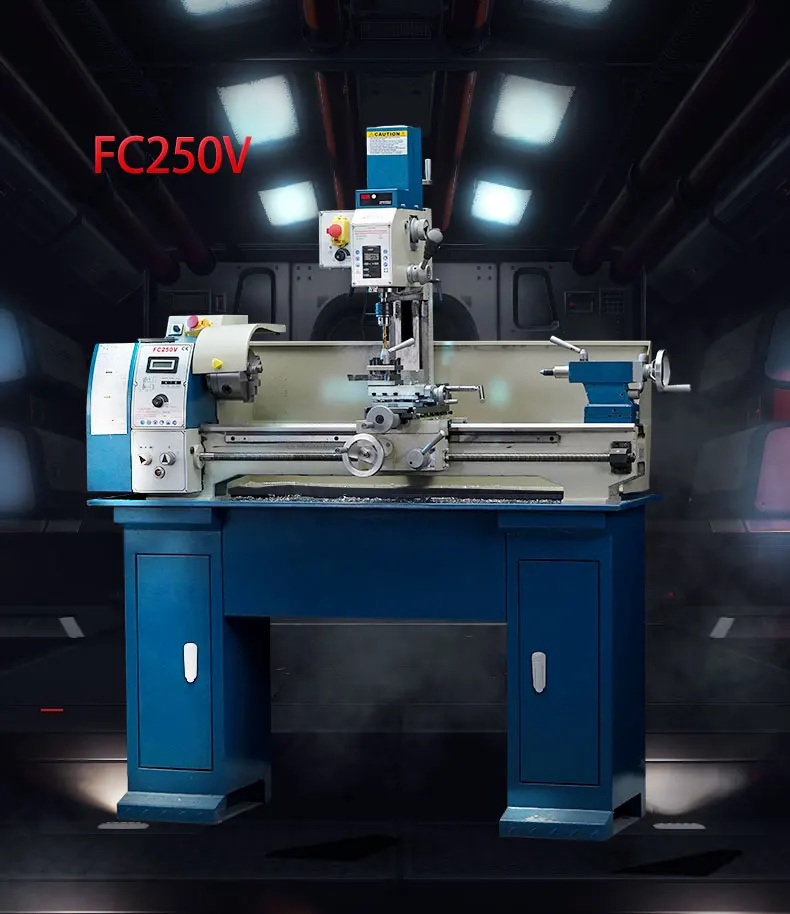

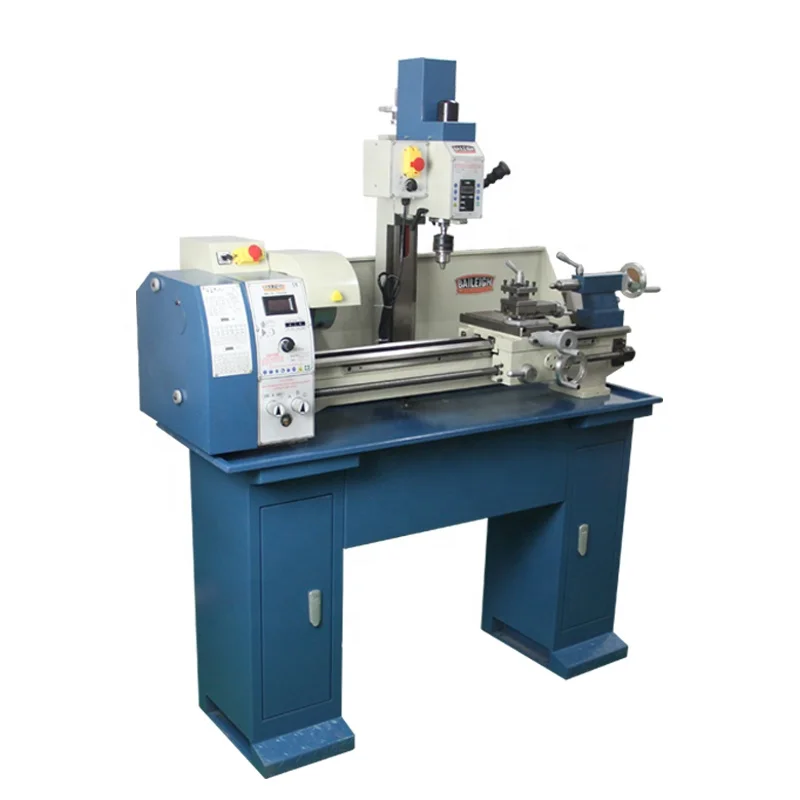

Fusai FC250V American Standard Multifunctional benchtop high precision 3 in 1 mini metal lathe drilling and milling machine

Product Overview

Description

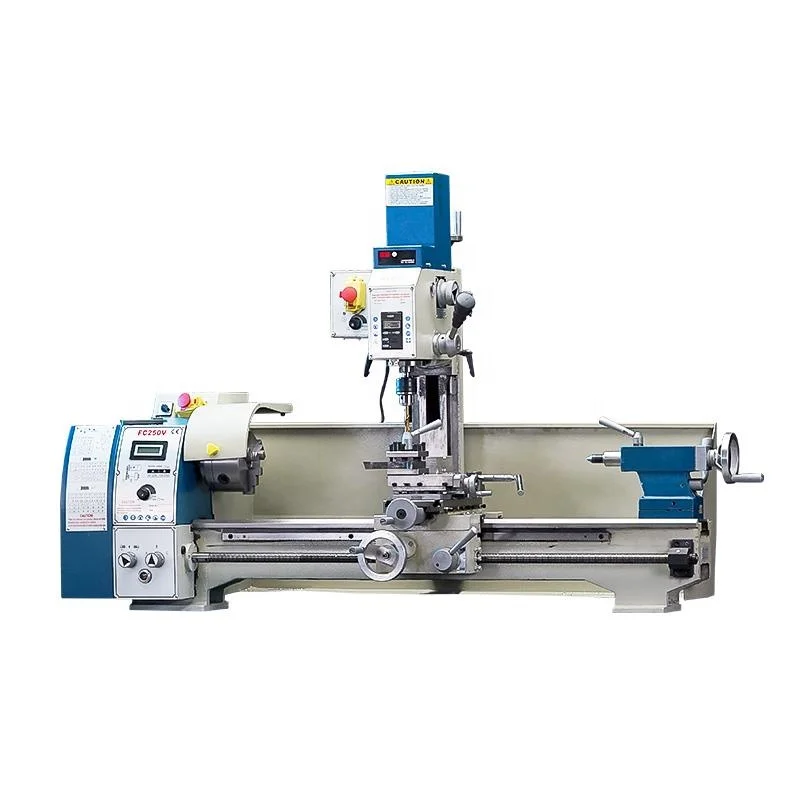

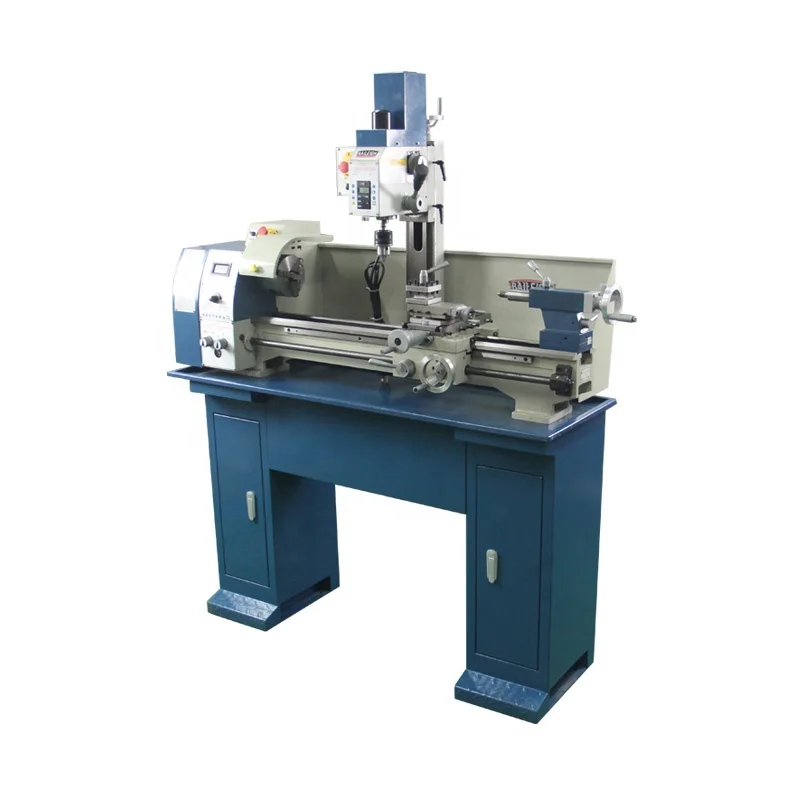

Product Display

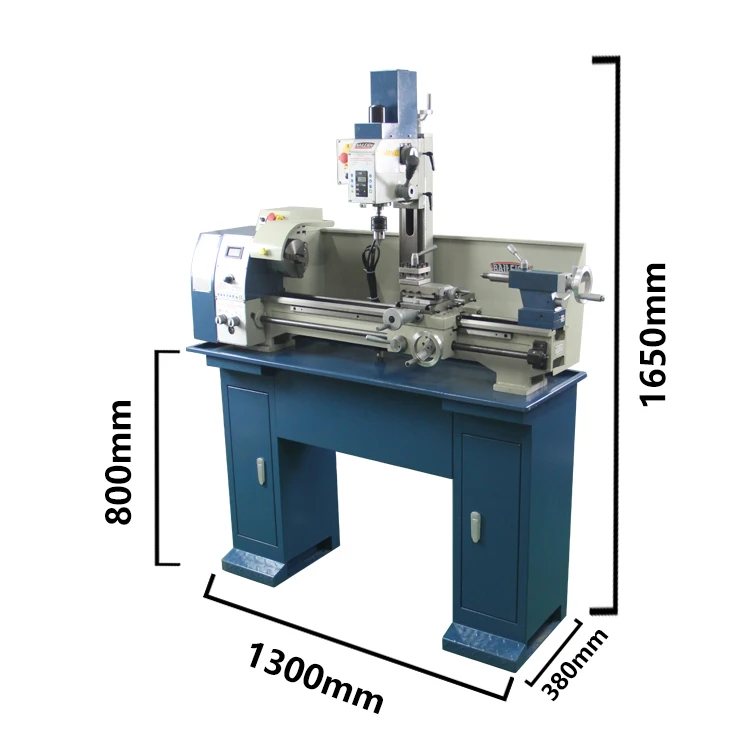

Dimentions

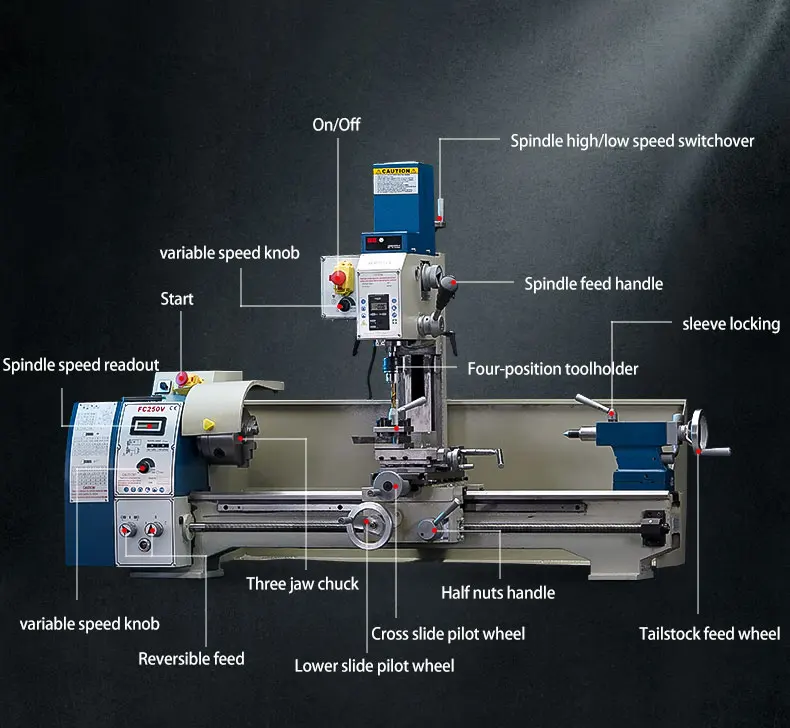

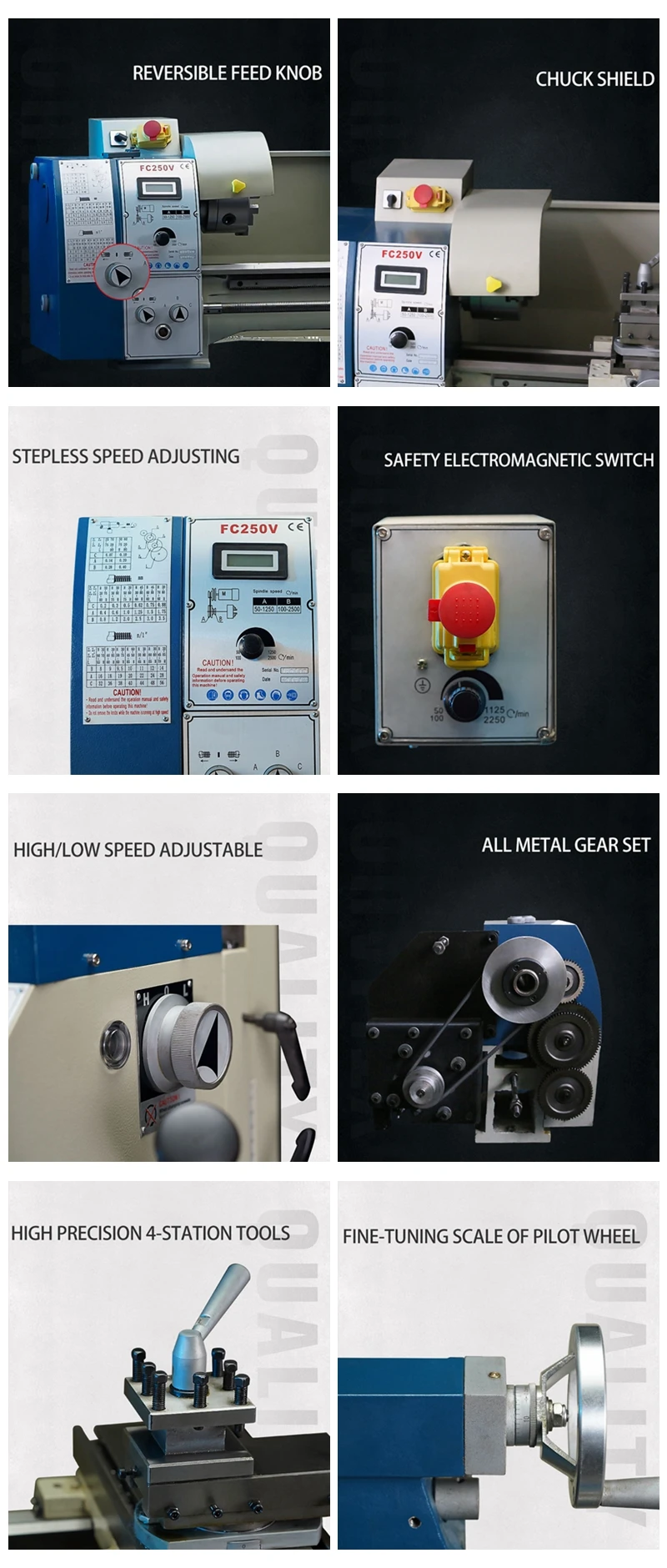

Details



Applications

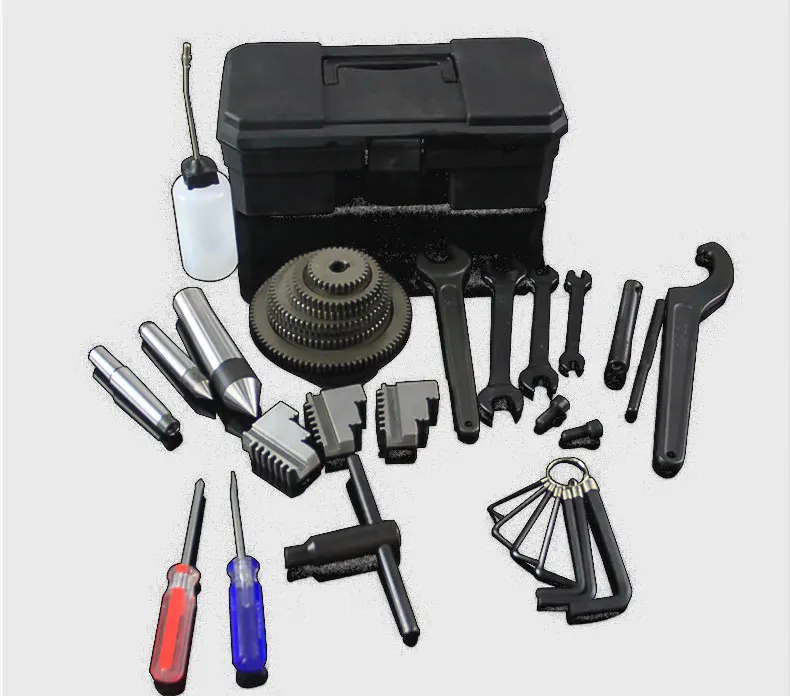

Standard Accessories





Standard Accessories              Optional Accessories

Speed display                                            Four-jaw chuck  25mm

3-jaw chuck 125mm                                   Follow rest

Splash guard                                            Steady rest

Chip tray                                                   Face plate

Cover for chuck protection                       Live center MT4/MT2

Tool holder protection                              Keyless chuck 1-13mm

Center MT4/MT2                                     Milling cutter

Change gears                                            Collect chuck

Drawbar M10                                            Halogen working lamp

Morse taper MT2/B16                               Bench

Tool box &tools



Specifications:



Model	FC250V*550	FC250V*750
Max.swing over bed	250mm	250mm
Distance between centers	550mm	750mm
Swing over cross slide	150mm	150mm
Width of bed	135mm	135mm
Spindle bore	26mm	26mm
Taper of spindle bore	MT4	MT4
Range of spindle speeds	50-2500rpm	50-2500rpm

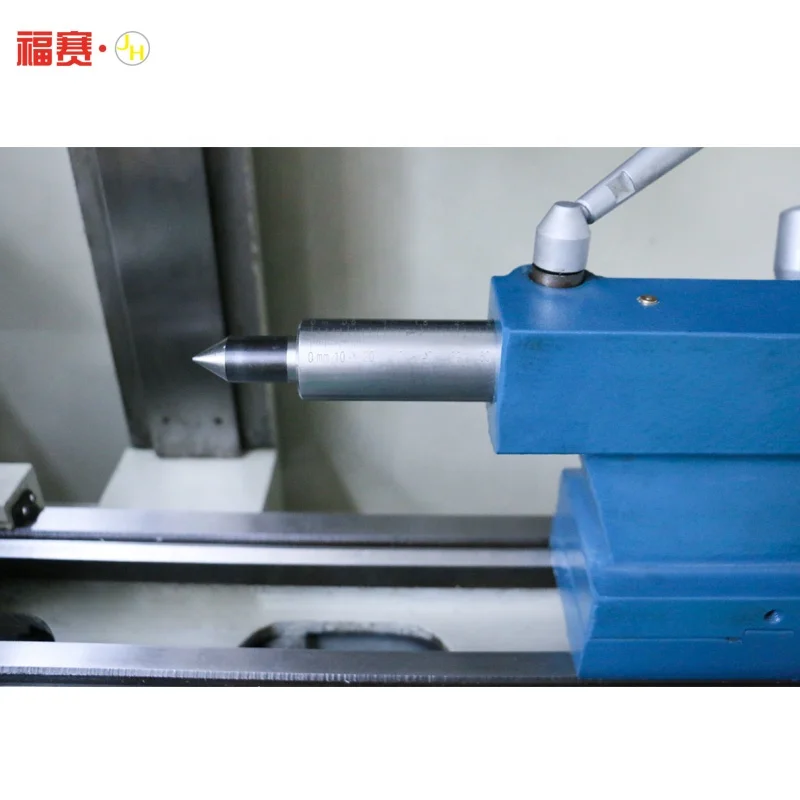

Taper of tailstock quill	MT2	MT2
Metric threads for cutting	0.2-3.5mm	0.2-3.5mm
Inch threads for cutting	8-56T.P.I	8-56T.P.I
Motor power	750W	750W
Drilling&Milling Head	BF16	BF16
Drilling capacity	Max.16	Max.16
Face milling capacity	Max.52mm	Max.52mm
End milling capacity	Max.16mm	Max.16mm
Taper of spindle bore	MT2/R8	MT2/R8
Travel of tailstock quill	52mm	52mm
T-slot size	10mm	10mm
Range of spindle speeds	50-2250rpm	50-2250rpm
Max.distance spindle to table	280mm	280mm
Spindle lift stroke	175mm	175mm
Motor power	600W	600W
Package size(L*W*H)	1220*580*1060mm	1400*580*1060mm
Net weight	180Kg	190Kg
Gross weight	198kg	210kg

Features:

• Most popular,widely useful, easy operation, widespread processing combination machine.


• Super audio quenching precise lathe bed.


• Powerful,maintenance-free Motor.


• High precision and hardened spindle.


• Safety magnetic and lock key European-standard switch.


• High precision bore and hone milling head.


•  Head swivels ±90°.


•  The spindle with precision fine-tuning feed, fast feed and fast feed lever.


•  Accurate position,strong rigidity, powerful cutting.

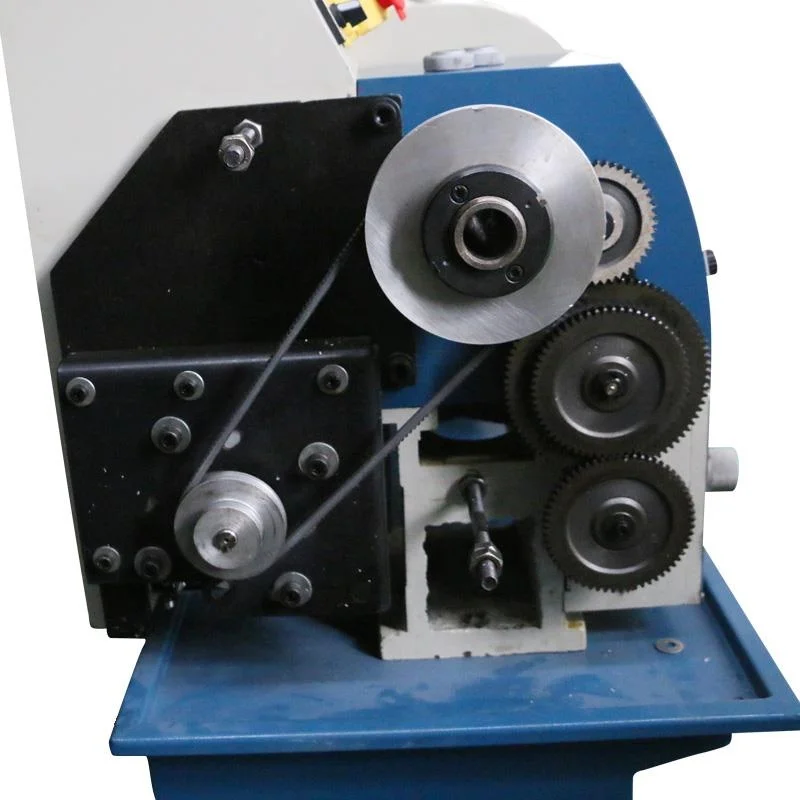

• Gear-driven,low noise.
