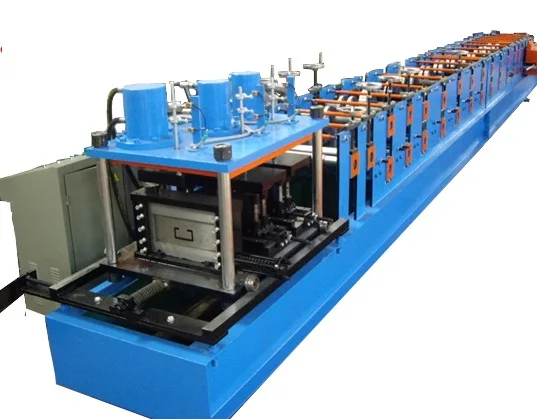

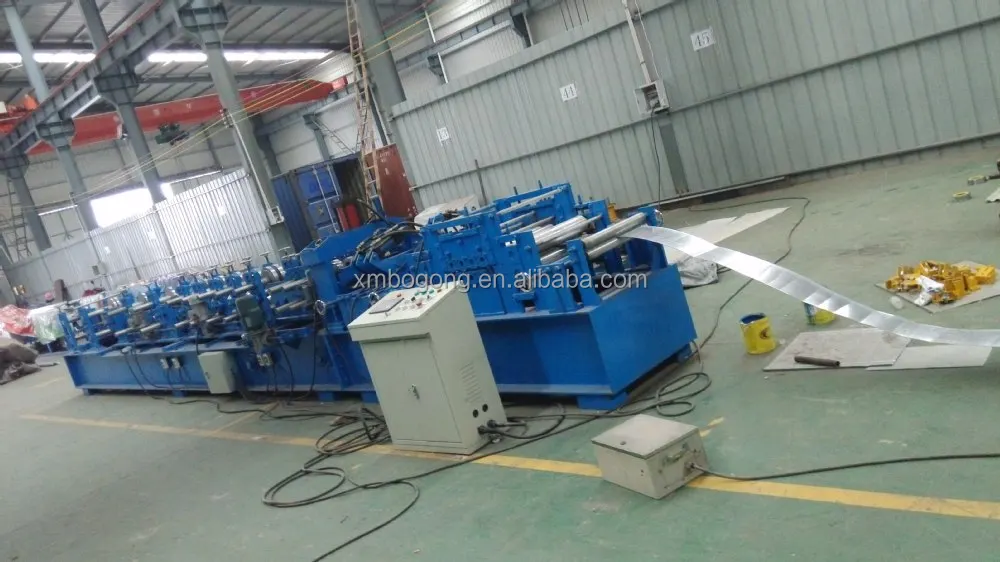

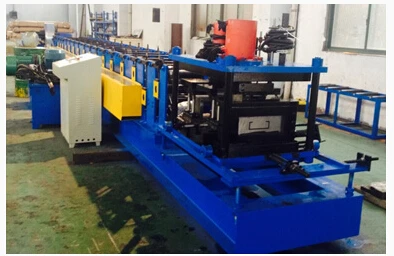

Top Quality CZ Purlin Roll Forming Machine Cold Rolling Mills For Z Purlin
- Category: >>>
- Supplier: Xiamen Bogong Automatic Technology Co. Ltd. [Fujian China]Xiamen
Share on (62107740482):
Product Overview
Description

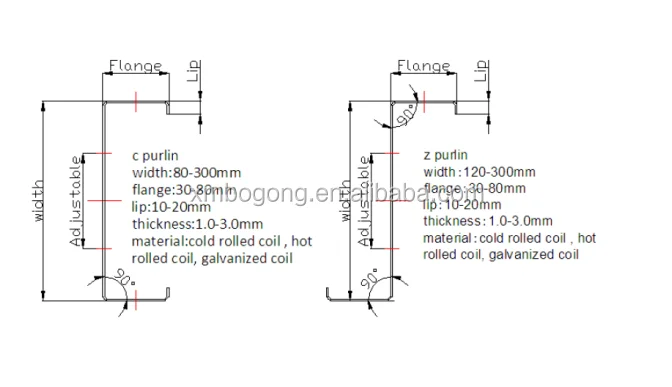

| ottom Width | C:80-300mm Z:140-300 | |
| Purlin Height | C:40-100mm Z:50-100mm | |
| Suitable Material | Type | Galvanized Steel Strip,Hot Rolled Coil(Black Steel Strip) |
| Yeild Strength | 230-300Mpa | |
| Thickness | 1.5-3.0mm | |
| Feeding Width | C:200-540mm Z:260-540mm | |
| Punching /Cutting Motor | 45 KW Hydra system | |
| Transmission Motor | ||
| Size shaft diameter | 90/75mm | |
| Wall Panel Thickness | 30mm | |
| Base Specification | H400*199 | |
| Purlin Spec. Changing Mode | Computer Control | |
| Forming Speed | 0-18m /min | |
| Forming Station | 19 Stations | |
| Blade Material | Cr12(Die Steel) | |

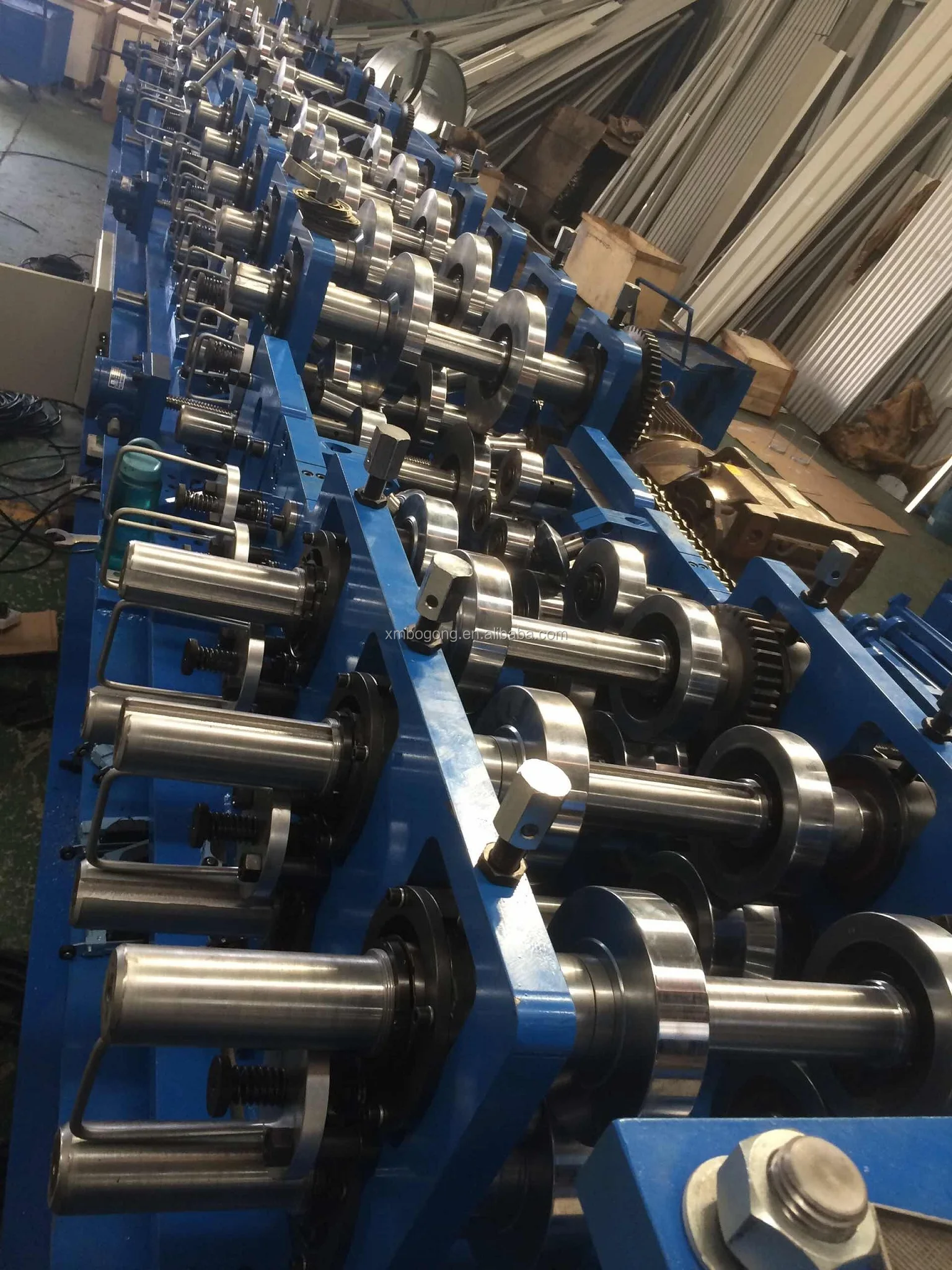

| Roller Material | GCR15 Bearing Steel Quenching Treated | |
| Mode of Speed Regulation | AC Inverter Speed Regulation | |

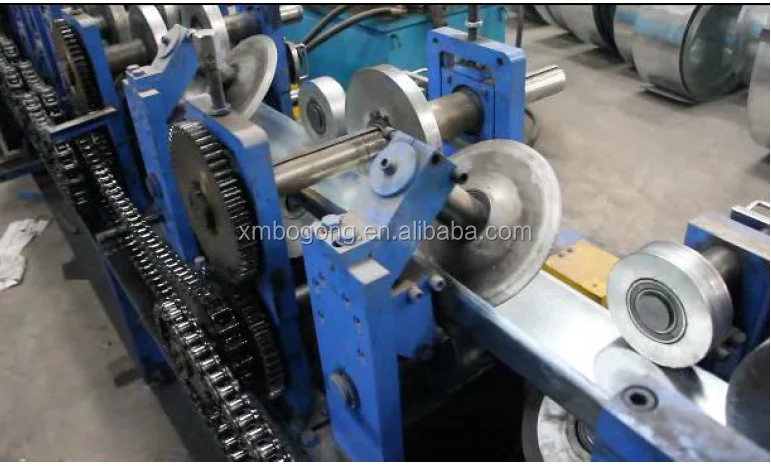

| Driving Mode | Reduction Motor + Chain Transmission | |

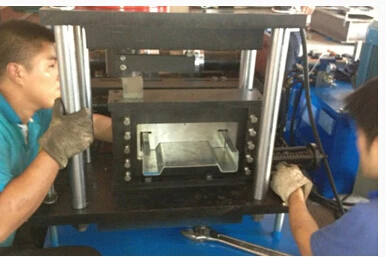

| Cutting Mode | Hydraulic Type,Pre-cutting | |

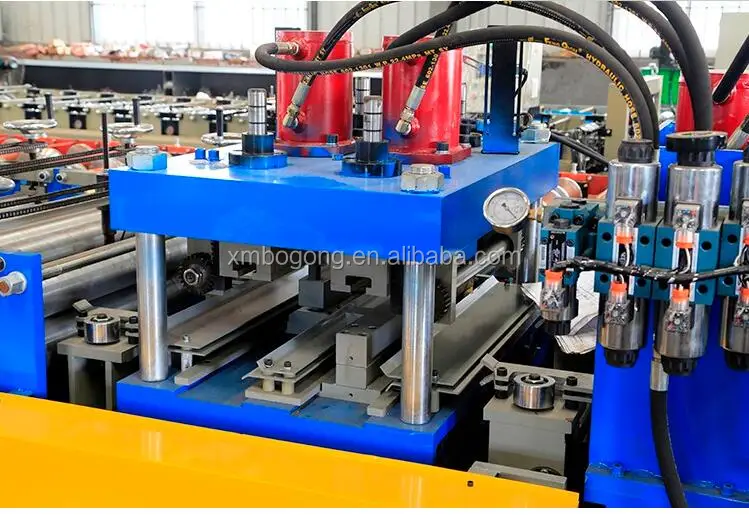

| Punching Mode | Hydraulic Type,Pre-punching(Dual hole+Single hole 14*25) | |
| Measuring Mode | Photoelectric Encoder | |
| Control Mode | PLC | |
| Operation Mode | Button+Touch Screen | |
| Voltage | 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph | |
|
Feature: |
|
1. Cutter Material: Cr12MoV1 mould steel with heat treatment |
|
2. Shaft Material: Cr12 mould steel with heat treatment |
|
3. Roller Material:40Gr mould steel with heat treatment, hard Chrome Coated |
|
4. Delivery time:30% deposit and balance before delivery |
|

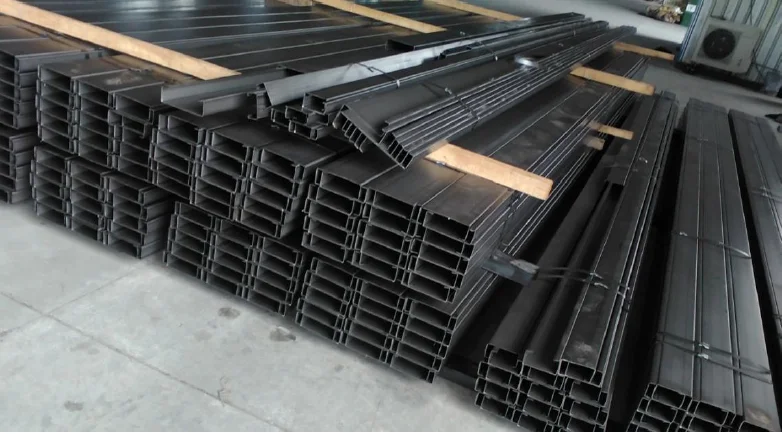

5. This product line to produce C and Z-purlin with pre-punching and pre-cutting or post cutting base on customer |
|
6. Widely used in various industrial, factory, villa building, civilian building, warehouse and have features such as nice appearance and durable |
|
7. We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples, we will design the project for you accordingly |
