3mm 4mm cost effective and hot sale self adhesive SBS modified Bituminous Waterproof Materials production line

Product Overview

Description

3mm 4mm cost-effective and hot sale self-adhesive /SBS modified Bituminous Waterproof Sheet Materials line

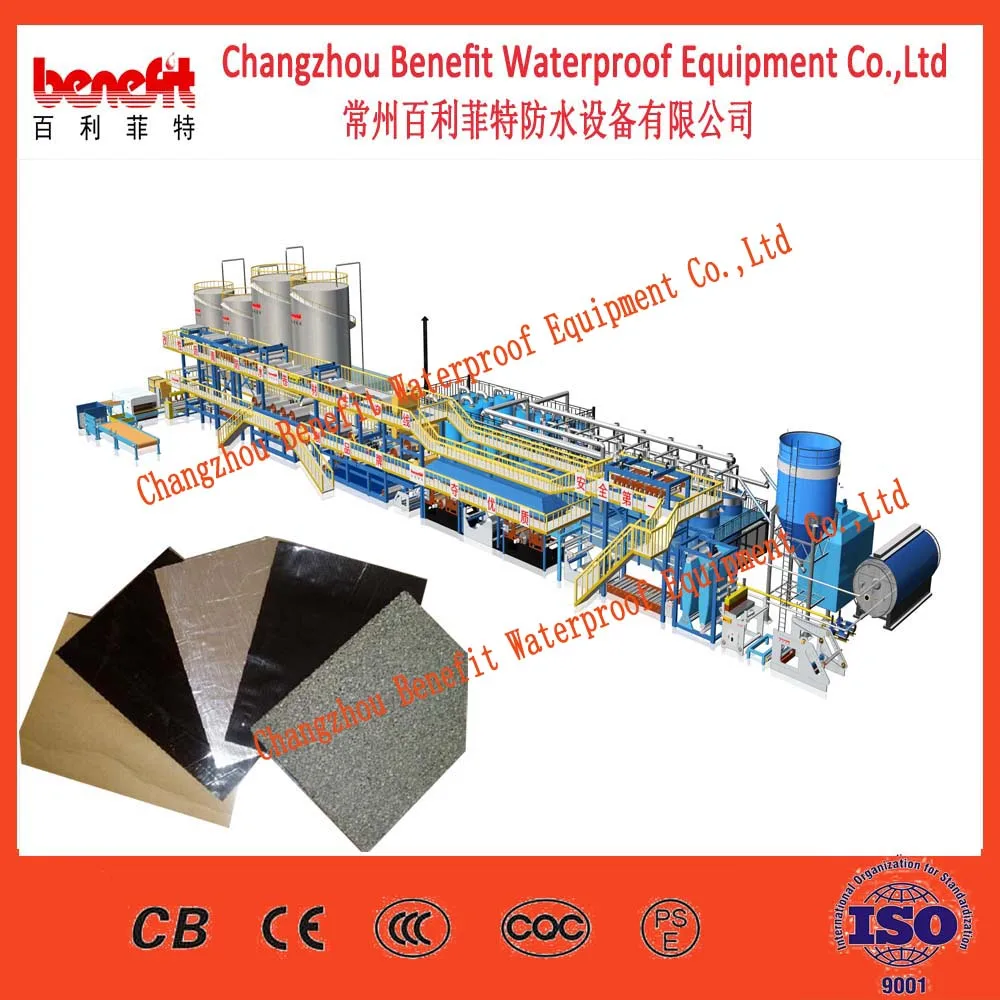

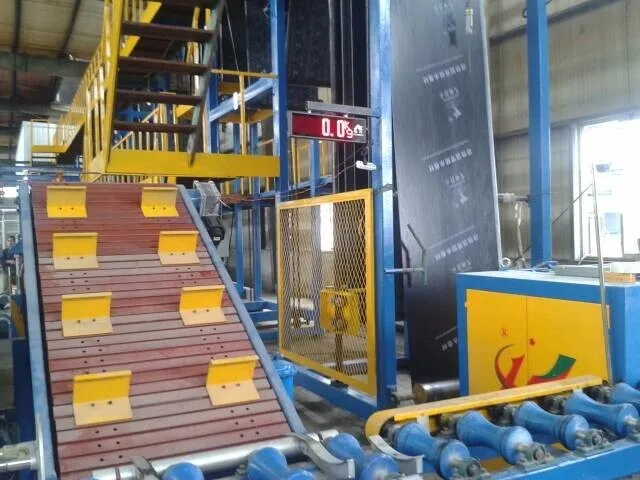

The whole parts of the modified bitumen waterproof membrane line

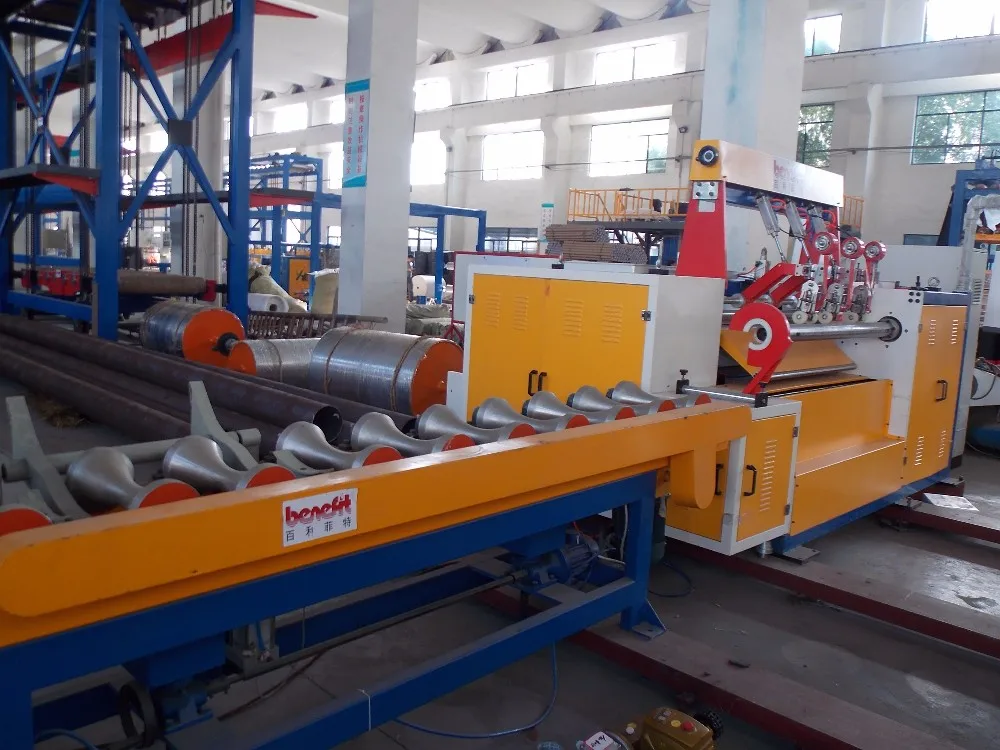

1.Reinforcement unwinding device

2.Reinforcement splicting device

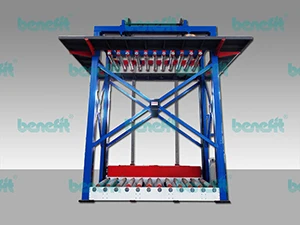

3.Reinforcement storing and drying device



4.Central aligner



5.Recoating and tension control device



6.Asphalt coating device



7.Sand-scattering device



8.Filming and thickness-measuring device



9.Sand-pressing with uspending cooling device

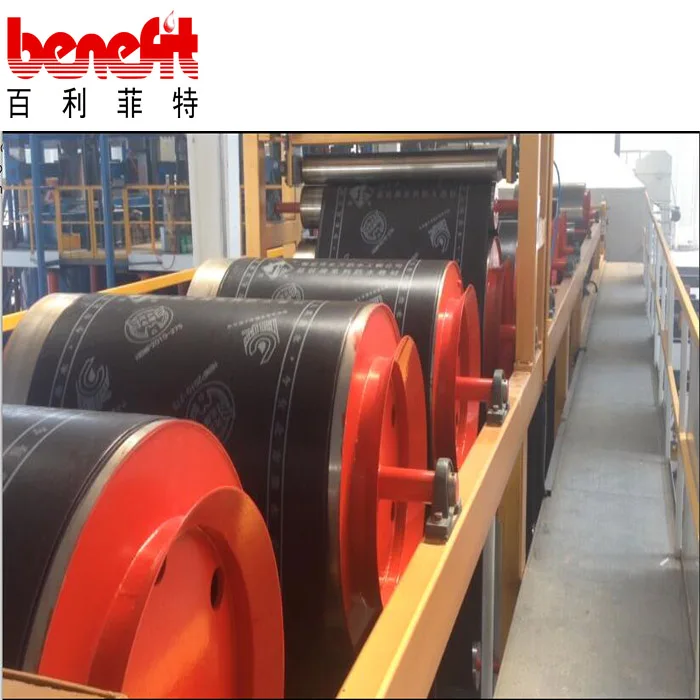

10.Cooling and embossing device



11.Reinforcement storing and drying device



12.Drawing-spring device



13.Auto winding machine



14.Mixing-weighing system



15.Storage tank



16.Powder-conveying system



17.Fume treatment system



18.Heating with boiler system

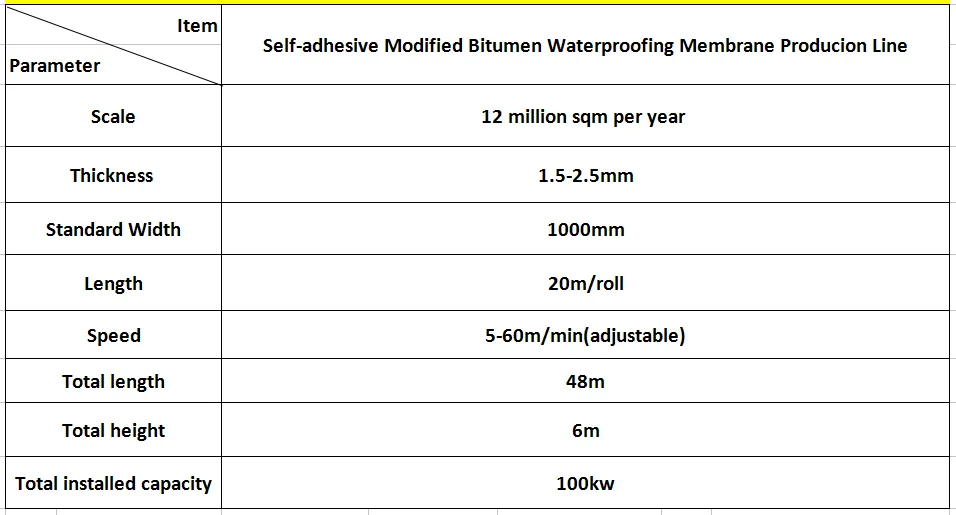

Technical Data













Process:



Modified bitumen membrane production line is that making asphalt ,rubber powder ,machine oil



,stone  powder together to be the mixed material, then to make the material glue with base



materials after heating and extruding ,next step is that composited PE film or rock particles on



the double side of formed membrane ,the device is automatically formed ,cooled and adjusted



by tension control ,automatic rolled into winder membrane which control by traction



device,finally made up bitumen waterproof  membrane ,it has good production structure ,and



good properties of peel strength ,tensile strength tear ,elongation ,low temperature,aging and



other comprehensive performance is very good ,it can be used directly by self adhesive and



paste roasted ,and it also can be boned directly on the concrete base ,adhesive strength ,difficult



to falling ,construction is extremely simple and convenient.





Working principle



The whole working principle can be divided into 3 steps.

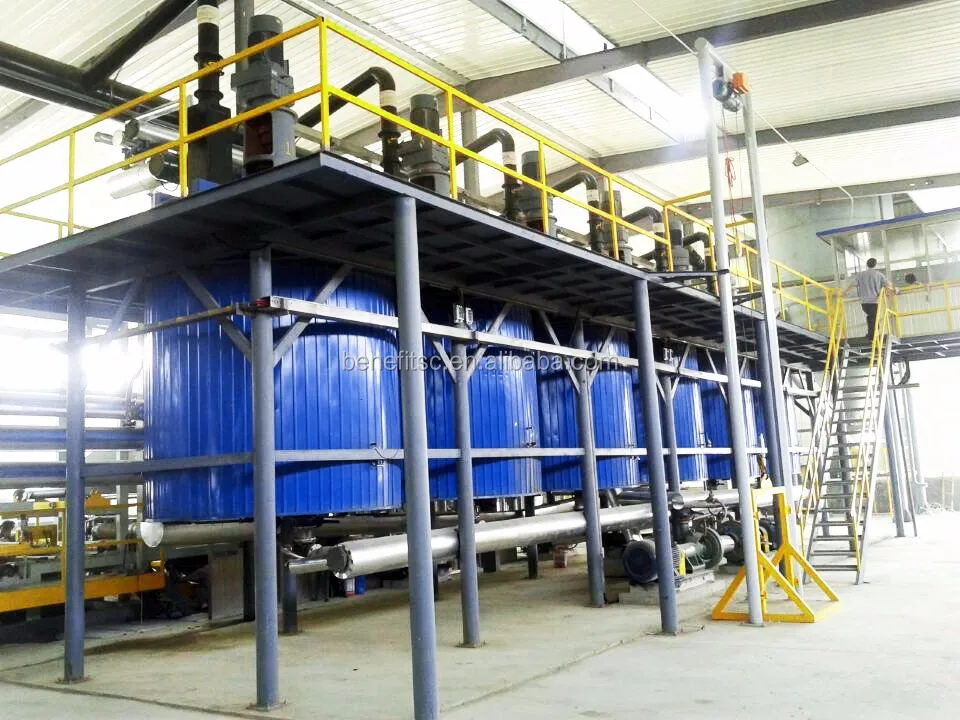

1.To mix the bitumen,rubber powder , talcum powder , engine oil and some other raw materials



via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures



can be called bituminous mixtures .



2.The bituminous mixtures will be deliveryed into coating pools.Then the base



material(reinforcement)will be coated with the bituminous mixtures.At last ,the coated

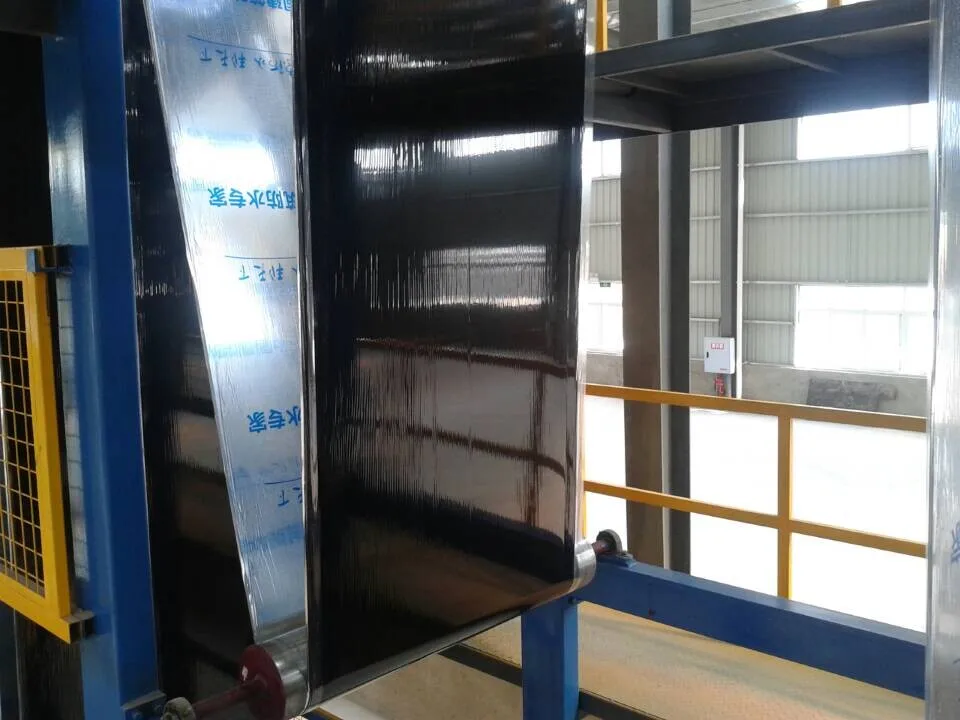

reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen



membrane preliminary forming.



3.The finished products will be cooled by water and air,then be rolled by auto-winder.



The scope of application



Self-adhesive rubber asphalt waterproofing membrane can be applied to the general industrial



and civil construction and other waterproof performance has a higher requirements of the



waterproofing works.



It can be used for all parts of underground buildings (including basement floor, elevator shaft,



basement exterior wall, basement roof, etc.) and roof, podium, balcony (terrace), bathroom



waterproof and moisture.
