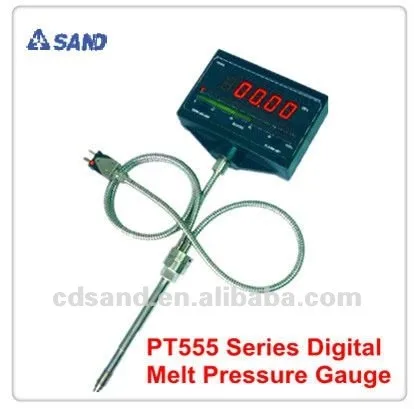

4~20MA 1/2' 20 Intelligent melt Pressure Gauge

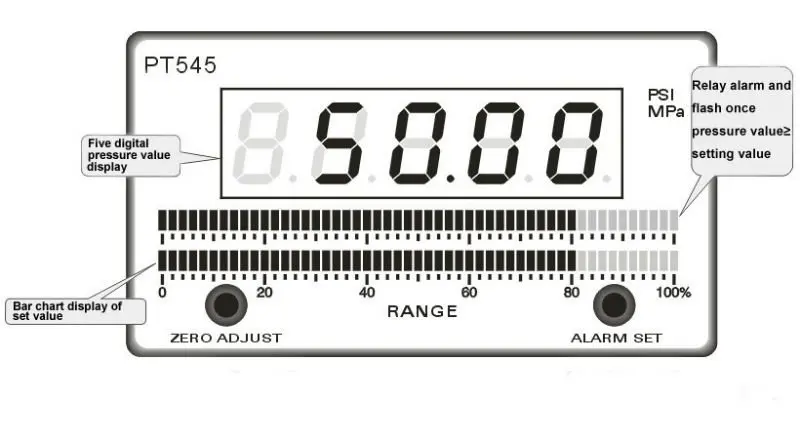

PT545 series polymer to provide accurate and reliable partial pressure display, and has better resolution and other high temperature extrusion process. PT500 Series extruder vibration better than mechanical gauges immunity. Five large digital tube, can choose the best readings after the installation location, allowing maximum rotation angle of 285 degrees, PT500 Series offers a variety of structures PT451, PT542, PT543, PT545, PT555, etc. and models to facilitate your selection and installation needs.

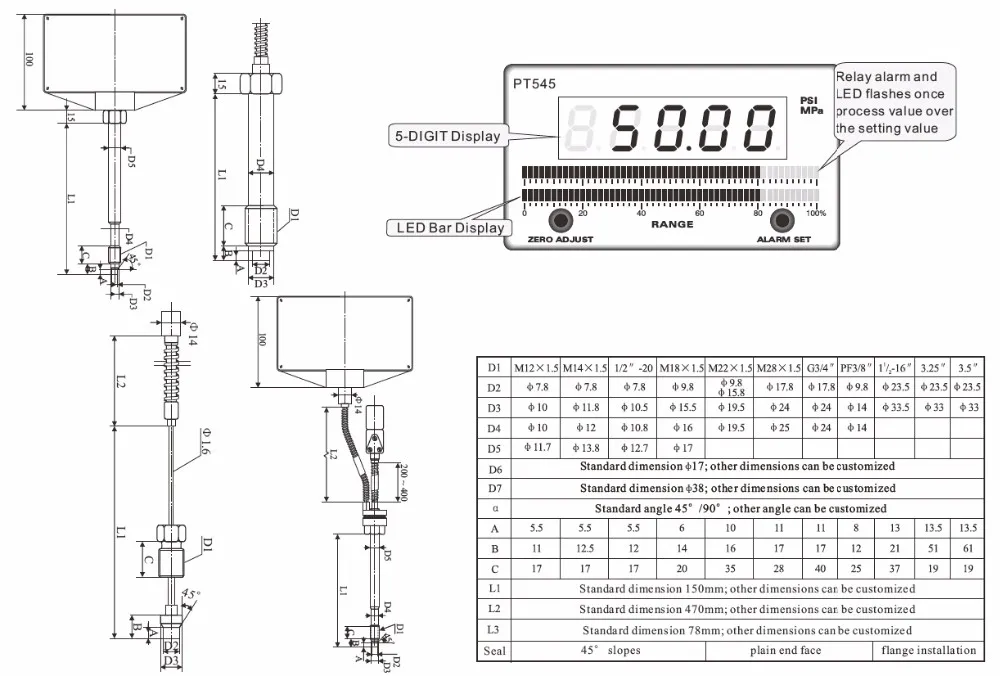

Model Description

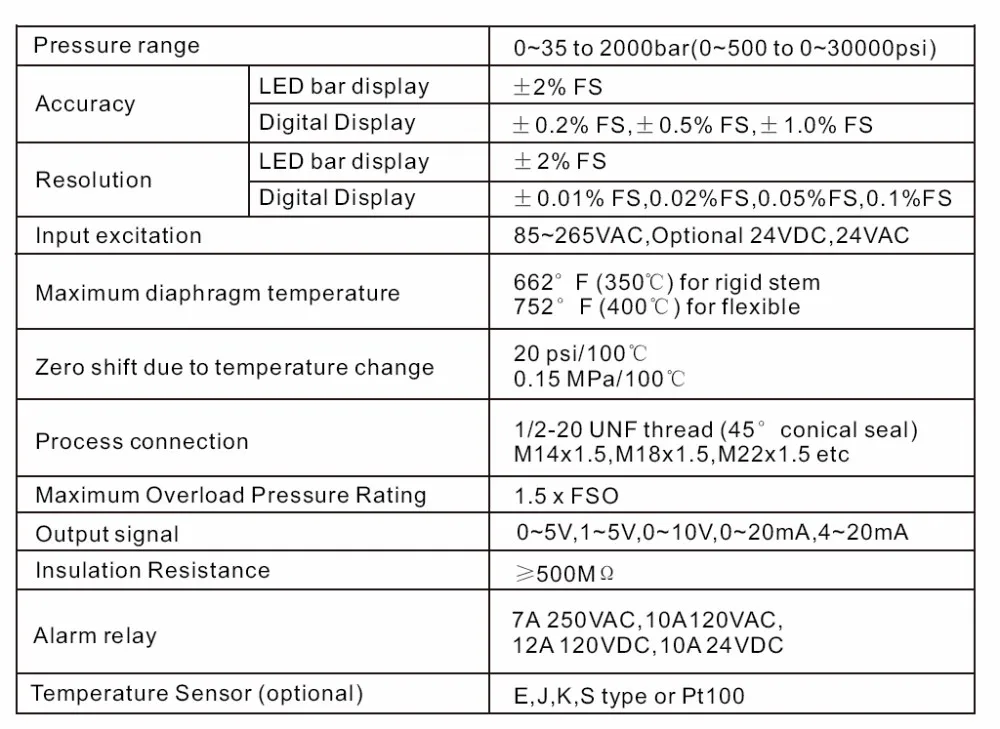

Performance

Order Format

Format: PT model - coating code- Range - Process Connection - Rigid / Flexible- Temperature configuration - Output

Example: PT545 - 5000psi - 1/2 "- 20 - 150/470 - 4 ~ 20mA

Description: Product Design Model "PT545"

Coating Uncoated code vacancy, said probe; Pressure Range 0 ~ 5000psi, Process Connection Size Inch 1/2 "-20UNF,Rigid rod length 150mm / Flexible length 470mm;  Output  signal 4 ~ 20mA, single-function without temperature configurations.
