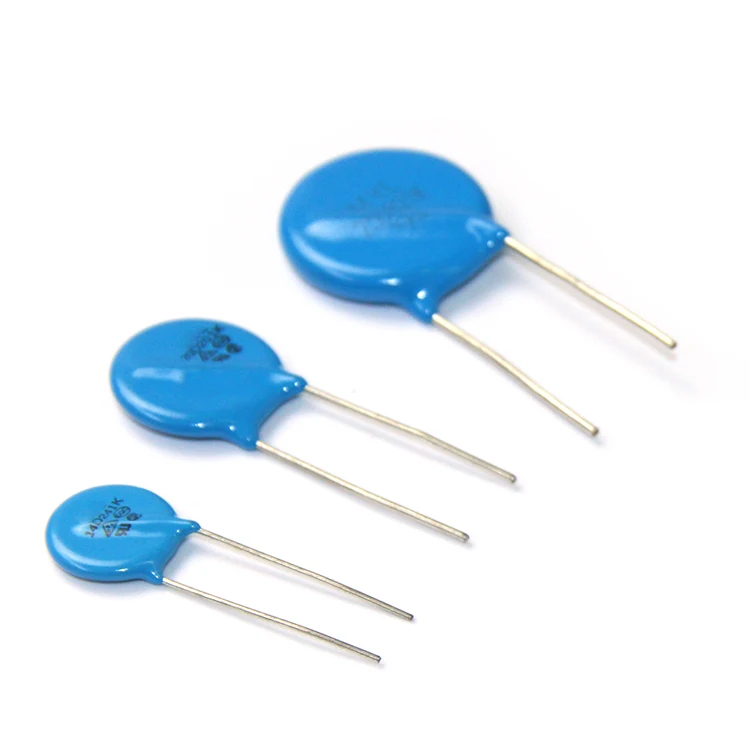

14D151K Metal Oxide Varistor MOV 14mm 150V ZOV MLV CNR VDR for generator Overvoltage surge lightning protection 3movs 151KD14

Product Overview

Description



      The body of the varistor is a matrix structure composed of oxide particles. The grain
boundary between the particles is similar to the electrical features of the bidirectional
PN junction. When the voltage is low, these grain boundaries are in a high impedance
state, when the voltage is high, they turn into the breakdown state. MOV is a
nonlinear device.





Environmentally friendly lead-free materials that meet ROHS requirements
Small size,cost-effective, fast response
High surge absorption capacity, easy to install and use
Wide range of applications, but not suitable for high frequency circuits
