Product Overview
Description
Products Description

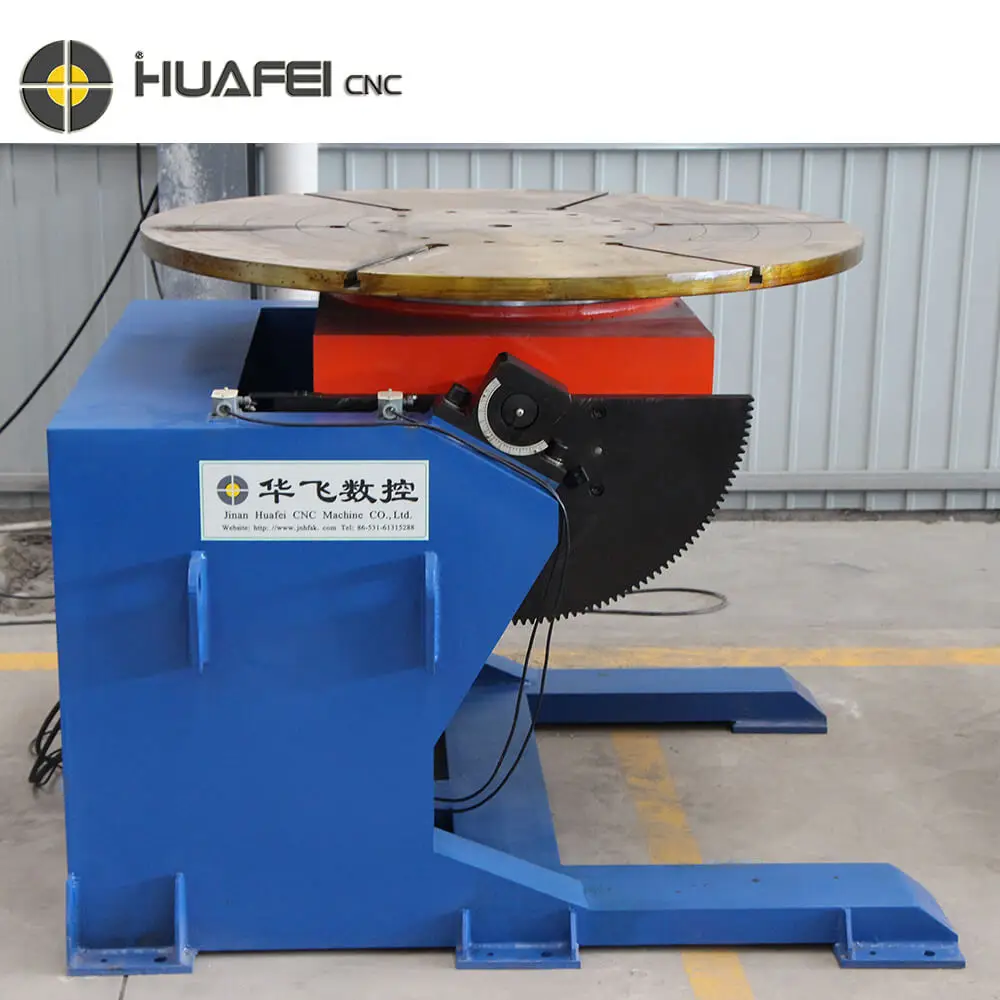

Desktop welding positioner
The welding positioners is composed of a rotary mechanism, a turnover mechanism, a frame, and an electronic control system. It can make the welding seam in a horizontal or ship-shaped position by turning or tilting the seam when it is working. The working rotation adopts variable frequency stepless speed regulation, and the working closure drives the tilt through sector gear or hydraulic cylinder. The turning angle of the worktable is 0 ~120. It can realize the joint control with the operator or welding machine. The control system can be equipped with three types of configuration button digital control, switch digital control, and switch relay control. This product is widely used in the welding of rotating parts such as shafts, discs, cylinders, and so on. It is the most widely used structural form at present.
Product Paramenters
Model No. | BW2-12 | BW2-20 | BW2-30 | BW2-50 | BW2-100 | BW2-150 | BW2-200 | ||
Basic loading (kg) | 1200 | 2000 | 3000 | 5000 | 10000 | 15000 | 20000 | ||
Rotating speed (r/min) | 0.1~1 | 0.1~1 | 0.06~0.6 | 0.05~0.5 | 0.05~0.5 | 0.02~0.2 | 0.02~0.2 | ||
Overturning speed (r/min) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.15 | 0.2 | ||
Turning angle(° ) | 120 | ||||||||
Work table diameter (mm) | 1000 | 1100 | 1400 | 1600 | 2000 | 2200 | 2500 | ||
Height of work table (mm) | 1100 | 1200 | 1250 | 1550 | 1900 | 2000 | 2100 | ||
Allow work piece offcenter (mm) | Height of work table (mm) | 150 | 150 | 200 | 200 | 200 | 200 | 200 | |
Centroidal distance | 250 | 250 | 300 | 300 | 400 | 500 | 600 | ||
Rotating motor power (kw) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 | ||
Turning motor power (kw) | 0.75 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 | ||
Product advantages
Machine structure
Finishing workbench: It is not easy to be damaged by welding spatter and has a long service life. The frame is welded by plate and profile, which has sufficient mechanical strength and ensures long-term use without deformation. The slewing mechanism and the turning mechanism are mounted on the frame through the bearing housing.
Countertop

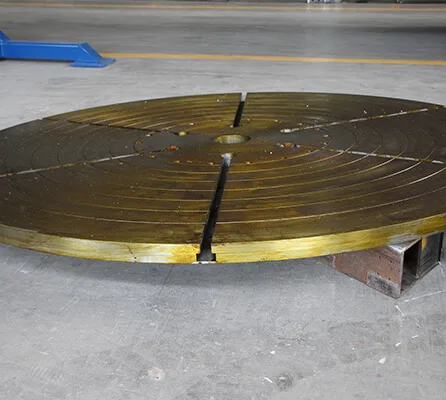

The working face plate adopts a double-layer surface or full-plate finishing design. It has the characteristics of reasonable structure, good rigidity, and long service life. It is more convenient for the workpiece to be fixed with a T-shaped groove. The chuck can be configured according to customer requirements.
Angle dial

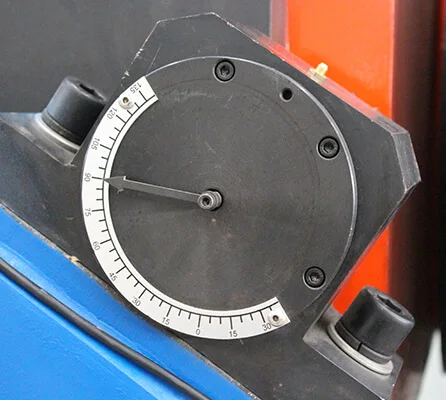

The clear and obvious angle of the disc allows the user to more easily grasp the angle of the workpiece flipping, making the operation more accurate and reliable.
Swing motor
The use of high-quality motors from well-known domestic manufacturers can achieve stepless frequency control
Flip motor

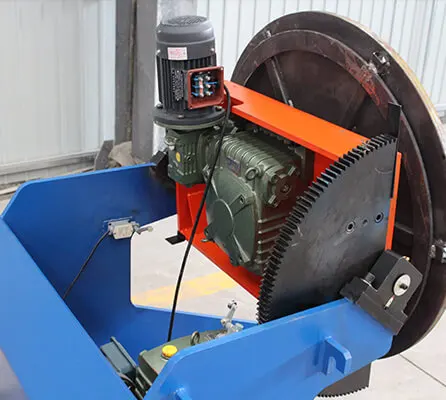

Domestic well-known brand motor, high control precision, high reliability, long service life, etc.
