Metal Roller Limit Switch CSA 031
- Category: Limit Switches >>>
- Supplier: Yueqing,Topsun,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
- Strong metal outer shell,swing arm max,±95°
- Stainless steel idler wheel,punch and spring
- Selective M18×1.5 cable gland

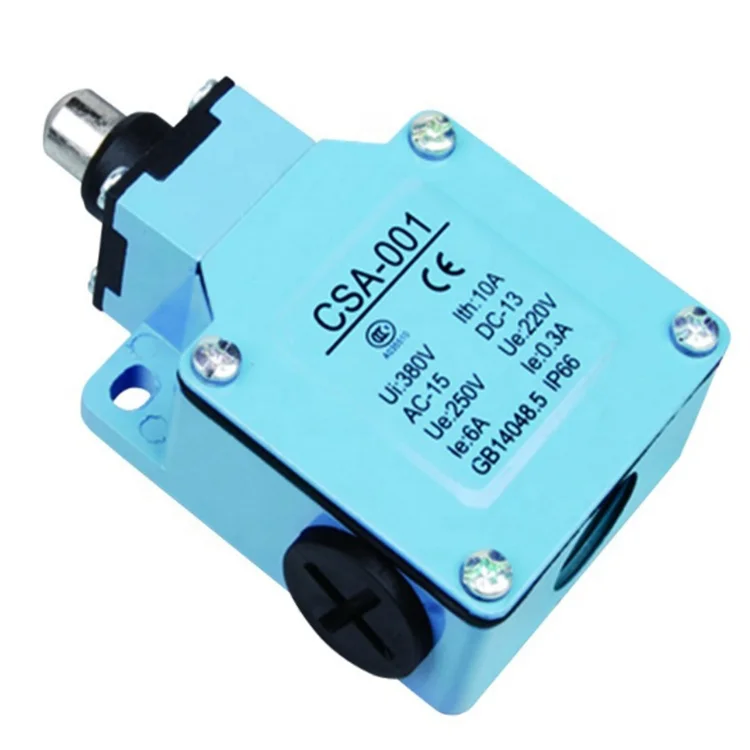

| Model | CSA-001 | CSA-003 | CSA-012 | CSA-021 | CSA-041 | |
| Operating force | OF(Max.) | 800g | 800g | 800g | 400g-cm | 400g-cm |
| Release force | RF(Min) | 400g | 400g | 400g | 100g-cm | 100g-cm |
| Pre-travel | PT(Max) | 1.8mm | 1.8mm | 1.8mm | 20° | 20° |
| Tripping position | TP±10% | 2.0mm | 2.0mm | 2.0mm | 22.5° | 22.5° |
| Movement differential | MD(Max.) | 1.2mm | 1.2mm | 1.2mm | 10° | 10° |
| Over travel | OT(Min.) | 4.0mm | 4.0mm | 4.0mm | 75° | 75° |
| Total travel | TT | 5.8mm | 5.8mm | 5.8mm | 95° | 95° |
| Rotary indexing | 22.5° | 22.5° | ||||
| Model | CSA-031 | CSA-051 | CSA-061 | CSA-071 | CSA-081 | |
| Operating force | OF(Max.) | 400g-cm | 400g-cm | 150g | 150g | 150g |
| Release force | RF(Min) | 100g-cm | 100g-cm | 50g | 50g | 50g |
| Pre-travel | PT(Max) | 20° | 20° | 30mm | 30mm | 30mm |
| Tripping position | TP±10% | 22.5° | 22.5° | 22.5° | 22.5° | 22.5° |
| Movement differential | MD(Max.) | 10° | 10° | 14° | 14° | 14° |
| Over travel | OT(Min.) | 75° | 75° | 20mm | 20mm | 20mm |
| Total travel | TT | 95° | 95° | 50mm | 50mm | 50mm |
| Rotary indexing | 22.5° | 22.5° | ||||
Our Services
1. Your inquiry will be replied within 24 hours. |
2. We offer you professional service in fluent English. |
3. Keep the mass production as the sample in high quality |
4. Freight forwarder: faster,safer, and convenient. |
5. Quality: we have QC on each process,provide high quality products. |
Company Information
Company Profile
FAQ
Q: Is sample available and free?
A: Sample is available , but express fee should be paied in advance.
Q: What cerficated do you got ?
A:We got CE , CCC , ISO...
Q: What's your warranty ?
A:Our warranty of the product is 1 years.
Q: What's the delivery time ?
A:Delivery time is depended on quantity . We will delivery as soon as possible.
Q: How about the transport ?
A:We usually transport by Express for samll order , transport by sea or by air for huge quantity.
