electronic industry 4 axis robot automatic screw fastening machine , automatic screwdriver machine

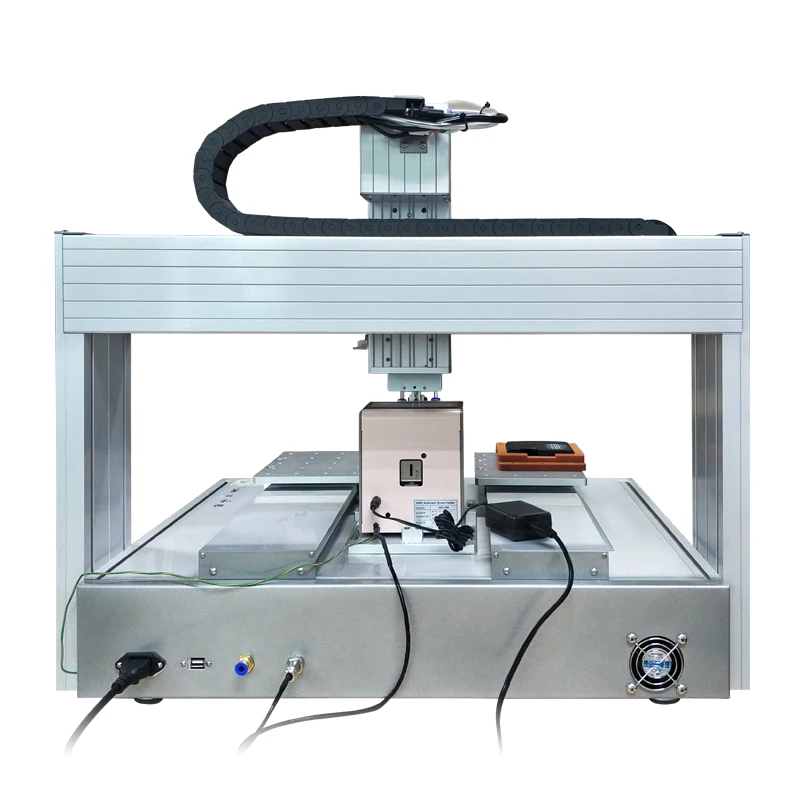

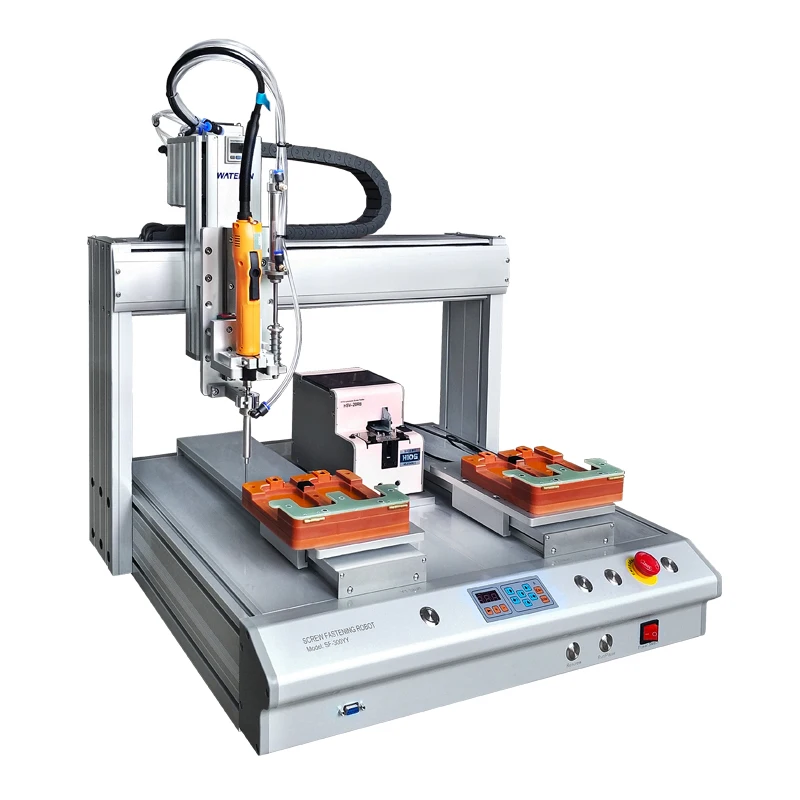

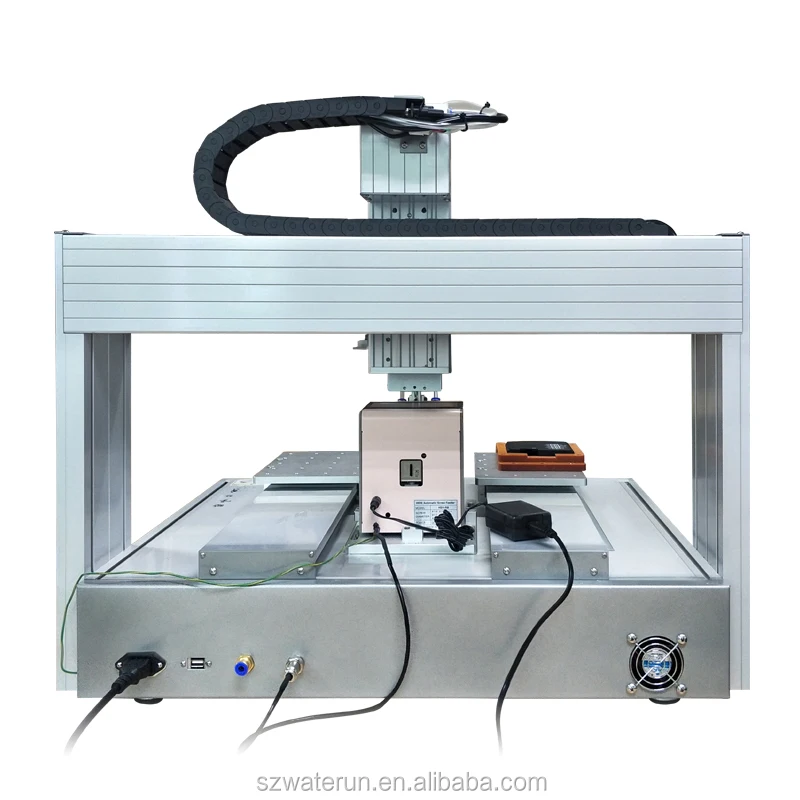

SF-300YY 4-axis Robot Automatic Screw Fastening Machine, Automatic Screwdriver Machine

Features:

1. Vacuum air suction, to achieve automatic feeding and screwing.
2. Programming by teaching pandent, it is very easy to learn the operation.
3. Leakage lock,Float lock, floating strip detection.

4. Two table alternate work, greatly improve work efficiency.

5. The screws are arranged automatically, and pick up synchronously.

6. Vacuum Inspection to ensure that each time you can suck the screws before fastening.

7. Work on the high and low plane.

Specifications:

Operation range:  X/Y/Z(mm) 500*300*300*100
Motor Control Axis No.: 4-Axis
Movement Speed: 500mm/s
Repeat position accuracy:  ±0.02mm
File storage capacity 999+ files
Motor System:  Closed-loop Precision Motor
Transmission Mode:  Synchronous Belt + Precision Linear Guide
Input Voltage:  AC110~230V
External Control Interface RS232

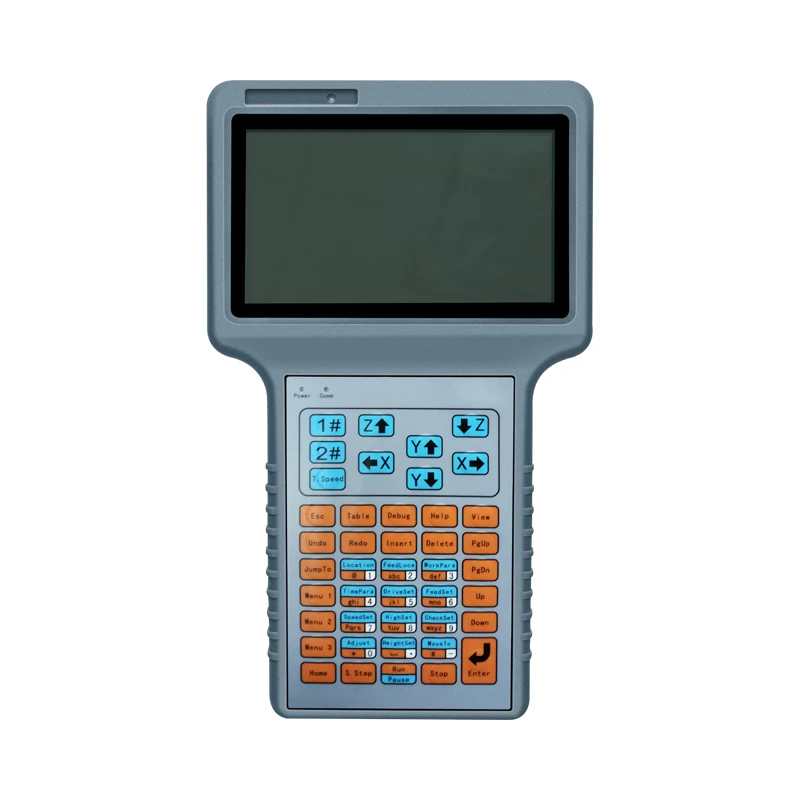

Programming Mode Hand held teaching programmer
Feature Vacuum detection function
Working temperature 5~40℃
Aplication Screws M1.7-M6

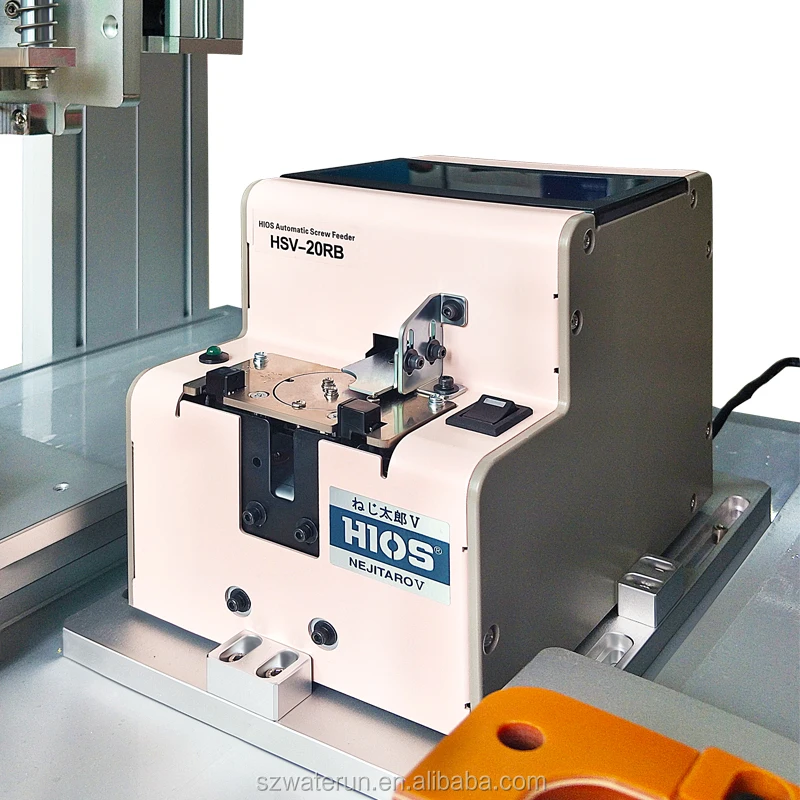

Screw Feeder (for Buyer's Screws) Hios Brand

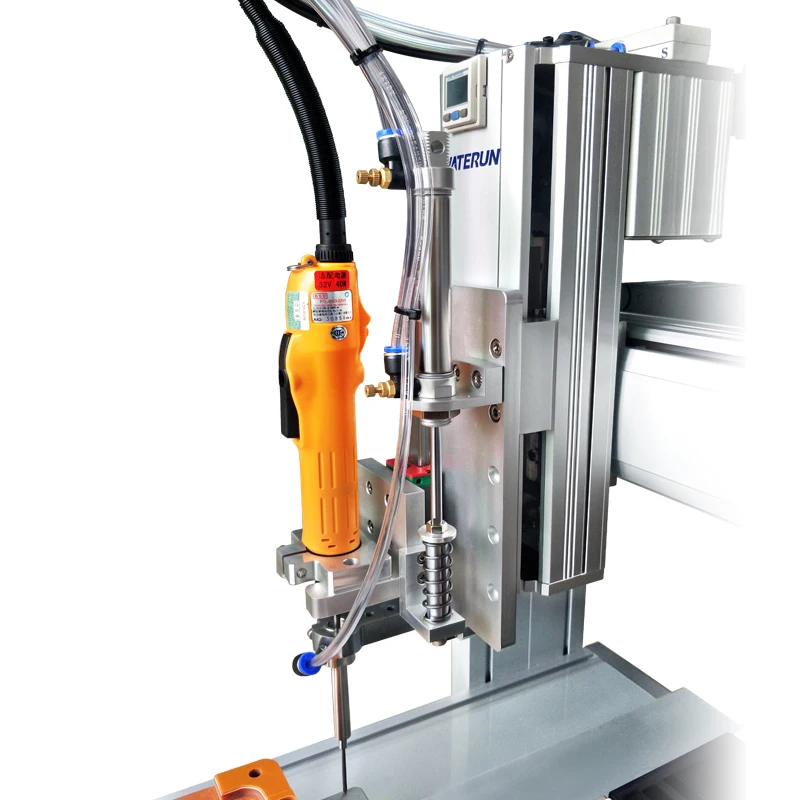

Screwdriver Kilews Brand
Dimensions 716 X 588 X 620mm

 How to choose the right 4-axis robot automatic screw fastening machine?

1. It depends on the screws specifications. So please provide the screws informations for us, we will provide the best soluctions.

2. You also need to consider the XYZ movement range. It depends on the product which request the screw fastening. It is within the XYZ movement range.

3. If the product is height, we will need to make our screw fastening robot higher.
