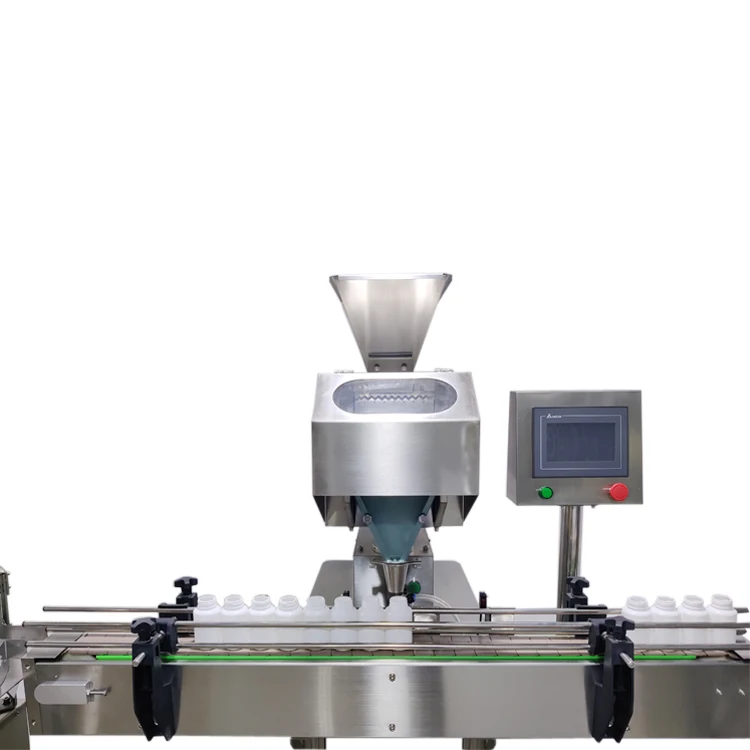

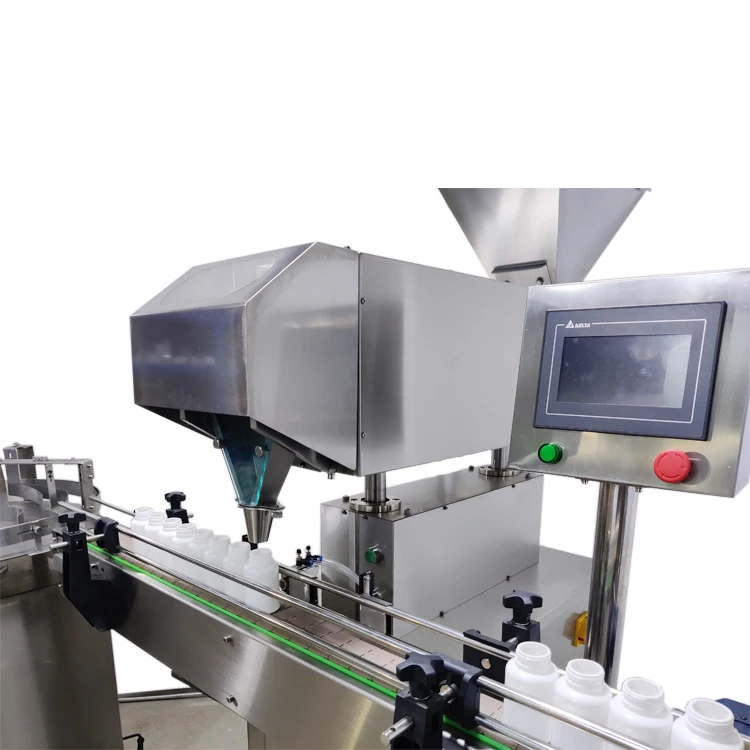

Electronic tablet capsule counting machine YL 8 pill counter
- Category: Tablet Counter >>>
- Supplier: Wenzhou Urban Machinery Co. Ltd
Share on (62108402896):
Product Overview
Description
item | YL-8 |
Voltage | 220V/50HZ 110V/60HZ |
Size of tablet | 6-22 |
Hard capsule | 00-4 |
soft capsule | dia more than 6mm |
size of bottle | 10-500ml |
Power | 6000w |
Output | 10-30 bottle/min |
After Warranty Service | Video technical support, Online support, Spare parts |
After-sales Service Provided | Free spare parts, Video technical support, Online support |
The electronic counting machine is a kind of light and compact counting and filling equipment for solid particles. It adopts the internationally advanced 8-channel vibration, computer control, dynamic scanning counting, automatic bottle conveying and photoelectric control. It is designed in strict conformance with GMP standard and equipped with intelligent safety protection devices such as system self-inspection, error warning and automatic shutdown. As a high-tech material counting and filling machine, the YL-8 is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.
Details Images:
The machine is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food,health care products and other materials.
Main features:

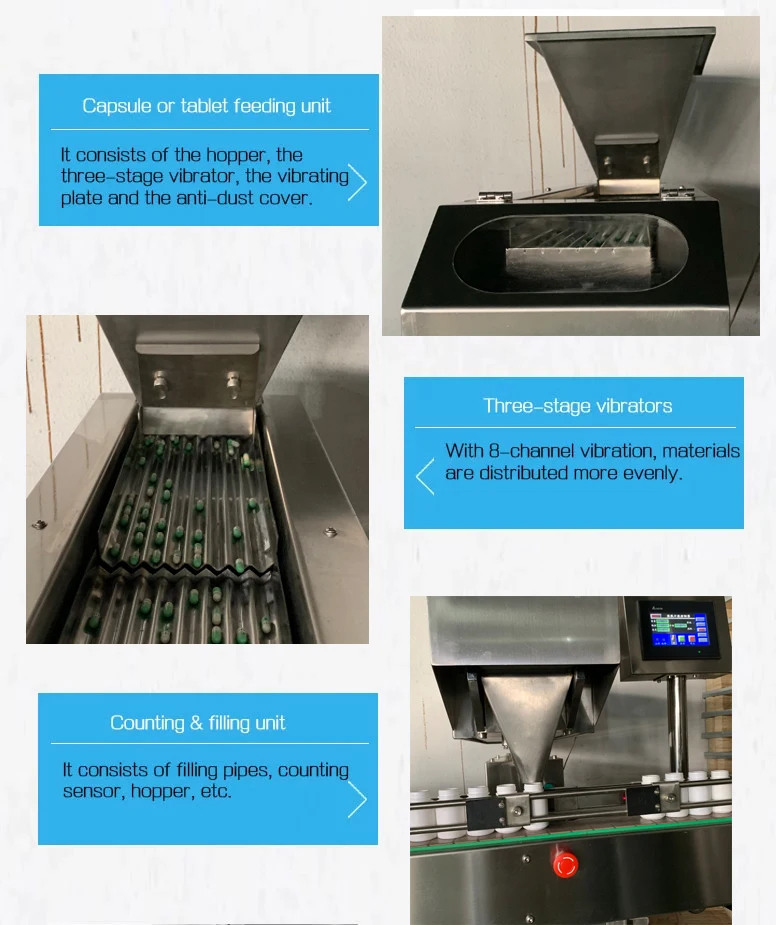

*Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
*Reliable operation：It runs stably and smoothly with low noise.
*High dust resistance：It adopts unique anti-dust photoelectric sensor.
*Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
*Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
*Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
*Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
*The platform height can be adjusted according to the bottle height.
*The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
*Reliable operation：It runs stably and smoothly with low noise.
*High dust resistance：It adopts unique anti-dust photoelectric sensor.
*Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
*Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
*Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
*Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
*Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
*The platform height can be adjusted according to the bottle height.
*The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
Model | YL-2A | YL-2 | YL-4 |
Dimension | 44x37x58cm | 81x72x84cm | 98x79x93cm |
Voltage | 110-220V 50HZ-60HZ | 110-220V 50HZ-60HZ | 110-220V 50HZ-60HZ |
Weight | 20kg | 50kg | 75kg |
Power | 100KW | 100KW | 100KW |
Output | 500-1500 | 1000-2000 | 2000-4000 |
YL-2
Diameter: 6mmφ\t\tSpeed Scale: YL—2 30~40
Diameter: 8mmφ\t\tSpeed Scale: YL—2 35~50
Diameter: 10-12mmφ\tSpeed Scale: YL—2 40~55
Diameter: #4-#00\t\tSpeed Scale: YL—2 45~55
Output (Approx):\t\tYL—2: 1000-2000 Tablets per minute
Diameter: 8mmφ\t\tSpeed Scale: YL—2 35~50
Diameter: 10-12mmφ\tSpeed Scale: YL—2 40~55
Diameter: #4-#00\t\tSpeed Scale: YL—2 45~55
Output (Approx):\t\tYL—2: 1000-2000 Tablets per minute
YL-4
Diameter: 6mmφ\t\t Speed Scale: YL—4 35~40
Diameter: 8mmφ\t\t Speed Scale: YL—4 40~50
Diameter: 10-12mmφ Speed Scale: YL—4 50~65
Diameter: #4-#00\t\t Speed Scale: YL—4 45~65
Output (Approx):\t\t YL—4: 2000-4000 Tablets per minute
Diameter: 10-12mmφ Speed Scale: YL—4 50~65
Diameter: #4-#00\t\t Speed Scale: YL—4 45~65
Output (Approx):\t\t YL—4: 2000-4000 Tablets per minute
Filling objects: 0~5# capsules, soft capsules, Φ5.5-12 plain tablets, special-shaped tablets, sugar-coated tablets, Φ3-12 pills
