Product Overview

Description

Ruian Xinshun new product shopping plastic bag making machine price

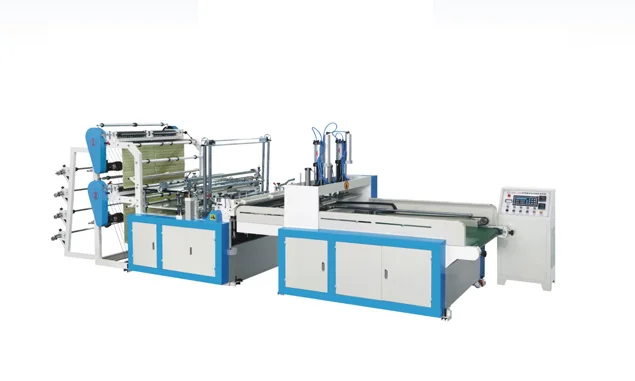

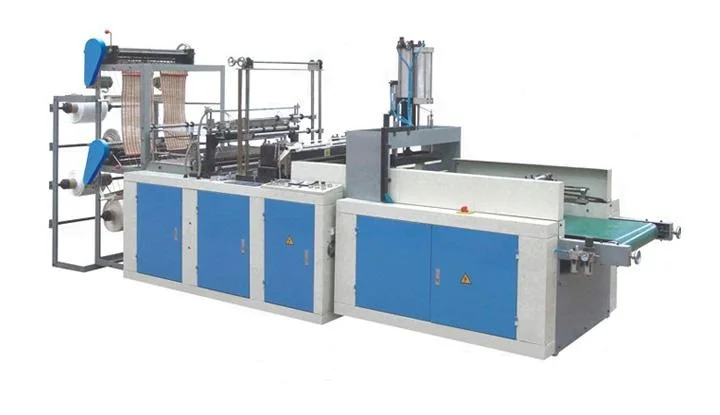

PE plastic T-shirt & flat bag making machine

---------------------------------------------------------------------------------------------------------------------



These machine is suitable for making high-low pressure vest bags (supermarket hand bags),handbags(for clothes and shoes),disposable medical packing bags and bags for sanitary napkins.

Performance and Characteristics:

1.The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).

2.Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost,photoelectriccontrol feeding.

3.Automatic counting and set able counting alarm.

4.Automatic constant temperature makes the sealing of bag opening firm and smooth.

5.Non-printing material can make bags in duoble lines by 4rolls feeding,making 4bas in one time.



Material processed:

HDPE/LDPE/LLDPE (as per the quality and usage of the film)





Main technical varialbles:

Model of machine	SHXJ-B600	SHXJ-B700	SHXJ-B800	SHXJ-B900
Max.bag-making width	500mm	600mm	700mm	800mm
Max.cutting legth	1200mm	1200mm	1200mm	1200mm
Raw material	HDPE LDPE LLDPE
Production capacity	30-180pcs/min 1line
	60-360pcs/min 2lines
	90-540pcs/min 3lines
	120-720pcs/min 4lines
Total power	4kw	4.2kw	4.5kw	5kw
Weight of machine	800kg	850kg	900kg	950kg
Overall size(L×W×H)	3300×940×1600	3300×1040×1600	3300×1140×1600	3300×1240×1600



4lines cold cutting bag making machine video link: //v.youku.com/v_show/id_XNDQ3NjEyNzQ0.html



4lines cold cutting bag making machine (with conveyor)video link:

//v.youku.com/v_show/id_XNDQ3NTc4MTg4.html





4lines cold cutting bag making machine (with punch)video link:

//v.youku.com/v_show/id_XNDMwNTY4MDY0.html





If any question,pls feel free to contact me at any time.
