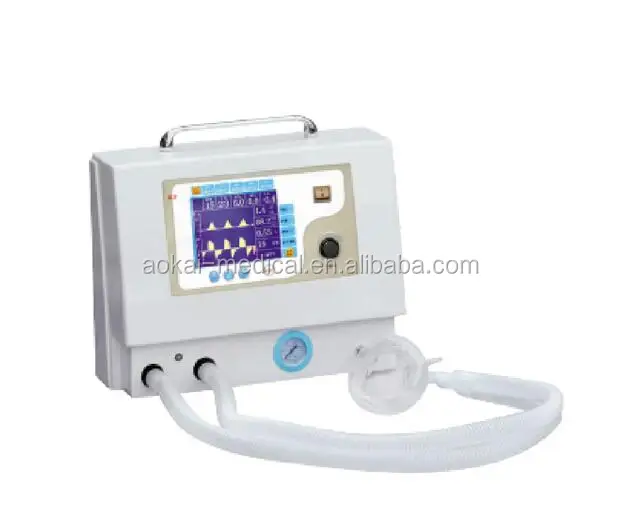

Medical ICU Operating Room Breathing Apparatus Portable Anesthesia Ventilator

VENTILATOR MACHINE

Model

AV-2000B1

Portable Ventilator

AV-2000B1

Vertical Ventilator

Display mode

5.7”

5.7”

Mode

IPPV, SIPPV, SIMV, MANUAL

Function

PEEP,SIGH, IRV

Tidal volume

50~1500ml

50~1500ml

Rate

2~99bpm

2~99bpm

SIMV rate

2~20bpm

2~20bpm

I:E

2:1~1:8

2:1~1:8

Inspiratory trigger pressure

-1.0~2.0 kPa

-1.0~2.0 kPa

PEEP

0~2.0 kPa

0~2.0 kPa

Pressure range

1.0~6.0 kPa

1.0~6.0 kPa

Pressure limitation

/

/

Pressure slope

/

/

Flow rate setting

/

/

Time control

/

/

SIGH

1.5 times the inspiratory time

Inspiratory platform

/

/

Oxygen concentration

/

/

Parameters for ventilation monitoring

tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure

Power

220V±10%, 50Hz±1Hz. UPS, Storage battery

Mechanical Arms

/

/

Compressor

/

/
