Машина для наполнения и герметизации медом в форме ложки
- Category: Blister Packaging Machines >>>
- Supplier: Guangzhou Mingyue Packaging Machinery Co. Ltd.
Share on (62108930799):
Product Overview
Description

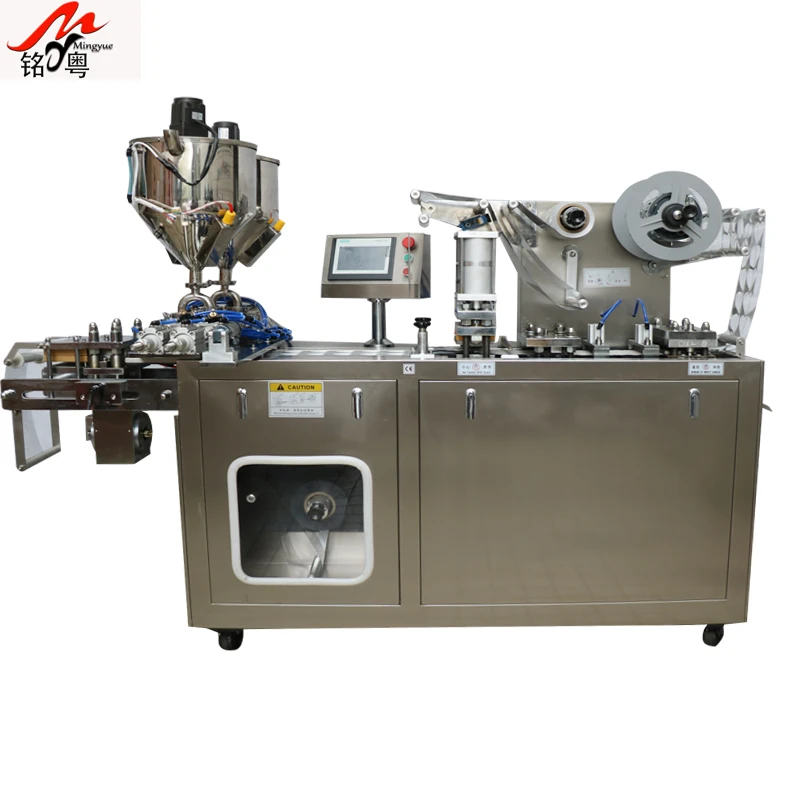

spoon shape honey packing machine honey filling and sealing machine

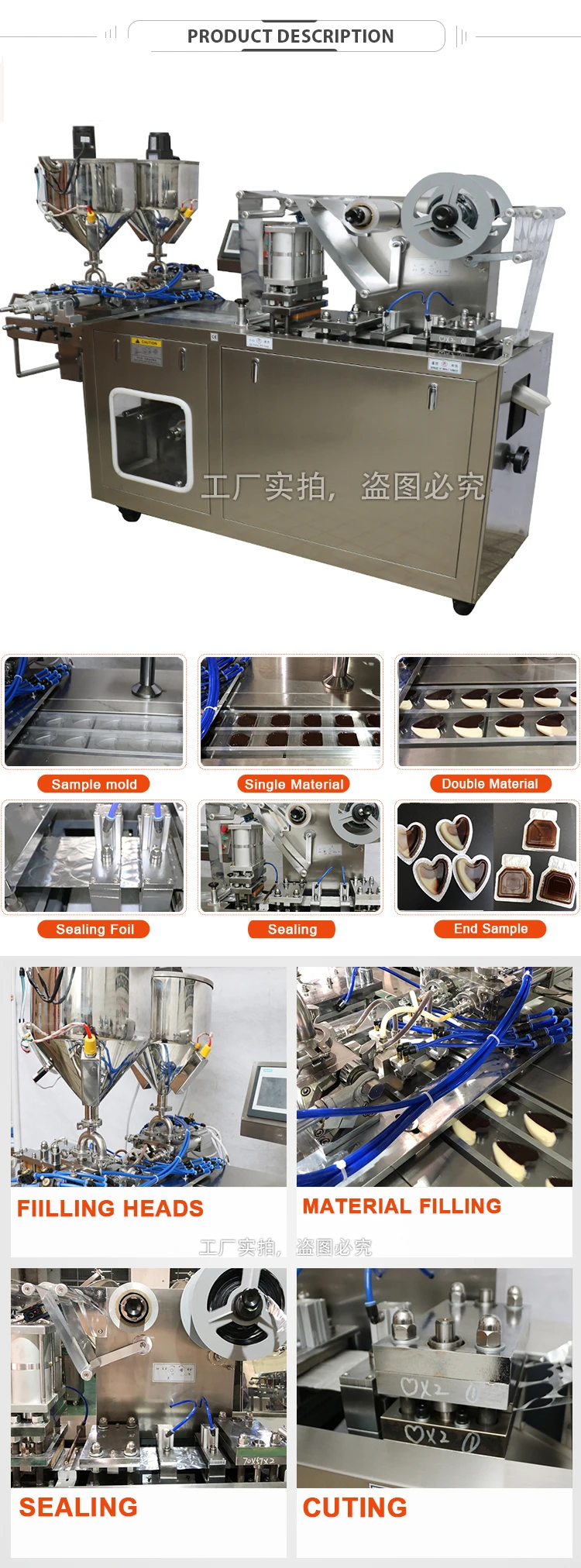

Product Description
Technique Performance
Model NO. | MY-140 |
Punching Frequency | 15-35 Cycles/minuted |
Production Capacity | 4200pcs/hour |
Max.forming area ,Depth | 140*110*26mm |
Standard Travel Range | 20-110mm |
Standard blister size | 20-110mm |
Standard Blister Size | 80*57mm |
Air Supply | 0.6-0.8Mpa |
Total Power | 380V/220V 50Hz 3.2Kw |
Main Motor Power | 1.5kw |
PVC Sheet | Thickness(0.15-0.5)*with 140mm |
PTP | Thickness (0.02-0.035)*140mm |
Thickness Dairying paper | (50-100)g*140mm |
Cooling mold | Running water,Circulation water |
Overall dimension | 2300*560*1410mm |
Weight | 900KG |
Noise | <75dBA |

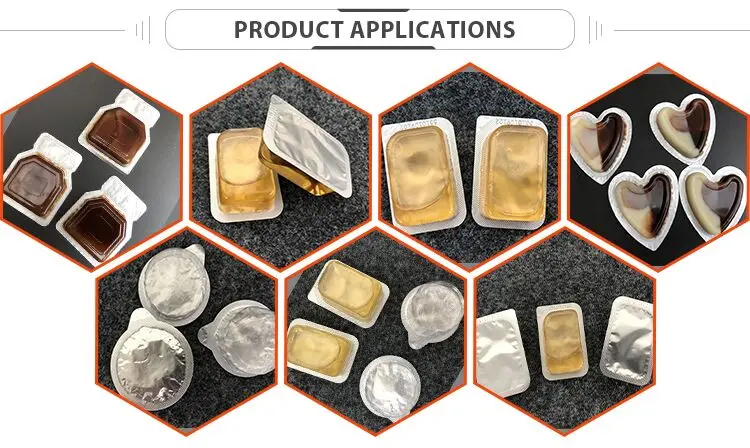

Scope of application
Automatic Pill Blister Packing Machine is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc.In electron or hardware industry as all kind of shapes of ALU-ALU, ALU-plastic, paper-plastic combined sealing packing.
Liquid Filling Detail
1. It adopts plunger type metering pump for filling,it is high in precision, the structure of the pump is easy to install and uninstall, and convenient for cleaning and sterilizing.
2. PLC control system, color touch screen display.
3.The filling head has the anti- dropping device
4. The filling precision is ±05%, the filling volume is 5-25ml( can be customized)
5. The frame of the machine and contact parts with material are bothmade from stainless steel, it meets with the GMP COMPLETELY.
