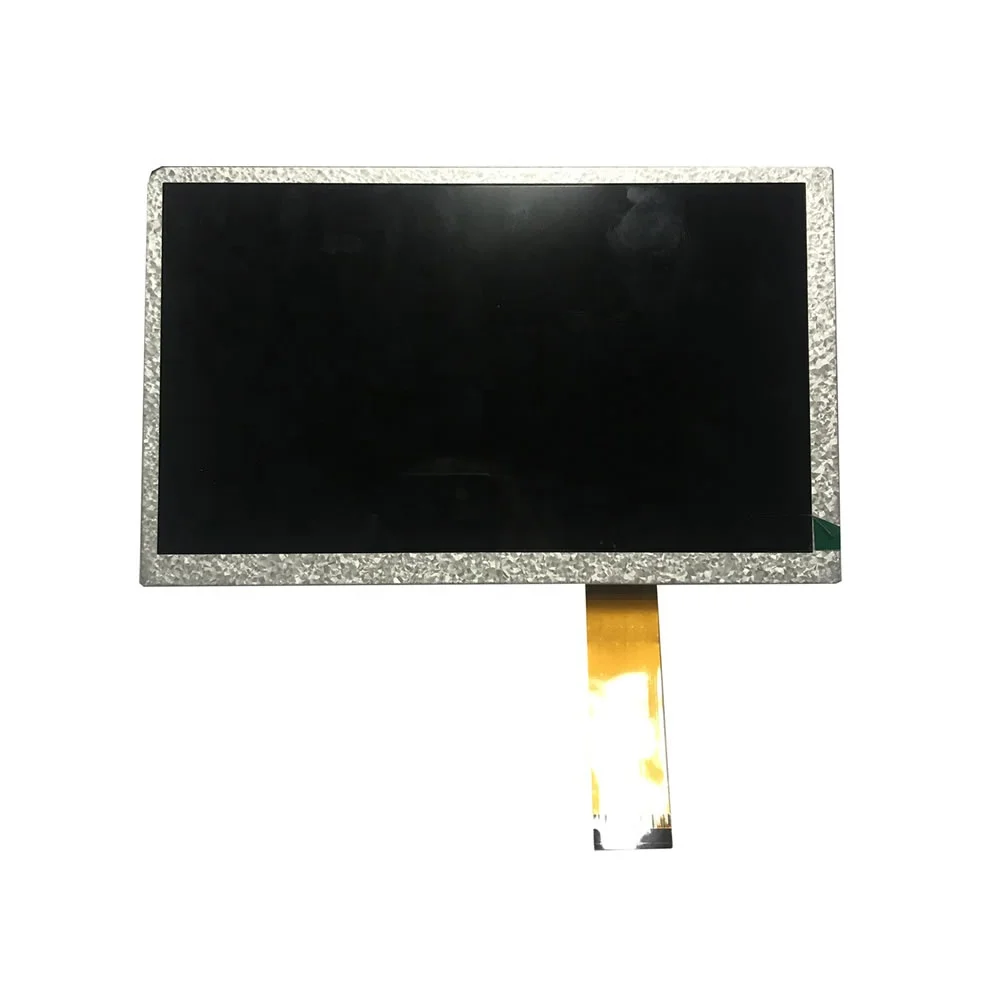

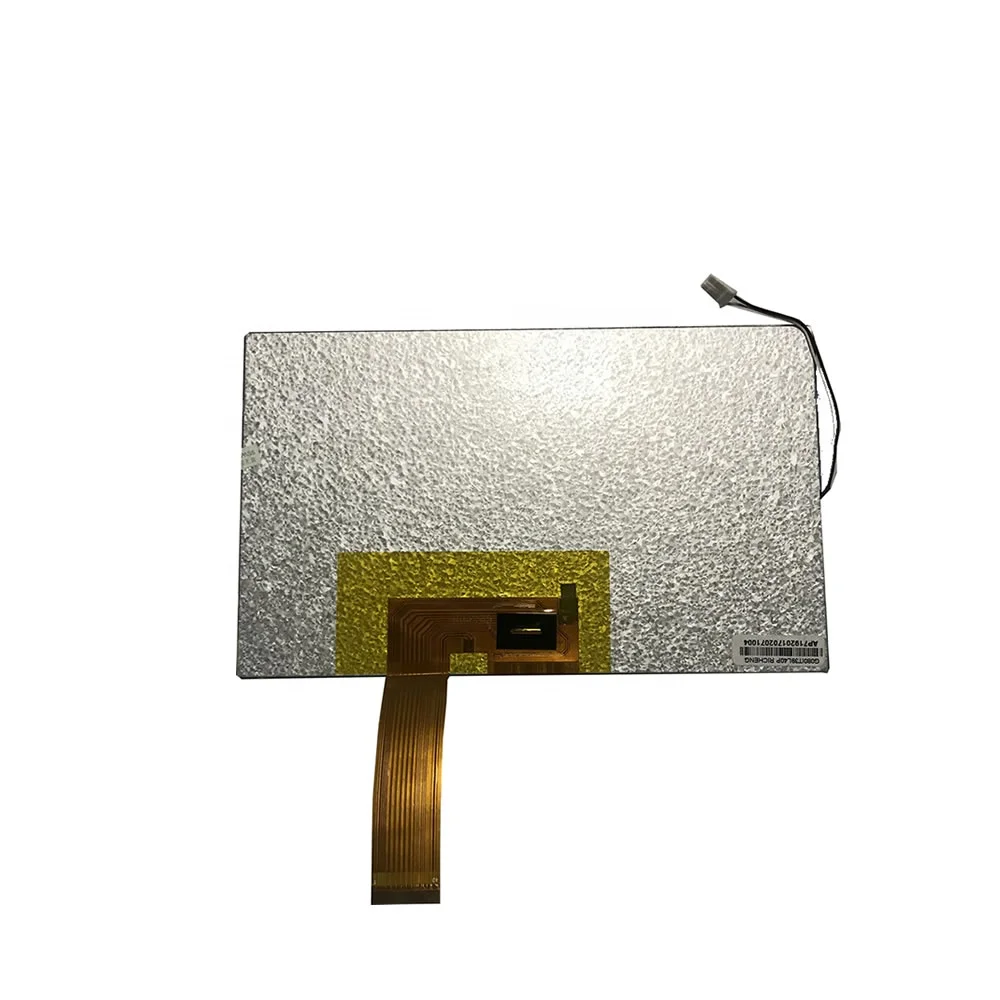

8inch 1024x600 G080IT39L40P-C01 innolux TFT lcd display module LCM for Car CD/DVD Navigation
G080IT39L40P-C01
Screen size (inch)
8 inches
Brightness
550nits
Display resolution (pixel)
1024x600
Ratio
16:9
Contrast Ratio
700
Active area (mm)
176.64(H) X 99.36(V)
Color configuration
RGB-stripe
surface treatment
Anti-Glare
System Interface
LVDS
Optimum viewing direction
6 O’Clock
Viewing Angle L/R/U/D
80/80/80/70
Operating Temperature
-20~70
Storage Temperature
-30~80

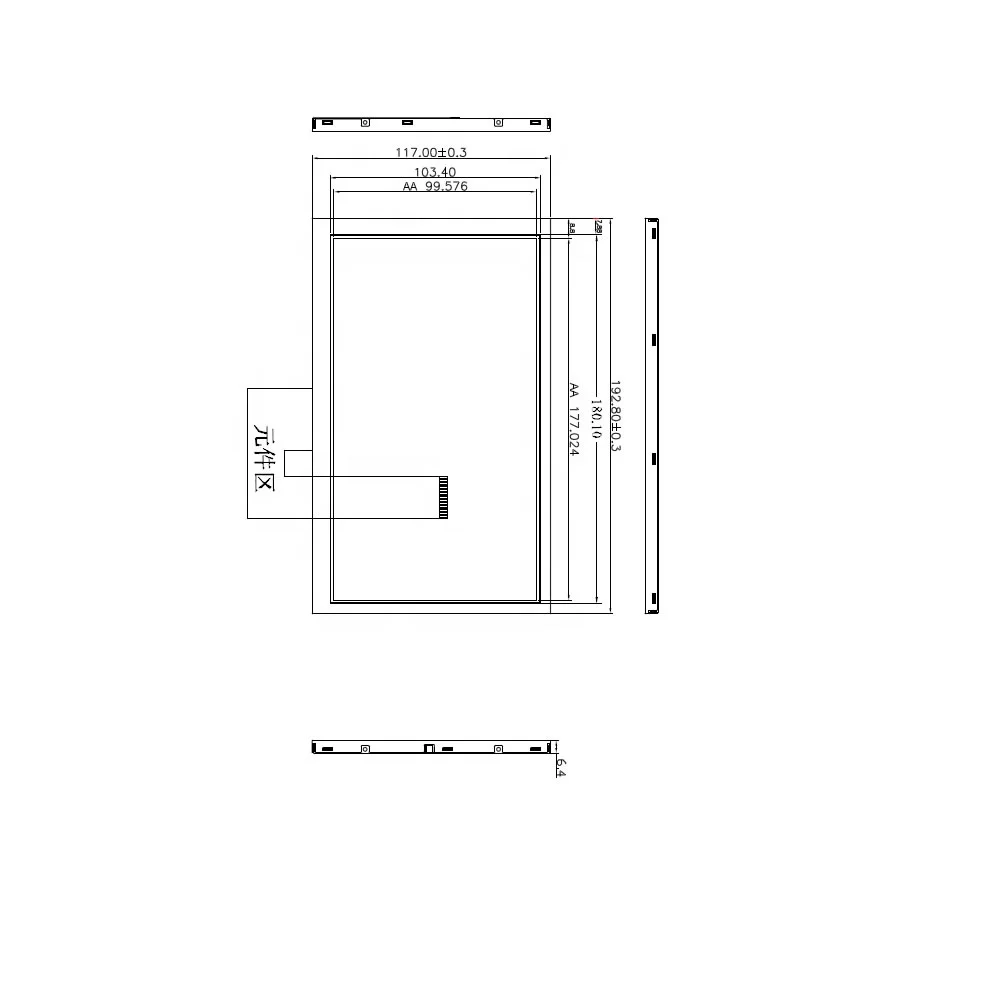

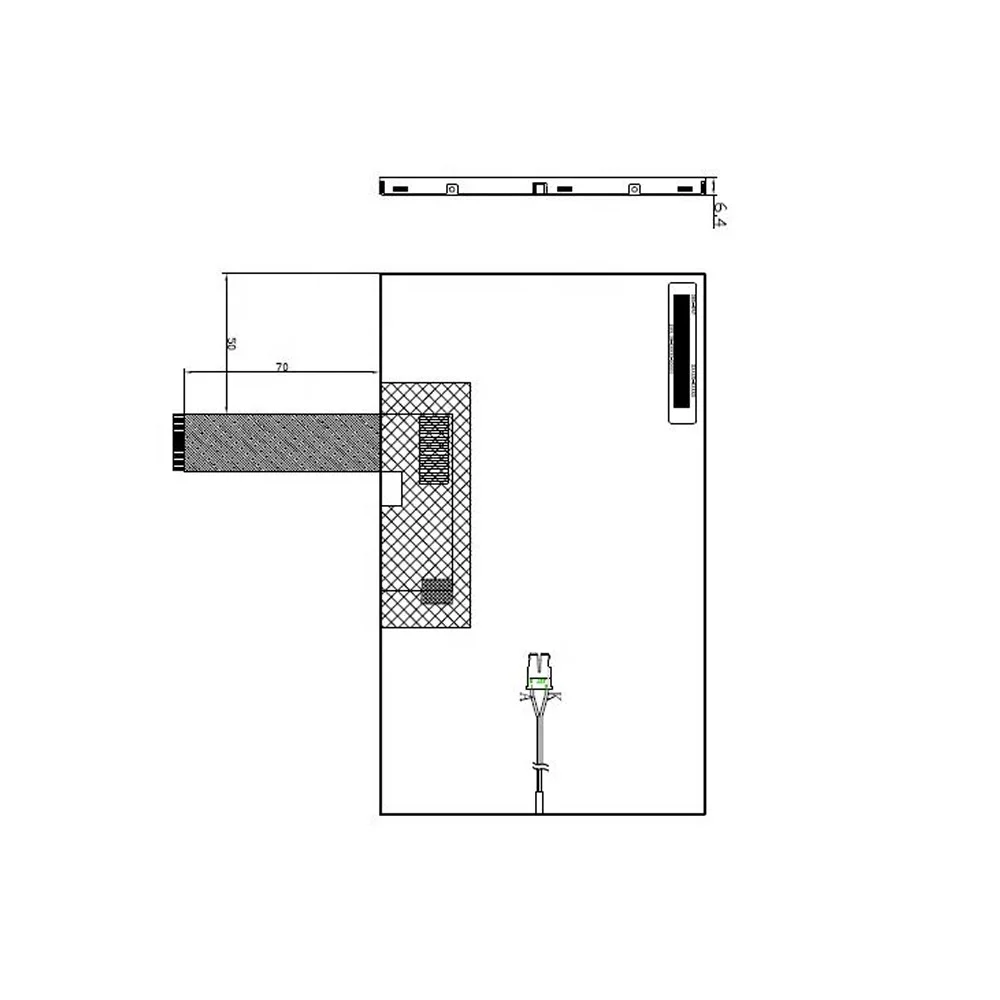

Module size
192.8(W)x116.9(H)x6.4(D)
Certifications
IATF16949, ISO9001, ISO14001
Grade.
A
Original item number
ZJ080NA

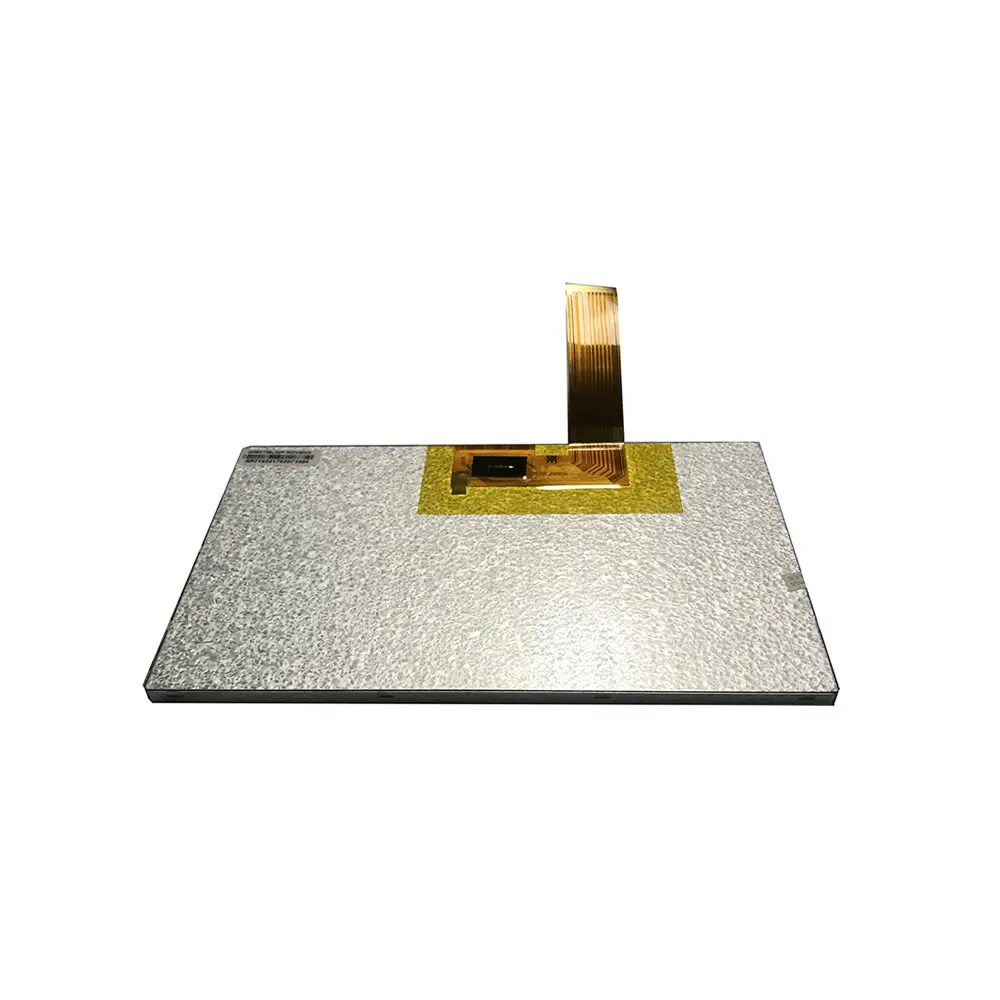

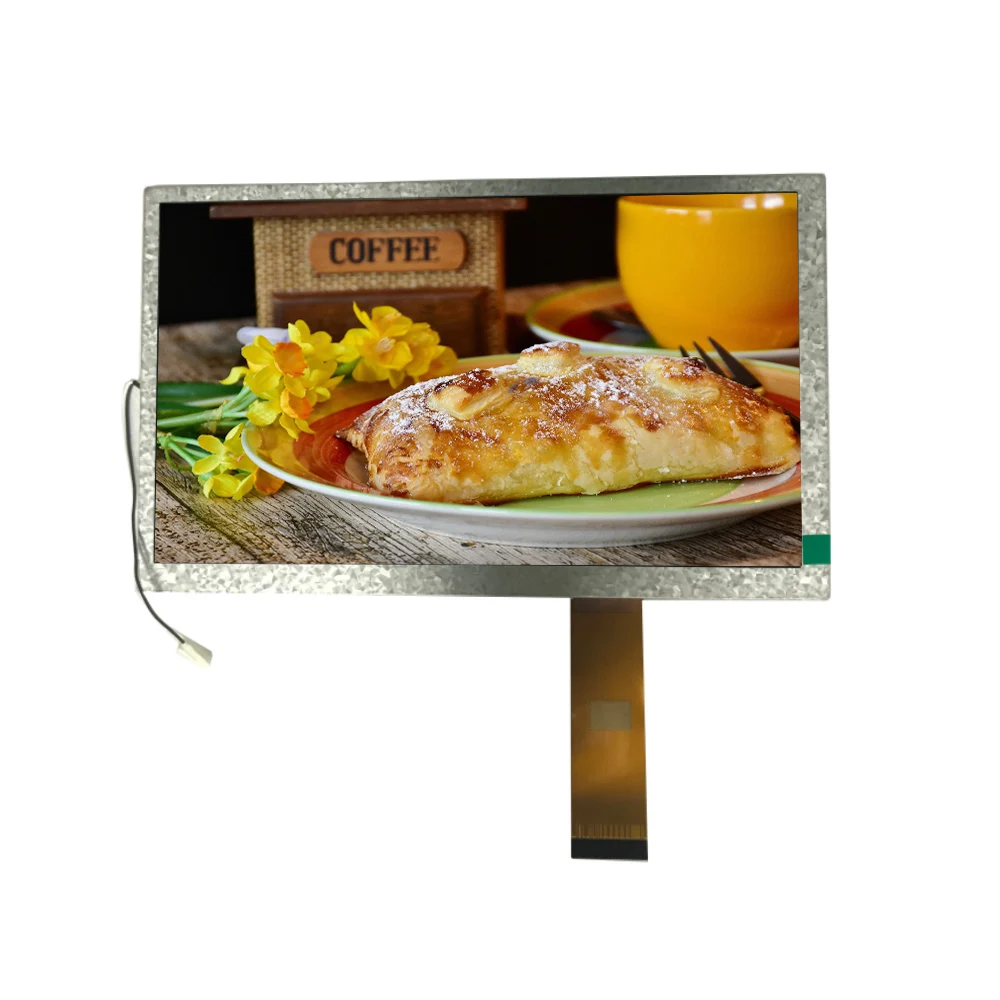

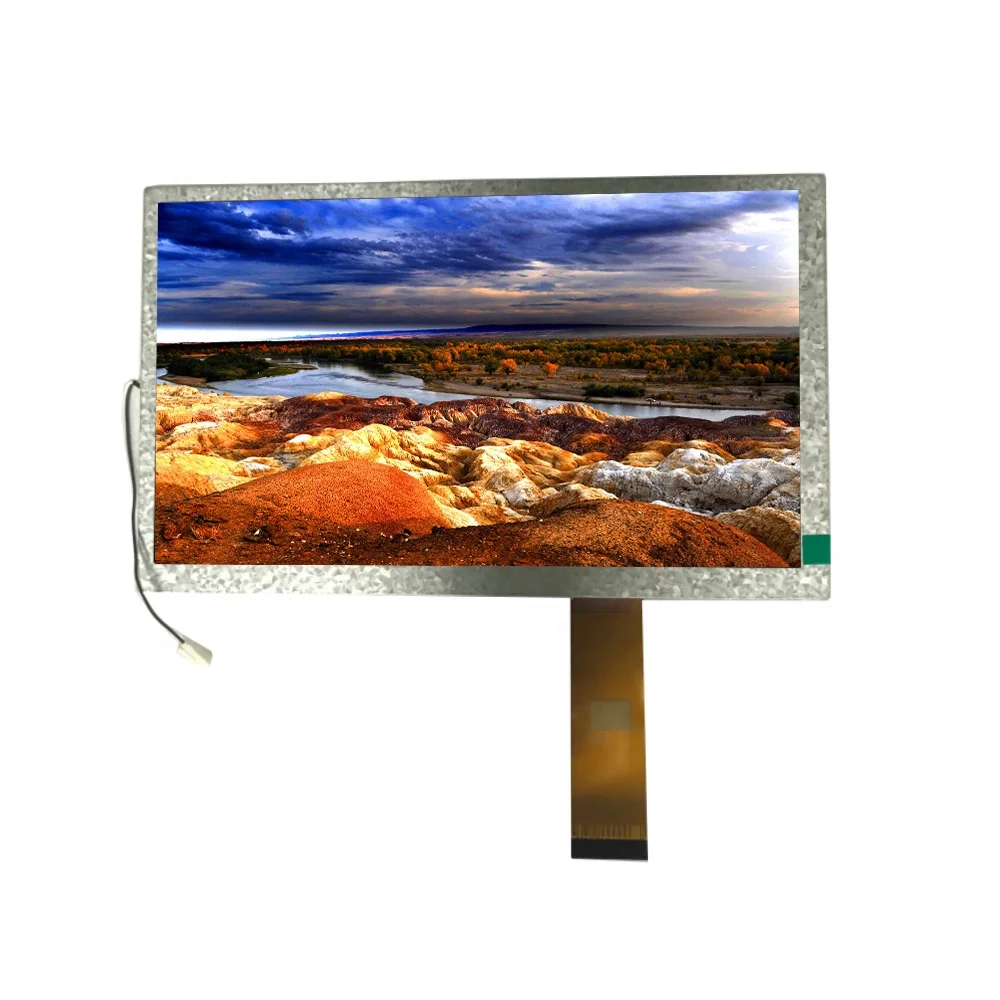

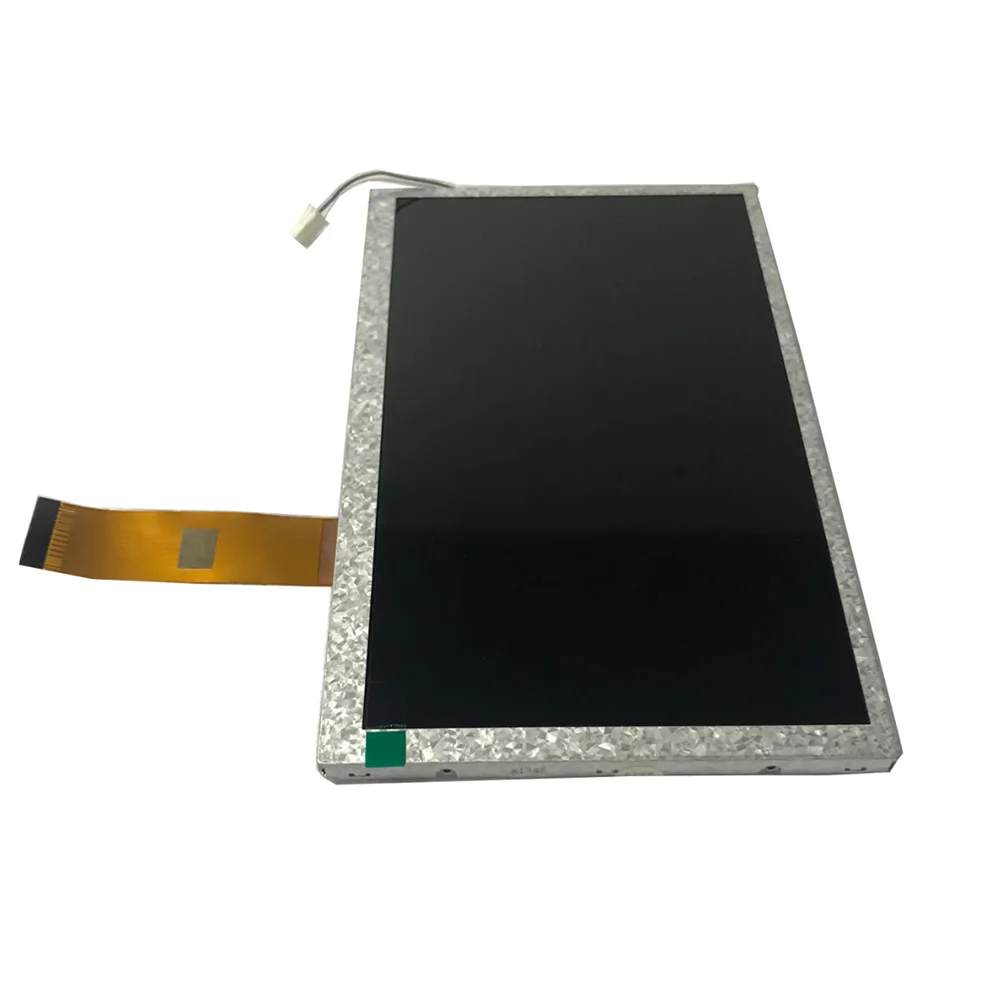

Detailed images

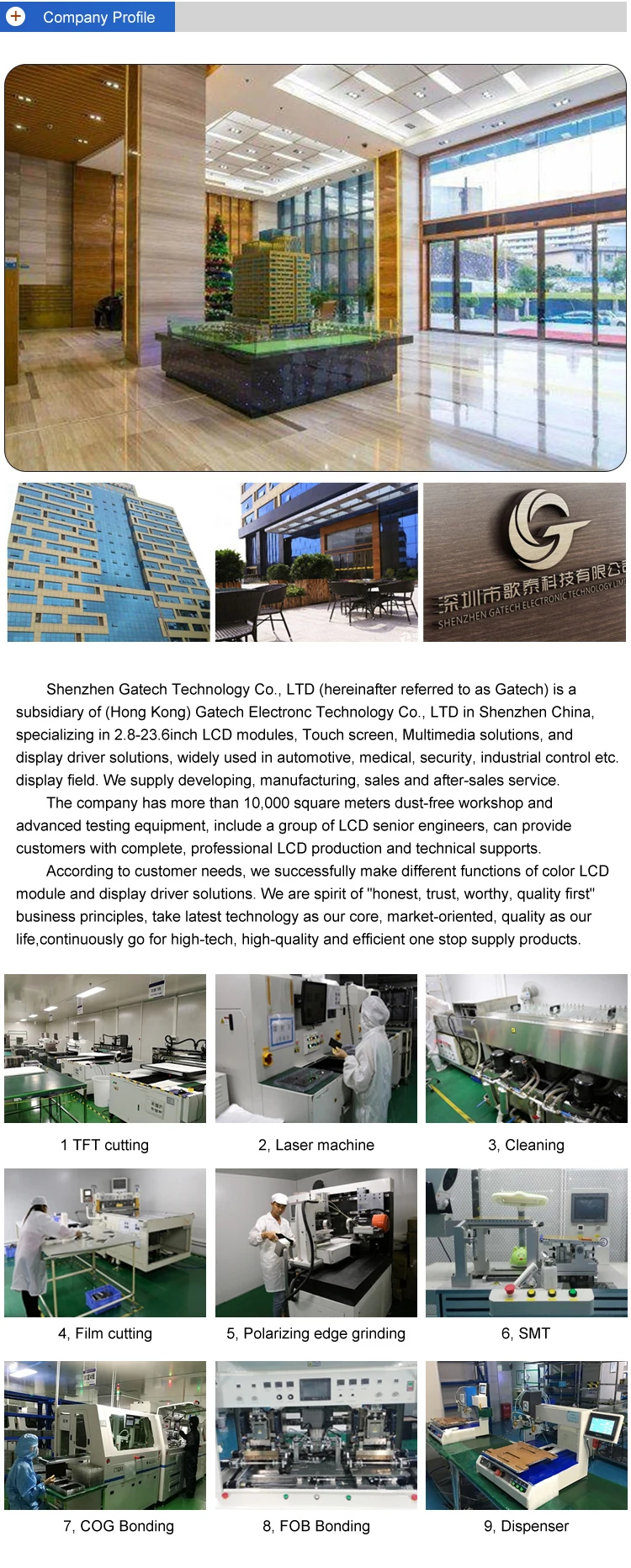

Our company
our advantage
Exhibition
Certifications
Packaging & Shipping
FAQ
Q1. What is your terms of packing? A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? A: Mainly for EXW, FOB.
Q4. How about your delivery time? A: Generally, it will take 25-35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
