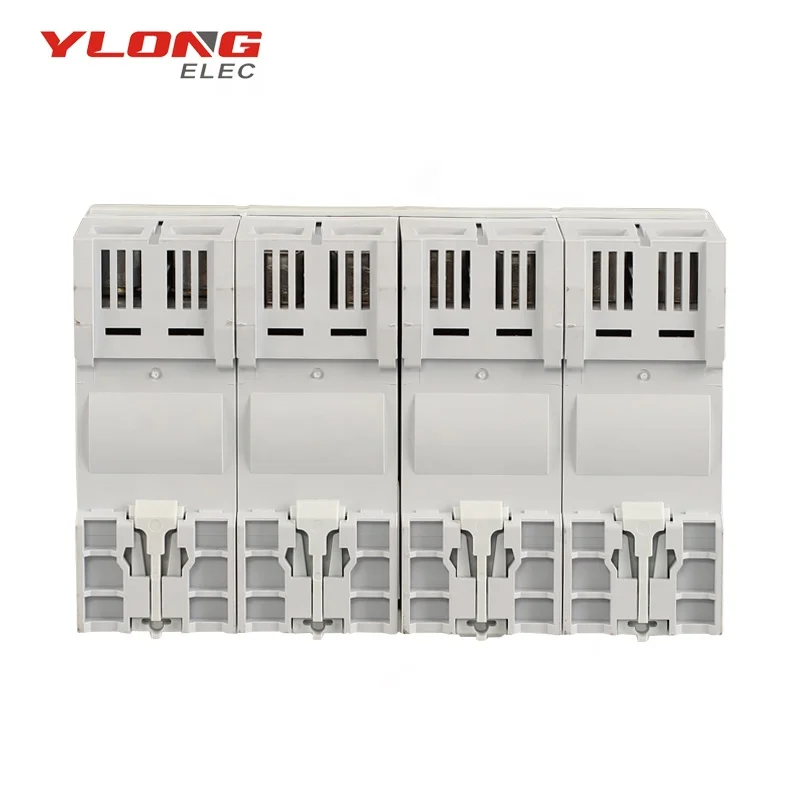

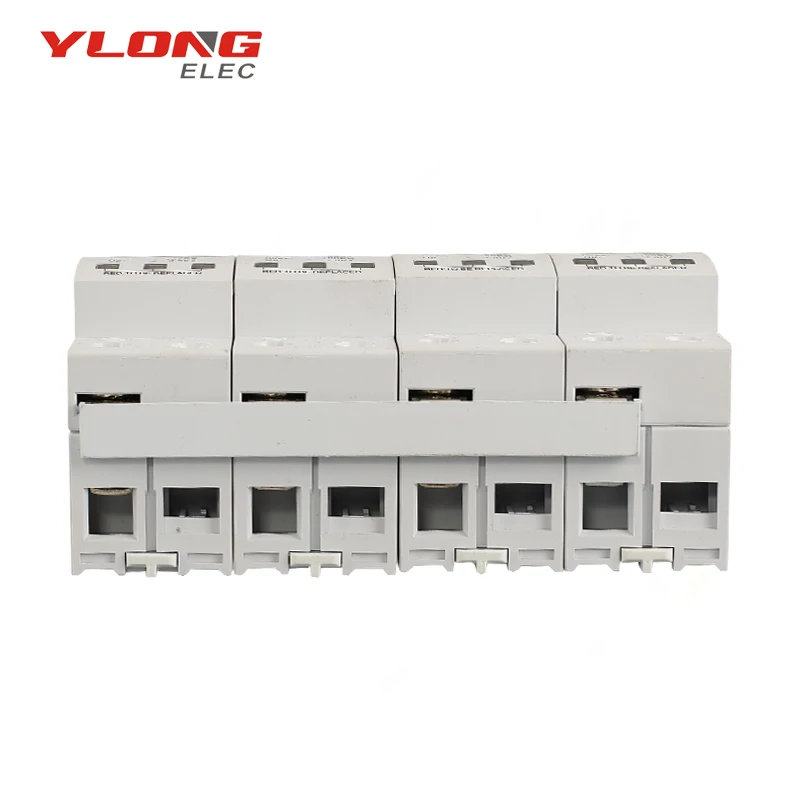

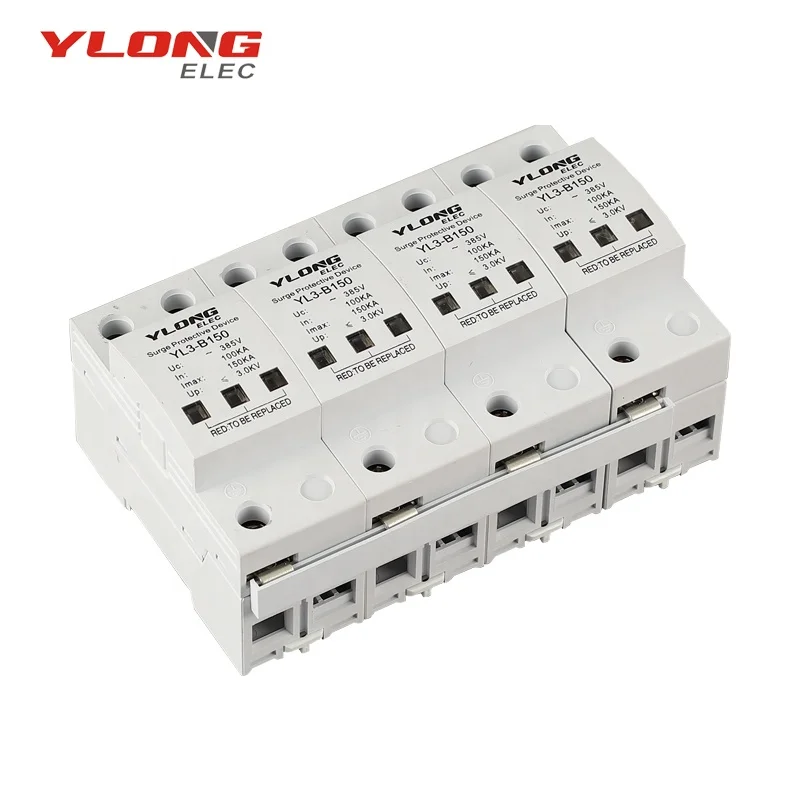

CE YL 3 150KA power surge protector

Product Detail



MODEL		YL3-B150	YL3-B150	YL3-B150
Rated voltage of Un(V)		275V	385V	420V
Max. continuous operating voltage Uc(-V)		275V	385V	420V
Voltage protection level of up(8/20 μs)(KA)		2.5kV	3.0kV	3.2kV
Normal discharge current In(8/20μs)(KA)		100	100	100
Max.discharge current of Imax(8/20μs)(KA)		150	150	150
The response time of NS		< 25
Test level		II  Level
The width of mm		27
Color		White
Protection grade		IP20
Shell material		Reinforced flame retardant PBT
Environmental temperature		.-40℃~+85℃
A fuse or circuit breaker(A)		40A
The line Specifications	Phase line,zero line	2.5~35mm²
	Wire	4.0~35mm²
	The signal line	1.5mm²
