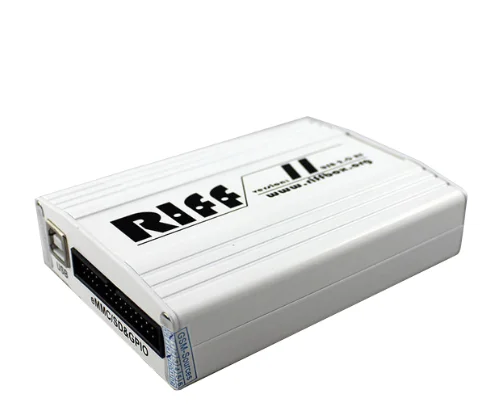

Riff box v2 Riff box II with Emmc and Adapter for LG for HTC for Samsung mobiles Repair and Flash

Product Overview

Description

1.Riff box v2 Riff box II  with Emmc and Adapter for LG for HTC for Samsung mobiles Repair and Flash .

2. 1 year warranty.



RIFF JTAG Box Outstanding Features

• ARM7/ARM9/ARM11 PXA3xx, PXA270, Cortex-A8, OMAP850, Cortex-A9 Dual cores supported


• Multiple devices on JTAG chain supported, TAP number selection available


• Any custom voltage level selection within the range of ~1.4V to 3.3V


• TCK / Adaptive clocking selection available


• Halt core (NRST is not changed)


• Reset core (NRST is applied before halt)


• Run core


• Direct Memory Read (by 8/16/32-bit bytes/half-words/words)


• Direct Memory Write (by 8/16/32-bit bytes/half-words/words)


• Access to ARM core control registers (coprocessor 15)


• Program code breakpoints


• Custom scripting and DCC loader supported (compatible with Trace32 scripts)


• Custom GDB Server Available


• I/O pins detection – Unique feature available with RIFF Box JTAG ONLY!

RIFF JTAG Box Supported Controllers

• OneNAND (connected directly to the MCU’s address space)


• CFI Compliant NOR with CFI Command sets 0×0001, 0×0002, 0×0200 and 0×0003


• NAND Controller in MSM6250, MSM6250A


• NAND Controller in QSC6055, QSC6085, QSC6240, QSC6270


• NAND Controller in MDM6085, MDM6200, MDM6600


• NAND Controller in MSM6245, MSM6246, MSM6270, MSM6275, MSM6280, MSM6280A, MSM6281, MSM6290, MSM6800A, MSM6801A


• NAND Controller and OneNAND Controller in MSM7225, MSM7227, MSM7625, MSM7627


• NAND Controller in MSM7200, MSM7200A, MSM7201A, MSM7500, MSM7500A, MSM7501A, MSM7600


• NAND Controller in QSD8250, QSD8650


• eMMC Controller #2 in MSM7230, MSM8255, MSM8255T


• eMMC Controller #0 in S5PV310

RIFF JTAG Box Supported Chipsets and Cores for JTAG I/O Operations

• Generic ARM Cores: ARM7, ARM9 (ARM920, ARM926, ARM946), ARM11, CORTEX-A8,CORTEX-A9


• Qualcomm QSC Family: QSC1100, QSC1110, QSC6010, QSC6020, QSC6030, QSC6055, QSC6085, QSC6240, QSC6270


• Qualcomm MSM Family: MSM6000, MSM6150, MSM6245, MSM6246, MSM6250, MSM6250A, MSM6260, MSM6275, MSM6280, MSM6280A, MSM6281, MSM6800A, MSM6801A, MSM6290, MSM7225, MSM7227, MSM7625, MSM7627, MSM7230, MSM8255, MSM8255T, MSM8260


• Qualcomm QSD Family: QSD8250, QSD8650


• Qualcomm ESM Family: ESM7602A


• Qualcomm MDM Family: MDM6085 MDM6200, MDM6600


• OMAP Family: OMAP1710, OMAP3430, OMAP3630, OMAP4430


• NVIDIA Family: TEGRA2


• Marvell/XScale Family: PXA270, PXA271, PXA272, PXA310, PXA312, PXA320


• Samsung Processors: S5P6422, S5PV310

RIFF JTAG Box Supported GPS Devices

• Daewoo DPN3500 Flash, Repair

RIFF JTAG Box Supported Mobile Phones and Communicators

• ASUS P526 Flash, Repair


• DELL XCD28 Flash, Repair


• DELL Streak (DELL Mini 5) Flash, Repair


• Lenovo LePhone 3G W100 Flash, Repair


• Eten X800 Flash, Repair


• HTC Desire Flash, Repair


• HTC Diamond Flash, Repair


• HTC Dream – Google G1 Flash, Repair


• HTC HD2 LEO Flash, Repair


• HTC Herald Flash, Repair


• HTC Touch P3452 – HTC Elfin Flash, Repair


• HTC Magic32A Flash, Repair


• HTC Magic32B Flash, Repair


• HTC Nexus Flash, Repair


• HTC RhodiumW Flash, Repair


• HTC Rhodium Touch Pro2 Flash, Repair


• HTC Topaz Flash, Repair


• HTC Touch HD Flash, Repair


• HTC Touch2 Mega Flash, Repair


• HTC Imagio/Whitestone Flash, Repair


• HTC Snap – Maple 120, Maple 100 Flash, Repair


• HTC Dash Flash, Repair


• HTC Tattoo Click 100 Flash, Repair


• HTC Niki (HTC Touch Dual) Flash, Repair


• HTC Kovalsky Flash, Repair


• HTC Jade (HTC Touch 3G T3232) Flash, Repair


• HTC Legend Flash, Repair


• HTC Wildfire Flash, Repair


• HTC Hero Flash, Repair


• HTC Wings (HTC S730 US) Flash, Repair


• HTC HD7 Flash, Repair


• HTC Gene-P3400 (Gene100) Flash, Repair


• HTC Artemis (ARTE100, ARTE110) Flash, Repair


• HTC Click 1100 (ESM7225 Asia version) Flash, Repair


• HTC Ozone XV6175 (HTC Chief) Flash, Repair


• HTC Advantage X7510 (HTC Athena) Flash, Repair


• HTC 7 Mozart Flash, Repair


• HTC Polaris (HTC Touch Cruise P3650) Flash, Repair


• HTC 7 Trophy (HTC Spark) Flash, Repair


• Dopod Magic A6188 (HTC Sapp400) Flash, Repair


• HTC Desire HD SPL Flash, Repair


• HTC Wildfire S SPL Flash, Repair


• HTC Universal (PU10) Flash, Repair


• HTC Wizard 200 (MDA Vario, QTEK9100, SPV M3000) Flash, Repair


• HTC Desire S (HTC Saga) Flash, Repair


• HTC Desire Z (HTC Vision) Flash, Repair


• HTC Incredible S Flash, Repair


• HTC Inspire 4G A9192 (HTC Stallion) Flash, Repair


• HTC Panache/Glacier/My Touch 4G Flash, Repair


• HTC Droid Incredible 2 ADR6350 Flash, Repair


• HTC ThunderBolt 4G ADR6400 (HTC Mecha) Flash, Repair


• HTC Titan


• Huawei Ascend G510


• LG F260S Optimus LTE III


• LG E975 Optimus G (LG Gee)


• LG E960 Nexus 4 (LG Mako)


• LG E970 Optimus G (LG Gee)


• LG GT540 Optimus Flash, Repair


• LG P500 Optimus One Flash, Repair


• LG CU720 Shine Flash, Repair


• LG SH860 Flash, Repair


• Hewlett-Packard iPAQ 614 Flash, Repair


• SE Xperia X1 Flash, Repair


• SE Xperia X10 Flash, Repair


• SE Xperia X10 Mini Flash, Repair


• SE Xperia E10 Flash, Repair


• SE Xperia X8 Flash, Repair


• SE Xperia E15 Flash, Repair


• Orange Boston (Commtiva Z71) Flash, Repair


• Pantech Vega No6 IM-A860S


• Pantech Vega LTE M IM-A810S SKY


• Pantech Vega IM-A650S


• Samsung B7330 Flash, Repair


• Samsung C5510 Flash, Repair


• Samsung F480 Flash, Repair


• Samsung F500 modem Flash, Repair


• Samsung G810 modem Flash, Repair


• Samsung G810 PDA Flash, Repair


• Samsung i9505


• Samsung i337


• Samsung l720


• Samsung m919


• Samsung i450 modem Flash, Repair


• Samsung i450 PDA Flash, Repair


• Samsung i550 modem Flash, Repair


• Samsung i550 PDA Flash, Repair


• Samsung i560 PDA Flash, Repair


• Samsung i568 PDA Flash, Repair


• Samsung i560 modem Flash, Repair


• Samsung i568 modem Flash, Repair


• Samsung i5500 Galaxy Flash, Repair


• Samsung i5510 Galaxy Flash, Repair


• Samsung I5700 Flash, Repair


• Samsung i5800 Flash, Repair


• Samsung i710 Flash, Repair


• Samsung i718 Flash, Repair


• Samsung i740 PDA Flash, Repair


• Samsung i740 Modem Flash, Repair


• Samsung I7500 Flash, Repair


• Samsung i780 modem Flash, Repair


• Samsung i780 PDA Flash, Repair


• Samsung i897 Captivate Flash, Repair


• Samsung I8000 Flash, Repair


• Samsung i8320 modem Flash, Repair


• Samsung i8320 PDA Flash, Repair


• Samsung i8510 modem Flash, Repair


• Samsung i8510 PDA Flash, Repair


• Samsung i8910 modem Flash, Repair


• Samsung i8910 PDA Flash, Repair


• Samsung I9000 Flash, Repair


• Samsung i900 modem Flash, Repair


• Samsung i900 PDA Flash, Repair


• Samsung i908E modem Flash, Repair


• Samsung M7500 Flash, Repair


• Samsung M7600 Flash, Repair


• Samsung M8910 Flash, Repair


• Samsung S3310 Flash, Repair


• Samsung S3370 Flash, Repair


• Samsung S5230 Flash, Repair


• Samsung S5510 Flash, Repair


• Samsung S5560 Flash, Repair


• Samsung S5560i Flash, Repair


• Samsung S5570 Flash, Repair


• Samsung S5600 Flash, Repair


• Samsung S5660 Flash, Repair


• Samsung S7070 Flash, Repair


• Samsung S7230E Wave 723 Flash, Repair


• Samsung S7350 Flash, Repair


• Samsung S7350i Flash, Repair


• Samsung S8000 Flash, Repair


• Samsung S8300 Flash, Repair


• Samsung S8500 Flash, Repair


• Samsung T919 Flash, Repair


• Samsung T669 Flash, Repair


• Samsung T959 Flash, Repair


• Samsung U700 Flash, Repair


• Samsung U800 Flash, Repair


• Samsung U900V Flash, Repair


• Samsung Z240 Flash, Repair


• Samsung Z540 Flash, Repair


• Samsung G800 Flash, Repair


• Samsung i607 PDA Flash, Repair


• Samsung Galaxy Mini (S5570) Flash, Repair


• Samsung Nexus S (Samsung i9023) Flash, Repair


• Samsung Eternity A867 Flash, Repair


• Samsung Galaxy Ace S5830 Flash, Repair


• Samsung Z630 Flash, Repair


• Samsung Galaxy S 4G (T959v 1GB) Flash, Repair


• Samsung T749 Flash, Repair


• Samsung GT-i8700 Omnia 7 Flash, Repair


• Samsung W299 Flash, Repair


• Samsung P960 Flash, Repair


• Samsung Galaxy S II Flash, Repair


• Samsung A837 Flash, Repair


• Samsung Anycall m110s Flash, Repair


• Samsung Wave II (S8530) Flash, Repair


• Samsung s7330 Flash, Repair


• Samsung Focus – i917 Flash, Repair


• Samsung i997 Flash, Repair


• Samsung Galaxy II OMAP4430 (i9100G, i9108) Flash, Repair


• Samsung Corby II (S3850) Flash, Repair


• Samsung i520 Modem and PDA parts Flash, Repair


• Samsung z500 Flash, Repair


• Samsung Galaxy S Plus (Samsung i9001) Flash, Repair


• Samsung Galaxy SL (Samsung i9003) Flash, Repair


• Samsung Galaxy Prevail (Samsung m820) Flash, Repair


• Samsung Star Duos (C6712) Flash, Repair


• Samsung GT-i9103 Galaxy Z / Galaxy R Flash, Repair


• Samsung GT-S5670 Galaxy Fit Flash, Repair


• Samsung GT-S7572 Galaxy Trend Duos II


• Samsung GT-N7005 Galaxy Note LTE


• Samsung GT-i9205 Galaxy Mega 6.3 LTE 8GB


• Samsung GT-i9158 Galaxy Mega 5.8


• Samsung GT-i9152 Galaxy Mega 5.8


• Samsung GT-i8552 Galaxy Win Duos / Galaxy Grand Quatro


• Verizon Samsung SCH-i545 Galaxy S4 (Samsung Altius)


• Samsung SGH-i337M Galaxy S 4 LTE 32GB (Samsung Altius)


• Samsung SGH-T759 Exhibit 4G Flash, Repair


• Samsung GT-i8150 Galaxy W (Samsung Ancora) Flash, Repair


• Samsung SGH-i777 Galaxy S II Flash, Repair


• Samsung GT-S7500 Galaxy Ace Plus Flash, Repair


• Samsung S8600 Wave 3 Flash, Repair


• Toshiba G810 Flash, Repair


• Toshiba G900 Flash, Repair


• Toshiba G910 Flash, Repair


• Toshiba TG01 Flash, Repair


• ZTE RACER Flash, Repair


• ROVER PC EVO V7 Flash, Repair

RIFF JTAG Box Supported CDMA Mobile Phones

• ZTE MF100 Flash, Repair


• ZTE MF112 Flash, Repair


• ZTE MF622 Flash, Repair


• ZTE MF626 Flash, Repair


• ZTE MF628 Flash, Repair


• ZTE MF170 Flash, Repair


• ZTE MF180 Flash, Repair


• ZTE MF190 Flash, Repair


• ZTE MF180S Flash, Repair


• Huawei E1550 Flash, Repair


• Huawei E17X Flash, Repair


• Huawei E220 Flash, Repair


• Huawei E585 Flash, Repair


• Huawei E169 Flash, Repair


• Huawei E585 Flash, Repair


• Huawei E160 Flash, Repair


• Huawei E160G Flash, Repair


• Huawei E153U Flash, Repair


• Huawei EC1260 (CDMA) Flash, Repair


• Huawei E5830 Flash, Repair


• Huawei E5832 Flash, Repair


• Sierra USB Modem 597 Flash, Repair


• Sierra USB Modem U595 Flash, Repair


• Pantech UM150 Flash, Repair


• Sungil SXC1080 Flash, Repair

RIFF JTAG Box Supported Tablets

RIFF JTAG Box Package Content

• RIFF JTAG Box – 1 pc.


• Flat cable – 3 pcs.

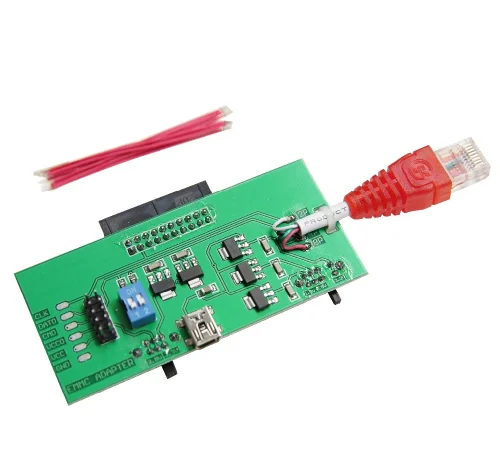

• Emmc Adapter - 1 pcs
