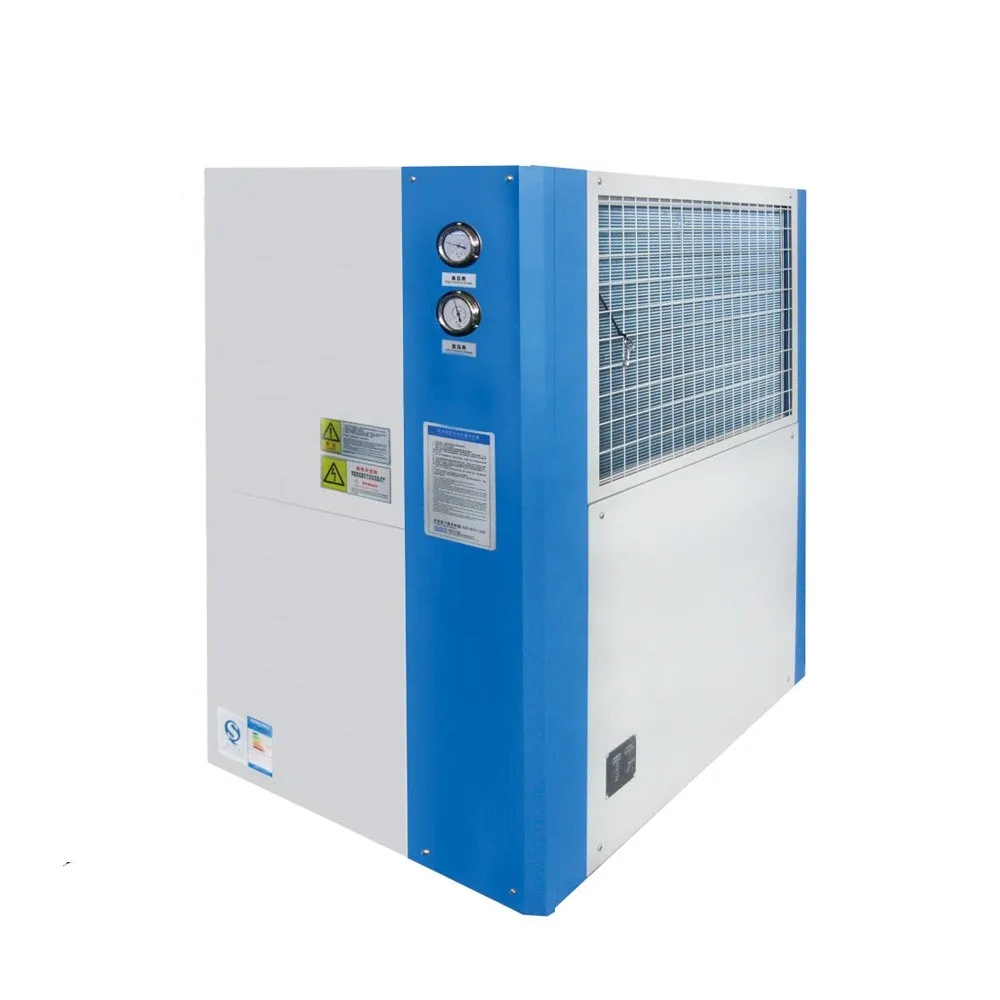

Industrial Air Cooled Water Chiller for aquarium
- Category: >>>
- Supplier: HAYE (Shanghai) Refrigeration Machinery Co. Ltd.
Share on (62109221271):
Product Overview
Description
Product Description

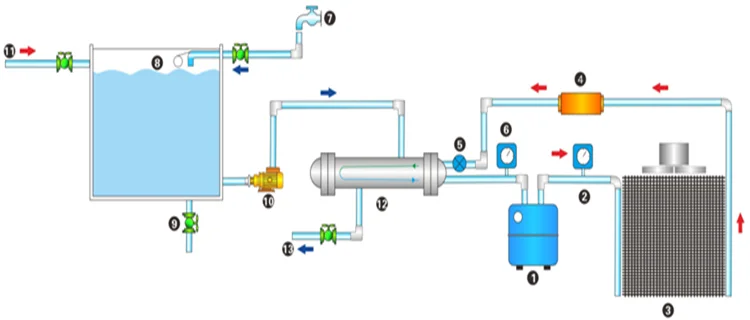

Flow Chart
Note:
1.Compressor 2.High pressure gage 3.Condenser 4.Dry filter 5.Expansion valve 6. Low pressure gage 7.Supply water 8.Water tank 9.Sewage outlet 10. water pump 11.Chilled water inlet 12.Evaporator 13.Chilled water outlet
Design condition
(1). Design waterproof ,suitable using outside without any roof.
(2) Adopt condensing pressure controller for cold ambient temperature -20C, Enlarge condenser area to hot temeprature 50C
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). All the water pipeline and water pump is SUS304 stainless steel
Features of 5Ton Air Cooled Water Chiller 380V 50Hz Low Temperature Glycol Chiller:
1). HIgh performance and original brand famous Copeland, Danfoss, and Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance- which can connect with fermenting tanks directly
B. Shell and tube, high efficient- high heat exchanger efficiency- connect with glycol tank
C. Brazed plate heat exchanger type( BPHE)- SUS304 stianless teel closed circuit,connect to glycol tank
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Chilled water temperature range -5ºC to 30ºC.
5) .CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection
Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level .....protection,Anti freezing protection ,Exhaust overheat protection
Application
Glycol chiller used in many different industries:
Food and Beverages – Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.
Pharma and chemical – Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc

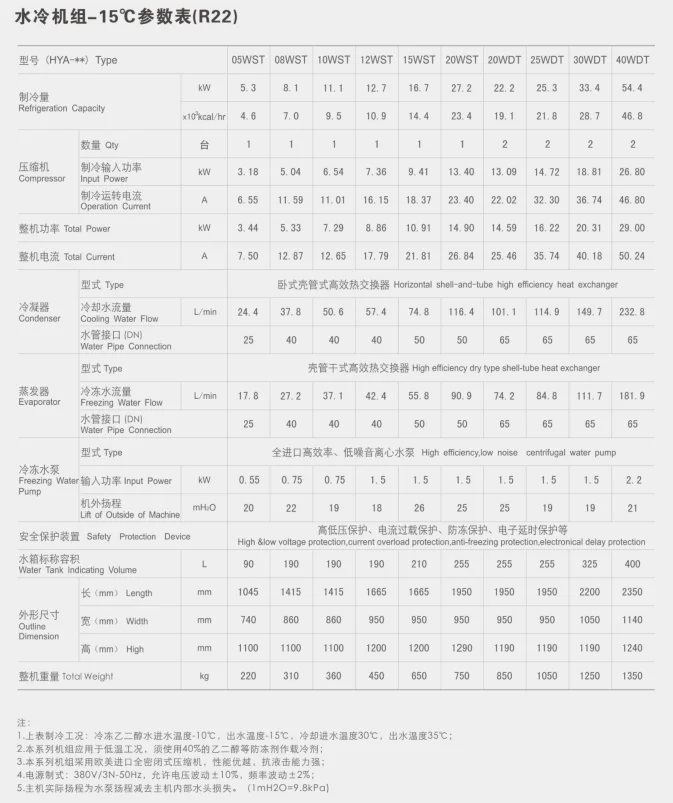

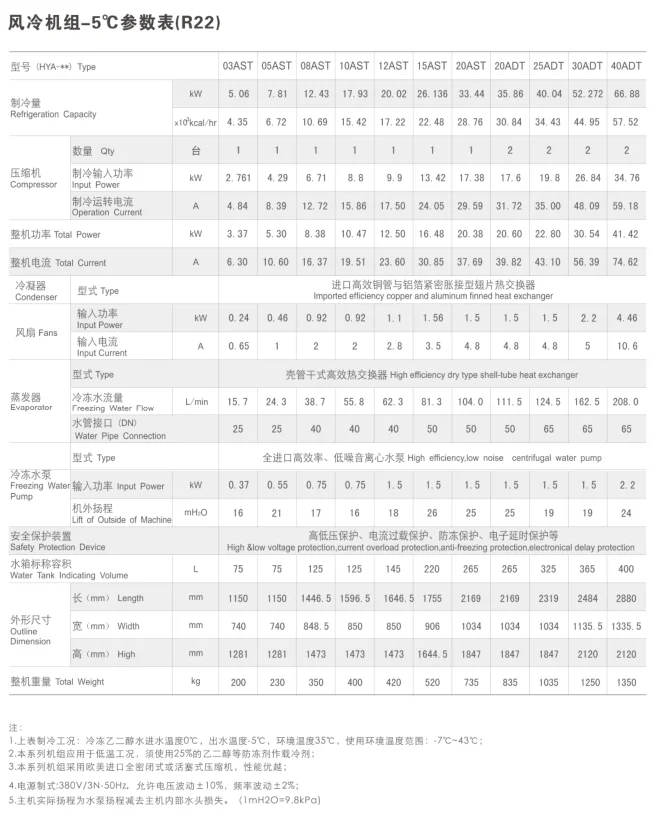

Specifications

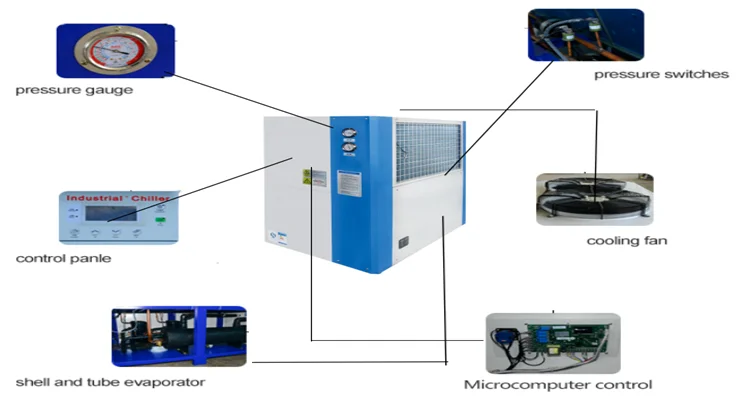

Detailed Images

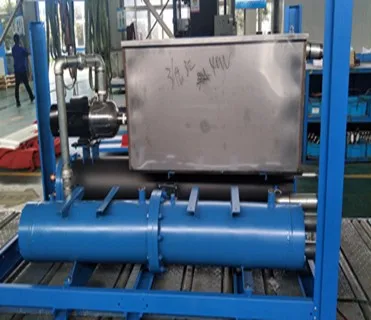

Stainless steel tank with copper coil type evaporator for options
English operation temperature controller, setpoint is asjutable

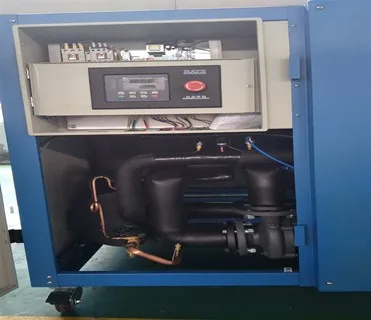

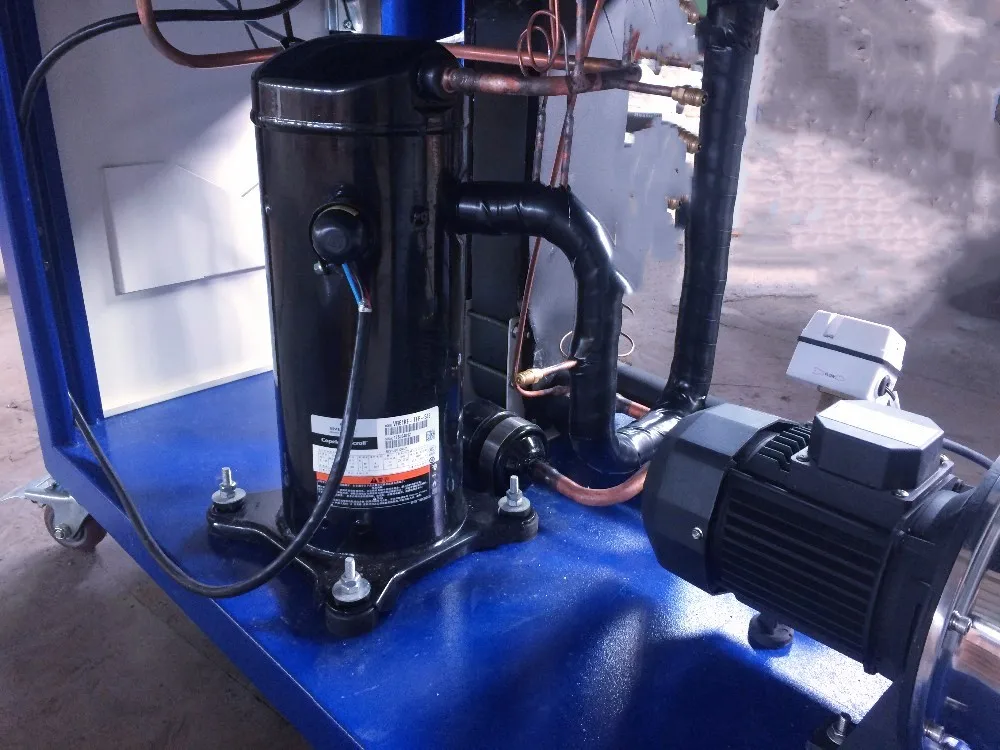

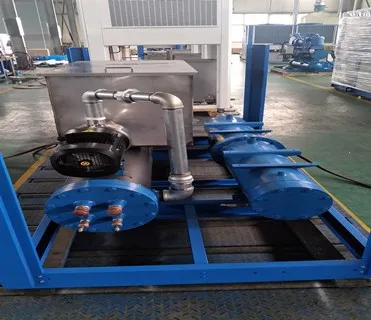

Circulation water pump built inside chiller
Stainless steel tank with copper coil type evaporator for options

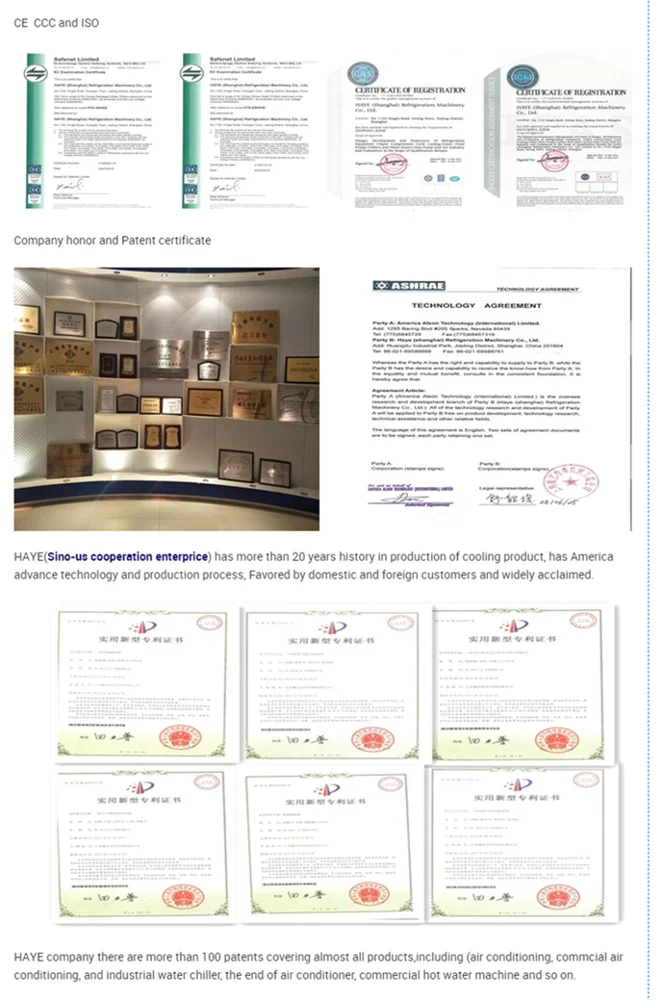

Certifications
CE CCC ISO

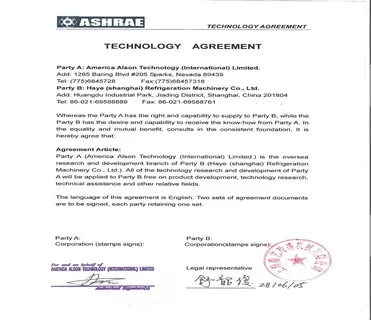

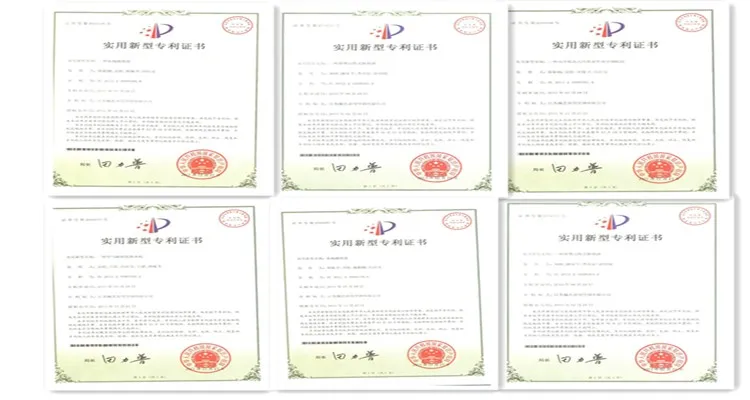

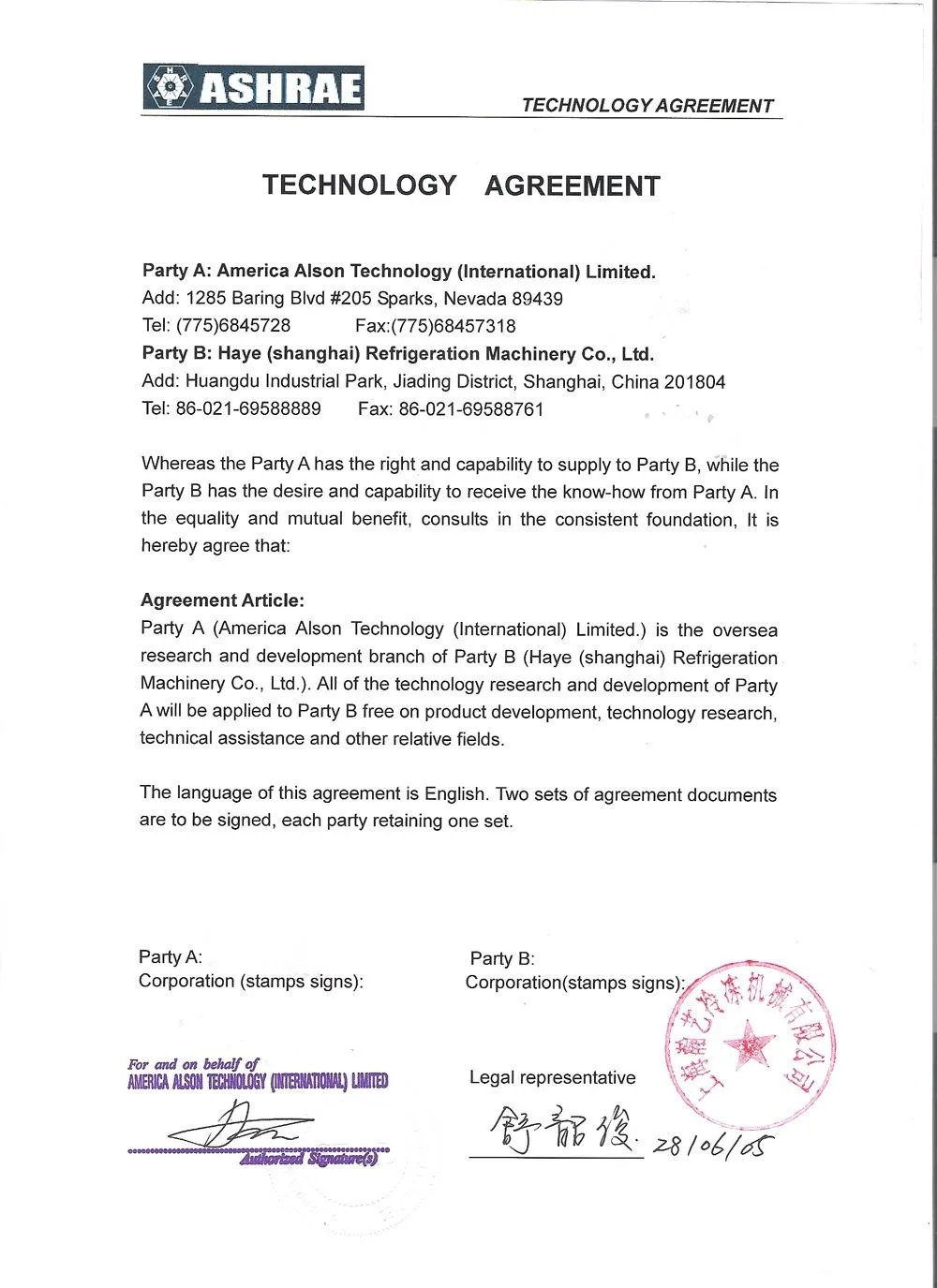

Company honor and Patent certificate
HAYE(Sino-us cooperation enterprice) has more than 20 years history in production of cooling product, has America advance technology and production process, Favored by domestic and foreign customers and widely acclaimed.
HAYE company there are more than 100 patents covering almost all products,including air conditioning, commcial air conditioning, and industrial water chiller, the end of air conditioner, commercial hot water machine and so on
Our Service
A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Advanced Payment-Production-Testing --Balance Payment- Packing &Delivery- Customs declaration- Documents to consignee- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit
2. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
3. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
4. Supply free training course to your workers at our factory if you need.
5. Supply the spare parts and technical support in & after the warranty time.
6. Spare parts and technical support at most economic prices after the warranty.
7. 24 hours on line service each day by telephone.
