Please Check the Follow Information1.Our Machine Can Produce 50mm,60mm,70mm,80mm wood briquette
2.We support Electric Motor and Diesel Engine.

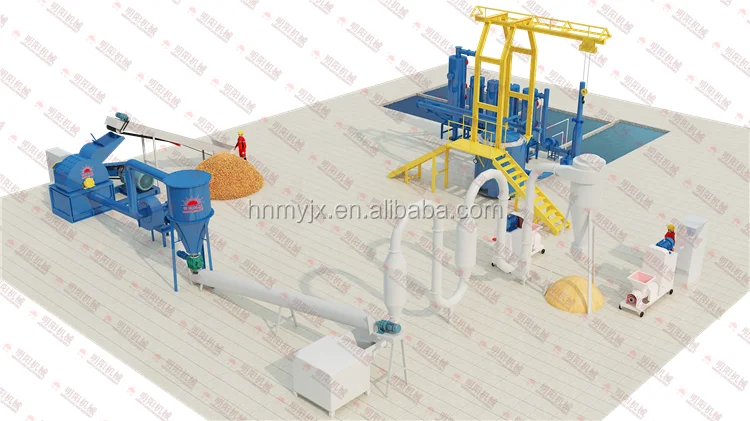

3.We supply complete production line.(Wood Crusher,dryer, carbonization furnace,other related machine)

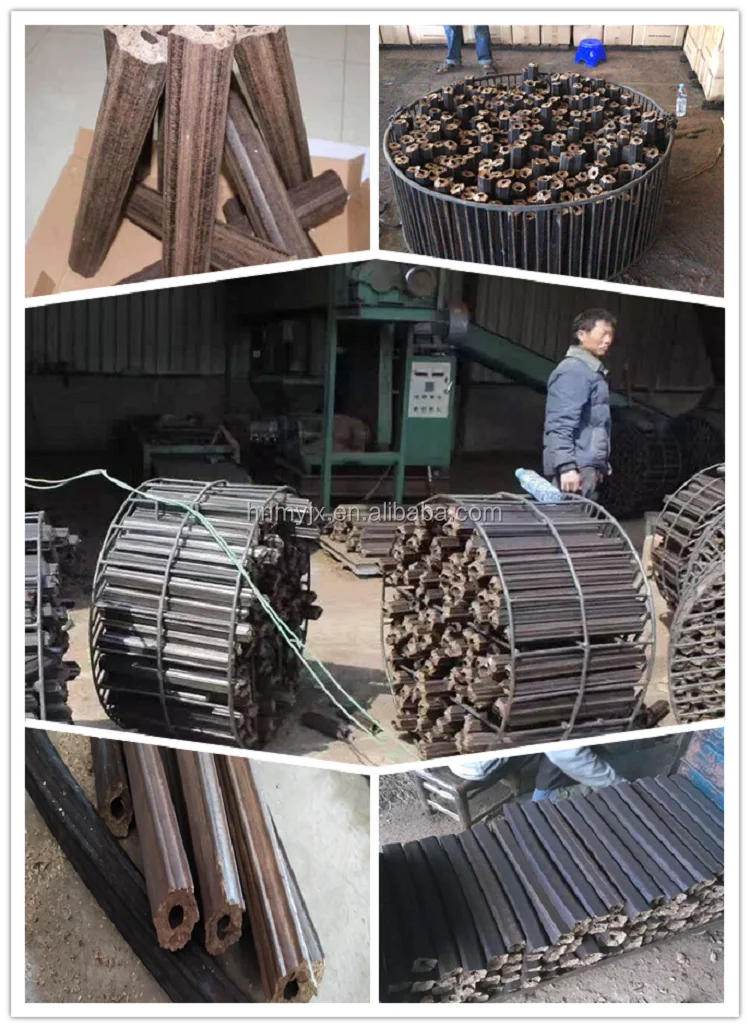

The briquette packing machine is widely used for pressing briquettes with agricultural and industrial wastes, such as sawdust,rice husks, sugar cane trash, coffee husks, coir pith, sugarcane bagasse, jute sticks, silk cotton pods, groundnut shells,mustardstalks, cotton stalks and corn stalks etc. The charcoal briquettes are featured with long burning time, great firepower,smokeless and odorless, suitable for BBQ, family and industrial use.
Model
Power
Capacity(kg/h)
Weight(t)
Appearance size (mm)
ZBJ50-9
15-18.5kw
150-220kg/h
0.55t
2200*600*1300
ZBJ50-C
22kw
350-420kg/h
0.75t
2700*700*1550
ZBJ60-9
15-18.5kw
220-250kg/h
0.65t
2400*700*1350
ZBJ70-9
18.5-22kw
280-340kg/h
0.78t
2400*700*1400
ZBJ80-9
22kw
320-360kg/h
0.85t
2400*700*140
Working principle

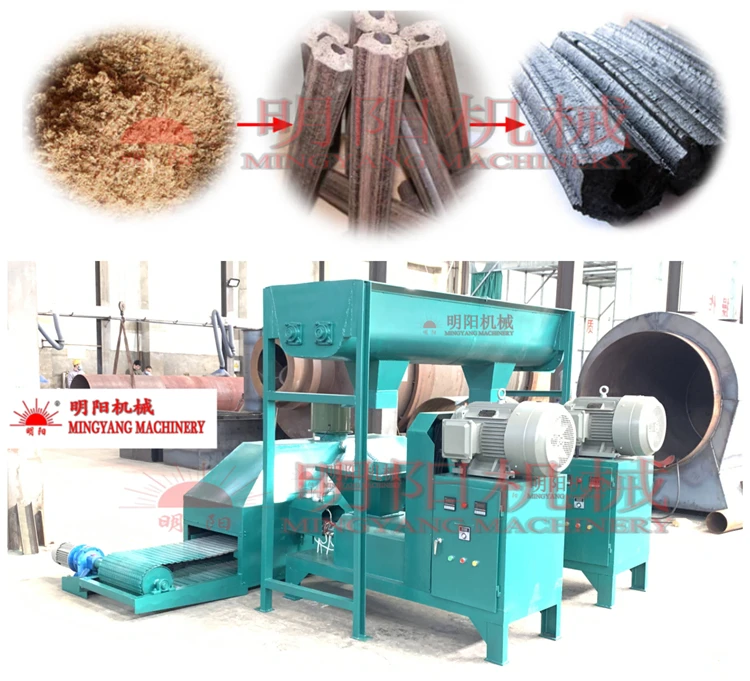

This machine is the main equipment to make stick solid fuel with such wood raw material as bits of wood,rice shell or peanuts shell,etc. The raw material dried by the dryer will be formed into fuel under high pressure and at high temperature without any additive.

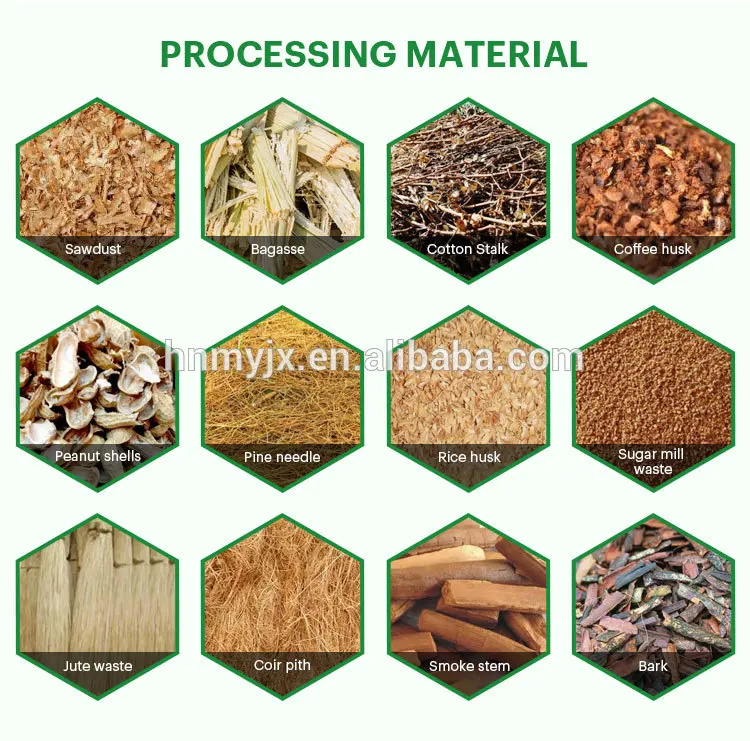

Raw material:
Almost any biomass can be briquetted,then carbonized Briquetting plants set so far are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust.These material can also be briquetted individually or in combination without using any binder.
Manufacture Specification
Spare Parts
Propeller:advanced design,high speed of producing rod ,high density,high resistance to wear.
Cylinder: special casting steel, inner barrel boron treatment,multi shape available
Heating Rings:To heat the cylinder,

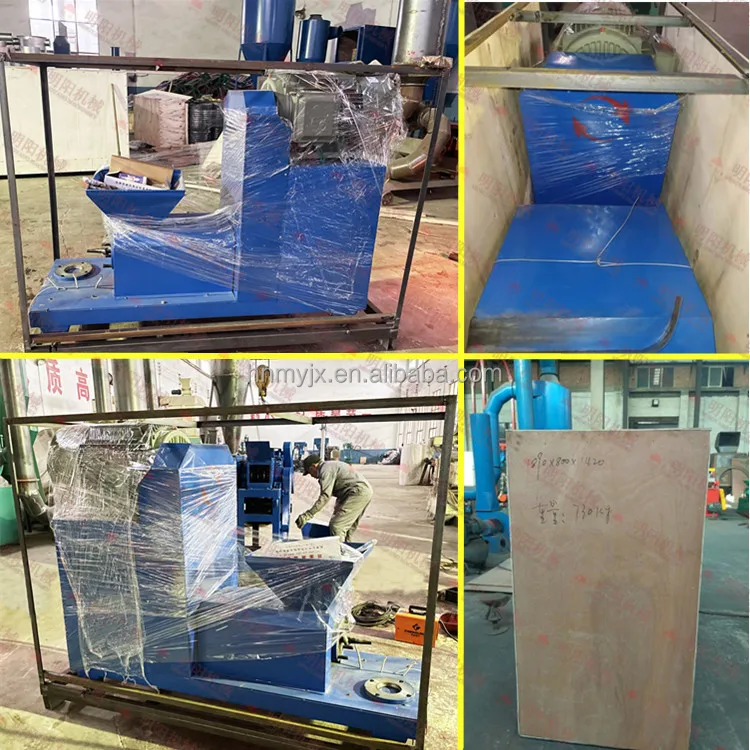

For Packing, we use iron base and iron frame to protect the machine.
Best Selling

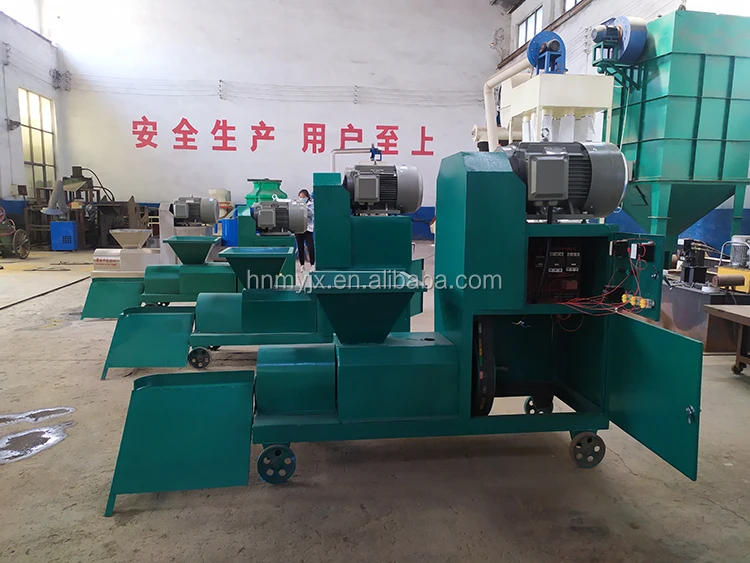

Detailed Images

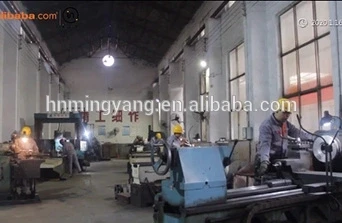

Company Introduction
Gongyi Xiaoyi MingYang Machinery Plant which was founded in 1988, is a manufacture of new energy-saving environmental protection equipment. In the thirty years of development, our factory brings together elte of this field, and use professional technics to build the equipment. "Ming Yang Machinery" from a single charcoal machine and equipment to production equipment series, with three series of more than 30 machinery products. Have exported to britain, Russia, Sweden, Malaysia, Indonesia,Vietnam and other countries, more than 30 countries and regions. Gongyi MingYang Machinery warmly welcome new and regular customers to visit and guidance.
